Metallic - non-metallic character trends: Worked examples

This page is the stress-test of the parent topic. The parent told you why metallic character rises down-left and falls to the right. Here we throw every kind of question at that rule — same period, same group, diagonal comparisons, the tricky exceptions, a real-world scenario, and an exam twist — and solve each from first principles.

Before we start, one reminder of the only two dials we ever turn:

Recall The two master controls (from the parent note)

> Which two atomic quantities decide metallic character? ::: Effective nuclear charge $Z_{\text{eff}}$ and the atomic radius $r$. > The single force that combines them? ::: $F \propto \frac{Z _{eff}}{r ^{2}}$ — the pull on the outermost electron. Weak pull ⇒ metallic. Strong pull ⇒ non-metallic.

Every symbol we use is already earned in the parent note; if you meet one you don't recognise, read the parent first.

The scenario matrix

Think of every possible question on this topic as a cell in a grid. If we solve one example per cell, no exam can surprise you. Here is the full grid — the "quadrants" of this subject.

Cell	Case class	What makes it tricky	Example
A	Same period, two neighbours	Both dials ( $Z_{eff} ↑$ , $r ↓$ ) push the same way	Ex 1
B	Same group, top vs bottom	$r$ dominates; $Z_{eff}$ barely moves	Ex 2
C	Diagonal (period and group differ)	The two dials fight — which wins?	Ex 3
D	Degenerate input: noble gas	Rule seems to say "most non-metallic" but it's excluded	Ex 4
E	Limiting/edge: the actual champions (Cs vs Fr)	Down-a-group rule vs a real exception	Ex 5
F	Chemical proof via oxides	Turn a physical trend into a lab test	Ex 6
G	Real-world word problem	Strip physics out of a story	Ex 7
H	Exam twist: rank a mixed set	Combine A + B + C in one ordering	Ex 8

We now hit each cell in order.

Cell A — Same period, two neighbours

Worked example Ex 1 · Al vs Cl (both in Period 3)

Forecast (guess first!): Aluminium and chlorine sit in the same row. Which one loses electrons more easily — which is more metallic?

Steps:

List positions. Al is Group 13, Cl is Group 17 — Cl is four boxes to the right of Al. Why this step? Position on the table is the physics; left–right tells us the direction both dials move.
Turn the $Z_{eff}$ dial. Going left→right we add protons into the same shell. Same-shell electrons shield poorly, so $Z_{eff}$ rises from Al to Cl. Why this step? Bigger $Z_{eff}$ = stronger grip on the outer electron (see the Effective Nuclear Charge (Zeff) engine).
Turn the $r$ dial. Same shell + stronger pull ⇒ the cloud is squeezed inward, so $r$ shrinks from Al to Cl. Why this step? Smaller $r$ makes $F \propto Z_{eff} / r^{2}$ larger — the grip tightens twice over.
Read the verdict. Both dials tighten the grip on Cl's electrons. So Cl holds electrons hard (even grabs more) → Cl is non-metallic; Al, with the weaker grip, is more metallic.

Verify: Metallic character is the inverse of ionization energy. $I E_{1} (Al) = 578$ kJ/mol, $I E_{1} (Cl) = 1251$ kJ/mol. Al's is far lower ⇒ Al gives up its electron more easily ⇒ Al more metallic. ✅ Matches the forecast.

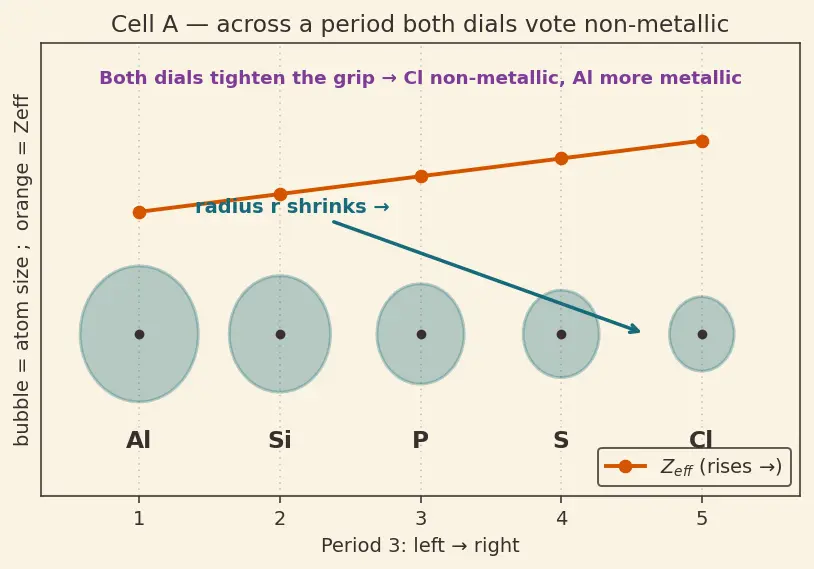

Look at the figure below: as you march right, the arrow for $Z_{eff}$ climbs while the radius bubbles shrink — both "vote" for non-metallic.

Figure — Metallic - non-metallic character trends

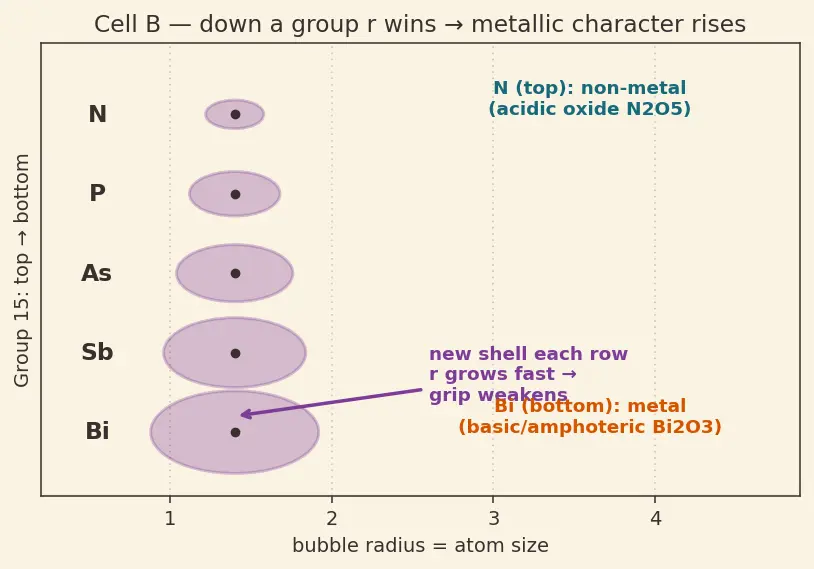

Cell B — Same group, top vs bottom

Worked example Ex 2 · N vs Bi (both in Group 15)

Forecast: Nitrogen (top) is a classic non-metal. Bismuth is at the very bottom of the same group. Is Bi metallic or non-metallic?

Steps:

Count the shells. N uses shell 2; Bi uses shell 6. That is four new shells stacked on top. Why this step? Each new shell is a whole new floor of the atom — the biggest lever on $r$ .
Turn the $r$ dial (hard). Four extra shells make Bi's valence electron sit very far from the nucleus. $r$ increases a lot going down. Why this step? $F \propto 1/ r^{2}$ — doubling $r$ quarters the pull. A far electron is barely held.
Check the $Z_{eff}$ dial (gently). Protons are added too, but each new inner shell shields well, so $Z_{eff}$ creeps up only slightly. Why this step? We must confirm the small $Z_{eff}$ rise cannot overpower the huge $r$ rise — it can't.
Read the verdict. Grip weakens dramatically down the group → the bottom atom loses electrons easily → Bi is metallic (indeed Bi is a poor metal), while N is non-metallic.

Verify: Oxide test (Cell F preview): $N_{2} O_{5}$ is acidic, $B i_{2} O_{3}$ is basic/amphoteric. Basic oxide ⇒ metallic character. ✅ The same group flips from non-metal (top) to metal (bottom) exactly as predicted.

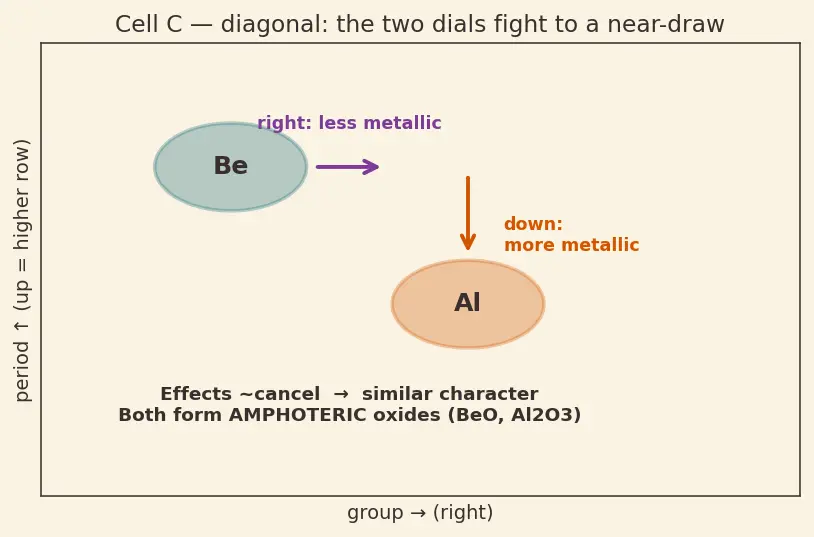

Cell C — Diagonal (the two dials fight)

This is the case students fear, because moving down boosts metallic character while moving right kills it. When we go diagonally, both happen at once — so we must decide which dial wins.

Worked example Ex 3 · Mg vs Al — but with a twist, Be vs Al (the diagonal relationship)

Forecast: Beryllium (Group 2, Period 2) and aluminium (Group 13, Period 3) sit on a diagonal. Going Be→Al we move right (less metallic) and down (more metallic). Which effect wins — are they similar or wildly different?

Steps:

Name the two competing moves. Right by one group: $Z_{eff} ↑$ , $r ↓$ (push toward non-metal). Down by one period: new shell, $r ↑$ (push toward metal). Why this step? You cannot answer a diagonal until you've separated the two opposing pushes.
Estimate who cancels whom. The "right" shrink and the "down" growth in $r$ roughly offset. Net radius change is small. Why this step? $r$ is the dominant term in $F \propto Z_{eff} / r^{2}$ ; if $r$ barely changes, the pull barely changes.
Predict near-equality. With the two effects nearly cancelling, Be and Al have similar metallic character and similar chemistry — the famous diagonal relationship. Why this step? This is the general rule for top-left elements: an element resembles the one diagonally down-right.
Confirm with a property. Both Be and Al form amphoteric oxides ( $B e O$ and $A l_{2} O_{3}$ ) — the "in-between" oxide that reacts with both acids and bases. Why this step? Amphoteric = borderline metallic/non-metallic, exactly what "the dials cancel" predicts.

Verify: $I E_{1} (Be) = 899$ kJ/mol, $I E_{1} (Al) = 578$ kJ/mol. Al's is lower but not by an order of magnitude — they're the same ballpark (compare N at 1402 or Na at 496 to feel the scale). Similar IE ⇒ similar metallic character ⇒ diagonal relationship holds. ✅

Cell D — Degenerate input: the noble gas

Worked example Ex 4 · Is Ne "the most non-metallic" element in Period 2?

Forecast: Neon sits at the far top-right of Period 2 — the corner the parent note calls the non-metallic peak. So is Ne the most non-metallic element? (This is a trap.)

Steps:

Check the electron count. Ne has a full outer shell ( $2 s^{2} 2 p^{6}$ ). Why this step? Our whole axis is about the urge to lose or gain electrons. A full shell removes that urge.
Test "wants to gain?" Adding an electron to full Ne means starting a new shell far out, which the nucleus barely holds → Ne does not want electrons (electron affinity is near zero / unfavourable). Why this step? Non-metallic character = tendency to gain; if that's zero, Ne isn't non-metallic.
Test "wants to lose?" Removing an electron from stable Ne costs a huge $I E_{1} = 2081$ kJ/mol → it won't lose either. Why this step? Metallic character = tendency to lose; also zero. Ne sits off the axis entirely.
Correct the claim. Exclude noble gases. The strongest non-metal in Period 2 (and overall) is fluorine. Why this step? F has high $Z_{eff}$ , small $r$ , and room for one more electron — a real "taker."

Verify: $I E_{1} (Ne) = 2081 > I E_{1} (F) = 1681$ kJ/mol, yet F — not Ne — forms compounds by gaining electrons (fluorides everywhere) while Ne forms essentially none. High IE alone ≠ non-metallic; you must actually take electrons. ✅ Claim "Ne most non-metallic" is false.

Cell E — Limiting/edge case: the actual champions

Worked example Ex 5 · Cs vs Fr — who is

really the most metallic? Forecast: Francium is one row below caesium in Group 1. Naive down-a-group rule says Fr wins. Does it?

Steps:

Apply the plain rule. Fr (Period 7) has one more shell than Cs (Period 6) → larger $r$ → by the rule, more metallic. Why this step? Always state what the clean rule predicts before invoking exceptions.
Add the relativistic correction. In very heavy atoms the innermost, fast-moving electrons behave relativistically, which contracts the $7 s$ orbital of Fr. That pulls Fr's valence electron slightly inward. Why this step? A smaller effective $r$ than expected raises the grip — partly cancelling the "extra shell" gain.
Weigh practicality. Fr is intensely radioactive and exists in trace amounts, so measured values are uncertain. Why this step? Exams award the practical champion, not a theoretical one you can't measure.
State the exam answer. Cs is the practical most-metallic element; know that Fr's relativistic contraction is the subtlety.

Verify: $I E_{1} (Cs) = 376$ kJ/mol — the lowest cleanly measured first ionization energy of any stable element. Lowest IE ⇒ most metallic in practice. ✅ (Fr's value is estimated near $\sim 380$ kJ/mol, not clearly lower.)

Cell F — Chemical proof via oxides

Worked example Ex 6 · Classify

$M g O$ , $A l_{2} O_{3}$ , and $P_{4} O_{10}$ across Period 3 Forecast: Three oxides marching rightward across Period 3. Which is basic, which amphoteric, which acidic?

Steps:

Rank metallic character by position. Mg (left) > Al (middle) > P (right) in metallic character. Why this step? The oxide nature simply reports the metallic character — a chemical thermometer.
Map metal→basic, non-metal→acidic. A metal's oxide reacts with water to give a base; a non-metal's oxide gives an acid; the borderline gives amphoteric. Why this step? This is the metallic↔basic bridge from the parent note, made quantitative.
Assign each. $M g O$ → basic; $A l_{2} O_{3}$ → amphoteric; $P_{4} O_{10}$ → acidic. Why this step? Al is the diagonal-borderline metal (Cell C), so its oxide is the amphoteric one.
Write a proving reaction for the two extremes. $M g O + H_{2} O \to M g (O H)_{2} (a base)$ $P_{4} O_{10} + 6 H_{2} O \to 4 H_{3} P O_{4} (an acid)$ Why this step? Reactions are the courtroom evidence that the physical trend is real.

Verify: Balance-check the phosphorus reaction. Left: $4 P$ , $10 + 6 = 16 O$ , $12 H$ . Right: $4 H_{3} P O_{4}$ = $4 P$ , $16 O$ , $12 H$ . Atoms balance. ✅ Basic → amphoteric → acidic left-to-right, mirroring metallic → non-metallic. ✅

Cell G — Real-world word problem

Worked example Ex 7 · The "safe storage" puzzle

Statement: A lab has two Group-1 metals, lithium and potassium. One must be stored under oil and reacts explosively with water; the other reacts far more gently. A story problem asks: which metal is stored under oil, and why does its danger connect to metallic character?

Forecast: Guess which one is the violent one before reading on.

Steps:

Translate "reacts with water" into physics. Reacting with water means donating the valence electron to break water apart — i.e. losing an electron, i.e. metallic character. Why this step? The word problem hides the same "tendency to lose electrons" axis.
Compare positions. K (Period 4) is far below Li (Period 2) in Group 1 → larger $r$ , looser grip → more metallic. Why this step? Down-a-group rule (Cell B) directly sets the reactivity order.
Predict violence. More metallic ⇒ gives up its electron more readily ⇒ more violent reaction. So K is the explosive one requiring careful storage; both are kept under oil, but K is the greater hazard. Why this step? Ties the abstract trend to a physical safety consequence.
Sanity-check the direction. If we had swapped Li and Cs, Cs would be even more violent — consistent with Cs being the champion (Cell E).

Verify: $I E_{1} (Li) = 520$ kJ/mol, $I E_{1} (K) = 419$ kJ/mol. K's lower IE ⇒ loses its electron more easily ⇒ more reactive/metallic ⇒ more dangerous. ✅

Cell H — Exam twist: rank a mixed set

Worked example Ex 8 · Arrange in increasing metallic character: Si, Na, S, Cs

Forecast: Four elements from different rows and columns. Try to order them (least → most metallic) before the steps.

Steps:

Place them. Na, Si, S are all Period 3 (Na left, Si middle, S right). Cs is Group 1, Period 6 — the bottom-left region. Why this step? You cannot rank until every element is located on the grid.
Order the Period-3 trio (Cell A logic). Rightward = less metallic ⇒ within Period 3: $S < S i < N a$ . Why this step? Same-period comparison uses the across-period rule directly.
Slot in Cs (Cell B + E logic). Cs is bottom-left — the most-metallic corner — so it beats everything here. Why this step? Down-and-left is the direction of maximum metallic character.
Assemble the full order (least → most metallic): $S < S i < N a < C s$ Why this step? Combine the two sub-orders into one chain.

Verify: Metallic character is inverse to $I E_{1}$ , so metallic order should track decreasing $I E_{1}$ . Values (kJ/mol): $S = 1000$ , $S i = 786$ , $N a = 496$ , $C s = 376$ . Indeed $1000 > 786 > 496 > 376$ , giving $S < S i < N a < C s$ in metallic character. ✅ Exactly our chain.

Active recall

Connections

2.2.08 Metallic - non-metallic character trends (Hinglish) — the parent trend this page stress-tests.
Effective Nuclear Charge (Zeff) — dial #1 behind every example.
Atomic and Ionic Radii — dial #2, the one that wins diagonals.
Ionization Energy trends — every "Verify" leans on $I E_{1}$ as the inverse of metallic character.
Electronegativity trends — the non-metallic (taker) side of the axis.
Electron Affinity — why noble gases fail the "wants to gain" test (Cell D).
Acidic Basic Amphoteric Oxides — the chemical thermometer used in Cells F and B.
