Visual walkthrough — Metallic - non-metallic character trends

We start from absolute zero. The only thing you need to accept is: atoms are a tiny positive lump (the nucleus) surrounded by electrons, and the outermost electron is the one that decides everything.

---

Step 1 — What "metallic" even means, as a tug-of-war

WHAT. Picture an atom as a hand (the nucleus) holding a balloon on a string (its outermost electron).

WHY start here. Before any formula, we need a single mental picture that both "metallic" and "non-metallic" are versions of. That picture is a tug-of-war for one electron.

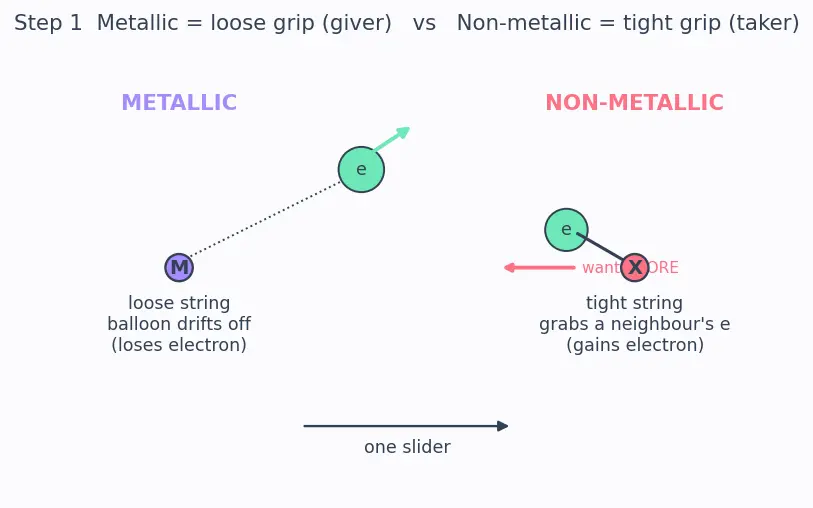

PICTURE. In the figure, the left atom holds its balloon loosely — the string is long and slack, so the balloon drifts off. That atom happily gives its electron away. We call this losing an electron, and an atom that does it easily is metallic. The right atom grips a short, taut string and even reaches for a neighbour's balloon — it wants more electrons. That is non-metallic.

So everything reduces to one question: how strong is the grip?

---

Step 2 — Turning "grip" into a number: the pull force

WHAT. We replace the fuzzy word "grip" with a force we can actually reason about.

WHY this tool and not another. We want a quantity that gets bigger when the electron is held tighter and smaller when it is loose — because that is exactly the metallic/non-metallic slider. Electric attraction between the positive nucleus and the negative electron does exactly this, and physics already gives us its shape (Coulomb's law):

$F\propto \frac{Z_{\text{eff}}}{r^2}$

Let me name every symbol, right where it sits:

• $F$ — the pull the nucleus exerts on the outer electron. Big $F$ = tight grip = non-metallic. Small $F$ = loose grip = metallic.
• $Z_{\text{eff}}$ — the effective nuclear charge: how many "units of positive pull" the outer electron actually feels, after the inner electrons get in the way. (Built in Step 3.)
• $r$ — the distance from the nucleus to that outer electron (the string length).
• $r^2$ — distance is squared, so doubling the string length quarters the pull. Distance matters a LOT.

PICTURE. Two hands pulling the same balloon: the near one (small $r$) yanks hard, the far one (large $r$) barely feels it.

Two knobs control $F$: $Z_{\text{eff}}$ (top) and $r$ (bottom, squared). The rest of the page is just turning these two knobs. Keep in mind (from Step 1) that $F$ is directly the grip on the existing electron; it only approximates the appetite for a new electron.

---

Step 3 — Building $Z_{\text{eff}}$ from scratch (the shielding idea)

WHAT. We unpack the top of the fraction. The outer electron does not feel all the protons — the inner electrons stand between it and the nucleus, cancelling some of the pull.

WHY. If we used the raw proton count $Z$, we would get the trends badly wrong. The outer electron only cares about the net charge peeking through the inner shells.

$Z_{\text{eff}}=Z-S$

Term by term:

• $Z$ — the total number of protons (the full positive charge in the nucleus).
• $S$ — the shielding: how much of that charge the inner electrons block. Think of inner electrons as a crowd standing in front of the nucleus, hiding some of it.
• $Z_{\text{eff}}$ — what's left over that the outer electron actually feels.

PICTURE. The nucleus glows with $Z$ arrows of pull; the inner-shell electrons act as a screen absorbing $S$ of them; only $Z-S$ arrows make it out to the balloon.

For the deeper machinery see Effective Nuclear Charge (Zeff).

---

Step 4 — Walk ACROSS a period (left → right)

WHAT. Move along one row, e.g. Na → Mg → Al → Si → P → S → Cl. Same outer shell the whole way; we just keep adding protons and electrons into that same shell.

WHY it changes the grip. Turn the two knobs:

• $Z_{\text{eff}}$ ↑ — each new proton adds pull; the newly-added same-shell electrons shield it weakly, so the net felt charge climbs.
• $r$ ↓ — that stronger pull drags the whole shell inward, so the atom shrinks. Smaller $r$ → (since it's $r^2$ in the denominator) a big boost to $F$.

Both knobs push the same way — $F$ goes up. Grip tightens across the row.

$\underset{\text{more net pull}}{\underbrace{Z_{\text{eff}}\uparrow }}\text{and}\underset{\text{closer electron}}{\underbrace{r\downarrow }}⟹F\uparrow ⟹\text{harder to lose }{e}^{-}$

Here the little $\uparrow$/$\downarrow$ mean "this quantity rises/falls"; the direction of walking is left-to-right, written $\to$ in the box below.

PICTURE. A shrinking series of atoms, grip-arrows getting fatter, the slider sliding from metallic (left) to non-metallic (right).

---

Step 5 — Walk DOWN a group (top → bottom)

WHAT. Move down one column, e.g. Li → Na → K → Rb → Cs. Each step adds a brand-new outer shell further out.

WHY it changes the grip. Turn the knobs again — but now they fight, and one wins:

• $r$ ↑↑ (big) — a whole new shell sits well outside the old ones. The string gets much longer. Because it's $r^2$, this crushes $F$.
• $Z_{\text{eff}}$ ↑ (tiny) — yes, we added protons, but we also added full inner shells that shield almost all of them. Net pull barely changes.

The huge growth in $r$ wins. $F$ drops. Grip loosens all the way down.

$\underset{\text{far-out shell, wins}}{\underbrace{r\uparrow \uparrow }}\text{beats}\underset{\text{small, well shielded}}{\underbrace{Z_{\text{eff}}\uparrow }}⟹F\downarrow ⟹\text{easy to lose }{e}^{-}$

Again the $\uparrow$/$\downarrow$ label the quantities; the direction of walking is top-to-bottom, written $\downarrow$ in the box below.

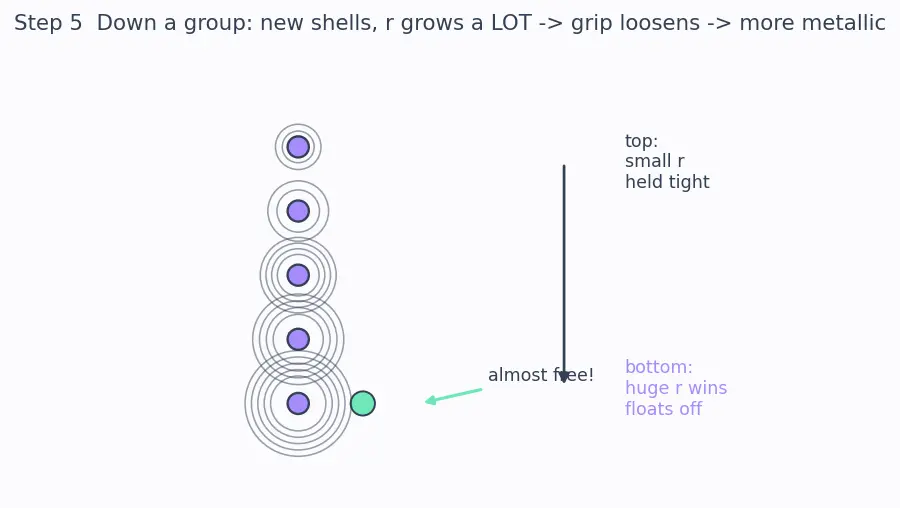

PICTURE. Stacked shells growing outward, the outermost balloon drifting almost free by the time we reach Cs.

---

Step 6 — Combine both walks: the diagonal map

WHAT. Put the two arrows on the same table and see where the extremes land.

WHY. Each single trend is half the story; the combination points to two opposite corners.

• Walking left (movement $\leftarrow$) makes an atom more metallic (Step 4, run backwards).
• Walking down (movement $\downarrow$) makes it more metallic (Step 5).
• So the most metallic atoms sit bottom-left: Cs (and Fr — see the caution below).
• The opposite corner, top-right, is the most non-metallic: F (fluorine). Not the noble gases — they have full shells and refuse to trade at all, so they sit out of the game.

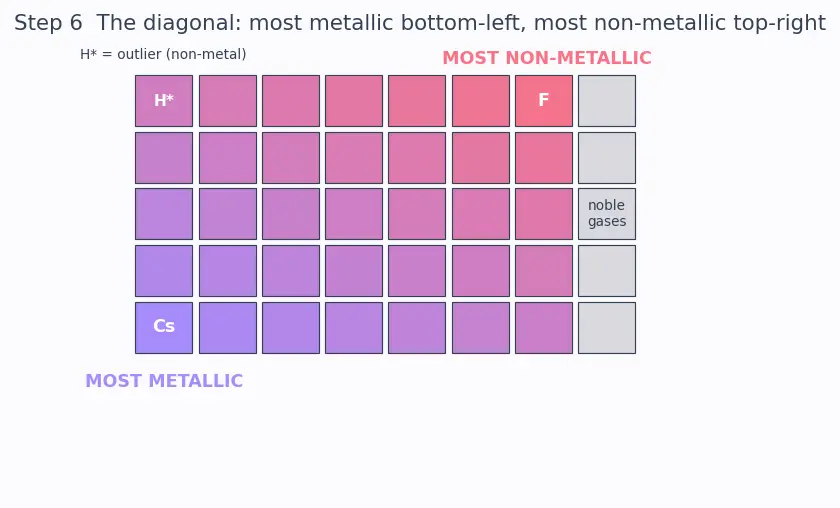

PICTURE. The periodic table as a slanted gradient: deep metallic in the bottom-left, deep non-metallic in the top-right, with the neutral noble-gas column greyed out.

---

Step 7 — The degenerate & edge cases (never leave a gap)

WHAT. Three corners of the reasoning that break the naive rule — cover each.

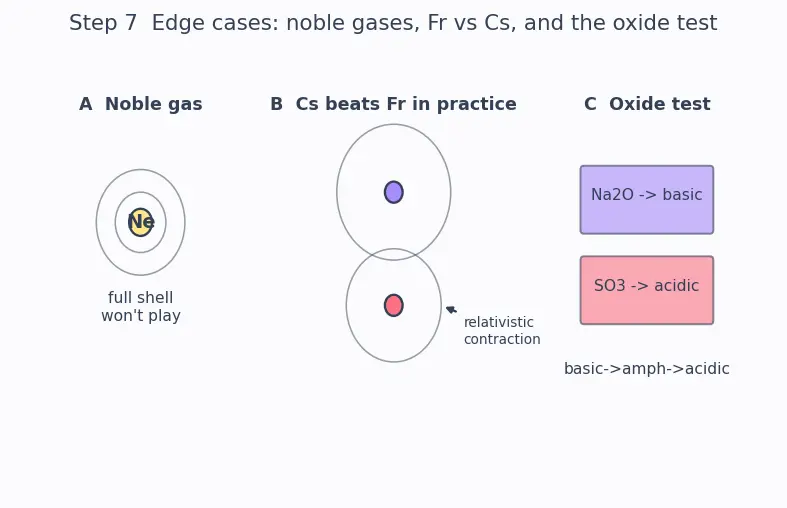

PICTURE. Three mini-panels: noble gases (full shell, refuses), Cs vs Fr (the wrinkle), and the chemical test (oxides).

Case A — Full shell (noble gases). When the outer shell is complete, the atom neither wants to lose ($F$ irrelevant — nothing loosely held to give) nor gain (no room — a new electron would have to start a fresh, far-out shell against electron–electron repulsion). The slider does not apply. That is why the trend "increases across the period" stops just before the last column.

Case B — Fr vs Cs (the bottom-left tip). By Step 5, Fr (one row below Cs) should be even more metallic. But Fr is radioactive and rare, and relativistic effects pull its outer $7s$ electron slightly inward — shrinking $r$ a touch against the trend. So measured values are subtle. For exams: Cs is the practical champion, but know why Fr is nuanced.

Case C — Zero-input check: the chemical proof. How do we test the slider without a lab microscope? Watch what an element's oxide does in water:

$\underset{\text{basic}\Rightarrow \text{Na metallic}}{\underbrace{{\text{Na}}_2\text{O}+{\text{H}}_2\text{O}\to 2\text{NaOH}}}\underset{\text{acidic}\Rightarrow \text{S non-metallic}}{\underbrace{{\text{SO}}_3+{\text{H}}_2\text{O}\to {\text{H}}_2{\text{SO}}_4}}$

Across period 3 the oxides march basic → amphoteric → acidic (Na₂O → Al₂O₃ → SO₃) — a visible mirror of metallic → non-metallic. Details in Acidic Basic Amphoteric Oxides.

---

The one-picture summary

Everything above is one fraction turned by two knobs, mapped onto one diagonal.

$F\propto \frac{Z_{\text{eff}}}{r^2}\{\begin{array}{l}\text{walk }\to \text{(across)}:Z_{\text{eff}}\uparrow ,r\downarrow \Rightarrow F\uparrow \Rightarrow \text{less metallic}\\ \text{walk }\downarrow \text{(down)}:r\uparrow \uparrow \text{ wins}\Rightarrow F\downarrow \Rightarrow \text{more metallic}\end{array}$

(Here $\to$/$\downarrow$ next to "walk" mean direction on the table; the $\uparrow$/$\downarrow$ on $Z_{\text{eff}}$, $r$, $F$ mean the quantity rises/falls.)

Recall Feynman retelling — the whole walk in plain words

Every atom is a kid holding a balloon on a string — the balloon is its outermost electron.

• The kid's grip is a real pulling force, $F=Z_{\text{eff}}/r^2$: how much net positive charge peeks through the inner electrons ($Z_{\text{eff}}$), divided by how long the string is, squared ($r^2$).
• Walk right across a row: you keep adding protons to the same shell, so the grip tightens and the string shortens. The kid clutches harder — even grabs at your balloon. That's becoming a taker (non-metallic).
• Walk down a column: you hand the kid a much longer string (a new outer shell) while barely changing the grip, because inner shells hide the extra protons. Now the balloon floats way out and slips free. That's becoming a giver (metallic).
• Careful with grabbing versus holding: a tight grip on your own balloon (ionization energy) usually goes hand-in-hand with wanting another balloon (electron affinity), but the second one also has to fight the balloons already there (electron–electron repulsion) and needs an empty spot in the shell — so they are cousins, not twins.
• So the loosest-grip giver lives bottom-left (Cs) and the tightest-grip taker lives top-right (fluorine) — with the noble gases sitting out because their shells are full, and hydrogen breaking the top-left rule because its single, unshielded electron is held far too tightly to be metallic. One fraction, two knobs, one diagonal. That's the entire chapter.

---

Connections

• Effective Nuclear Charge (Zeff) — the top of the master fraction.
• Atomic and Ionic Radii — the bottom of the master fraction ($r^2$).
• Ionization Energy trends — the direct measurement of "grip on the outer electron".
• Electronegativity trends — the taker-side of the slider.
• Electron Affinity — the extra-electron physics (repulsion + shell room) behind the non-metallic side.
• Acidic Basic Amphoteric Oxides — the chemical proof in Step 7.
