Foundations — Ionic radius — cation - parent atom, anion - parent atom; isoelectronic series

Before you can read the parent note, you must be able to see every piece of vocabulary it throws at you. This page assumes nothing. We build each symbol from a plain-words meaning, tie it to a picture, and say exactly why the topic needs it — in an order where each idea leans on the one before.

1. The atom as a picture: nucleus + electron cloud

Plain words. An atom is a tiny dense lump in the middle (the nucleus) surrounded by a fuzzy cloud of much lighter particles (electrons). The nucleus is positively charged; each electron is negatively charged. Opposite charges attract, so the nucleus holds the electrons around it.

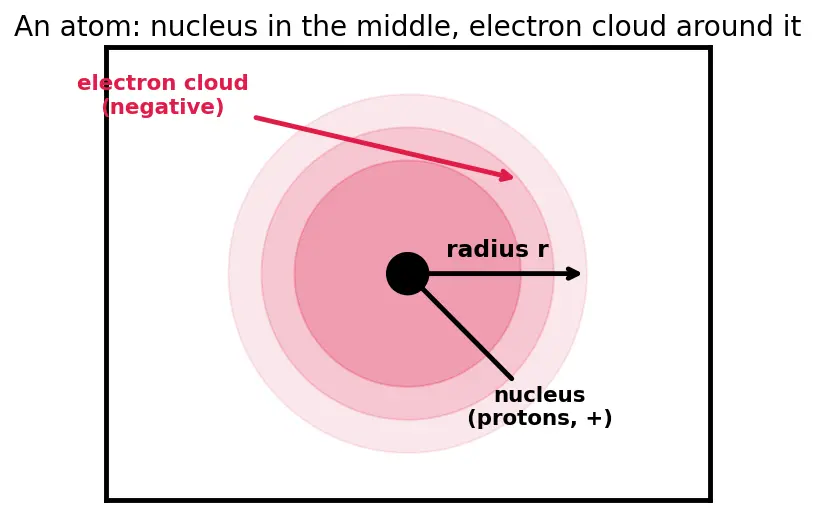

The picture. Think of a single bright dot with a soft cloud around it.

Why the topic needs it. "Radius" is a distance measured from the nucleus out to the edge of the cloud. If you cannot picture nucleus-in-the-middle and cloud-around-it, the word "radius" has nothing to attach to.

2. $Z$ — the proton count (the strength of the pull)

Plain words. $Z$ is simply how many protons are in the nucleus. It is also called the atomic number — it is what makes an element that element (7 protons = nitrogen, always).

The picture. More protons = a "stronger magnet" at the centre. On our cloud picture, bigger $Z$ means a harder inward tug on every electron.

Why the topic needs it. In the parent note, the entire isoelectronic rule is "more protons ⇒ smaller." That whole argument is a statement about $Z$. Also crucial: when you make an ion, $Z$ does not change. You only add or remove electrons. The proton count is frozen. Keep this pinned.

3. Electron count vs proton count → the idea of a charge

Plain words. A neutral atom has equal protons and electrons, so the charges cancel to zero. Remove electrons and the protons "win" → net positive. Add electrons → the electrons "win" → net negative.

The picture. A balance scale: protons on one pan, electrons on the other. Equal = neutral. Tip either way = an ion.

Reading the superscript. In ${\text{Al}}^{3+}$, the little $3+$ means "three more protons than electrons" (lost 3 electrons). In ${\text{O}}^{2-}$, the $2-$ means "two more electrons than protons" (gained 2).

Why the topic needs it. The entire topic is literally cation vs parent and anion vs parent. If cation/anion are fuzzy, everything downstream is fuzzy.

4. Shells — why electrons live in layers, not a single blob

Plain words. Electrons don't all sit at the same distance. They stack in shells — layers, like the layers of an onion. We label them by a whole number $n=1,2,3,\dots$ where $n=1$ is closest to the nucleus and larger $n$ is farther out.

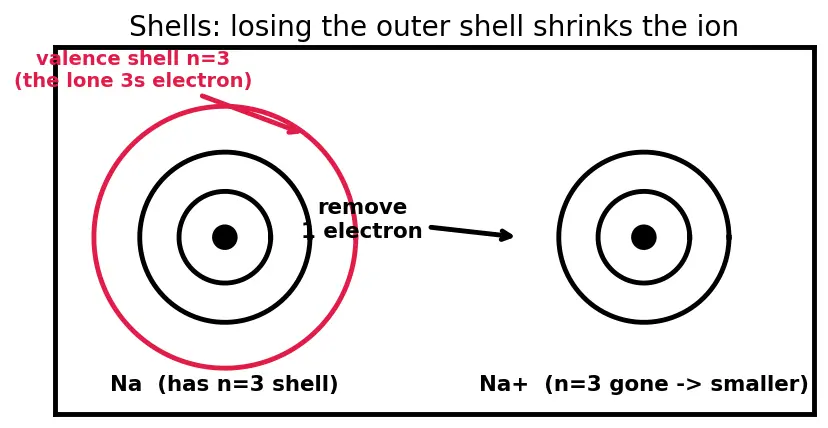

The picture. Concentric rings around the nucleus. The outermost occupied ring is the valence shell — the "surface" of the atom, and therefore the thing that sets the radius.

Configuration notation. The parent note writes things like $\text{Na}=[\text{Ne}]3s^1$. Read it as: "sodium's electrons are a neon core plus one electron in the $3s$ sub-layer." The letters $s,p$ label sub-shapes within a shell; you only need to know that $3s^1$ sits in the $n=3$ shell.

Why the topic needs it. The single biggest reason ${\text{Na}}^{+}$ is half the size of Na: removing that lone $3s^1$ electron deletes the entire $n=3$ shell. The atom shrinks to its $n=2$ core ($[\text{Ne}]$). Radius change is dominated by whether a whole shell appears or disappears.

5. Shielding $S$ — electrons block each other from the pull

Plain words. An outer electron does not feel the full force of all the protons, because the inner electrons sit between it and the nucleus and partly cancel the pull. This blocking is called shielding (or screening). We give it a symbol $S$ = "how much of the nuclear pull gets cancelled."

The picture. Imagine standing far from a bright lamp with people crowding in front of you: you feel less light. Inner electrons are the crowd; the outer electron is you.

Why the topic needs it. More electrons generally means more shielding. So adding an electron doesn't just add repulsion — it also raises $S$, weakening the grip on everyone. This is why anions swell.

6. $Z_{\text{eff}}$ — the net pull, the master variable

Now we can combine §2 and §5.

Plain words. An electron doesn't feel the full $Z$ protons; it feels $Z$ minus whatever the other electrons shield. That leftover effective pull is $Z_{\text{eff}}$.

Why this combination and not $Z$ alone? Because size responds to the pull an electron actually feels, not the raw proton count. Two effects fold into one number:

• Higher $Z_{\text{eff}}$ ⇒ tighter grip ⇒ smaller radius.
• Lower $Z_{\text{eff}}$ ⇒ looser grip ⇒ larger radius.

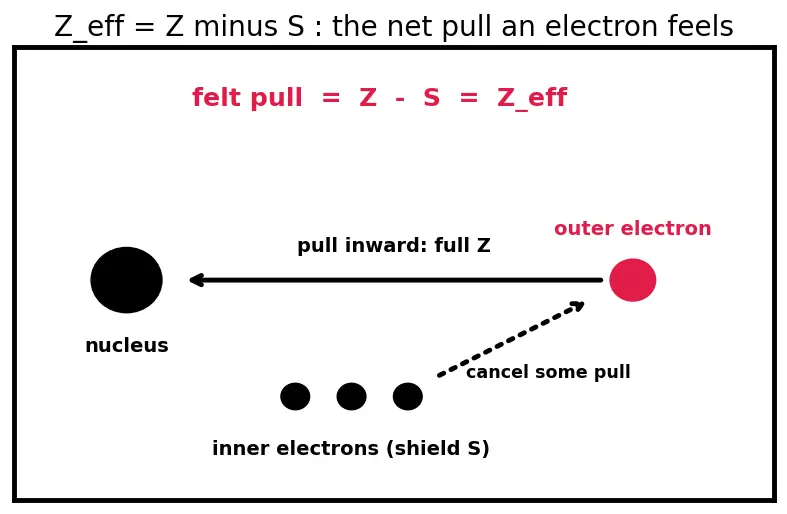

The picture. A vector tug: the nucleus pulls with $Z$, the inner crowd pushes back with $S$, and the electron ends up feeling the difference.

7. Radius $r$ and its unit, the picometre (pm)

Plain words. $r$ is the distance from the nucleus to the edge of the electron cloud — the "size" of the atom or ion. We measure it in picometres.

Why the topic needs it. Every worked example ($186$ vs $102$, $99$ vs $181$) is a comparison of these lengths. You don't memorize the numbers — you read the direction (bigger/smaller) and check it against $Z_{\text{eff}}$.

8. Isoelectronic — "same electron count"

Plain words. "Iso-" means same. Isoelectronic species have the same number of electrons (and usually the same shell arrangement). They are different elements, but their electron clouds are built the same way.

The picture. The same crowd of 10 people, standing in the same rings — but with a different-strength magnet at the centre each time.

Why the topic needs it. This is the setup that isolates $Z$. With electron count (and hence $S$) held fixed, size is decided by protons alone — the cleanest possible test of "$Z_{\text{eff}}\propto Z$."

Prerequisite map

Everything funnels into $Z_{\text{eff}}$ and the radius $r$, and those two decide the trends. For the deeper story of each feeder, see Effective Nuclear Charge (Z_eff), Shielding and Penetration, and the neutral baseline in Atomic Radius Trends. This page is the launchpad for the parent topic.
