Electronic configuration of elements (Z = 1 to 30) — exceptions Cr, Cu: Foundations

Before you can fill seats, you must know what the labels mean. This page defines — from absolute zero — every symbol the parent note uses, in the order they build on each other. Nothing here assumes you have seen chemistry before.

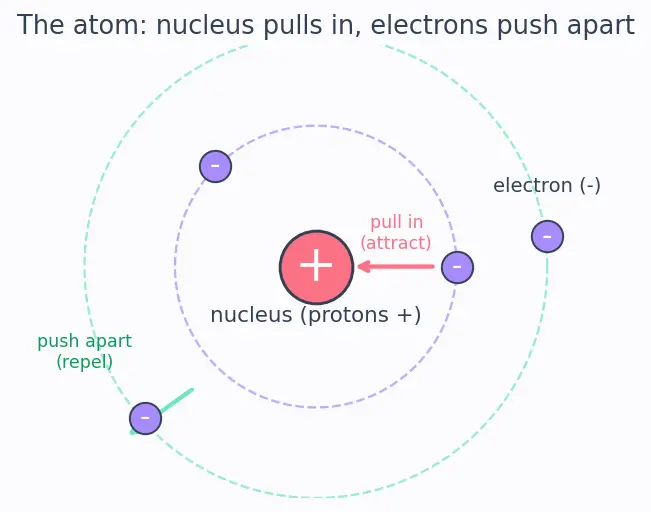

1. The atom picture we are working with

Figure — Electronic configuration of elements (Z = 1 to 30) — exceptions Cr, Cu

WHY we start here: every symbol below is just a way of labelling where an electron sits and how expensive that spot is. You cannot label a seat until you can see the room.

2. $Z$ — the atomic number

The parent builds elements from $Z = 1$ (Hydrogen, 1 electron) to $Z = 30$ (Zinc, 30 electrons). So $Z$ is simply how many electrons this puzzle gives you.

3. Quantum numbers — the address of a seat

An electron's seat is not "at position $(x, y, z)$ ". Instead each seat carries an address made of four labels. These come from Quantum numbers (n, l, m, s). We need each one before we can read a configuration.

3.1 $n$ — the principal quantum number (which shell)

WHY the topic needs it: energy grows with distance, so $n$ is the first thing that decides how expensive a seat is.

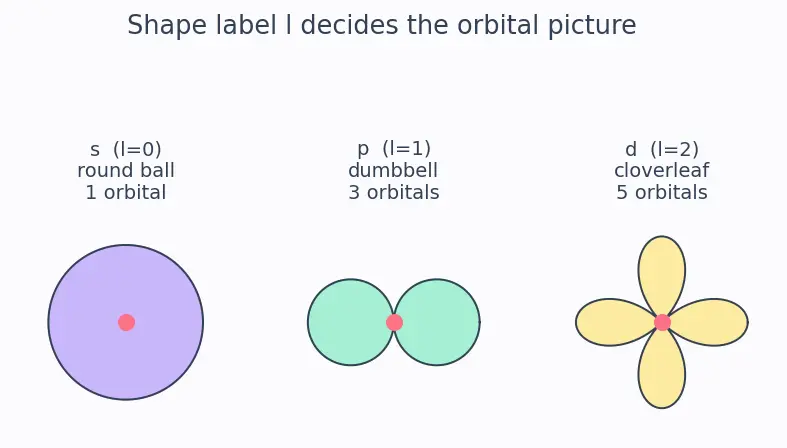

3.2 $l$ — the azimuthal quantum number (shape of the seat)

Definition

$l$ — subshell / shape Within a floor, seats come in different shapes. The shape label is $l = 0, 1, 2, \dots$ up to $n - 1$ . Each value has a nickname:

$l$	name	shape picture
0	$s$	round ball
1	$p$	dumbbell (2 lobes)
2	$d$	cloverleaf (4 lobes)

WHY the topic needs it: shape decides how much of the electron cloud dives close to the nucleus (Shielding and penetration effect). A round $s$ shape penetrates near the nucleus and is cheaper; a spread-out $d$ shape feels less pull and is pricier. So both $n$ and $l$ raise the price — which is exactly why the parent's $(n + l)$ rule works.

3.3 Naming a subshell: $n l$

3.4 $m$ — the magnetic quantum number (which orientation)

WHY the topic needs it: Hund's rule (below) talks about spreading electrons across separate orbitals. Those separate orbitals ARE the different $m$ values. Without $m$ you cannot count the 5 $d$ -seats that make $d^{5}$ special for Chromium.

3.5 $s$ — the spin quantum number (which way it spins)

WHY the topic needs it: spin is the fourth label. It is what lets two electrons share one orbital — one up, one down — without having identical addresses.

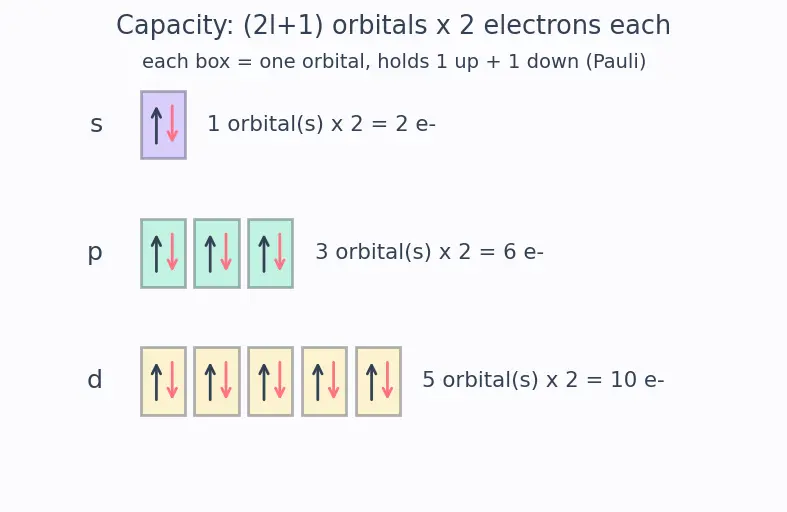

4. Orbital — one seat, its capacity

This is the direct consequence of the Pauli exclusion principle: no two electrons may share all four labels $(n, l, m, s)$ . So per orbital you get two seats, distinguished only by spin.

5. The configuration notation $n l^{x}$

6. Energy and the counting shorthands

6.1 $(n + l)$ — the price tag

The parent's Aufbau principle needs a way to rank seat prices. Since both $n$ (distance) and $l$ (spread-out shape) raise energy, their sum ranks the seats: lower $(n + l)$ = cheaper = filled first; ties broken by lower $n$ . That is the ONE arithmetic tool you must be comfortable with — and it is just addition.

6.2 $(2 k)$ — counting pairs

WHY the topic needs it: the Exchange energy and stability bonus grows with the number of parallel-spin pairs in a subshell. Counting those pairs with $(2 k)$ is exactly how the parent proves Chromium prefers $3 d^{5}$ . It is pure counting — no calculus.

7. How it all feeds the topic

Everything upstream is a label; everything at the bottom is the configuration you actually write.

Equipment checklist

Cover the right side and test yourself. If any answer is fuzzy, re-read that section before doing the main topic.

Z

tells you what number?

The number of protons = number of electrons to place in a neutral atom.

What does

n

physically mean?

The shell / floor — roughly how far the electron sits from the nucleus; bigger

n

= farther = higher energy.

What does

l

label, and its values?

The subshell shape;

l = 0, 1, 2

s

(ball),

p

(dumbbell),

d

(cloverleaf).

How many orbitals in a subshell of quantum number

l

2 l + 1

orbitals, so

s = 1

p = 3

d = 5

What does

m

distinguish?

The orientation of the shape — which specific orbital among the

2 l + 1

What are the two spin values?

+ \frac{1}{2}

(up ↑) and

- \frac{1}{2}

(down ↓).

Maximum electrons in one orbital, and why?

Two, one ↑ and one ↓, because Pauli forbids identical

(n, l, m, s)

Capacities of

s

p

d

2

6

10

electrons.

What does

n l^{x}

mean?

x

electrons in subshell

n l

, e.g.

3 d^{5}

= five electrons in

3 d

Why does

(n + l)

predict energy order?

Both distance (

n

) and spread-out shape (

l

) raise energy, so their sum ranks seat prices; lower fills first, ties broken by lower

n

Compute

(2 5)

\frac{5 \cdot 4}{2} = 10

parallel-spin pairs.

Next: return to the Aufbau filling order and the parent note (Hinglish version) now that every symbol is defined.
