Common elements and their symbols (first 30): Visual walkthrough

Step 1 — What is inside an atom? (the three players)

WHAT. An atom is a tiny ball. In its centre sits a dense clump called the nucleus. The nucleus holds two kinds of particle:

proton — carries a positive charge (we mark it $+$ ),
neutron — carries no charge (we mark it $0$ ).

Around the nucleus, far away compared to its size, buzz electrons (negative, $-$ ). For this walkthrough the electrons only ride along — everything we count lives in the nucleus.

WHY start here. Every quantity we will meet ( $Z$ , $A$ , neutron count) is just counting things in that central clump. If you can see the clump, the algebra later is obvious.

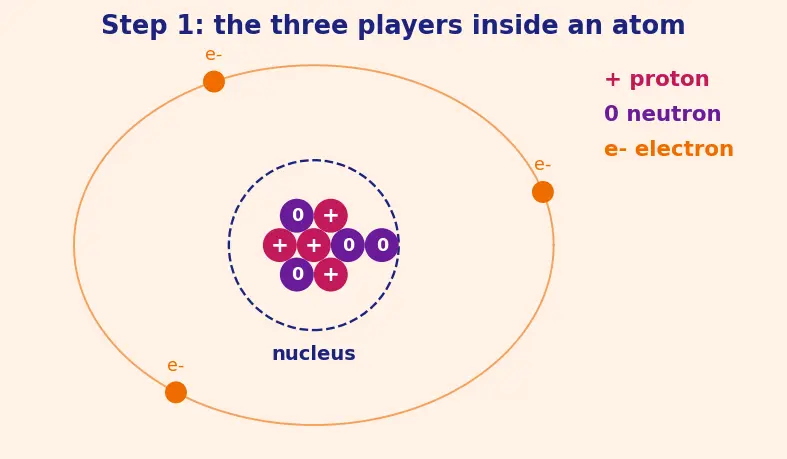

PICTURE. Look at the figure: the red circles ( $+$ ) are protons, the violet circles ( $0$ ) are neutrons, packed together in the nucleus; the small orange dots orbiting outside are electrons.

Figure — Common elements and their symbols (first 30)

Step 2 — Counting protons gives the atomic number $Z$

WHAT. Count only the protons in the nucleus. That count is a single number we name the atomic number and write with the letter $Z$ .

$Z = (number of protons)$

Term by term: $Z$ is just a name for the answer to the question "how many red $+$ circles?" — nothing more mysterious.

WHY this number and not another. Because the proton count is what makes an element itself. Add one proton and you have literally become a different element. So $Z$ is the atom's true, unchangeable identity — like a roll number that can never be reassigned. (The parent note's whole ordered list of 30 is really just "line the atoms up by increasing $Z$ ".)

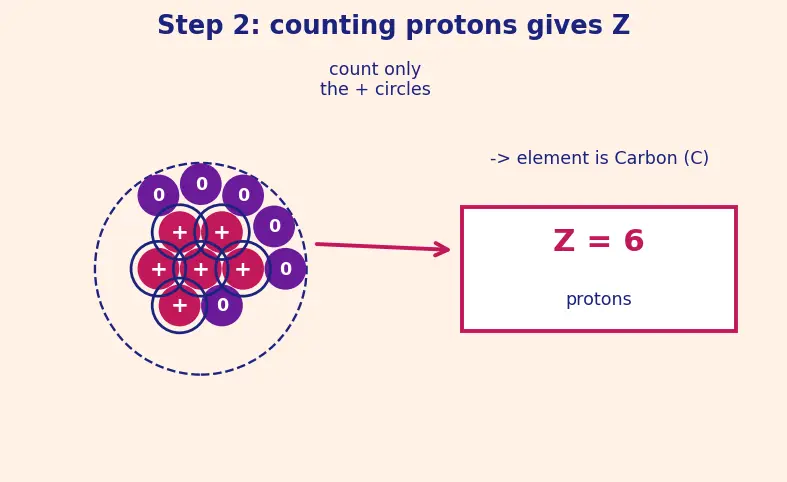

PICTURE. Same nucleus as Step 1, but now only the red protons are circled and tallied. The tally box reads $Z = 6$ — six protons — so this atom is Carbon (C).

Step 3 — The symbol is a nickname pinned to $Z$

WHAT. Instead of writing "the element with six protons" we pin a short badge to that roll number. Six protons $\to$ badge C (carbon). Twenty protons $\to$ badge Ca (calcium). The badge and $Z$ are two labels for the same atom.

WHY a badge at all. A number alone ( $Z = 8$ ) is fine for a computer, but chemists want to combine atoms into formulas like $H_{2} O$ . Numbers would collide; letters read like words. The badge rule keeps them unambiguous:

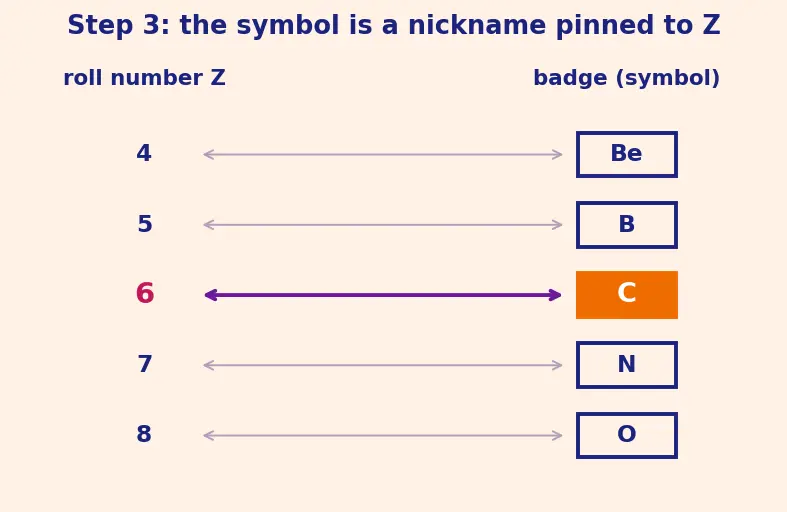

PICTURE. A two-way arrow: the roll-number line ( $\dots 5, 6, 7 \dots$ ) on one side, the badge shelf ( $\dots$ B, C, N $\dots$ ) on the other, with $6 \leftrightarrow C$ highlighted. The badge is just a friendly face for the number.

Step 4 — Neutrons add mass but not identity

WHAT. Now count the neutrons too. Neutrons weigh almost exactly as much as protons, but carry no charge, so they change the atom's weight without changing which element it is.

WHY this matters for a symbol. If we only wrote $Z$ we'd lose the weight information. Two carbon atoms can both have $Z = 6$ yet differ in neutron count — these are isotopes (see Isotopes). To record the weight we need a second number, coming in Step 5.

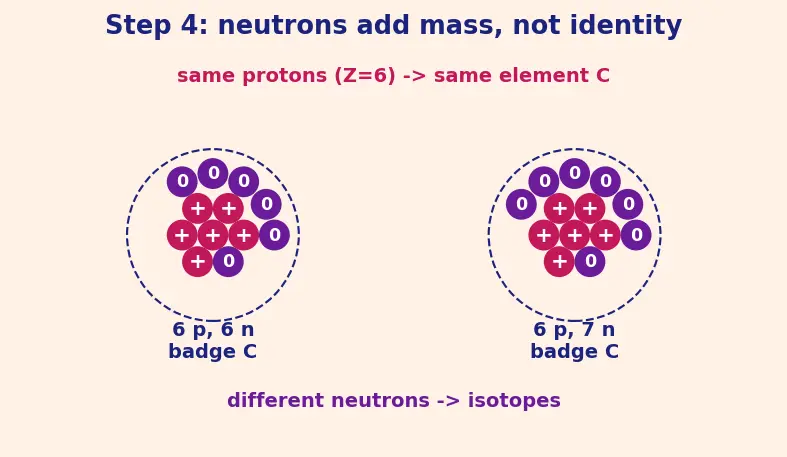

PICTURE. Two carbon nuclei side by side. Both have $6$ red protons (identity fixed → both are C). The left has $6$ neutrons, the right has $7$ . Same badge, different heaviness — that is the whole idea of an isotope in one picture.

Step 5 — The mass number $A$ counts all nucleons

WHAT. Add the protons and neutrons together. Everything inside the nucleus is collectively called a nucleon, and the total is the mass number $A$ :

$A = = Z (protons) + the rest (neutrons)$

Term by term: the first bracket is exactly $Z$ from Step 2; the second bracket is the neutrons we counted in Step 4; their sum is named $A$ .

WHY add them. Because both protons and neutrons carry mass, and roughly the same amount each. So the count of all nucleons is a stand-in for how heavy the atom is. $A$ is a counting number (a plain integer), not the exact laboratory mass — that distinction lives in Atomic Number and Mass Number.

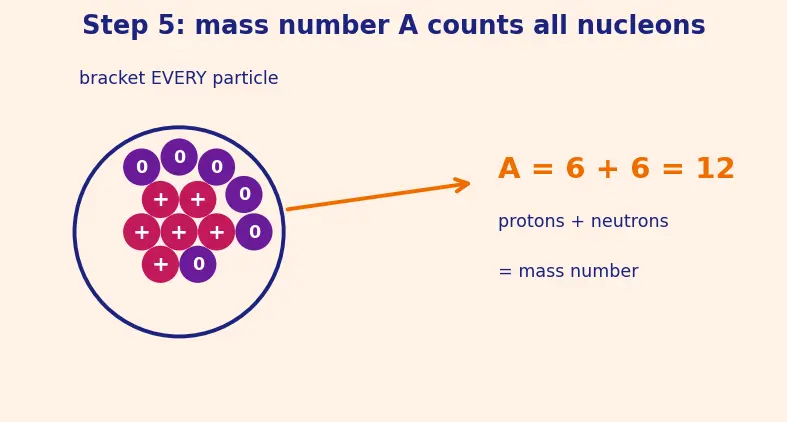

PICTURE. The nucleus with a bracket around every particle: $6$ protons $+$ $6$ neutrons, and the running total ticking up to $A = 12$ .

Step 6 — Solve for the hidden neutrons

WHAT. Rearrange Step 5. If $A = Z + (neutrons)$ , then move $Z$ to the other side:

$neutrons = A - Z$

WHY subtract. $A$ is everything in the nucleus; $Z$ is the proton slice of that everything. Take the proton slice away and only neutrons are left. This is why the parent note calls it derived, not memorised — you never store neutron counts, you always subtract.

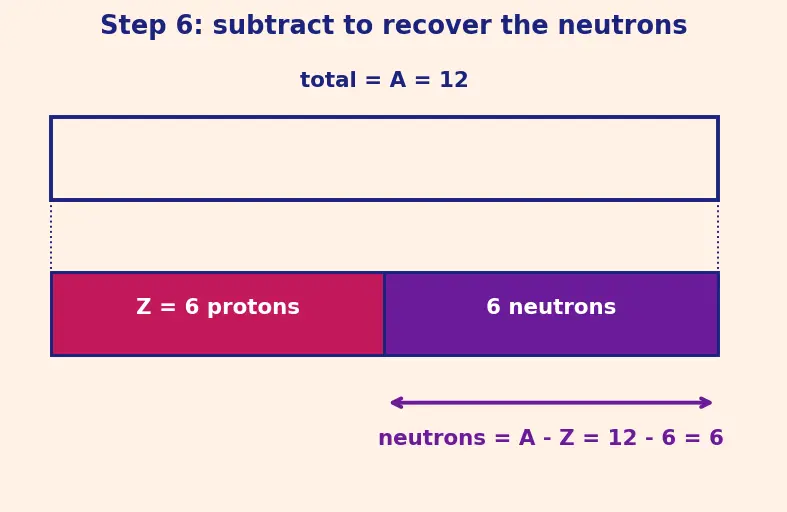

PICTURE. A bar of length $A$ split into a $Z$ -long "protons" piece (red) and a leftover "neutrons" piece (violet). The leftover length is visibly $A - Z$ .

Step 7 — Assemble the full notation $_{Z}^{A} X$

WHAT. Stack all three facts around the badge $X$ :

$one compact label_{Z}^{A} X$

top-left $A$ — mass number (all nucleons),
bottom-left $Z$ — atomic number (protons = identity),
$X$ — the badge/symbol.

Because $X$ already fixes $Z$ (carbon is always $6$ ), the bottom $Z$ is technically redundant — but writing it lets you compute neutrons instantly without a table.

WHY this layout. Read left-to-right: heavy fact on top, identity fact on bottom, name in the middle. One glance gives protons ( $Z$ ), and $A - Z$ gives neutrons.

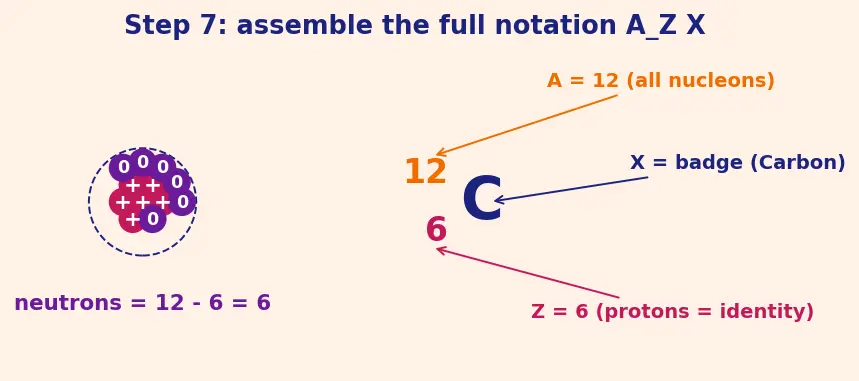

PICTURE. $_{6}^{12} C$ exploded outward with arrows: $A = 12$ pointing to the whole nucleus, $Z = 6$ pointing to the red protons, $C$ pointing to the badge, and a caption "neutrons $= 12 - 6 = 6$ ".

Step 8 — Every case, including the strange ones

The formula $neutrons = A - Z$ must survive all inputs. Walk them:

Case	Example	What happens	Is it valid?
Normal	$_{20}^{40} Ca$	$40 - 20 = 20$ neutrons	✓
$A = Z$ (zero neutrons)	$_{1}^{1} H$	$1 - 1 = 0$ neutrons	✓ — ordinary hydrogen genuinely has no neutron
Latin badge	$_{26}^{56} Fe$	Badge Fe ≠ "Ir"; $56 - 26 = 30$	✓ — badge from Ferrum, not English
Same badge, different $A$	$_{6}^{12} C$ vs $_{6}^{14} C$	$Z$ fixed at 6; neutrons $6$ vs $8$	✓ — isotopes
$A < Z$	e.g. write $A = 5, Z = 6$	would give $- 1$ neutrons	✗ impossible — you can't have fewer nucleons than protons

WHY the last row can never happen. $A$ contains the protons ( $A = Z + neutrons$ , and neutrons $\geq 0$ ), so $A$ is always at least $Z$ . If a question ever gives $A < Z$ , it is a typo, not chemistry.

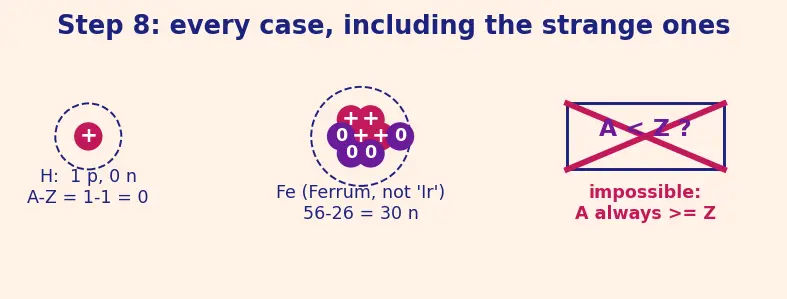

PICTURE. Three mini-nuclei: hydrogen (1 proton, 0 neutrons — a lone red dot), Fe with its Latin tag, and a struck-through impossible nucleus where the neutron bar has gone negative.

The one-picture summary

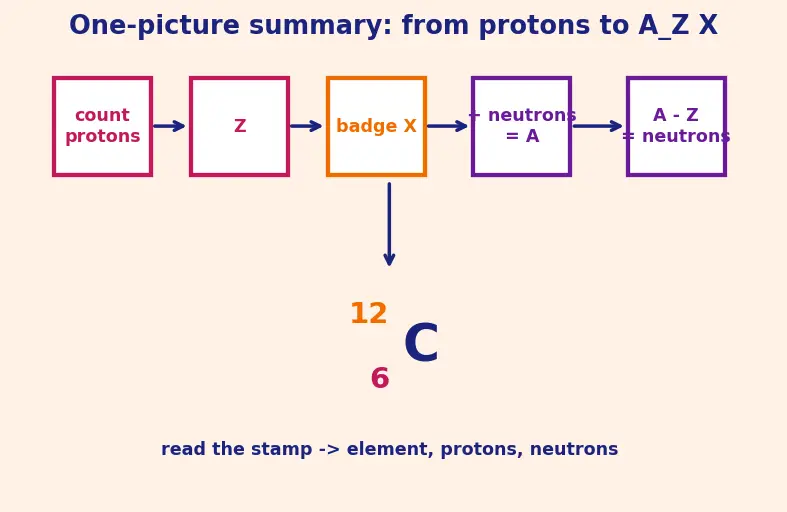

This single figure chains the whole walkthrough: count protons → $Z$ → badge → add neutrons → $A$ → subtract to recover neutrons → stack into $_{Z}^{A} X$ .

Recall Feynman retelling — say it to a 12-year-old

Picture an atom as a bag of marbles. Red marbles are protons, purple ones are neutrons. First, count only the red marbles — that number is the atom's roll number $Z$ , and it decides which element it is (six red = carbon, no exceptions). We hand each roll number a short badge: C, Ca, Fe. Then we count all the marbles together — red plus purple — and call that total $A$ , the weight tag. Since we already know how many were red ( $Z$ ), the purple ones are just "total minus red", $A - Z$ . Finally we write it all in one neat stamp: the weight $A$ on top, the roll number $Z$ on the bottom, the badge in the middle — $_{Z}^{A} X$ . Read the stamp and you instantly know the element, its protons, and (by subtracting) its neutrons. Even zero purple marbles is fine — that's plain hydrogen.

Recall Quick self-test

Neutrons in $_{26}^{56} Fe$ ? ::: $56 - 26 = 30$ . Why can $A$ never be smaller than $Z$ ? ::: Because $A$ includes the $Z$ protons plus neutrons ( $\geq 0$ ), so $A \geq Z$ always. What does the badge alone already tell you? ::: The element and therefore $Z$ (protons) — the bottom subscript is a convenience, not new info.

Connections

Atomic Number and Mass Number — the $Z$ and $A$ we counted here.
Structure of the Atom — where protons, neutrons and electrons live.
Isotopes — same badge, same $Z$ , different $A$ (Step 4).
Valency and Electron Configuration — what the outer electrons do next.
Metals Nonmetals and Metalloids — sorting the badges by behaviour.
