Foundations — Common elements and their symbols (first 30)

Before you can memorise the first 30 symbols, you must be able to read every piece of shorthand the parent note throws at you. This page rebuilds each one from nothing — plain words, then a picture, then why the topic needs it. Read top to bottom; each item leans on the one above.

1. The atom — the object everything else describes

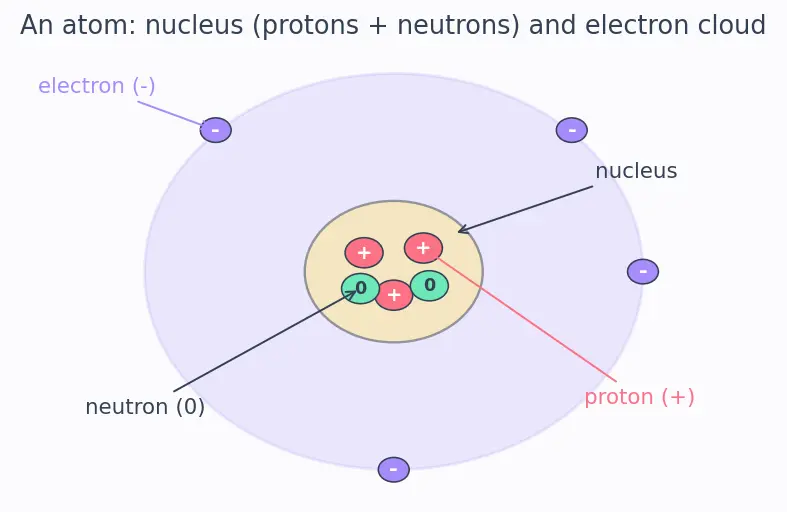

Look at the first figure. The centre dot is the nucleus; the fuzzy shell is where electrons live.

• The nucleus holds two kinds of particle: protons (marked $+$) and neutrons (marked $0$, no charge).
• The electrons ($-$) orbit outside.

Why the topic needs this: the entire periodic table is built by counting the protons in that centre dot. Without a picture of the nucleus, the number $Z$ is just a symbol floating in space. See Structure of the Atom for the full anatomy.

2. Proton, neutron, electron — the three residents

3. Atomic number $Z$ — the roll number

Here is the first piece of notation. The letter $Z$ is not multiplication or an unknown to solve — it is simply a name for a count.

$Z=\text{(number of protons)}$

Read this out loud as "Z equals the number of protons." The equals sign here means "is defined to be" — we are giving a short name to a thing we'd otherwise write in full.

Picture: in the figure above, count the $+$ dots in the centre. That count is $Z$.

Why the topic needs this: the "first 30 in order" is the order $Z=1,2,3,\dots ,30$. If you don't know what $Z$ counts, "in order" has no meaning. More on ordering in Atomic Number and Mass Number.

4. The symbol X — the letter-badge

The rules that make a symbol legal:

1. First letter is always capital.
2. The second letter (if there is one) is always lowercase.

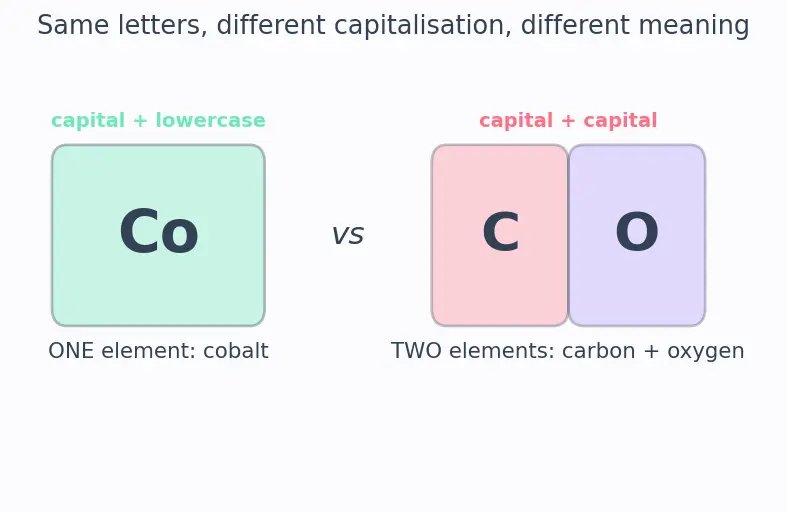

Look at the figure: the left badge Co groups two letters under one element; the right pair CO splits into two separate element boxes. Same letters, different capitalisation, completely different meaning.

Why the topic needs this: the whole exam-trick around "Co vs CO" lives here. Get the badge rule wrong and every formula you read afterwards is ambiguous.

5. Where the letters come from — two sources

Symbols are not random. Each comes from one of two places:

1. From the modern name (English/Latin) → take the first letter(s). Hydrogen → H, Calcium → Ca.
2. From an ancient Latin name → the badge looks unrelated to the English word.

Why the topic needs this: these four break the "guess from English" habit. Knowing why they look strange (they're older than the English names) makes them stick instead of feeling like arbitrary exceptions.

6. Mass number $A$ — total weight-count of the nucleus

The second notation letter is $A$. Like $Z$, it is just a name for a count.

$A=\underset{=Z}{\underbrace{(\text{protons})}}+(\text{neutrons})$

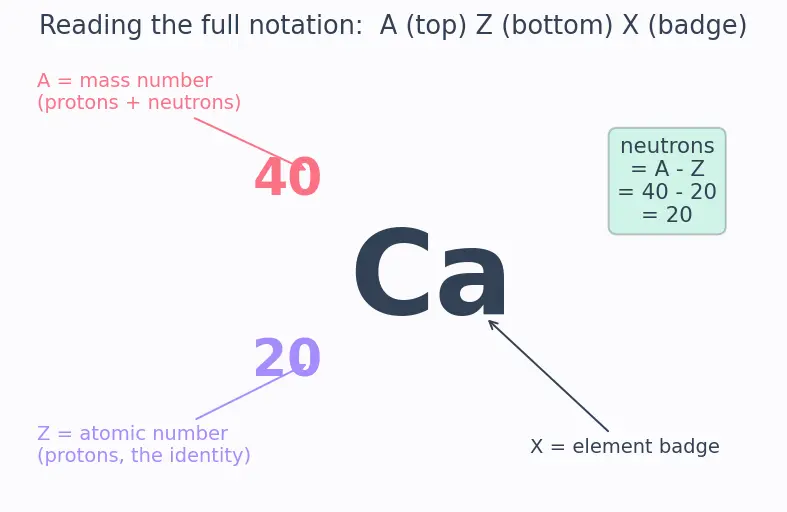

7. The full notation ${}_Z^A\text{X}$ — assembling everything

Now we can read the parent note's headline notation, because every piece has been earned.

Positions matter: top-left is the big total $A$, bottom-left is the identity $Z$. Look at the figure to see each number sitting in its corner.

Why the topic needs this: the "read a symbol correctly" section of the parent depends entirely on knowing which corner is which and why $A-Z$ works.

8. Formulas — symbols joined together

${\text{H}}_2\text{O}=\underset{\text{2 hydrogen atoms}}{\underbrace{{\text{H}}_2}}\underset{\text{1 oxygen atom}}{\underbrace{\text{O}}}$

The small $2$ is a subscript — it multiplies only the symbol right before it. No subscript means "one."

Why the topic needs this: the parent's opening promise is that once you know the badges, "formulas become readable text." That reading is only possible after §4 (badges) and this subscript rule combine.

Prerequisite map

Equipment checklist

Check yourself — read the left, answer before revealing.

Connections

• Structure of the Atom — full detail of nucleus and electron cloud.
• Atomic Number and Mass Number — how $Z$ and $A$ order and label atoms.
• Isotopes — same $Z$, different $A$: why we needed $A$ at all.
• Metals Nonmetals and Metalloids — what the ordered elements turn into.
• Valency and Electron Configuration — how electrons (from §2) drive bonding.
