Metals, non-metals, metalloids — properties: Visual walkthrough

Step 1 — What is an atom, really? (the picture we reason from)

WHAT. Before any chemistry word, look at a single atom as a picture: a tiny heavy centre (the nucleus, positively charged) surrounded by lightweight electrons (negatively charged) sitting in shells at different distances.

WHY this picture. Every property we care about is decided by the outermost electron — the one furthest from the centre, held most weakly. If we understand the tug-of-war on that one electron, we understand everything else. So we draw the tug-of-war explicitly.

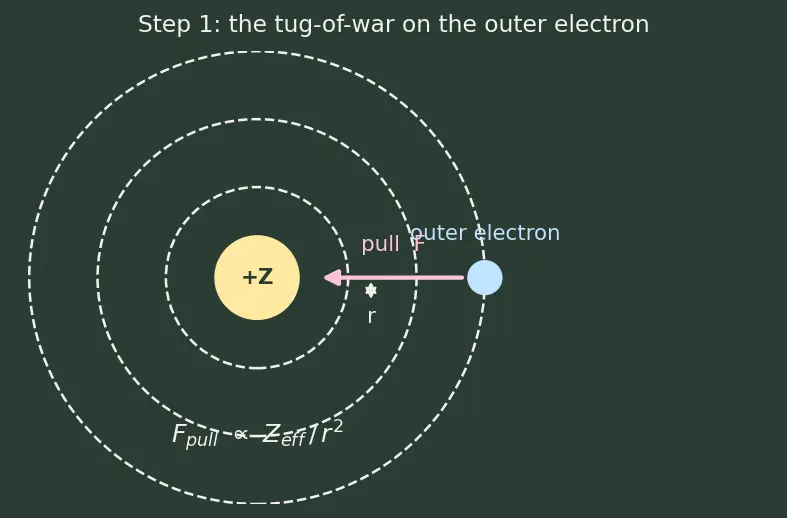

PICTURE. In the figure, the yellow blob is the nucleus with charge $+ Z$ . The blue dot on the outer ring is the outer electron. The pink arrow is the pull the nucleus exerts on it.

Figure — Metals, non-metals, metalloids — properties

The pull follows the same rule as any two charges attracting:

$F_{pull} \propto \frac{Z _{eff}}{r ^{2}}$

$F_{pull}$ — how strongly the outer electron is held. Big $F$ = hard to remove.
$Z_{eff}$ — the effective charge the outer electron actually feels (we unpack this in Step 3).
$r$ — distance from nucleus to that electron. The $r^{2}$ on the bottom means: double the distance, quarter the pull. Distance matters a lot.

We haven't used any special symbol without a picture yet — hold onto $F_{pull}$ , $Z_{eff}$ , and $r$ ; every later step is just these three moving.

Step 2 — Turning "the pull" into a number: Ionisation Energy

WHAT. We give the tug-of-war a measurable name. The energy you must spend to completely rip the outermost electron away from a neutral atom is the ionisation energy, written $IE$ .

WHY this tool and not another. We could talk vaguely about "strong pull," but chemistry needs a number we can compare across the whole table. Ionisation energy is exactly that number — it converts the invisible arrow $F_{pull}$ into joules on a scale. That is why the whole derivation hinges on $IE$ and not on "pull" directly.

PICTURE. The figure shows a ball (the electron) sitting in a valley (the pull holds it). The height of the wall it must climb to escape is $IE$ . A shallow valley = small $IE$ = electron leaves easily.

Step 3 — Why the wall height changes: $Z_{eff}$ and shielding

WHAT. The outer electron does not feel the full nuclear charge $Z$ . Inner electrons sit between it and the nucleus, "blocking" some of the pull. What survives is the effective nuclear charge $Z_{eff}$ .

WHY we need it. If we used raw $Z$ , we'd wrongly predict that heavier atoms always hold electrons tighter. But experiment says caesium (huge $Z$ ) loses its electron super-easily. The resolution is that inner electrons shield. So we must track $Z_{eff}$ , not $Z$ .

PICTURE. The figure shows the nucleus with $+ 11$ , then a cloud of inner electrons partly cancelling it, so the lone outer electron only "sees" about $+ 1$ . The pale-yellow arrows are the full pull; the shorter pink arrow is what actually reaches the outer electron.

$Z_{eff} \approx Z - S$

$Z$ — total protons (full downward pull).
$S$ — the shielding: how much the inner electrons cancel. More inner shells ⇒ bigger $S$ ⇒ weaker net pull.
$Z_{eff}$ — the leftover pull the outer electron truly feels. This is the number that sets the wall height $IE$ .

Two knobs move $Z_{eff}$ and $r$ (from Step 1), and therefore move $IE$ . The next two steps turn each knob.

Step 4 — Knob 1: moving ACROSS a period (left → right)

WHAT. Walk one row of the table left to right. Each step adds one proton to the nucleus and one electron to the same outer shell.

WHY it matters. Same shell means the new electron doesn't add a new blocking layer — $S$ barely changes — but $Z$ keeps climbing. So $Z_{eff}$ rises steadily, the atom is squeezed smaller ( $r$ shrinks), and the pull $\frac{Z _{eff}}{r ^{2}}$ shoots up on both counts.

PICTURE. The figure shows three atoms in a row: Na, Mg, Al. Left to right the nucleus number grows, the atom visibly shrinks, and the escape-wall gets taller.

$across \to Z_{eff} ↑, r ↓ \Rightarrow IE ↑ \Rightarrow metallic character ↓$

$Z_{eff} ↑$ — more net pull (more protons, same shielding).
$r ↓$ — smaller atom, so $r^{2}$ shrinks and pull rises again (see Periodic Trends — Atomic Radius).
Result: wall grows ⇒ harder to lose electron ⇒ less metallic as you go right.

Step 5 — Knob 2: moving DOWN a group (top → bottom)

WHAT. Walk one column top to bottom. Each step adds a whole new shell further out.

WHY it matters. Now the outer electron sits in a shell that is much farther from the nucleus (big $r$ ) and has a fat new layer of inner electrons shielding it (big $S$ , so small $Z_{eff}$ ). Both effects shrink the pull. The escape wall collapses.

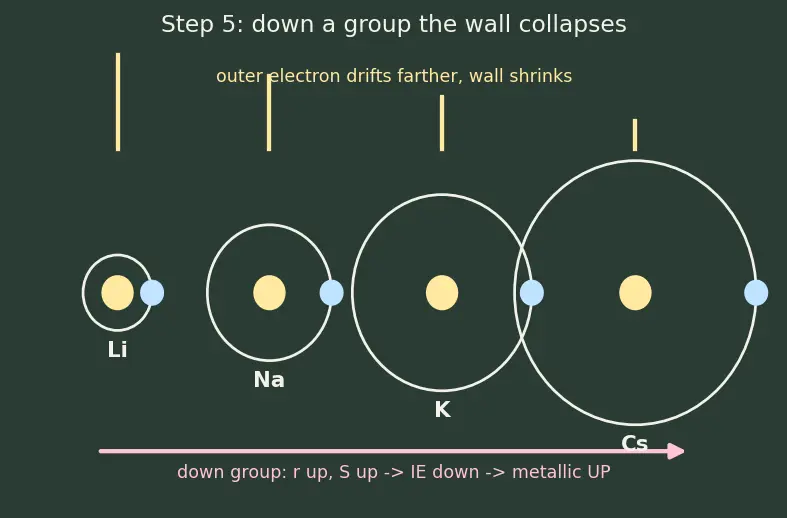

PICTURE. The figure stacks Li, Na, K, Cs as growing rings. The outer blue electron drifts farther out each step, and the wall on the right shrinks each step.

$down ↓ r ↑, S ↑ \Rightarrow Z_{eff} ↓ \Rightarrow IE ↓ \Rightarrow metallic character ↑$

$r ↑$ — new outer shell far away; $\frac{1}{r ^{2}}$ makes pull tiny.
$S ↑$ — extra inner shell cancels more nuclear charge.
Result: low wall ⇒ electron leaves cheaply ⇒ more metallic downward.

Step 6 — What "willing to lose" looks like in bulk: the electron sea

WHAT. Take billions of low- $IE$ atoms and pack them together. Since each barely holds its outer electron, those electrons let go and pool into a shared sea; the atoms become positive ions bathed in it.

WHY this explains the property list. Every "metal property" in the parent note is just this picture in action — we don't memorise them, we read them off the sea.

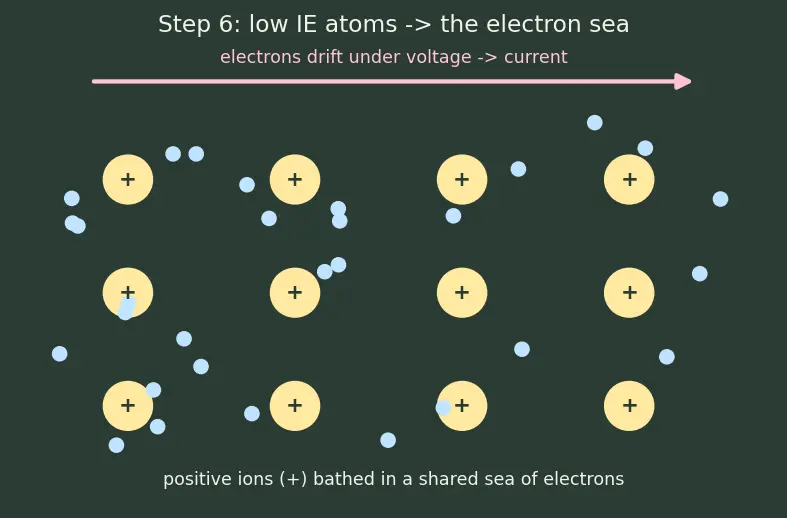

PICTURE. Positive ions (yellow $+$ ) in a grid, blue electrons free-flowing around them; arrows show electrons drifting under a voltage.

Property	Straight from the picture
Conducts electricity	free blue electrons drift under a voltage
Conducts heat	drifting electrons carry energy fast
Malleable/ductile	ion layers slide; the sea re-flows, no bond snaps
Shiny	free electrons absorb & re-emit light
Basic oxides	ions donate electrons → cations → [[Acidic and Basic Oxides

Compare with non-metals (high $IE$ ): electrons are locked into fixed bonds → no sea → insulator, brittle, dull, acidic oxides. Same reasoning, opposite sign. (See Electronegativity for the "grab" side, and Electronic Configuration for how many electrons are given/taken.)

Step 7 — The edge case: metalloids and the "almost-free" electron

WHAT. What if the wall is neither low (metal) nor high (non-metal), but a small hop? Then electrons are almost bound but a nudge of heat or light frees a few. These border elements are metalloids, and this behaviour is what "semiconductor" means.

WHY it needs its own step. A metalloid is not a weak metal — it behaves oppositely to a metal in one key way: heating a metal makes it conduct worse (jiggling ions block the sea), but heating a metalloid makes it conduct better (heat lifts more electrons over the small wall). The picture makes this unmissable.

PICTURE. Left panel: a small energy gap with cold atoms (few electrons above it). Right panel: same gap, warmed — more electrons hop over. Below, two arrows: metal conductivity falling with $T$ , metalloid rising with $T$ .

Step 8 — Degenerate case: when structure overrides the label

WHAT. A non-metal should be an insulator (Step 6). Yet graphite conducts. Does that break the derivation? No — it confirms the real rule.

WHY it fits. Our root cause was never the label "metal/non-metal"; it was always "are there free electrons?" In graphite each carbon bonds to only 3 neighbours, leaving its 4th electron delocalised between layers — a mini electron sea. Free electrons ⇒ conduction, exactly as Step 6 predicts.

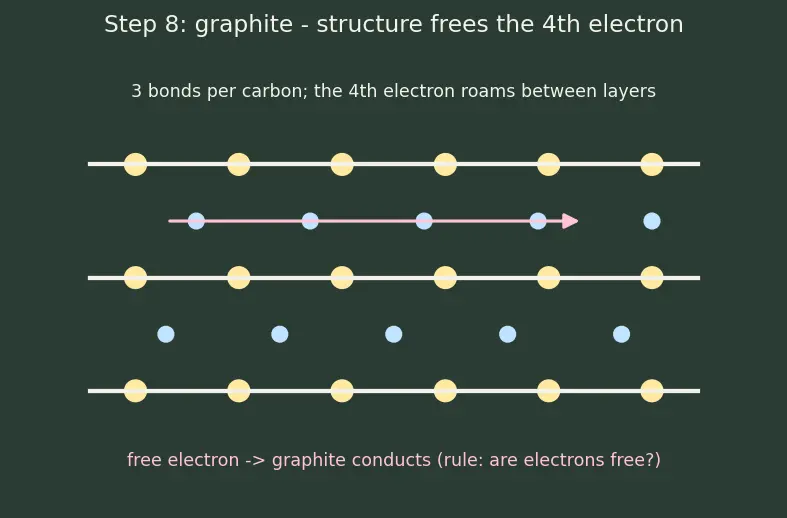

PICTURE. Carbon sheets; three bonds drawn solid, the 4th electron shown as a blue dot roaming between the layers with a drift arrow.

The one-picture summary

This final figure compresses the whole chain: a pull ( $\frac{Z _{eff}}{r ^{2}}$ ) sets a wall height ( $IE$ ), which flips into metallic character ( $\propto 1/ IE$ ), which — as a shared electron sea — produces every bulk property; with the two periodic knobs (across ↓, down ↑) drawn as arrows on a mini table.

Recall Feynman retelling — the whole walkthrough in plain words

Every atom is a kid holding a balloon (the outer electron) on a string tied to its belly-button (the nucleus). The string's tightness is the pull — stronger if the belly-button has more "+" charge and if the balloon is held close. The energy to yank the balloon off is the ionisation energy — the height of a little wall the balloon must climb to escape. Walk right along a row: the belly-button gains charge but the balloon stays on the same short string, so the wall gets taller — kids on the right hoard their balloons (non-metals). Walk down a column: the balloon is tied on a much longer string with more kids blocking the pull, so the wall shrinks — kids at the bottom-left barely hold on (super-metals like caesium). Put a crowd of loose-balloon kids together and the balloons all float into one shared cloud — a sea — so messages (electricity, heat) zip through and the kids can shuffle without dropping anyone (bendable, shiny). Tight-balloon kids form a rigid, message-less, brittle crowd. A few kids hold sort-of loosely — warm them up and a few balloons float free: metalloids, the chip stuff. And a clever trick (graphite) lets even a "tight" kid keep one balloon roaming — reminding us the real question was always "is any balloon free?" One idea — how tightly you hold your balloon — draws the entire periodic table.

Connections

Ionisation Energy — the wall height; the engine of the whole derivation.
Electronegativity — the "grab" mirror for the non-metal side.
Periodic Trends — Atomic Radius — why $r$ (hence pull) changes across/down.
Electronic Configuration — how many electrons are lost or gained.
Acidic and Basic Oxides — the chemical consequence of the split.
Semiconductors and Doping — the technology grown from Step 7.
