Visual walkthrough — Balancing redox equations — ion-electron (half-reaction) method, oxidation-number method

Let me first name the pieces you will see everywhere, in plain words.

---

Step 1 — See the transfer: who gives, who takes

WHAT. Before any algebra, picture the actual event. One iron ion hands electrons across to one permanganate ion. Nothing else happens — the whole reaction is a marble hand-off.

WHY. If you can see the electrons crossing, then "electrons lost = electrons gained" stops being a memorized rule and becomes something obvious: whatever leaves one hand must land in the other, or a marble fell on the floor (impossible — charge is conserved).

PICTURE. The blue side is the giver (reducing agent $\mathrm{F}{\mathrm{e}}^{2+}$); the pink side is the taker (oxidizing agent $\mathrm{Mn}{\mathrm{O}}_4^{-}$). The yellow arrow is the electron flow.

---

Step 2 — Split the story into two halves

WHAT. We cut the reaction into two separate mini-equations: the oxidation half (giving) and the reduction half (taking).

WHY. Trying to balance the full equation at once forces you to juggle atoms and charge and electrons simultaneously. By splitting, each half only worries about its own atoms and its own electron count. We reunite them at the end. This is exactly why the parent calls it the ion–electron method — we track ions and electrons on each side.

PICTURE. Two boxes. Left box: iron climbing from $+2$ to $+3$. Right box: manganese dropping from $+7$ to $+2$.

The two skeleton halves, before any polishing: $\underset{\text{oxidation: charge goes UP}}{\underbrace{\mathrm{F}{\mathrm{e}}^{2+}\to \mathrm{F}{\mathrm{e}}^{3+}}}\underset{\text{reduction: charge goes DOWN}}{\underbrace{\mathrm{Mn}{\mathrm{O}}_4^{-}\to \mathrm{M}{\mathrm{n}}^{2+}}}$

---

Step 3 — The easy half: iron loses one electron

WHAT. Balance the iron half completely. Iron already has one atom on each side, so only charge is unbalanced.

WHY. Left side charge is $+2$; right side is $+3$. To make them equal we must add one $e^{-}$ to the right (the more-positive side). An electron is negative, so putting it on the $+3$ side pulls that side down to $+2$.

PICTURE. A number line of charge: the right side sits one notch too high; one blue electron drags it down to level.

---

Step 4 — The hard half, part 1: fix the oxygen with water

WHAT. Now the permanganate half $\mathrm{Mn}{\mathrm{O}}_4^{-}\to \mathrm{M}{\mathrm{n}}^{2+}$. The manganese count is fine (one each), but the left has 4 oxygen atoms and the right has none.

WHY water? In acidic solution the atom you have unlimited access to for supplying oxygen is water, ${\mathrm{H}}_2\mathrm{O}$ — the solvent is made of it. So we place 4 waters on the oxygen-poor (right) side, one water per missing oxygen.

PICTURE. Four little $\mathrm{O}$ tokens on the left needing a home; four water molecules appear on the right to receive them.

$\mathrm{Mn}{\mathrm{O}}_4^{-}\to \mathrm{M}{\mathrm{n}}^{2+}+\underset{\text{supplies the 4 missing O}}{\underbrace{4{\mathrm{H}}_2\mathrm{O}}}$

Oxygen is now balanced ($4=4$). But look — we just introduced $8$ hydrogen atoms on the right that were not there before. Step 5 cleans that up.

---

Step 5 — The hard half, part 2: fix the hydrogen with ${\mathrm{H}}^{+}$

WHAT. The right side now carries $8$ H (from the $4{\mathrm{H}}_2\mathrm{O}$); the left has none. Add 8 ${\mathrm{H}}^{+}$ ions to the left.

WHY ${\mathrm{H}}^{+}$? Acidic solution is swimming in free hydrogen ions ${\mathrm{H}}^{+}$ — that is literally what "acidic" means. So ${\mathrm{H}}^{+}$ is the legal, physically-available token for patching hydrogen. One ${\mathrm{H}}^{+}$ per missing H.

PICTURE. Eight pink ${\mathrm{H}}^{+}$ tokens slot onto the left to match the eight H hiding inside the four waters on the right.

$\mathrm{Mn}{\mathrm{O}}_4^{-}+\underset{\text{matches 8 H on right}}{\underbrace{8{\mathrm{H}}^{+}}}\to \mathrm{M}{\mathrm{n}}^{2+}+4{\mathrm{H}}_2\mathrm{O}$

Now every atom balances: 1 Mn, 4 O, 8 H on each side. Only charge is left.

---

Step 6 — The hard half, part 3: balance charge with electrons

WHAT. Tally the charge. Left: $\mathrm{Mn}{\mathrm{O}}_4^{-}$ is $-1$, plus $8{\mathrm{H}}^{+}$ is $+8$, total $+7$. Right: $\mathrm{M}{\mathrm{n}}^{2+}$ is $+2$, water is neutral, total $+2$.

WHY 5 electrons on the left? The left is $+7$, the right is $+2$ — the left is 5 units too positive. Add 5 negative electrons to the left to drag it from $+7$ down to $+2$.

PICTURE. The charge number line again: left tower stands at $+7$, five blue electrons stack on to pull it down to $+2$, level with the right.

---

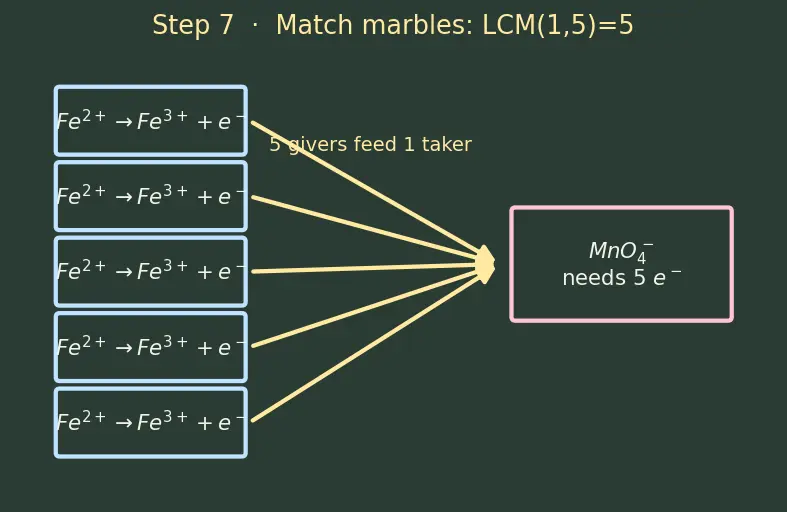

Step 7 — Match the marbles: the LCM step

WHAT. The iron half releases 1 electron; the manganese half swallows 5. These do not match yet.

WHY multiply? Conservation from Step 1 demands $e_{\text{lost}}^{-}=e_{\text{gained}}^{-}$. The smallest common count is the least common multiple of $1$ and $5$, which is $5$. So we run the iron half five times — multiply that whole half-reaction by $5$ — so it releases 5 electrons to feed the one manganese that needs 5. See mole ratios: this scaling is the reaction's ratio.

PICTURE. Five iron ions each hand one blue electron across; the five arrows converge on one permanganate that gulps all five.

$5\times (\mathrm{F}{\mathrm{e}}^{2+}\to \mathrm{F}{\mathrm{e}}^{3+}+{\mathrm{e}}^{-})\Rightarrow 5\mathrm{F}{\mathrm{e}}^{2+}\to 5\mathrm{F}{\mathrm{e}}^{3+}+\underset{\text{now 5, to match}}{\underbrace{5{\mathrm{e}}^{-}}}$

---

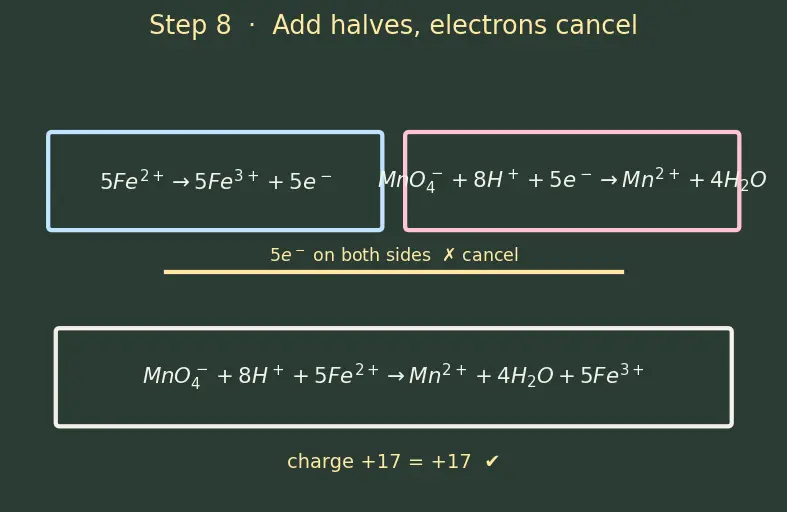

Step 8 — Add the halves and cancel the electrons

WHAT. Stack the two balanced halves and add them like two equations. The $5e^{-}$ produced on the left of the iron half and the $5e^{-}$ consumed on the left... wait — one is a product, one is a reactant, so they sit on opposite sides of the combined equation and cancel cleanly.

WHY they must cancel. If any $e^{-}$ survived in the final equation, it would mean free electrons floating in solution — physically absurd. Their disappearance is the proof that the bookkeeping closed.

PICTURE. Two half-boxes slide together; the five electrons from each side annihilate in the middle, leaving a clean net equation.

---

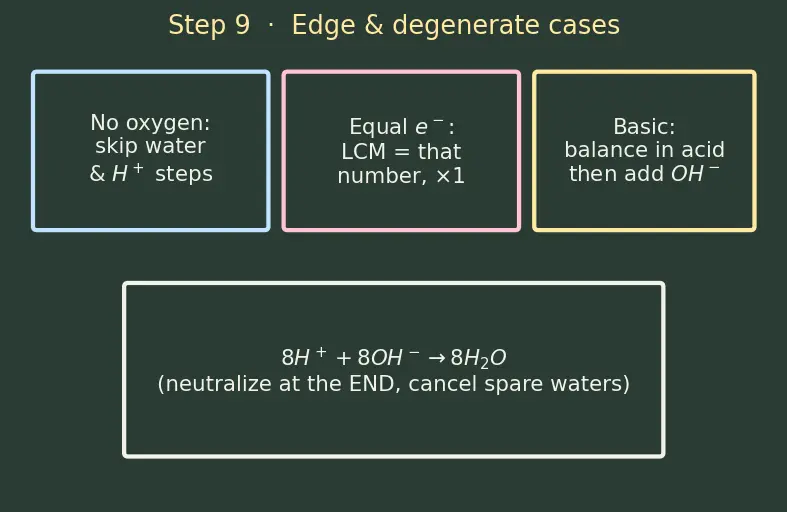

Step 9 — Degenerate & edge cases (never get ambushed)

WHAT. Three "what if" corners the pictures make obvious.

WHY show them. A method you only trust on the tidy case is a method you don't trust. Here is what each dial does at its extreme.

• Zero oxygen to fix (e.g. $\mathrm{F}{\mathrm{e}}^{2+}\to \mathrm{F}{\mathrm{e}}^{3+}$): Step 4 adds zero waters, Step 5 adds zero ${\mathrm{H}}^{+}$. The recipe still runs — those steps simply contribute nothing. No special case needed.
• Already-equal electrons (both halves release/absorb the same count): Step 7's LCM is that shared number, so you multiply by $1$ — nothing changes. The step never hurts, it just sometimes does nothing.
• Basic medium (the $\mathrm{O}{\mathrm{H}}^{-}$ dial): balance in acid first, then add equal $\mathrm{O}{\mathrm{H}}^{-}$ to both sides. Each ${\mathrm{H}}^{+}+\mathrm{O}{\mathrm{H}}^{-}$ collapses to a water (neutralization), and duplicate waters cancel. The green box in the figure shows $8{\mathrm{H}}^{+}+8\mathrm{O}{\mathrm{H}}^{-}\to 8{\mathrm{H}}_2\mathrm{O}$ — never introduce $\mathrm{O}{\mathrm{H}}^{-}$ before balancing, or the atom count drifts.

---

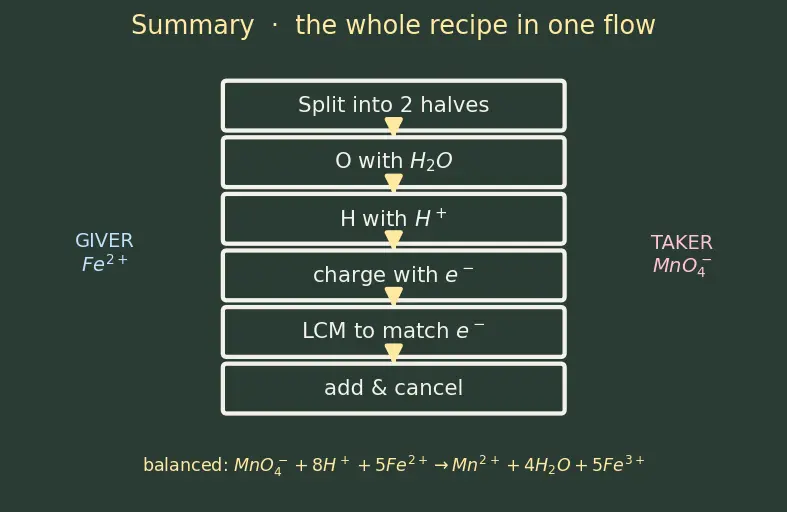

The one-picture summary

One flow, top to bottom: split → balance O with water → balance H with ${\mathrm{H}}^{+}$ → balance charge with $e^{-}$ → LCM → add & cancel. The two coloured lanes (blue giver, pink taker) meet at the bottom where their electrons annihilate, producing the balanced equation.

Recall Feynman retelling — the whole walkthrough in plain words

Two kids are trading marbles. One kid (iron) can only give, and he gives exactly one marble each time. The other kid (permanganate) can only take, and he's greedy — he takes five at once. So we call five iron-kids over: five give one marble each, greedy-kid takes all five. Nobody drops a marble on the floor and nobody invents one — that's the whole game (electrons conserved).

But there's a catch: permanganate came wrapped in four oxygens. In acid water we have unlimited water and unlimited ${\mathrm{H}}^{+}$, so we hand him four waters to carry off his oxygens, then four-waters'-worth of eight ${\mathrm{H}}^{+}$ to keep hydrogen even. Finally we count total charge on each side and, if one side is too positive, we sprinkle in electrons until both sides read the same number.

Glue the two kids' stories together, let the marbles they trade cancel out (a given marble on one side is a taken marble on the other), and you're left with the balanced equation. If there were no oxygens, we'd skip the water step; if the solution were basic, we'd do all this in acid and then quietly convert every ${\mathrm{H}}^{+}$ into water with a matching $\mathrm{O}{\mathrm{H}}^{-}$ at the very end.

---
