Solution stoichiometry — titrations, dilutions: Visual walkthrough

We will meet, in order: a jar of solution, the idea of moles, concentration $c$ , volume $V$ , the product $n = c V$ , the mole-ratio bridge from a balanced equation, and finally the full titration formula — plus the special 1:1 case and the degenerate cases where things could go wrong.

Step 1 — What is inside the jar? (moles as a count)

WHAT. Picture a glass jar of salty water. Floating invisibly inside are individual particles of solute — tiny dots. Chemistry is a game of counting these dots, because reactions happen dot-to-dot.

WHY. We can't scoop out "3 particles" with a spoon — they're far too small and far too many. So chemists agreed on a giant bundle: a mole is a fixed huge number of particles (Avogadro's number). Counting in moles is like counting eggs in dozens instead of one by one. See Mole concept and Avogadro's number for that bundle itself.

PICTURE. The dots are the solute; we label their total count $n$ = number of moles.

Figure — Solution stoichiometry — titrations, dilutions

Step 2 — Squeeze the count into a volume: concentration $c$

WHAT. Take the same $n$ dots and ask a new question: how crowded are they? Pour the same amount of solute into a small jar versus a big jar. Same $n$ , different crowding.

WHY. Crowding is what we can actually measure and pour. If we know how crowded the liquid is and we pour a measured amount, we know how many dots we handed over. That "crowding number" is concentration.

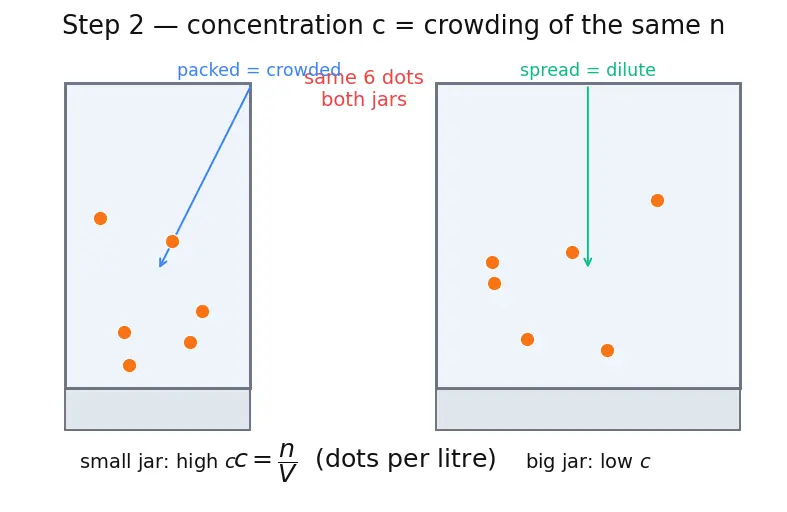

PICTURE. Below, both jars hold the same 6 dots. The left jar is small (dots packed tight = high concentration); the right jar is big (dots spread out = low concentration).

Step 3 — The one line that runs everything: $n = c V$

WHAT. We flip the concentration definition around. Instead of "count ÷ volume gives crowding," we ask "crowding × volume gives count."

WHY. In a real experiment we set the crowding (we make a known solution) and we pour a volume (we read a burette). What we secretly want is the count $n$ . So we rearrange to solve for the thing we can't see directly.

PICTURE. Think of $c$ as "dots per litre" and $V$ as "how many litres." Multiply them and the litres cancel, leaving dots. The rectangle below has height $c$ and width $V$ ; its area is exactly $n$ .

Step 4 — Two jars, one reaction: why we need a bridge

WHAT. A titration has two substances: an acid $A$ and a base $B$ (say). Each has its own $c$ and its own $V$ , so by Step 3 each has its own count: $n_{A} = c_{A} V_{A}$ and $n_{B} = c_{B} V_{B}$ .

WHY. We know everything about one jar (the titrant, known crowding, measured volume) and want the crowding of the other (the unknown). But $n_{A}$ and $n_{B}$ are not equal in general — one acid particle might eat two base particles. We need a rule connecting them.

PICTURE. Two rectangles side by side, each an area $n$ from Step 3. A double-headed arrow between them asks: "how many of the left equal how many of the right?" That question is answered only by the balanced equation.

Step 5 — The mole-ratio bridge (the heart of it)

WHAT. Read the balanced equation $a A + b B \to products .$ The numbers $a$ and $b$ in front are the coefficients: " $a$ particles of A react with $b$ particles of B, always in that ratio." (Where these numbers come from: Balancing chemical equations.)

WHY. Reactions consume particles in fixed groups. If the recipe says $1$ H₂SO₄ needs $2$ NaOH, then for every 1 acid particle exactly 2 base particles vanish. So counts are locked in the ratio $a : b$ . To compare them fairly, divide each count by its own coefficient — this converts "raw particles" into "number of complete reaction bundles," and those must match.

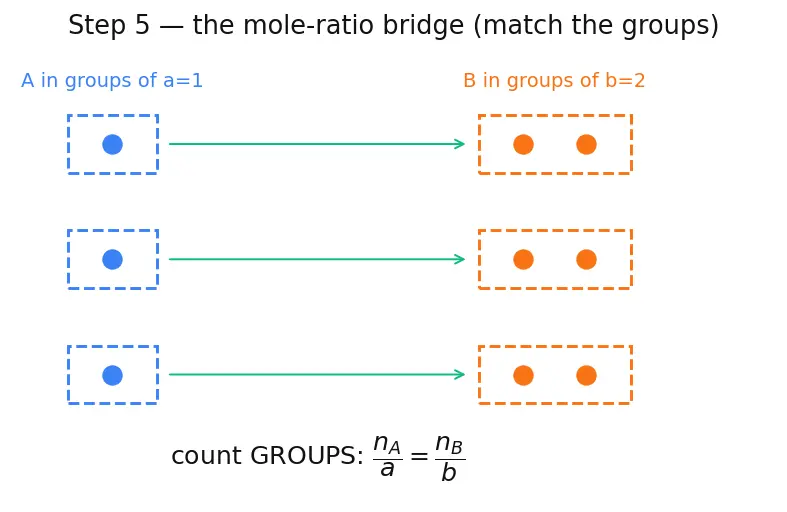

PICTURE. Below, A comes in groups of $a$ and B in groups of $b$ . Count the groups, not the individuals — equal groups on both sides.

Step 6 — Substitute and box it: the titration formula

WHAT. Take the bridge from Step 5 and replace each $n$ with $c V$ from Step 3.

WHY. $n_{A}$ and $n_{B}$ are the hidden counts we can't read off an instrument. But $c$ and $V$ we can read (known crowding, measured volume). Substituting turns an invisible statement into an equation of measurable quantities.

PICTURE. Each $n$ -rectangle from Step 3 slots directly into the bridge from Step 5. Watch $n_{A} \to c_{A} V_{A}$ and $n_{B} \to c_{B} V_{B}$ .

Step 7 — The special case $a = b = 1$ (and why it fools people)

WHAT. For a 1:1 reaction like HCl + NaOH, both coefficients are $1$ , so the boxed formula collapses to $c_{A} V_{A} = c_{B} V_{B} .$

WHY it matters. This looks identical to the dilution equation from the parent note — but it means something completely different. Dilution: same substance, moles conserved while adding water. Titration 1:1: two different substances, reacting, that happen to meet one-for-one.

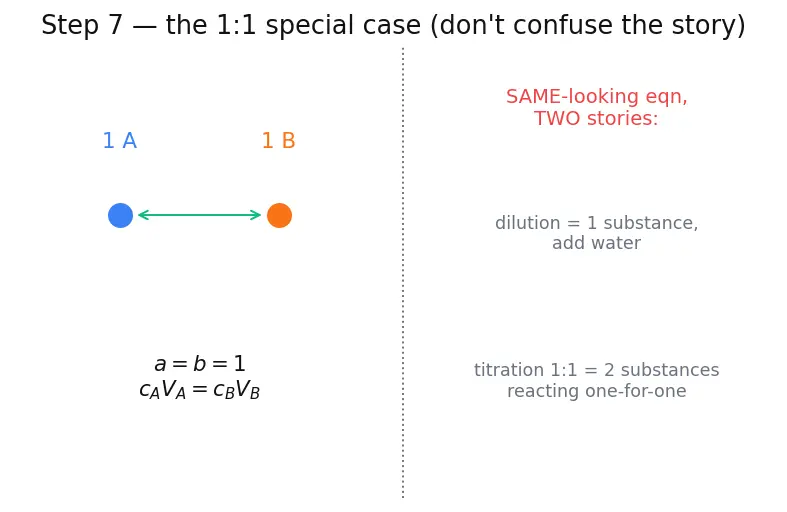

PICTURE. Left panel: one A eats one B — the general groups of Step 5 shrink to single dots. Right panel warns: the same-looking equation, two different stories.

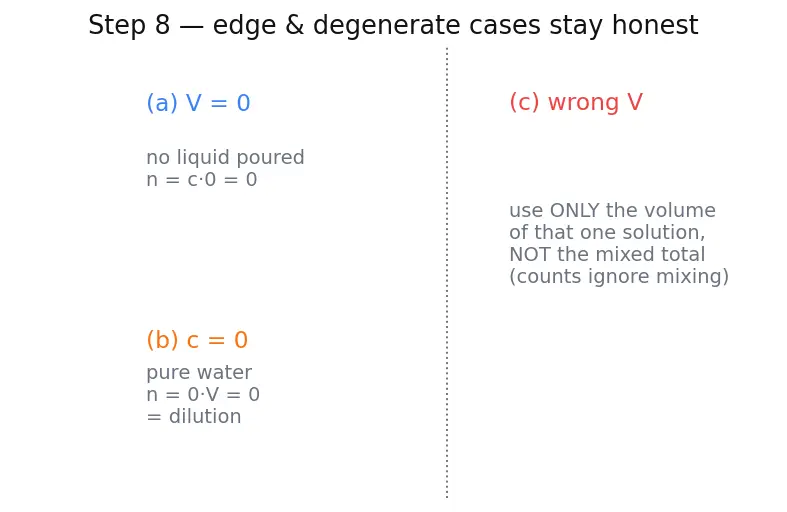

Step 8 — Degenerate & edge cases (never hit a surprise)

WHAT / WHY / PICTURE, three quick guards so no scenario is left undrawn:

(a) $V = 0$ — no liquid poured. Then $n = c \cdot 0 = 0$ : zero moles delivered. Before the first drop leaves the burette, nothing has reacted. Your formula correctly gives an equivalence "not yet reached."

(b) $c = 0$ — pure water in the burette. $n = 0 \cdot V = 0$ : adding water is not titrating, it's diluting. This is exactly the dilution regime — the same $n = c V$ machinery, moles just stay put.

(c) Wrong volume plugged in. The $V$ in $n = c V$ is the volume of that one solution (delivered from the burette, or pipetted into the flask) — never the combined volume after mixing. Mixing changes crowding of the blend, but we track counts, and counts don't care about total volume.

Recall Check yourself on the edge cases

If you accidentally use the flask's total (acid + base) volume in $n = c V$ , is your $n$ too big or too small? ::: Too big — you inflated $V$ , so you overcount the moles; the computed concentration comes out wrong. Why does $c = 0$ turn a titration into a dilution? ::: Zero concentration means the "titrant" adds no solute — you're just adding water, so moles of the other solution are conserved, which is the dilution case.

Worked check — riding the boxed formula (non-1:1)

The one-picture summary

Every step, compressed into a single flow: two jars → each becomes a count via $n = c V$ → the balanced-equation ratio bridges the counts → substitute back to measurable $c$ and $V$ .

Recall Feynman retelling of the whole walkthrough

A jar of solution is really a jar of invisible dots (Step 1). We can't count dots one by one, so we measure crowding — dots per litre — and call it concentration $c$ (Step 2). If we know the crowding and pour a known number of litres $V$ , then crowding times litres gives the actual dot-count: $n = c V$ (Step 3). A titration has two jars, so two dot-counts, $n_{A}$ and $n_{B}$ (Step 4). They aren't equal — the recipe (balanced equation) says A comes in groups of $a$ and B in groups of $b$ , and it's the groups that match, so $n_{A} / a = n_{B} / b$ (Step 5). Swap each hidden count for its measurable $c V$ and you get $\frac{c _{A} V _{A}}{a} = \frac{c _{B} V _{B}}{b}$ (Step 6). When both groups are size one it collapses to $c_{A} V_{A} = c_{B} V_{B}$ , which looks like dilution but isn't (Step 7). And at the corners — no liquid, pure water, or the wrong volume — the same $n = c V$ still tells the honest story (Step 8). One idea, drawn eight times.
