Density, molar mass, molar volume: Visual walkthrough

Step 1 — What "density" even means (mass ÷ box size)

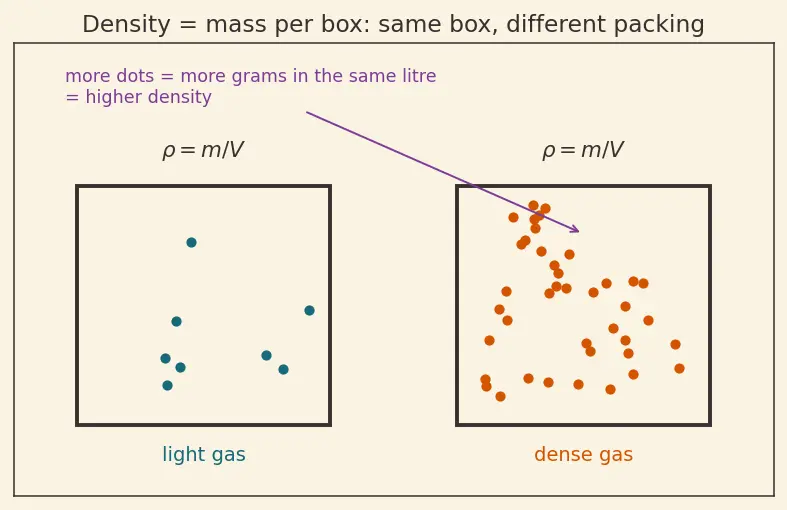

WHAT we did: turned two everyday measurements into one number. WHY: a big pile of feathers and a small nut can weigh the same — mass alone doesn't tell you how "crammed" the stuff is. Dividing by volume removes the "how much did I grab" question and leaves only "how tightly packed." PICTURE: two identical boxes below. The left box has few dots (light gas), the right many (heavy/dense gas). The number under each box is $m / V$ .

Figure — Density, molar mass, molar volume

The Greek letter $ρ$ ("rho") is just the traditional name-tag for this ratio. Nothing mysterious — it is $m / V$ every time you see it.

Step 2 — The problem: $m$ and $V$ are the wrong currency for chemistry

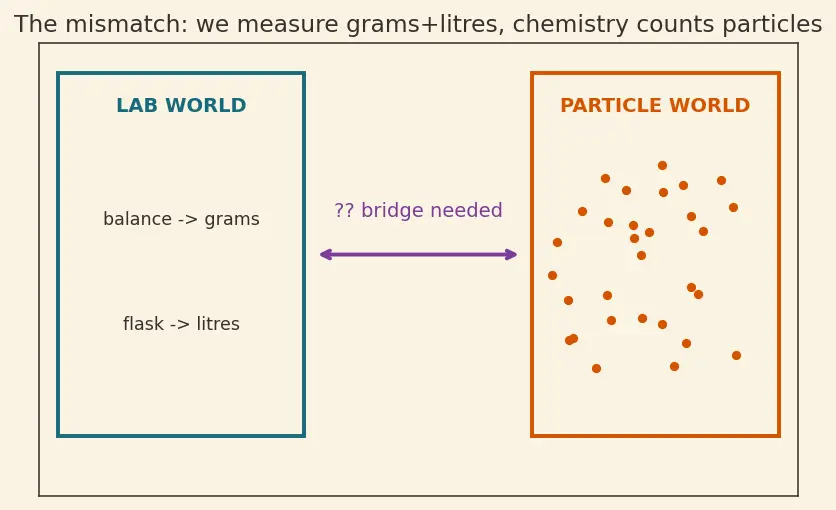

WHAT we did: noticed a mismatch between what we measure (mass, volume) and what matters (particle count). WHY: to predict a reaction we must know how many molecules are present, not how many grams. So $ρ = m / V$ is a dead end until we introduce a counting unit. PICTURE: two "worlds" — the Lab World (balance + flask, grams + litres) and the Particle World (a swarm of molecules). A gap sits between them, waiting for bridges.

Step 3 — Bridge 1: molar mass $M$ turns grams into "number of standard bags"

The magic (see Relative Atomic Mass & Atomic Mass Unit): the mole was defined so that if one molecule weighs $A$ atomic-mass-units, one full bag weighs exactly $A$ grams. So $M$ is numerically the molecular mass.

WHAT we did: converted mass into a count of moles. WHY this tool and not just $ρ$ : because $n$ is proportional to the number of particles — the currency reactions actually use. PICTURE: a balance reading $m$ grams, an arrow through a box labelled " $\div M$ ", coming out as $n$ full bags.

Step 4 — Bridge 2: molar volume $V_{m}$ turns litres into the same count of bags

WHAT we did: got moles a second way, this time from volume. WHY this matters: for a gas we often know its volume, not its mass. Now both roads (mass road, volume road) lead to the same $n$ . PICTURE: two roads meeting at a signpost " $n$ moles": the left road starts at a balance ( $m$ , $\div M$ ), the right at a flask ( $V$ , $\div V_{m}$ ).

Because both roads give the same $n$ , we can set them equal: $\frac{m}{M} = \frac{V}{V _{m}}$

Step 5 — Snap the two bridges together → $ρ = \frac{M}{V _{m}}$

WHAT we do now: rearrange $\frac{m}{M} = \frac{V}{V _{m}}$ to expose $m / V$ , which we know is $ρ$ .

Cross-multiply, then divide both sides by $V$ : $\frac{m}{M} = \frac{V}{V _{m}} ⟹ m V_{m} = M V ⟹ \frac{m}{V} = \frac{M}{V _{m}}$

And $m / V$ is exactly density:

WHY it's beautiful: we never had to count a single molecule. The particle count $n$ appeared on both roads and cancelled, leaving a pure Lab-World statement. PICTURE: the two roads fusing into one arrow labelled $ρ = M / V_{m}$ , with $n$ crossed out to show it cancelled.

Step 6 — Why $V_{m}$ is the same for every gas (Avogadro's law)

For solids and liquids $V_{m}$ depends on the substance (packing differs). For gases it does not — and this is what makes the final formula clean.

WHAT we did: argued $V_{m}$ is a property of the conditions $(T, P)$ , not the gas. WHY it matters: it means we can compute $V_{m}$ once, from physics, and reuse it for $O_{2}$ , $C O_{2}$ , $H_{2}$ — anything. PICTURE: three boxes of the same size, one holding light $H_{2}$ , one heavy $C O_{2}$ , one $O_{2}$ — each with the same number of dots, dots far apart.

Step 7 — Get $V_{m}$ from the Ideal Gas Law, then finish

The Ideal Gas Law PV=nRT packages the far-apart-marble physics into one line: $P V = n R T$

$P$ = pressure (how hard molecules push on the walls, in pascals).
$V$ = volume (litres or $m^{3}$ ).
$n$ = moles (our bag count).
$R$ = the gas constant $8.314 J mol^{- 1} K^{- 1}$ (a fixed conversion number).
$T$ = absolute temperature in kelvin.

Divide both sides by $n$ to isolate the molar volume $V / n = V_{m}$ : $V_{m} = \frac{V}{n} = \frac{R T}{P}$

WHAT we did: expressed $V_{m}$ purely from $T$ and $P$ — confirming Step 6 (no gas identity appears). WHY substitute this into $ρ = M / V_{m}$ : because it eliminates $V_{m}$ and leaves only quantities we can dial in the lab.

$ρ = \frac{M}{V _{m}} = \frac{M}{( \frac{R T}{P} )} = \frac{P M}{R T}$

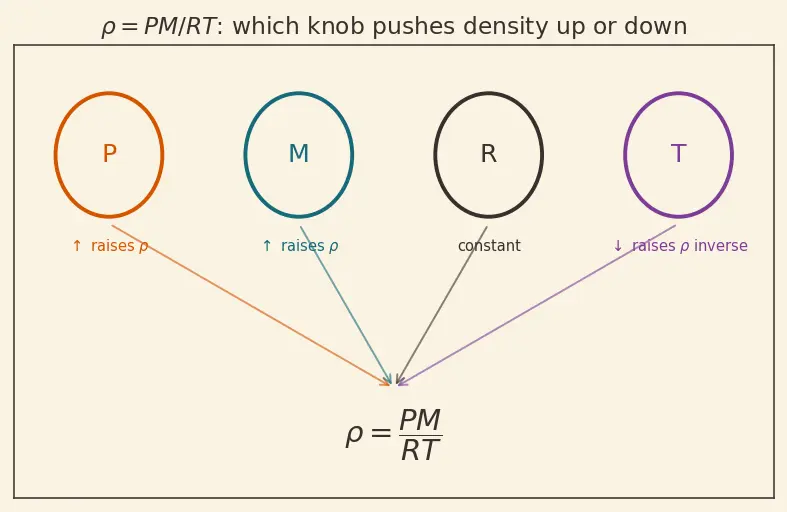

PICTURE: the four dials $P, M, R, T$ feeding into the density read-out, with up/down arrows showing which way each pushes $ρ$ .

Step 8 — Edge & degenerate cases (never get surprised)

$P \to 0$ (near-vacuum): $ρ = P M / R T \to 0$ . Fewer molecules pushing ⇒ almost no mass in the box. ✔ makes sense.
$T \to \infty$ (very hot): $ρ \to 0$ . Molecules fly apart, box gets "emptier" per litre. ✔
$M \to 0$ (imaginary massless gas): $ρ \to 0$ . No mass per molecule ⇒ no density. ✔
Same $T, P$ , compare two gases: $\frac{ρ _{1}}{ρ _{2}} = \frac{M _{1}}{M _{2}}$ — density ratio is just the molar-mass ratio (Example 4 of the parent). ✔
NOT a gas (liquid/solid): the derivation used $V_{m} = R T / P$ , which came from the ideal gas law. Liquids don't obey it — their molecules touch. So $ρ = P M / R T$ is a gas-only law. For water, $V_{m} \approx 18 mL mol^{- 1}$ regardless of $T, P$ .

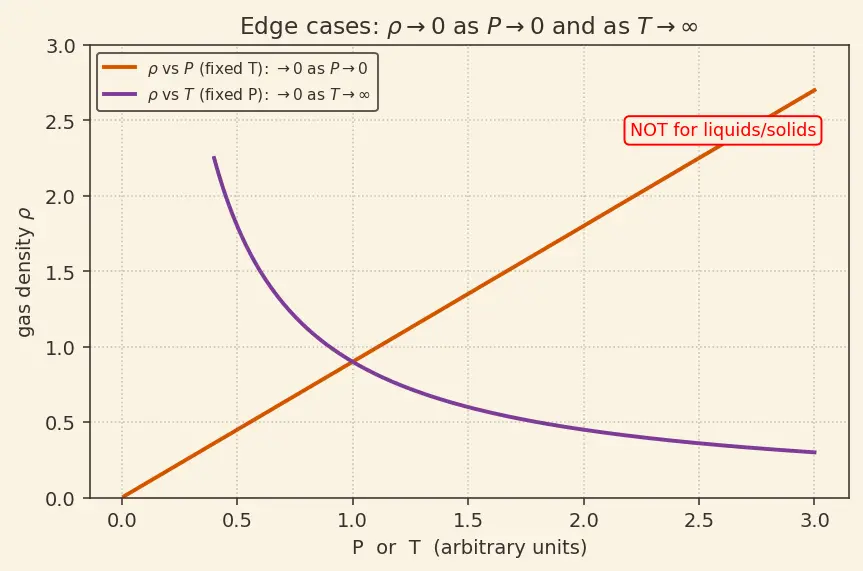

PICTURE: a small dashboard showing $ρ$ collapsing to 0 as $P \to 0$ and as $T \to \infty$ , plus a "❌ not for liquids" stamp.

The one-picture summary

Read it left to right: mass and volume each convert to the same bag-count $n$ (via $M$ and $V_{m}$ ); setting the two equal cancels $n$ and gives $ρ = M / V_{m}$ ; feeding in $V_{m} = R T / P$ from the ideal gas law finishes at $ρ = P M / R T$ .

Recall Feynman: tell the whole story in plain words

Density is just "how heavy per litre." But grams and litres aren't chemistry's language — particles are. So we build two toll-bridges to the particle side: molar mass turns grams into a count of standard bags, and molar volume turns litres into the same count of bags. Because both roads land on the same number of bags, we set them equal, and that shared count cancels — leaving density = (weight of one bag) ÷ (room one bag takes). For gases the room a bag takes is the same for every gas (they're just far-apart specks), and physics tells us that room is $R T / P$ . Slot it in, and density becomes $P M / R T$ : push harder (more $P$ ) or use heavier molecules (more $M$ ) and it gets denser; heat it up (more $T$ ) and it thins out.

Recall Quick self-test

Where in the derivation does the particle count $n$ disappear, and why? ::: When we set $m / M = V / V_{m}$ ; both roads give the same $n$ , so it cancels, leaving $ρ = M / V_{m}$ .
Why is $V_{m} = R T / P$ independent of the gas? ::: Ideal-gas molecules are far apart; volume depends on $T, P$ spacing, not molecule size (Avogadro's law).
What happens to $ρ$ as $T \to \infty$ ? ::: It goes to 0 — hot gas spreads out.
Why does $ρ = P M / R T$ fail for water? ::: It relies on $P V = n R T$ , which liquids (touching molecules) don't obey.
