Density, molar mass, molar volume: Foundations — Chemistry deep dive

Before you can read the parent note, you need to know what every squiggle in it means. This page builds each one from nothing. Read top to bottom — each symbol is used only after it is earned.

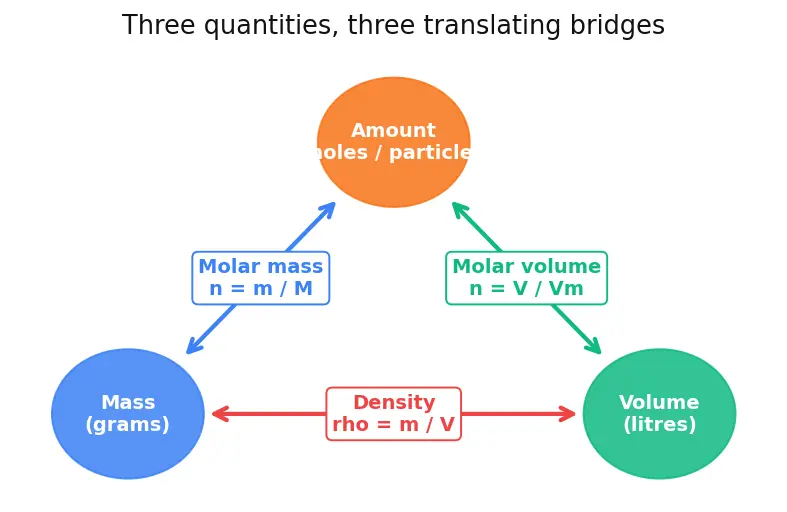

0. The three things we can actually get at

Everything below is about moving between three quantities. Let us picture them first, with no formulas.

Figure — Density, molar mass, molar volume

1. Mass, and the symbol $m$

We write it with the single letter $m$ purely for shorthand — instead of saying "the mass in grams" ten times, we say $m$ . That is all a symbol ever is: a nickname for a picture.

3. The ratio bar and "per"

Every translator in this topic is a ratio — one quantity per another. Let us make sure "per" is fully understood before any formula uses it.

4. The particle, and mass-per-particle $m_{0}$

Zoom in until you can see individual atoms or molecules. Each is one particle.

This is why the parent note can write $ρ = \frac{N m _{0}}{V}$ : total mass is (how many beads) × (weight of one bead), then shared across the volume. Density is high when the beads are heavy ( $m_{0}$ big) OR crowded ( $N$ big for a small $V$ ).

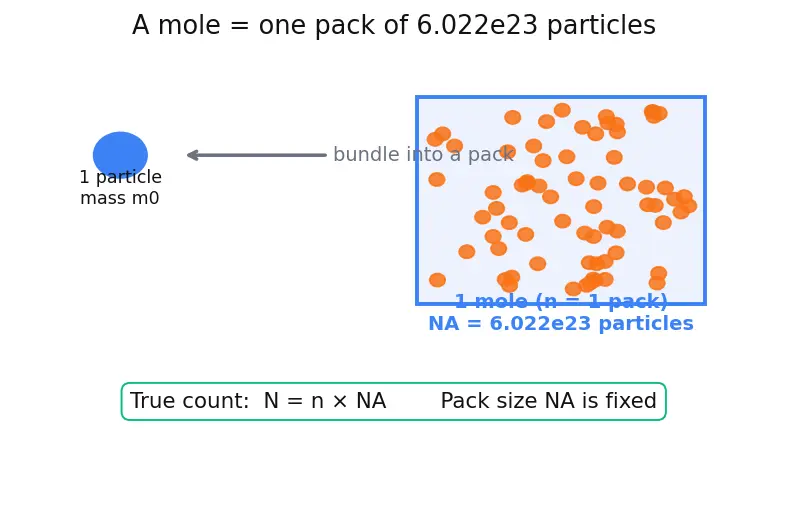

5. The mole $n$ and Avogadro's number $N_{A}$

$N$ (the true particle count) is absurdly large — trillions of trillions. Writing it out is hopeless, so chemists bundle particles into fixed-size packs called moles, exactly like selling eggs by the dozen.

See The Mole & Avogadro's Number for the full story of where $N_{A}$ comes from.

6. The atomic mass unit $u$ and relative atomic mass $A$

A single atom weighs something like $0.000 00000000000000000000003 g$ — useless to write. So we invent a tiny unit sized for atoms.

This is exactly the microscopic $m_{0}$ from §4, just written in atom-friendly units. See Relative Atomic Mass & Atomic Mass Unit.

7. Molar mass $M$

Now the parent's bridge $n = \frac{m}{M}$ reads plainly: "packs = total grams ÷ grams-per-pack". Dividing grams by grams-per-mole cancels the grams and leaves moles.

8. Density $ρ$ (the Greek letter "rho")

9. Molar volume $V_{m}$

For any ideal gas at STP this is $\approx 22.7 L mol^{- 1}$ — the same for every gas (that surprise is explained by Avogadro's Law and STP and Standard Conditions).

10. The gas-law symbols: $P$ , $T$ , $R$

The parent derives gas density from $P V = n R T$ . Meet its remaining letters.

Full treatment in Ideal Gas Law PV=nRT. With these, $V_{m} = \frac{R T}{P}$ is just "rearrange $P V = n R T$ and set $n = 1$ ".

Prerequisite map

Equipment checklist

Recall Am I ready? (hide the answers)

What does the symbol $m$ stand for, and what reads it? ::: Mass in grams; a balance reads it. What does $V$ stand for, and name three of its units? ::: Volume; litre L, millilitre mL / cm³, and m³. Convert $250 mL$ to litres and to cm³. ::: $0.250 L$ and $250 cm^{3}$ . How do you read the unit $g mol^{- 1}$ in words? ::: Grams per mole (the $^{- 1}$ means "per"). What does the fraction bar in $m / V$ physically do? ::: Shares the mass evenly across each unit of volume. What is $N_{A}$ and what is its value? ::: Avogadro's number, the pack size $6.022 \times 1 0^{23}$ particles per mole. How are true count $N$ and mole count $n$ linked? ::: $N = n \times N_{A}$ . What is $1 u$ in grams? ::: $1.6605 \times 1 0^{- 24} g$ . Why does molar mass in g/mol equal relative atomic mass in u? ::: Because $N_{A} \times 1.6605 \times 1 0^{- 24} \approx 1$ , so one mole weighs $\approx A$ grams. What does the subscript $m$ in $V_{m}$ mean? ::: "Per mole" — the volume of exactly one mole. Why must $T$ be in kelvin, not °C, in the gas law? ::: The gas law needs an absolute scale starting at zero; $273.15 K = 0 °C$ . What are the values/units of $R$ and $1 bar$ ? ::: $R = 8.314 J mol^{- 1} K^{- 1}$ ; $1 bar = 1 0^{5} Pa$ .

Foundations — Density, molar mass, molar volume
