1.1.7Matter, Measurement & the Mole

Density, molar mass, molar volume

1,784 words8 min readdifficulty · medium

1. Density

HOW to derive it from scratch — there's nothing to derive; density is a definition (a ratio we chose because it's useful). But we can derive its microscopic meaning:

If a substance has NN particles each of mass m0m_0 in volume VV: ρ=Nm0V=(number density)×(mass per particle)\rho = \frac{Nm_0}{V} = (\text{number density})\times(\text{mass per particle})

So density is high when particles are heavy OR packed tightly. This is why gases are ~1000× less dense than liquids: same particle mass, but far fewer particles per unit volume.


2. Molar Mass

Derivation of the mole–mass bridge:

1 u =1.6605×1024= 1.6605\times10^{-24} g (definition of the atomic mass unit). One particle of mass AA u weighs A×1.6605×1024A\times1.6605\times10^{-24} g. One mole = NA=6.022×1023N_A = 6.022\times10^{23} such particles: M=A×(1.6605×1024 g)×(6.022×1023)M = A\times(1.6605\times10^{-24}\text{ g})\times(6.022\times10^{23}) 1.6605×1024×6.022×10231.0001.6605\times10^{-24}\times6.022\times10^{23}\approx 1.000 MA g mol1\boxed{M \approx A \text{ g mol}^{-1}}


3. Molar Volume

Derivation from the ideal gas law: PV=nRT    Vm=Vn=RTPPV=nRT \implies V_m=\frac{V}{n}=\frac{RT}{P} At T=273.15T=273.15 K, P=1 bar=105P=1\text{ bar}=10^5 Pa, R=8.314 J mol1K1R=8.314\text{ J mol}^{-1}\text{K}^{-1}: Vm=8.314×273.15105=0.0227 m3=22.7 L mol1V_m=\frac{8.314\times273.15}{10^5}=0.0227\text{ m}^3=22.7\text{ L mol}^{-1}

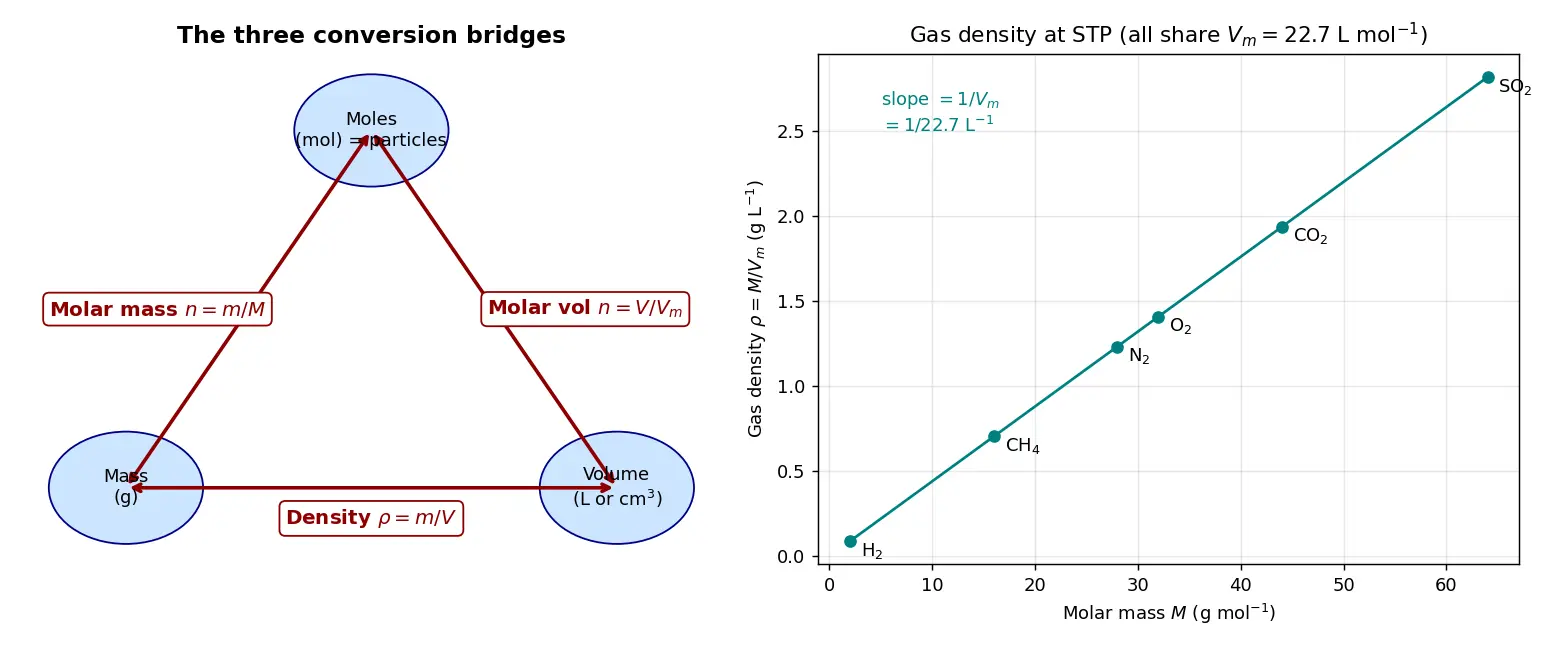

Figure — Density, molar mass, molar volume

Worked Examples


Common Mistakes


Active Recall

Recall Test yourself (hide the answers)
  • What three pairs of quantities do density, molar mass, molar volume connect?
  • Why is molar mass in g/mol numerically equal to atomic mass in u?
  • Derive ρ=PM/RT\rho=PM/RT from PV=nRTPV=nRT.
  • Why do all ideal gases share the same molar volume?
Density formula and units
ρ=m/V\rho=m/V; units g cm⁻³ (solids/liquids), g L⁻¹ (gases)
Molar mass definition
mass of one mole (6.022×10²³ particles), in g mol⁻¹, numerically = relative atomic/molecular mass
Moles from mass
n=m/Mn=m/M (grams ÷ grams per mole)
Molar volume of ideal gas at STP (273.15 K, 1 bar)
22.7 L mol⁻¹ (22.4 L at 1 atm)
Why is gas molar volume independent of gas identity
Avogadro's law — equal volumes at same T,P have equal molecules; molecule size negligible
Density of a gas in terms of M
ρ=M/Vm=PM/RT\rho = M/V_m = PM/RT
Why molar mass (g/mol) = atomic mass (u)
because NA×1.6605×1024 g1N_A \times 1.6605\times10^{-24}\text{ g} \approx 1; mole defined so 1 u/particle → 1 g/mol
Molar volume of liquid water
≈18 mL mol⁻¹ (18 g ÷ 1 g/mL)
Convert 1 g cm⁻³ to kg m⁻³
1000 kg m⁻³

Recall Feynman: explain to a 12-year-old

Imagine marbles. Density = how heavy a bag of marbles is compared to how big the bag is. Molar mass = the weight of exactly one giant standard bag containing 6.022×10236.022\times10^{23} marbles — and the trick is, one marble weighing "44 little units" makes a full bag weigh exactly 44 grams. Molar volume = how much room one standard bag takes up. For gas marbles floating far apart, every kind of gas bag magically takes the same room (about 22.7 litres), because the marbles barely touch — only their spacing matters, not their size.


Connections

  • The Mole & Avogadro's Number
  • Ideal Gas Law PV=nRT
  • Avogadro's Law
  • Relative Atomic Mass & Atomic Mass Unit
  • Stoichiometry & Mass-Mole-Volume Conversions
  • STP and Standard Conditions

Concept Map

bridges

bridges

bridges

bridges

bridges

bridges

defines

u to gram factor

gives n=m/M

explains constant Vm

22.7 L at STP for ideal gas

Mass in grams

Volume in litres

Moles / particles

Density rho = m/V

Molar mass M

Molar volume Vm

Avogadro number NA

Avogadro's law

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, ye teen cheezein — density, molar mass, aur molar volume — sirf "pul" (bridges) hain jo humari measure ki hui cheezon ko jodte hain. Balance se hume grams milte hain, flask se litres, lekin chemistry to particles (moles) me hoti hai. Toh density mass aur volume ko jodti hai (ρ=m/V\rho=m/V), molar mass mass aur moles ko jodti hai (n=m/Mn=m/M), aur molar volume volume aur moles ko jodta hai (n=V/Vmn=V/V_m).

Sabse important trick: molar mass jo g/mol me hai, wo atomic mass jo "u" me hai — dono numerically same kyun hote hain? Kyunki mole ki definition hi aisi banayi gayi hai! Agar ek atom ka weight 44 u hai, toh 6.022×10236.022\times10^{23} atoms ka weight exactly 44 grams hoga. Avogadro number wo scaling factor hai jo "u ko gram" me badalta hai.

Gases ke liye ek jadu hai: koi bhi ideal gas ho, STP par ek mole ka volume same rehta hai — 22.7 L (ya purane STP par 22.4 L). Iska reason Avogadro's law hai: same temperature aur pressure par, equal volume me equal number of molecules hote hain, kyunki gas molecules itni door hote hain ki unka apna size matter nahi karta. Isi se ek pyaara formula nikalta hai: ρgas=M/Vm=PM/RT\rho_{gas}=M/V_m=PM/RT — matlab heavy gas dense gas.

Sabse common galti: 22.4/22.7 L wala rule solids aur liquids par mat lagana — wo sirf gases ke liye hai. Liquid water ka molar volume to sirf 18 mL/mol hai kyunki particles ek dusre se chipke hote hain. Aur hamesha units check karo — g cm⁻³ aur g L⁻¹ me 1000 ka farak hai!

Go deeper — visual, from zero
