SI units in chemistry — kg, mol, K, Pa; derived units (J, L): Visual walkthrough

We are building toward one boxed sentence: $p = \frac{F}{A} ⟹ [p] = kg m^{- 1} s^{- 2} = Pa$ Let us define every letter in it before we believe it.

Step 1 — The three raw bricks

WHAT: we lay out the only three raw units this whole derivation will use. WHY: pressure will turn out to be nothing but these three combined. If we start with more, we cheated; with fewer, we can't build force. Three is exactly enough. PICTURE: three separate bricks — a ruler (m), a lump (kg), a clock (s). Nothing is combined yet.

Figure — SI units in chemistry — kg, mol, K, Pa; derived units (J, L)

Step 2 — Snapping length and time into speed

WHAT: we divided a length by a time. WHY: division is the mathematical tool for "per" — "metres per second." We use division and not, say, subtraction, because doubling the clock-time for the same distance should halve the speed, and only dividing does that. PICTURE: the ruler brick sitting on top of the clock brick, the arrow showing metres sliding past each second.

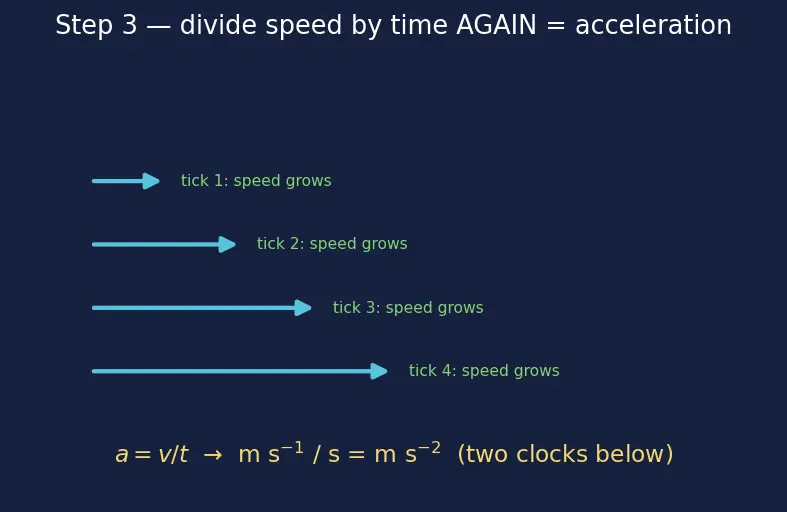

Step 3 — Speed that changes: acceleration

WHAT: we divided speed by time a second time. WHY: each "per second" is one division. Speed was distance-per-second; acceleration is (distance-per-second)-per-second, hence two seconds in the denominator. The little $- 2$ in $s^{- 2}$ is counting how many times we divided by the clock. PICTURE: two clock bricks in the denominator, the speed arrow getting longer each tick.

Step 4 — Force: mass that is being accelerated

WHAT: we multiplied the heavy-lump brick by the acceleration bricks. WHY: multiplication (not addition) because a doubled mass needing the same acceleration takes double the force — proportional scaling on both factors. The result gets its own nickname, the newton (N), purely for convenience. PICTURE: the lump brick clicked onto the two-clocks-and-a-ruler acceleration bricks; the whole assembly labelled "N".

Step 5 — Area: the surface the push lands on

WHAT: we multiplied two lengths. WHY: an area is a length in one direction times a length in the crossing direction — that is literally what "covering a flat patch" means. Two metres multiplied give the little $2$ in $m^{2}$ . PICTURE: a square patch, one side marked $ℓ$ , the other $ℓ$ , the filled interior labelled $m^{2}$ .

Step 6 — Pressure: the push, shared out over the area

WHAT: we divided the force bricks by the area bricks; the single $m$ in the force cancelled against one of the two $m$ 's in the area, leaving $m^{- 1}$ . WHY: the exponent bookkeeping is honest counting — force carried one metre up top, area carried two metres below, so $1 - 2 = - 1$ metres survive, now underneath. That surviving $m^{- 1}$ is the geometric fingerprint of "spread over a surface." PICTURE: the force arrow pressing on the square patch; a wide patch → thin colour (low $p$ ), a narrow patch → thick colour (high $p$ ).

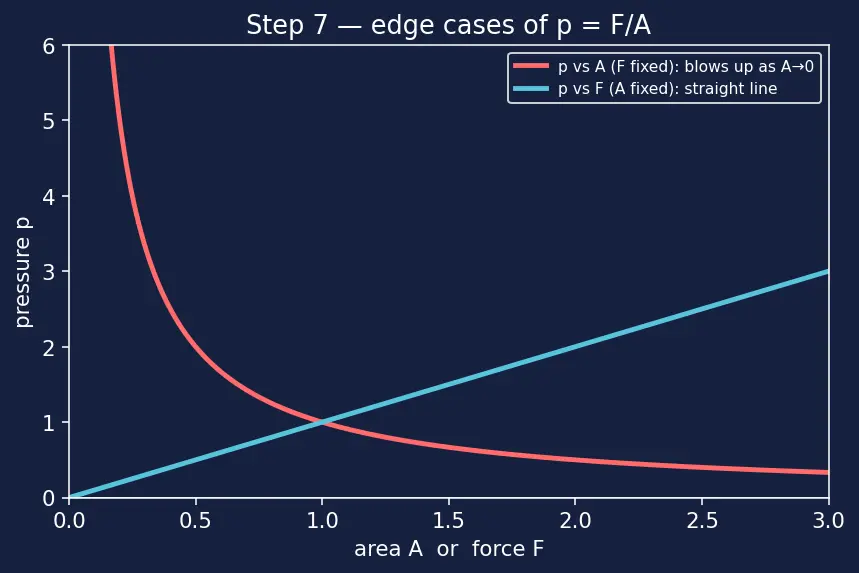

Step 7 — The edge cases (never skip these)

Step 8 — One quick number to seal it

This is precisely the pressure that later walks into $pV=nRT$, and the unit-cancelling habit is the heart of Dimensional Analysis.

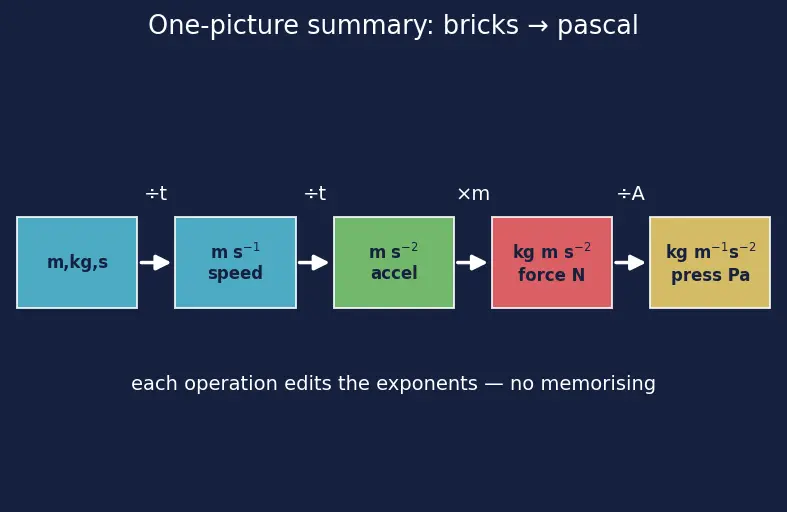

The one-picture summary

Recall Feynman: the whole walkthrough in plain words

Start with three toys: a ruler, a lump, and a clock. Slide the ruler past the clock once and you get speed (metres each second). Do the "each second" again and you get acceleration — speed that keeps building, so two clocks live underneath. Now shove the lump so it accelerates: heavy lump plus demanded acceleration multiply into a push, the newton. Finally, take that push and smear it across a flat patch. Spread it wide and each spot barely feels it; pinch it small and each spot feels a lot — that "per patch" is a division, and it eats one of the patch's two metres, leaving a lonely $m^{- 1}$ . What's left standing — $kg$ , one metre downstairs, and two clocks downstairs — is the pascal. And the corners behave: double the push → double the pressure; double the patch → half the pressure; shrink the patch to nothing and the maths screams to infinity (that's why needles hurt); zero push → zero pressure. No memorising. You just watched the bricks click.

Recall Quick self-test

Why does the metre end up with a negative exponent in a pascal? ::: Force carries one metre on top; area carries two metres on the bottom; $1 - 2 = - 1$ , so one metre survives underneath as $m^{- 1}$ . What tool (operation) turns force into pressure and why that one? ::: Division by area — because pressure must decrease when the same force spreads over a larger surface. What does the formula do as area → 0? ::: $p \to + \infty$ (undefined at exactly 0); the blow-up is why sharp points give huge pressure.

Connections

Ideal Gas Law — the $p$ we just built enters $p V = n R T$
Dimensional Analysis — the unit-cancelling of Step 6 is this method in miniature
Kinetic Theory of Gases — where wall-collisions cause the force behind $p$
Significant Figures and Measurement Uncertainty — how to report the $4 \times 1 0^{4} Pa$ answer honestly
