Compare respiratory surfaces across organisms (gills, tracheae)

WHY does a respiratory surface exist at all?

WHY diffusion, not pumping the gas directly to each cell? Because dissolved gases can only cross a cell membrane by diffusion — there is no molecular "pump" for $O_2$ . And diffusion is only fast enough over microscopic distances.

The master equation (derive it, don't memorise it)

Fick's Law of Diffusion is derived from a simple thought: the rate of stuff crossing a barrier should

go up if the surface is bigger (more doors),
go up if the driving difference across it is larger (steeper push),
go down if the barrier is thicker (longer walk),
scale with how permeable/diffusible the gas is.

Assemble those four proportionalities into one relation:

Now check every structure against these four knobs.

The four "knobs" and how each organism turns them

Feature (knob)	Why it helps	Gills (fish)	Tracheae (insects)	Lungs (mammals)	Skin (worm / frog)
Large area $A$	more $O_2$ per second	many filaments + lamellae	branched network to every cell	millions of alveoli	whole body surface
Thin $d$	short diffusion path	1–2 cells thick	tracheole wall very thin	~0.5 µm alveolar wall	thin epidermis
Moist surface	gas must dissolve first	always wet (in water)	fluid at tracheole tips	fluid film on alveoli	mucus keeps it wet
Maintain $\Delta P$	keeps steep gradient	countercurrent blood flow	air delivered fresh to cells	ventilation + circulation	dense sub-skin capillaries carry $O_2$ away, actively sustaining $\Delta P_{O_2}$

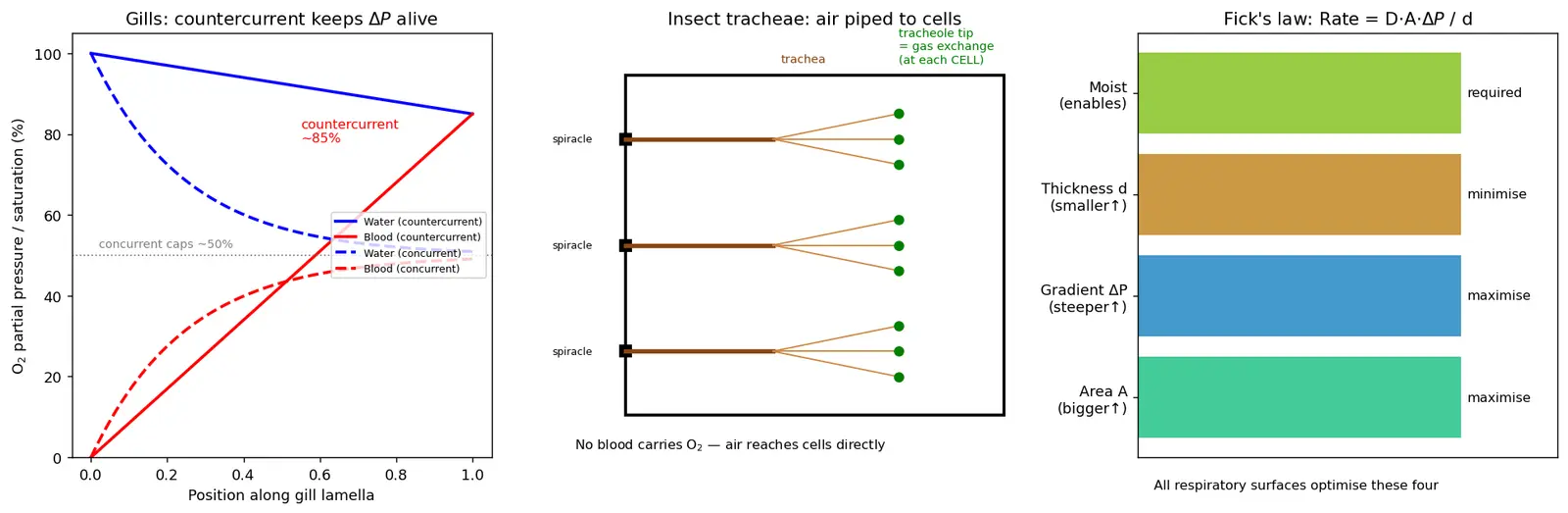

Figure — Compare respiratory surfaces across organisms (gills, tracheae)

Gills — engineered for water (a hard medium)

WHY countercurrent beats concurrent (co-current):

Concurrent (same direction): blood and water equilibrate halfway; the gradient dies. Extraction caps at ~50%.
Countercurrent: gradient never collapses; fish extract ~80–90% of the $O_2$ in the water.

Tracheae — no blood needed at all

WHY insects are small: diffusion through air-tubes is fast only over short distances ( $d$ small). Scale a beetle up to dog-size and the tracheoles can't reach the deep tissue fast enough. This is a physical size limit set by Fick's law, not an accident.

Big/active insects cheat by ventilating: pumping the abdomen to move air (raising effective $\Delta P$ ), and opening/closing spiracles to limit water loss.

Quick comparison of the "big four"

Organism	Surface	Medium	Transport of $O_2$ after surface	Gradient trick
Fish	Gills	Water	Blood (haemoglobin)	Countercurrent flow
Insect	Tracheae	Air	None — air direct to cells	Diffusion + abdominal pumping
Mammal	Alveoli (lungs)	Air	Blood (haemoglobin)	Ventilation + circulation
Earthworm	Moist skin	Air/soil water	Blood	Dense sub-skin capillaries keep $\Delta P_{O_2}$ high
Frog (adult)	Both skin and lungs	Air/water	Blood	Cutaneous + pulmonary respiration together

Common mistake Steel-manned misconceptions

1. "Gills work in air too, they just need water for support." Why it feels right: gills clearly move $O_2$ from water, so surely they'd move it from air (which has more $O_2$ ). The fix: out of water the delicate lamellae collapse and stick together, so $A$ crashes and they dry out ( $d$ effectively rises, moist film gone). No area, no exchange — the fish suffocates in an oxygen-rich atmosphere.

2. "Insects use their blood (haemolymph) to carry oxygen like we do." Why it feels right: every animal we know pairs breathing with blood. The fix: the tracheal system delivers air directly to cells; haemolymph transports nutrients and hormones but ==carries almost no $O_2$ ==. That's the whole point of tubes.

3. "Concurrent flow would work just as well as countercurrent." Why it feels right: both put water and blood side by side, exchange happens either way. The fix: concurrent flow lets the two reach equilibrium and the gradient dies at ~50%; countercurrent keeps $\Delta P$ alive across the whole surface (~85%). Direction matters because of the gradient, not the contact.

4. "Bigger animal = better gills/tracheae, so insects could be huge." The fix: Fick's law punishes large $d$ . Tracheal diffusion only works over small distances → insect size is capped.

5. "Frogs breathe only through their skin." Why it feels right: frog skin really is a genuine respiratory surface, always moist and rich in capillaries. The fix: adult frogs are dual breathers — they use skin AND lungs. Skin handles much of the exchange at rest and underwater, but lungs take over during activity. (And larval tadpoles use gills.)

6. "Diffusion is driven by which side has more total gas concentration." Why it feels right: diffusion usually means "high to low concentration." The fix: for gases at a respiratory surface the driving force is the ==partial-pressure gradient $\Delta P$ ==, not bulk concentration. $O_2$ flows from high $P_{O_2}$ to low $P_{O_2}$ .

Recall Feynman: explain it to a 12-year-old (hidden — try first!)

Imagine oxygen is shy and can only slowly walk across a wet doorway to get inside you. To let lots of oxygen in you want many wide doorways (big area), very thin doors (short walk), doors that are always damp (oxygen only walks when wet), and you keep fresh air on the outside so there's always more oxygen pushing to come in (that "push" is partial pressure). A fish's gills are millions of tiny wet doorways, and its blood flows against the water so there's always more oxygen next door — clever! An insect skips the blood entirely: it has tiny air pipes going straight to every cell, like a building with an air duct in every single room. But those pipes only work if they're short — which is why you never see a bug the size of a dog. A frog is greedy: it breathes through its wet skin and through simple lungs, switching depending on whether it's resting in water or hopping around on land.

Active recall — cover the answers

Fick's law states diffusion rate is proportional to what, over what? ::: proportional to $D \cdot A \cdot \Delta P$ (partial-pressure gradient), inversely proportional to thickness $d$ .
What is the true driving force for gas diffusion at a respiratory surface? ::: the partial-pressure gradient $\Delta P$ of the gas, not bulk concentration.
The four features of an efficient respiratory surface? ::: large area, thin (short diffusion distance), moist, steep partial-pressure gradient maintained.
Why must a respiratory surface be moist? ::: gases must dissolve before diffusing across the membrane.
Why does water make breathing harder than air? ::: water holds ~30× less $O_2$ and is far denser/more viscous → low $\Delta P_{O_2}$ , costly to move.
What is countercurrent exchange in gills? ::: water and blood flow in opposite directions, keeping a favourable $O_2$ partial-pressure gradient along the whole lamella.
Roughly what fraction of $O_2$ do fish extract with countercurrent vs concurrent flow? ::: ~85–90% vs only ~50%.
What are spiracles, tracheae and tracheoles? ::: spiracles = external openings; tracheae = main air tubes; tracheoles = fine tips where gas exchange occurs.
Does insect haemolymph transport $O_2$ ? ::: No (almost none) — air is piped directly to cells.
Physical reason insects stay small? ::: tracheal diffusion is fast only over short $d$ ; large size makes deep tissues oxygen-starved.
Why can't a fish breathe in air? ::: gill lamellae collapse/stick and dry out → area lost, moist film gone, exchange fails.
How does a frog breathe? ::: both through moist, capillary-rich skin (cutaneous) and through simple lungs (pulmonary); tadpoles use gills.
How does an earthworm keep its skin $\Delta P_{O_2}$ steep? ::: a dense network of sub-skin capillaries carries oxygenated blood away, so fresh $O_2$ keeps diffusing in.

#flashcards/biology

Connections

Fick's Law of Diffusion — the physics engine behind every surface.
Partial Pressure and Gas Gradients — why $\Delta P$ , not $\Delta C$ , drives gas exchange.
Countercurrent Exchange — also used in kidney, heat exchange in limbs.
Alveoli and Human Gas Exchange — mammalian version of the same four knobs.
Surface Area to Volume Ratio — why small organisms manage without special organs.
Haemoglobin and Oxygen Transport — the blood step gills/lungs need but tracheae skip.
Amphibian Dual Respiration — how frogs share the load between skin and lungs.
Diffusion vs Bulk Flow — ventilation raises $\Delta P$ by bulk flow, then diffusion finishes.

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, saari organisms ke saamne ek hi problem hai: oxygen ko andar laana padta hai aur woh sirf diffusion se aata hai, aur diffusion sirf choti distance par hi fast hota hai. Isliye har jaanwar ne ek aisa surface banaya jo bada (large area), patla (thin), geela (moist) ho aur jahan gradient steep rahe. Ek important baat: gas ka asli driving force partial pressure ka difference (ΔP) hai, na ki bulk concentration — oxygen high $P_{O_2}$ se low $P_{O_2}$ ki taraf jaata hai. Yehi chaar cheezein Fick's Law mein hain: Rate = D·A·ΔP / d. Mnemonic: "A-TAG".

Fish ke gills paani ke liye banaye gaye hain. Paani mein oxygen bahut kam hota hai, isliye fish ko countercurrent exchange chahiye — paani aur blood ulti direction mein bahte hain, jisse pura gill length mein ΔP bana rehta hai aur fish ~85% oxygen nikaal leti hai. Concurrent hota toh sirf ~50%.

Insects ka system alag hai — tracheal system: spiracles se hawa andar, phir tracheae, phir patli tracheoles jo seedha har cell tak hawa pahunchati hain. Yani insect ka blood (haemolymph) oxygen carry hi nahi karta. Aur kyunki air-tube diffusion sirf choti distance par kaam karta hai, insects bade nahi ho sakte.

Frog ke baare mein ek galti mat karna: frog sirf skin se saans nahi leta. Adult frog skin (cutaneous) aur lungs (pulmonary) dono use karta hai — rest aur paani mein skin zyada, activity mein lungs zyada; aur tadpole to gills use karta hai. Earthworm bhi apni geeli skin ke neeche dense capillaries rakhta hai jo oxygen ko turant utha le jaati hain, taaki ΔP steep bana rahe. Bottom line: 4 knobs samjho (Area, Thin, Moist, ΔP gradient), sab structure khud explain ho jaayega.
