4.4.1Nervous System

Describe neuron structure (dendrites, axon, soma)

1,886 words9 min readdifficulty · medium

WHAT is a neuron?

The three signal-flow regions, in order:

Region Job Signal direction
Dendrites Receive inputs toward the soma
Soma (cell body) Integrate + house organelles summing point
Axon Transmit output away from the soma

The universal rule: signals travel dendrite → soma → axon → axon terminal. This is the Law of Dynamic Polarisation.

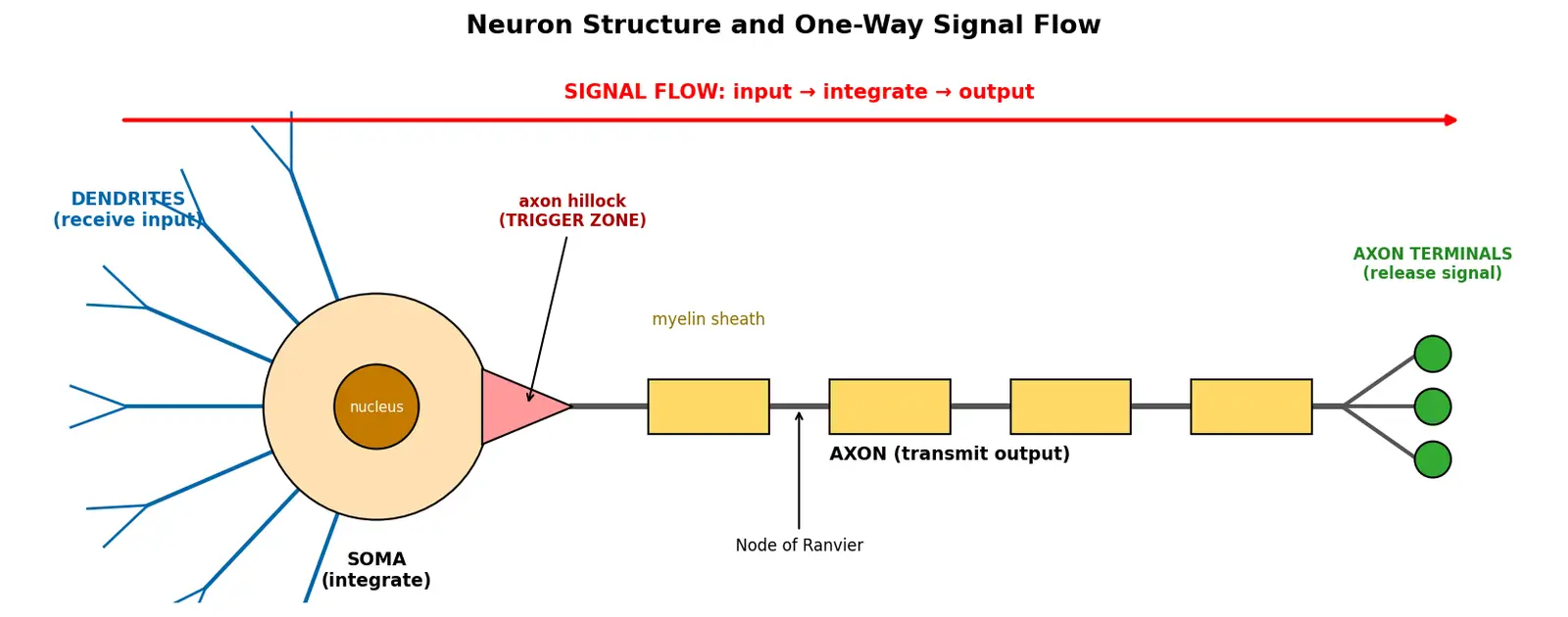

Figure — Describe neuron structure (dendrites, axon, soma)

The parts in detail (WHAT + WHY each exists)

WHY branched? More branches = more synapses = more information collected. Some neurons receive >10,000 inputs — impossible on a smooth ball.

WHY the nucleus lives here: the whole neuron is fed by proteins made in the soma; it is the "factory + head office."

WHY only ONE axon? A neuron must give one clear decision. Many inputs (dendrites) → one output (axon) is like a voting committee with a single spokesperson.


HOW a signal moves through the parts (derivation-from-scratch of the logic)

We can derive neuron shape from three requirements, step by step:

Step 1 — Need many inputs. Why? One neuron alone knows nothing; decisions need evidence from many sources. → Solution: many receiving branches = dendrites.

Step 2 — Need to combine inputs into one verdict. Why? You can't send 10,000 contradictory messages downstream. → Solution: bring all dendrites to one summing node = soma, with a decision gate = axon hillock.

Step 3 — Need to send the verdict far and fast. Why? Target cells (muscle, other neurons) may be far away, and a fading signal is useless. → Solution: one insulated cable = myelinated axon, refreshing the signal at nodes.

That is the entire neuron, rebuilt from purpose alone. ✅


Worked "examples" (structure reasoning)


Common mistakes (Steel-man → Fix)


Active Recall

Recall Cover and answer: name the 3 signal-flow regions in order.

Dendrites → Soma → Axon (input → integrate → output).

Recall Where is the trigger zone and why there?

The axon hillock, because it has the most voltage-gated Na⁺ channels / lowest threshold.

Recall What speeds up axonal conduction and how?

Myelin + Nodes of Ranviersaltatory conduction (signal jumps between nodes).

Recall Feynman: explain a neuron to a 12-year-old

Imagine a tree that passes secret notes. The roots and branches (dendrites) catch lots of tiny whispers from friends. All whispers gather in the trunk's base (soma), which has the tree's "brain" (nucleus) and adds them up. If the total whisper is loud enough, the tree shoots one big message down its single long branch (axon) to the next tree. The message zips fast because the branch is wrapped in fatty "tape" (myelin) with small gaps it can leap over.


Mnemonic


Connections

  • Action Potential — the electrical signal the axon carries
  • Synapse and Neurotransmitters — where dendrites receive and terminals release
  • Resting Membrane Potential — the voltage baseline set across the membrane
  • Myelin and Saltatory Conduction — speed mechanism of the axon
  • Types of Neurons — sensory, motor, interneuron shapes
  • Nervous System Overview — how billions of these wire together

#flashcards/biology

What is the basic structural and functional unit of the nervous system?
The neuron
Which neuron part receives signals and directs them toward the soma?
Dendrites
Which single part carries signals away from the soma?
The axon
What does the soma contain that makes it the metabolic centre?
The nucleus and organelles (Nissl bodies/rough ER, mitochondria)
Signals in a neuron flow in what order?
Dendrites → soma → axon → axon terminals
What is the trigger zone of a neuron and why?
The axon hillock — it has the lowest threshold (densest Na⁺ channels)
What is the Law of Dynamic Polarisation?
Signals travel in one direction: dendrite → soma → axon
What insulates the axon and speeds conduction?
The myelin sheath
What are the gaps in myelin called and what conduction do they enable?
Nodes of Ranvier; saltatory conduction
Which cells make myelin in the PNS vs CNS?
Schwann cells (PNS); oligodendrocytes (CNS)
Why does a neuron have only one axon?
To produce a single, clear output (decision) from many inputs
What are Nissl bodies?
Clusters of rough ER/ribosomes in the soma for protein synthesis

Concept Map

needs to collect

needs to integrate

needs to send

receive inputs toward soma

houses nucleus + Nissl bodies

sums signals at

trigger zone lowest threshold

travels away via

wrapped by

gaps enable

ends at

release neurotransmitter to

Neuron: living wire

Dendrites

Soma / cell body

Axon

Nucleus + Organelles

Axon hillock

Action potential

Myelin sheath

Saltatory conduction

Axon terminals

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, ek neuron basically ek zinda taar (living wire) hai jo decision leta hai. Iska shape random nahi hai — ye "input → integrate → output" ke hisaab se bana hai. Sabse pehle dendrites aate hain: ye chhoti-chhoti bahut saari branches hoti hain jo doosre neurons se signals receive karti hain. Zyada branches matlab zyada surface area, matlab zyada information collect. Ye signals hamesha soma ki taraf andar aate hain.

Beech mein hai soma yaani cell body — isme nucleus aur baaki organelles (Nissl bodies, mitochondria) hote hain. Ye poori factory aur "head office" hai jo saare aaye hue signals ko add karta hai. Jahan soma axon se milta hai, wahan hota hai axon hillock — ye trigger zone hai kyunki yahan sabse zyada Na⁺ channels hote hain, matlab yahan threshold sabse kam hai. Agar total signal threshold cross kar jaaye, action potential yahin se fire hota hai.

Uske baad hota hai axon — sirf EK lamba cable jo decision ko door tak, fast, bina fade hue le jaata hai. Isko myelin (fatty tape) wrap karti hai, aur beech-beech mein gaps hote hain jinhe Nodes of Ranvier kehte hain. Signal in gaps ke beech "jump" karta hai — isko saltatory conduction kehte hain, aur isi wajah se speed kaafi tez ho jaati hai. Axon ke end mein terminals hote hain jo neurotransmitter release karte hain.

Yaad rakhne ki trick: many & short = dendrite (input), one & long = axon (output). Bahut students ye galti karte hain ki dendrite output deti hai — nahi! Direction signal flow se decide hota hai, shape se nahi. Ek neuron mein sirf ek axon hota hai kyunki ek clear decision hi bahar jaana chahiye. Bas yehi core intuition exam aur real understanding dono ke liye kaafi hai.
