Explain the oxygen-hemoglobin dissociation curve

WHAT is the curve?

Each hemoglobin molecule has 4 heme groups, so it can bind up to 4 O₂ molecules. Saturation = (O₂ actually bound) / (max O₂ that could bind) × 100.

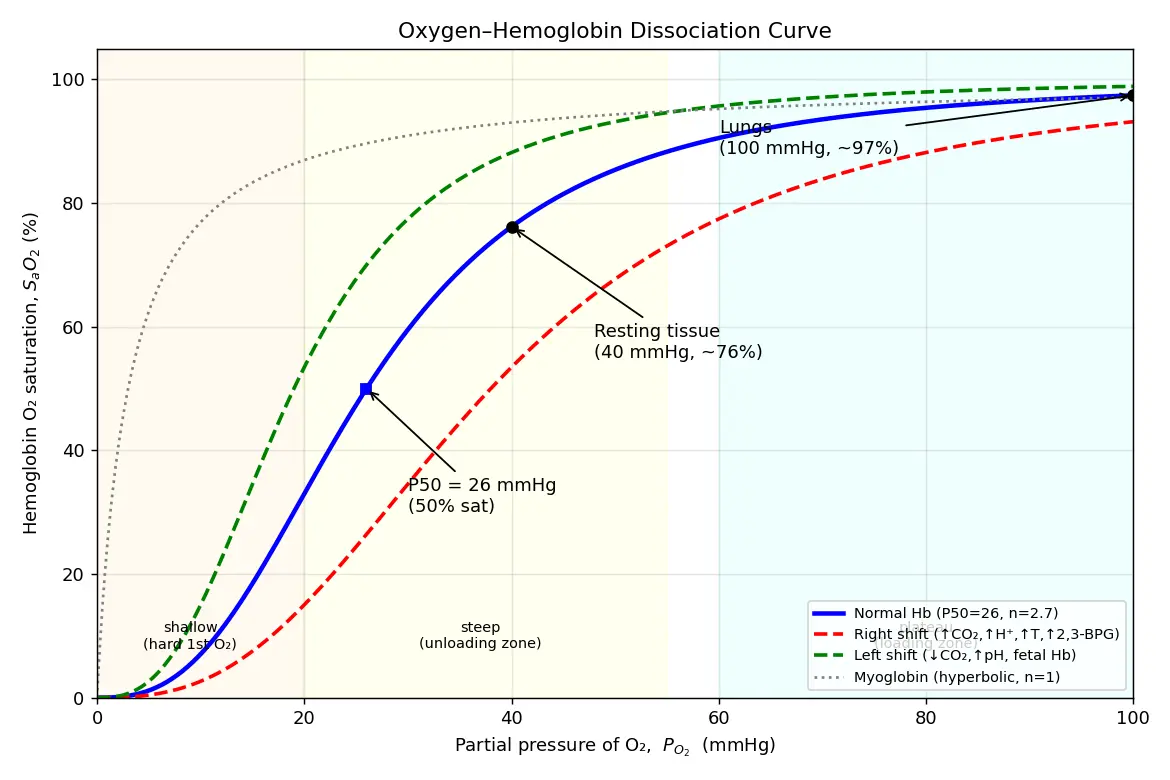

Figure — Explain the oxygen-hemoglobin dissociation curve

WHY is it S-shaped (sigmoidal)? — Cooperative Binding

This is the heart of the subtopic. Derive it from behaviour, not memory.

Consequences of cooperativity, region by region:

Low $P_{O_2}$ (0–20 mmHg): curve is shallow — the first O₂ is hard to load onto tense hemoglobin, so small increases in $P_{O_2}$ raise saturation little.
Middle $P_{O_2}$ (20–50 mmHg): curve is steep — cooperativity kicks in; each added O₂ makes the next bind easier, so saturation shoots up fast. This is the tissue-unloading zone.
High $P_{O_2}$ (60–100 mmHg): curve plateaus — almost all sites full, hard to squeeze more on. This is the lung-loading zone.

A minimal derivation of the shape (Hill equation)

Formula Hill equation for saturation

Treat hemoglobin (Hb) binding $n$ oxygens as one lumped reaction: $\text{Hb} + n\,O_2 \rightleftharpoons \text{Hb}(O_2)_n$ WHY start here: we approximate the 4-step binding as a single cooperative event with an apparent stoichiometry $n$ (the Hill coefficient).

At equilibrium, the association constant: $K = \frac{[\text{Hb}(O_2)_n]}{[\text{Hb}]\,(P_{O_2})^n}$ Why this step? Law of mass action — equilibrium ratio of products to reactants.

Saturation $Y$ = fraction of Hb that is oxygenated: $Y = \frac{[\text{Hb}(O_2)_n]}{[\text{Hb}] + [\text{Hb}(O_2)_n]}$ Why this step? Occupied over (occupied + free) = fraction occupied.

Substitute $[\text{Hb}(O_2)_n] = K[\text{Hb}](P_{O_2})^n$ and cancel $[\text{Hb}]$ : $\boxed{Y = \frac{K\,(P_{O_2})^n}{1 + K\,(P_{O_2})^n} = \frac{(P_{O_2})^n}{(P_{50})^n + (P_{O_2})^n}}$ where $P_{50} = K^{-1/n}$ is the $P_{O_2}$ at which Hb is 50% saturated (~26–27 mmHg).

If $n = 1$ (no cooperativity, like myoglobin) → hyperbola.
If $n > 1$ (hemoglobin, $n \approx 2.7$ ) → sigmoid. The exponent $>1$ is the mathematical fingerprint of cooperativity.

Shifting the curve — Bohr Effect & friends

Factors causing a RIGHT shift (unload more O₂, "active tissue needs O₂"):

↑ $CO_2$
↑ H⁺ (↓ pH, acidosis) — this pH part is the Bohr effect
↑ temperature
↑ 2,3-BPG (2,3-bisphosphoglycerate)

Factors causing a LEFT shift (hold O₂ tighter): ↓CO₂, ↑pH, ↓temperature, ↓2,3-BPG, and fetal hemoglobin (HbF).

Worked Examples

Common Mistakes (Steel-manned)

Recall Explain it to a 12-year-old (Feynman)

Imagine hemoglobin is a bus with 4 seats for oxygen passengers. The first passenger is shy and slow to get on. But once one is seated, the bus opens its doors wider and the next three pile in quickly — that "rush" is why the graph curves up steeply, then flattens when the bus is full. In your lungs (lots of oxygen), the bus fills right up. In your busy muscles (little oxygen, hot and acidic from working), the bus is happy to drop passengers off. When you exercise, your muscles are extra hot and acidic — this shoves the bus to "let everyone off faster." That's the whole story.

Flashcards

What two variables are on the oxygen-hemoglobin dissociation curve?

y-axis = % O₂ saturation of Hb; x-axis =

P_{O_2}

(mmHg)

Why is the curve sigmoidal rather than hyperbolic?

Positive cooperativity — binding of one O₂ increases affinity of remaining sites (Hill coefficient

n>1

)

What is

P_{50}

and its normal value?

The

P_{O_2}

at which Hb is 50% saturated; ~26–27 mmHg

Approximate Hb saturation at

P_{O_2}=100

mmHg (lungs)?

~97–98%

Approximate saturation at

P_{O_2}=40

mmHg (resting tissue)?

~75%

List four factors causing a RIGHT shift.

↑CO₂, ↑H⁺ (↓pH), ↑temperature, ↑2,3-BPG

What is the Bohr effect?

Increased H⁺/CO₂ lowers Hb O₂ affinity (right shift), enhancing O₂ release to metabolically active tissue

Does a right shift increase or decrease O₂ delivery to tissues?

Increases delivery (lower affinity → releases O₂ more easily)

Why does fetal hemoglobin have a left-shifted curve?

HbF binds 2,3-BPG poorly → higher O₂ affinity → pulls O₂ from maternal blood at placenta

Why is myoglobin's curve hyperbolic, not sigmoid?

Myoglobin has one binding site / no cooperativity (

n=1

)

State the Hill equation for saturation.

Y = \dfrac{(P_{O_2})^n}{(P_{50})^n+(P_{O_2})^n}

What does the flat plateau at high

P_{O_2}

ensure?

Robust O₂ loading in lungs even if alveolar

P_{O_2}

falls somewhat

Connections

Hemoglobin Structure and Heme Groups
Gas Exchange in Alveoli
Transport of Carbon Dioxide in Blood
Bohr Effect and Haldane Effect
Fetal Circulation and HbF
Myoglobin vs Hemoglobin
Cooperative Binding and Allostery
High Altitude Physiology and 2,3-BPG

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, hemoglobin ek chaar-seat wali bus samjho jismein oxygen passengers baithte hain. Pehla passenger thoda slow hota hai baithne mein, lekin jaise hi ek O₂ bind hota hai, hemoglobin ka shape thoda badal jaata hai (tense se relaxed state) aur baaki seats fill hona easy ho jaata hai. Isi "team effort" ko cooperativity kehte hain, aur yehi reason hai ki curve straight line nahi, balki S-shape (sigmoidal) banta hai.

Curve ke x-axis par $P_{O_2}$ (kitna free oxygen pressure hai) hota hai, aur y-axis par saturation (kitni seats bhari hui hain, %). Lungs mein $P_{O_2}$ high (~100 mmHg) hai, isliye saturation ~98% — bus full. Tissues mein $P_{O_2}$ low (~40 mmHg), saturation ~75% — yaani oxygen tissue ko de diya. Curve ka middle part steep hota hai, isliye thoda sa $P_{O_2}$ girte hi bahut saara O₂ release hota hai — yeh delivery ke liye perfect design hai. Plateau (top flat part) ka matlab lungs mein loading safe rehta hai chahe pressure thoda kam bhi ho jaaye.

Ab shift ki baat: jab muscle exercise karti hai to CO₂, acid (H⁺), aur temperature badhta hai — yeh sab curve ko RIGHT shift karte hain (Bohr effect). Right shift = affinity kam = O₂ zyada aasaani se release. Yaad rakho "CADET RIGHT" — CO₂, Acid, DPG, Exercise, Temperature sab right. Iska matlab jahan muscle ko sabse zyada O₂ chahiye, wahin Hb sabse zyada O₂ chhodta hai. Fetal hemoglobin left-shifted hota hai kyunki wo 2,3-BPG kam bind karta hai, isliye maa ke blood se O₂ kheench leta hai. Bas yeh samajh lo to poora topic clear.
