4.3.5Respiratory System

Describe oxygen and CO2 transport in blood

1,955 words9 min readdifficulty · medium1 backlinks

WHY do we need special transport?

WHAT is being transported and HOW:

Gas Dissolved Chemically bound Main carrier
O₂ ~1.5% ~98.5% Haemoglobin (as oxyhaemoglobin)
CO₂ ~7% ~23% carbamino + ~70% bicarbonate Bicarbonate ion in plasma

Oxygen Transport

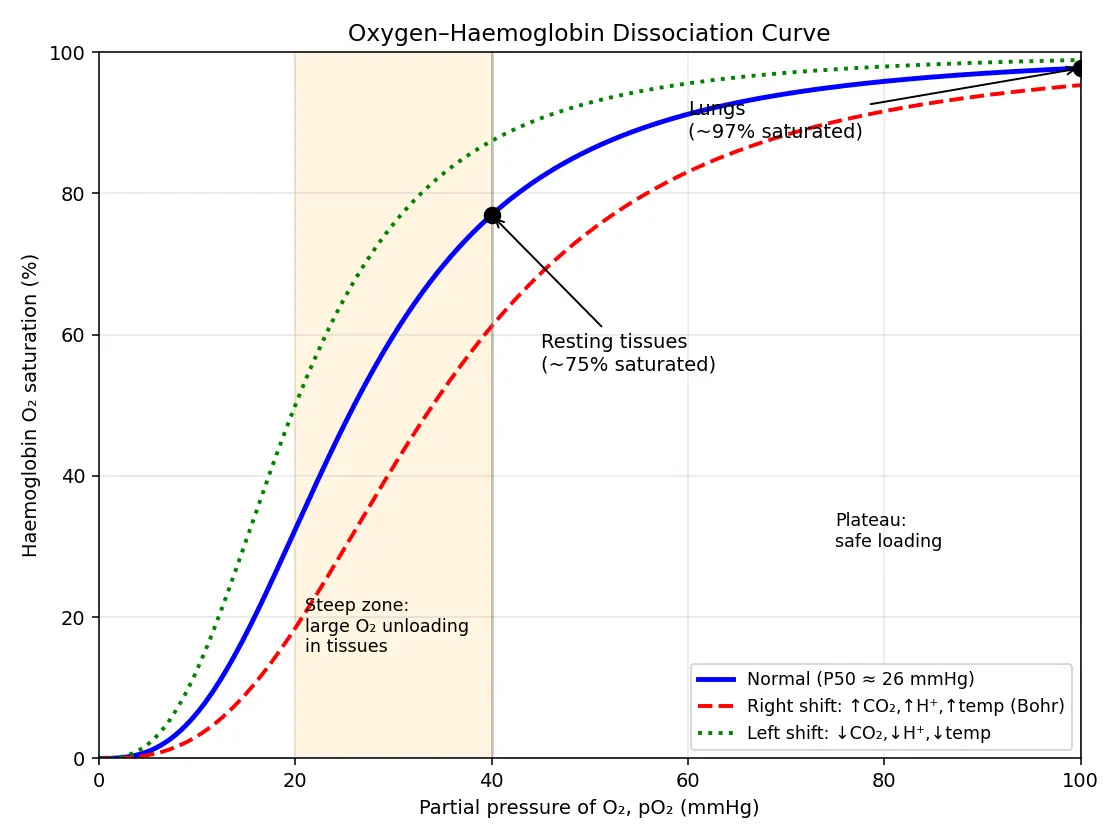

The Oxygen–Haemoglobin Dissociation Curve

Figure — Describe oxygen and CO2 transport in blood

Carbon Dioxide Transport

CO₂ travels three ways:

  1. Dissolved (~7%) — simple physical solution.
  2. Carbamino compounds (~23%) — CO₂ binds to the amino groups of haemoglobin (not the iron!): Hb–NH2+CO2Hb–NHCOOH\text{Hb–NH}_2 + CO_2 \rightleftharpoons \text{Hb–NHCOOH}.
  3. Bicarbonate (~70%) — the main route.

Putting it together (Forecast-then-Verify)


Common Mistakes (Steel-manned)


Active Recall

Recall Quick self-test (hide answers)
  • What % of O₂ is carried by haemoglobin? → ~98.5%
  • Which enzyme forms carbonic acid? → Carbonic anhydrase
  • Which ion moves into the RBC during the chloride shift? → Cl⁻
  • Name the effect where CO₂/H⁺ shift the O₂ curve right. → Bohr effect
  • Name the effect where deoxygenation boosts CO₂ carriage. → Haldane effect
Recall Feynman: explain to a 12-year-old

Imagine blood is a school bus. Oxygen kids get on at the "lungs" bus stop, sitting in special iron seats on a bus called haemoglobin. When the bus reaches a "hungry muscle" stop, the kids get off. The bus also has to take out the trash — the trash is CO₂. Most of the trash gets crushed into small compact packets (bicarbonate) so a lot fits on the bus. And here's the clever part: when the bus is full of trash and it's smelly (acidic), the oxygen kids get off faster — exactly where the muscle wants them. At the lungs, the fresh air makes the trash pop back into gas and the bus breathes it out.


Connections

  • Haemoglobin Structure — why 4 subunits give cooperativity
  • Gaseous Exchange in Alveoli — the partial-pressure gradients that drive loading/unloading
  • Acid-Base Balance and pH Buffering — bicarbonate buffer system
  • Carbonic Anhydrase — the speed enzyme of CO₂ conversion
  • Partial Pressure and Diffusion Gradients

What percentage of oxygen is transported bound to haemoglobin?
About 98.5% (only ~1.5% dissolved in plasma).
What is oxyhaemoglobin?
Haemoglobin reversibly combined with O₂, i.e. Hb(O₂)₄.
Why is O₂ binding called oxygenation, not oxidation?
The iron stays as Fe²⁺ and O₂ is loosely, reversibly bound; iron is not oxidised to Fe³⁺.
Why is the oxygen dissociation curve S-shaped (sigmoid)?
Cooperative binding — each O₂ that binds makes it easier for the next to bind.
What does the flat plateau of the curve mean physiologically?
Blood stays nearly fully saturated even if lung pO₂ falls somewhat — a safety margin.
What is the Bohr effect?
A rightward shift of the O₂ curve (easier O₂ release) caused by ↑CO₂, ↑H⁺, ↑temperature, ↑2,3-BPG.
What are the three ways CO₂ is transported?
Dissolved (~7%), carbamino compounds (~23%), bicarbonate ions (~70%).
Which enzyme converts CO₂ + H₂O to carbonic acid, and where?
Carbonic anhydrase, inside red blood cells.
Where does CO₂ bind on haemoglobin?
To the amino groups of the globin protein (carbamino compounds), NOT the iron/heme.
What is the chloride shift?
As HCO₃⁻ leaves the RBC, Cl⁻ moves in to maintain electrical neutrality (Hamburger phenomenon).
What is the Haldane effect?
Deoxygenated haemoglobin carries more CO₂ (better H⁺ buffering and carbamino formation).
What buffers the H⁺ produced when bicarbonate forms?
Haemoglobin, preventing the blood from becoming too acidic.
At the lungs, what happens to bicarbonate?
It recombines with H⁺ → H₂CO₃ → CO₂ + H₂O; CO₂ is exhaled (reverse chloride shift occurs).

Concept Map

drives need for

drives need for

carries

forms

4 heme sites cause

produces

shifts right, unloads

raises H+ and CO2 triggers

mostly converted to

catalyses

binds Hb amino groups as

part of

Low gas solubility in plasma

Haemoglobin

Oxygen transport

CO2 transport

Oxyhaemoglobin

Sigmoid dissociation curve

Cooperativity

Bohr effect

Bicarbonate HCO3-

Carbonic anhydrase

Carbamino compounds

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, blood mein oxygen aur CO₂ dono ko carry karna hota hai, lekin dono gases plasma mein bahut kam ghulte (dissolve) hain. Isliye body clever tarike use karti hai. Oxygen ka lagbhag 98.5% haemoglobin ke iron (Fe²⁺) par baith kar chalta hai — isse hum oxyhaemoglobin kehte hain. Yaad rakho, ye "oxygenation" hai, "oxidation" nahi — iron rust nahi hota, bas O₂ dheere se pakadta aur chhodta hai. Loading-unloading ki curve S-shape (sigmoid) hoti hai kyunki binding cooperative hoti hai: ek O₂ baithe to agla aasani se baith jaata hai.

CO₂ teen tarike se chalta hai: thoda dissolved (~7%), thoda haemoglobin ke amino group par carbamino ke roop mein (~23%), aur sabse zyada bicarbonate (HCO₃⁻) ke roop mein (~70%). RBC ke andar carbonic anhydrase enzyme CO₂ ko paani ke saath milakar carbonic acid banata hai, jo H⁺ aur HCO₃⁻ mein toot jaata hai. HCO₃⁻ bahar plasma mein nikal jaata hai, aur balance banane ke liye Cl⁻ andar aata hai — isi ko chloride shift (Hamburger phenomenon) kehte hain.

Do important effects: Bohr effect — active muscle mein CO₂, H⁺, temperature badhne se curve right shift hoti hai, matlab Hb wahi O₂ zyada release karta hai jahan zaroorat hai. Haldane effect — deoxygenated blood zyada CO₂ carry kar leta hai. Dono ek team ki tarah kaam karte hain: tissue par O₂ nikalta hai to CO₂ chadhta hai, lungs par O₂ chadhta hai to CO₂ nikal kar exhale ho jaata hai.

Ye topic isliye important hai kyunki har breath aur har heartbeat isi chemistry par depend karta hai. Exam mein numbers (7-23-70), enzyme ka naam, chloride shift, Bohr vs Haldane — ye zaroor puchhe jaate hain, to inhe pakka kar lo.
