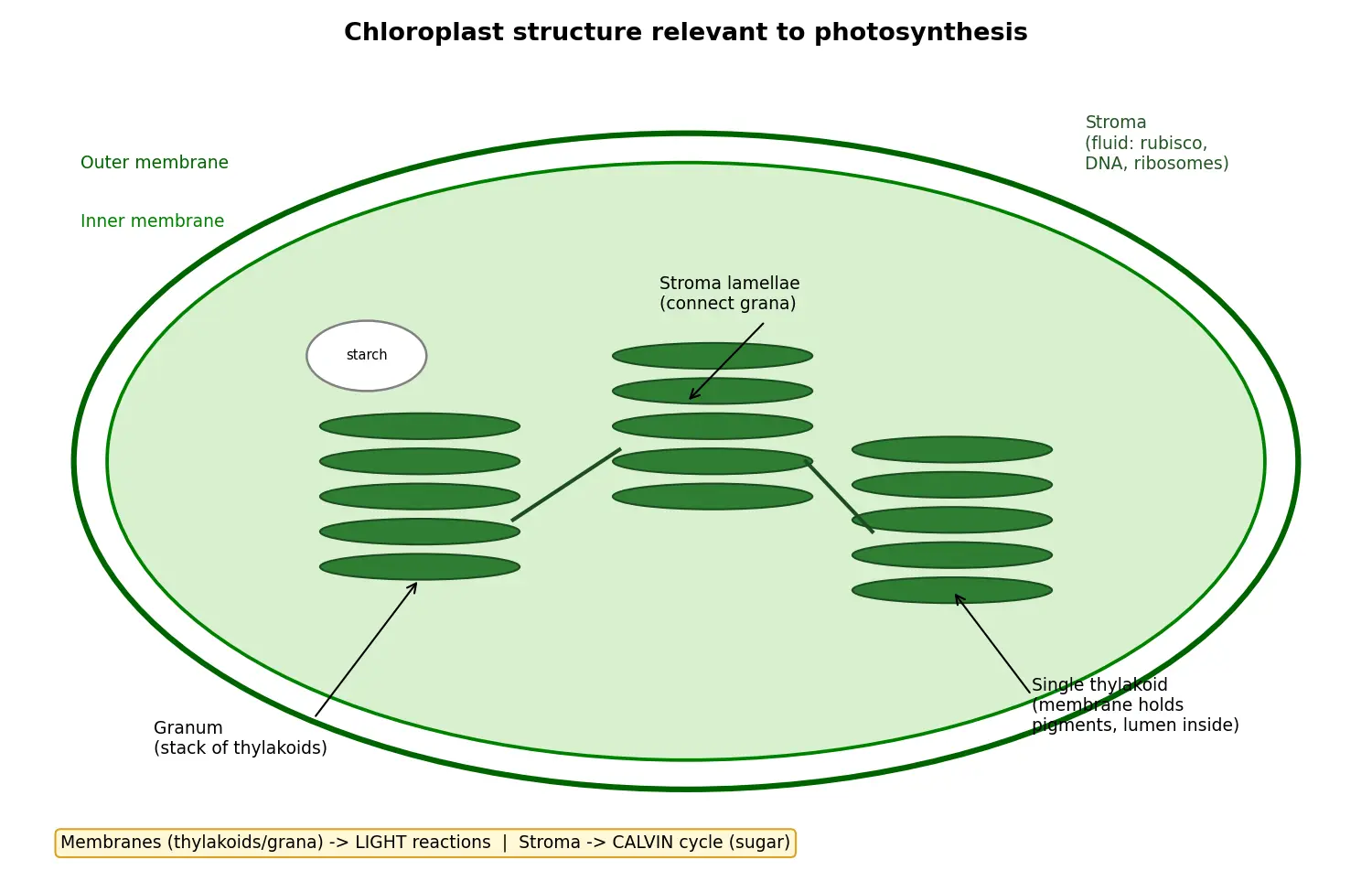

Describe chloroplast structure relevant to photosynthesis

WHAT is a chloroplast?

The parts, and WHY each shape matters

WHY each feature suits its function (the 80/20 core)

Feature	WHY it matters for photosynthesis
Thylakoids stacked into grana	Hugely increases surface area to hold many pigment molecules → more light absorbed
Pigments embedded in the thylakoid membrane	Hold chlorophyll in fixed, ordered arrays (photosystems) so harvested energy is funnelled efficiently
Thylakoid lumen is a sealed compartment	Lets H⁺ build up → creates the proton gradient that drives ATP synthase (chemiosmosis)
Stroma is fluid with dissolved enzymes	Free movement of substrates for the Calvin cycle; holds rubisco
Stroma lamellae connect grana	Allow products/electron carriers to move between stacks
Own DNA + 70S ribosomes	Can make some of its own proteins quickly, on-site

HOW the structure links to the two stages

Worked example Tracing energy through the structure

Step 1 — Light hits a granum. Why this step? Grana are stacks of thylakoids packed with chlorophyll, maximising light capture.

Step 2 — Photosystems in the thylakoid membrane excite electrons; water is split. Why this step? The membrane holds PSII, the electron transport chain and PSI in order, so electrons hop along a fixed path.

Step 3 — H⁺ ions are pumped into the thylakoid lumen. Why this step? The lumen is sealed, so protons accumulate → high concentration inside, low outside (stroma).

Step 4 — H⁺ flows back through ATP synthase into the stroma → ATP made. Why this step? The gradient stores energy; flow down the gradient powers ATP synthesis (chemiosmosis).

Step 5 — ATP + NADPH diffuse into the stroma; rubisco fixes CO₂. Why this step? Calvin-cycle enzymes float in the stroma, right next to where ATP/NADPH were made — short delivery distance.

Common mistakes (Steel-man + fix)

Recall checkpoints

Recall Feynman: explain to a 12-year-old

Imagine a chloroplast as a tiny sandwich shop with solar panels. The roof is covered in stacked solar panels (the grana) that catch sunlight and make electricity (ATP). The panels are stacked in piles so you can fit lots of them in and catch as much sun as possible. Behind the panels there's a sealed water tank (the thylakoid lumen) that fills up with "pressure" (protons). When that pressure rushes out through a little spinning turbine (ATP synthase), it makes the shop's power. The big open kitchen (the stroma) is where chefs (enzymes like rubisco) use that power to cook food (sugar) out of air (CO₂). Panels make power on the roof; chefs cook in the kitchen below. Same building, two jobs.

Connections

Light-dependent reactions — uses thylakoid membranes & proton gradient
Calvin cycle (light-independent reactions) — occurs in the stroma
Chlorophyll and photosynthetic pigments — held in the thylakoid membranes
Chemiosmosis and ATP synthase — driven by the thylakoid lumen H⁺ gradient
Endosymbiotic theory — explains double membrane, own DNA, 70S ribosomes
Mitochondrion structure — compare cristae/matrix with thylakoids/stroma
Cell organelles overview

What organelle carries out photosynthesis?

The chloroplast (a double-membrane-bound organelle).

How many membranes form the chloroplast envelope?

Two — an outer and an inner membrane.

What is the stroma?

The fluid matrix of the chloroplast containing Calvin-cycle enzymes, DNA and ribosomes.

What is a thylakoid?

A flattened membrane sac whose membrane holds pigments, photosystems and ATP synthase.

What is a granum?

A stack of thylakoids (like a pile of coins).

What are stroma lamellae?

Membrane bridges that connect grana to one another.

Where do the light-dependent reactions occur?

On the thylakoid membranes.

Where does the Calvin cycle occur?

In the stroma.

Why are thylakoids arranged in stacked grana?

To maximise surface area for pigments, increasing light absorption.

Where do protons (H⁺) accumulate during the light reactions?

In the thylakoid lumen (inside the thylakoid).

Why is the thylakoid lumen being sealed important?

It lets a proton gradient build up, which drives ATP synthase by chemiosmosis.

Which enzyme fixes CO₂ and where is it found?

Rubisco, located in the stroma.

What evidence in the chloroplast supports endosymbiotic theory?

It has its own circular DNA and 70S ribosomes, plus a double membrane.

Why are Calvin-cycle enzymes in the stroma rather than on membranes?

They are soluble enzymes needing free-floating substrates; being near the membranes gives quick access to ATP/NADPH.

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Socho chloroplast ek chhoti si solar factory hai jisme do alag kaam hote hain. Pehla kaam hai light reactions — jisme sunlight pakdi jaati hai aur ATP/NADPH banta hai. Yeh kaam thylakoid membranes par hota hai, kyunki yahin pigments (chlorophyll) lage hote hain. Thylakoids stack hokar grana banate hain (sikkon ki dher jaisi) taaki surface area zyada ho aur zyada light absorb ho. Yaad rakho: membranes light ke liye.

Doosra kaam hai Calvin cycle — jisme CO₂ se sugar banti hai. Yeh stroma mein hota hai, jo ek paani jaisa fluid hai jisme enzymes (jaise rubisco) ghule rehte hain. Enzymes ko free-floating substrates chahiye, isliye soup mein kaam karte hain. Toh rule simple hai: membranes pe light, soup mein sugar.

Ek important point — light reactions ke dauraan protons (H⁺) thylakoid lumen (thylakoid ke andar wali sealed jagah) mein jama hote hain. Yeh lumen band hone ki wajah se gradient banta hai, aur jab H⁺ wapas ATP synthase ke through stroma mein nikalte hain, tab ATP banta hai (chemiosmosis). Galti mat karna ki gradient stroma mein banta hai — woh lumen mein banta hai.

Aur ek baat: chloroplast ke do membranes (outer + inner) hote hain, plus iska apna DNA aur 70S ribosomes hote hain — isi liye endosymbiotic theory maani jaati hai. Exam mein hamesha "structure linked to function" likhna: granum stacked → zyada light; lumen sealed → proton gradient; stroma fluid → Calvin cycle enzymes.
