Describe chemiosmosis and ATP synthase — Biology notes

WHAT is chemiosmosis?

WHAT is being stored? Two things together, called the proton-motive force (pmf):

A chemical gradient — more H⁺ on one side (a pH difference, $\Delta\text{pH}$ ).
An electrical gradient — the H⁺-rich side is more positive (a membrane potential, $\Delta\psi$ ).

The combined energy per mole of protons is:

Formula Proton-motive force (derive it!)

Start from the free-energy change of moving 1 mole of an ion across a membrane.

Chemical part: moving a solute from concentration $C_{in}$ to $C_{out}$ costs $\Delta G_{chem} = RT \ln\frac{[H^+]_{out}}{[H^+]_{in}}$ Electrical part: moving charge $z$ (here $z=+1$ for H⁺) across a voltage $\Delta\psi$ costs $\Delta G_{elec} = zF\Delta\psi$ Add them (energy is additive): $\boxed{\Delta G_{H^+} = RT\ln\frac{[H^+]_{out}}{[H^+]_{in}} + F\Delta\psi}$ Using $\ln[H^+] = -2.303\,\text{pH}$ , this becomes the famous form: $\Delta p = \Delta\psi - 2.303\frac{RT}{F}\Delta\text{pH}$ where $\Delta p$ (in volts/mV) is the proton-motive force.

WHY both terms? Protons carry charge and exist at a concentration. Ignoring either underestimates the stored energy — like measuring a waterfall's power but forgetting the water is also flowing downhill.

WHERE does the gradient come from?

The Electron Transport Chain (ETC) uses energy from electrons (carried by NADH and FADH₂) to pump H⁺ across the membrane:

In mitochondria: from the matrix → into the intermembrane space.
In chloroplasts: into the thylakoid lumen.

This is active work powered by redox reactions. So the chain charges the "battery"; chemiosmosis discharges it to make ATP.

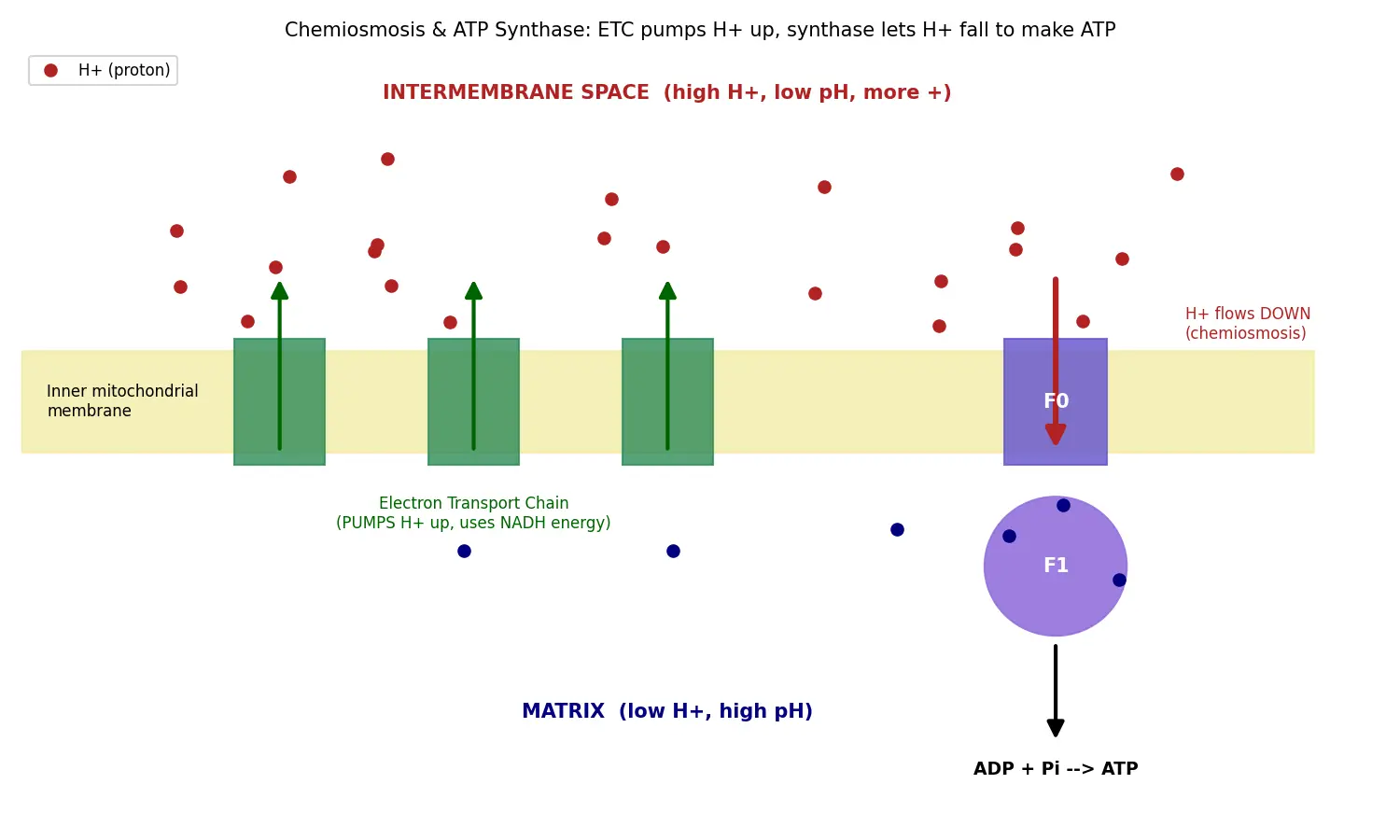

Figure — Describe chemiosmosis and ATP synthase

HOW does ATP synthase work?

HOW much energy per ATP? Each ATP requires energy roughly equal to the free energy released when a few protons (≈3–4 in eukaryotes) flow back through.

Worked examples

Common mistakes

Recall Feynman: explain to a 12-year-old

Imagine a dam holding back a lake. A pump (the electron transport chain) keeps lifting water up behind the dam. The higher the water, the more energy stored. Now you open a little gate with a water-wheel in it (ATP synthase). As water rushes down through the wheel, it spins — and that spinning wheel screws together little battery packs called ATP. The cell does this billions of times a second to power everything you do.

Flashcards

What is chemiosmosis?

The flow of protons (H⁺) down their electrochemical gradient across a membrane, through ATP synthase, driving ATP synthesis.

What two components make up the proton-motive force?

A chemical gradient (ΔpH) and an electrical gradient/membrane potential (Δψ).

What does the electron transport chain do to the proton gradient?

It actively PUMPS protons against their gradient, building (charging) it.

Does ATP synthase pump protons?

No — it lets them flow DOWN the gradient (passive); the energy released drives ATP synthesis.

What are the two parts of ATP synthase and their roles?

F₀ (membrane rotor that spins as protons pass) and F₁ (catalytic head that synthesizes ATP).

In mitochondria, protons are pumped from ___ to ___.

From the matrix to the intermembrane space.

What is the formula for proton-motive force Δp?

Δp = Δψ − (2.303RT/F)ΔpH.

With Δψ = 150 mV, ΔpH = 1, and 2.303RT/F = 60 mV, what is Δp?

Δp = 150 − 60(1) = 90 mV.

Roughly how many protons are needed per ATP, and why?

About 3–4, because the energy of ~3 protons (~3×20 kJ/mol) is needed to supply the ~50 kJ/mol cost of one ATP.

How is mechanical motion turned into chemical energy here?

The c-ring/γ-stalk rotation cycles F₁ catalytic sites through loose→tight→open shapes (binding-change mechanism), forcing ADP+Pᵢ into ATP.

Connections

Electron Transport Chain — builds the gradient chemiosmosis uses.
Oxidative Phosphorylation — the overall process = ETC + chemiosmosis.
NADH and FADH2 — electron carriers that power proton pumping.
Photosynthesis Light Reactions — uses the same chemiosmotic mechanism in chloroplasts.
Mitochondrial Structure — cristae increase membrane area for more pumps & synthases.
Gibbs Free Energy — underpins the ΔG derivations above.

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, chemiosmosis ko ek dam (bandh) ki tarah samjho. Mitochondria ke andar ek membrane hoti hai, aur Electron Transport Chain (ETC) is membrane ke ek taraf protons (H⁺) ko pump karti hai — yani actively, energy laga ke, ek side pe H⁺ bohot zyada bhar deti hai. Is wajah se ek gradient ban jaata hai: ek side acidic aur positive (zyada H⁺), doosri side kam. Ye stored energy hai, jise hum proton-motive force kehte hain. Isme do cheezein hoti hain — concentration ka difference (ΔpH) aur charge ka difference (Δψ, voltage).

Ab asli kamaal hota hai ATP synthase se. Ye ek chhota sa molecular turbine hai jo membrane me lagaa hota hai. Jab protons wapas neeche, apne gradient ke saath, is turbine ke through bahte hain (ye passive hai, isme energy release hoti hai), to turbine ka rotor (F₀ wala part) ghoomne lagta hai. Ye ghoomna F₁ part ke andar ke catalytic sites ko dabaata-kholdta hai, aur isi mechanical force se ADP + Pᵢ jud kar ATP ban jaata hai. Yaad rakho: ETC pump karti hai (upar), synthase girne deti hai (neeche) — synthase pump nahi karti!

Ek important baat: formula me minus sign hota hai — $\Delta p = \Delta\psi - 60\,\Delta\text{pH}$ (mV). Magnitudes ko aankh band karke jodna mat; sign ko respect karo. Jaise Δψ = 150 mV aur ΔpH = 1 ho to Δp = 150 − 60 = 90 mV, na ki 210. Number yaad rakho: roughly 3 protons girne se 1 ATP banti hai, kyunki ek ATP banane ki cost (~50 kJ/mol) ko 3 protons ki energy (~3×20 kJ/mol) cover kar deti hai.

Kyun important hai? Kyunki aapki cell ki 90% ATP isi tareeke se banti hai. Glucose se nikli saari energy aakhir me isi proton gradient me store hoti hai, aur fir ATP me convert hoti hai. Photosynthesis me bhi bilkul same mechanism chalta hai, bas membrane chloroplast me hoti hai.
