Learn Fibonacci retracement levels

Core Understanding

Think of it like a rubber band: stretch it (impulse move), then it snaps back (retracement), but how far back? Fibonacci levels predict the snap-back zones.

The key levels:

• 23.6% – shallow retracement (strong trend)
• 38.2% – moderate retracement
• 50.0% – psychological midpoint (not Fibonacci, but widely watched)
• 61.8% – the "golden ratio" (deepest common retracement)
• 78.6% – very deep retracement (trend may be weakening)

WHY these numbers? They come from the Fibonacci sequence (0, 1, 1, 2, 3, 5, 8, 13, 21..) where each number ≈ 1.618× the previous (the golden ratio φ). The retracement percentages are derived from φ:

$\phi = \frac{1 + \sqrt{5}}{2} \approx 1.618$

Start: A move from price $P_{low}$ to $P_{high}$, total distance $\Delta P = P_{high} - P_{low}$

Retracement level calculation: $\text{Retracement Price} = P_{high} - (\Delta P \times \text{Fib Ratio})$

Where do the ratios come from?

1. 61.8% = 1/φ $\frac{1}{1.618} = 0.618 = 61.8\%$ This is φ's reciprocal—appears throughout nature (spirals, proportions).

2. 38.2% = 1/φ² = 1 − 0.618 $\frac{1}{1.618^2} = 0.382 = 38.2\%$ This is also the complement of the golden ratio: $1 - 0.618 = 0.382$.

3. 23.6% = 1/φ³ $\frac{1}{1.618^3} = \left(\frac{1}{1.618}\right)^3 \approx 0.236 = 23.6\%$ Why not (1/φ)²? That would give $0.382$, which is the 38.2% level. The 23.6% level is the cube of the reciprocal (one power deeper).

4. 78.6% = √(1/φ) = √0.618 $\sqrt{0.618} \approx 0.786 = 78.6\%$ It is the square root of the golden ratio's reciprocal (0.618), not the square root of φ itself (√1.618 ≈ 1.272, which is actually a Fibonacci extension level).

5. 50.0% – Not Fibonacci-derived, but the midpoint. Markets respect round numbers psychologically.

WHY does this matter? The mathematical relationships create a nested structure of powers of $1/\phi$ (0.618, 0.382, 0.236…) that traders collectively monitor, making them self-reinforcing.

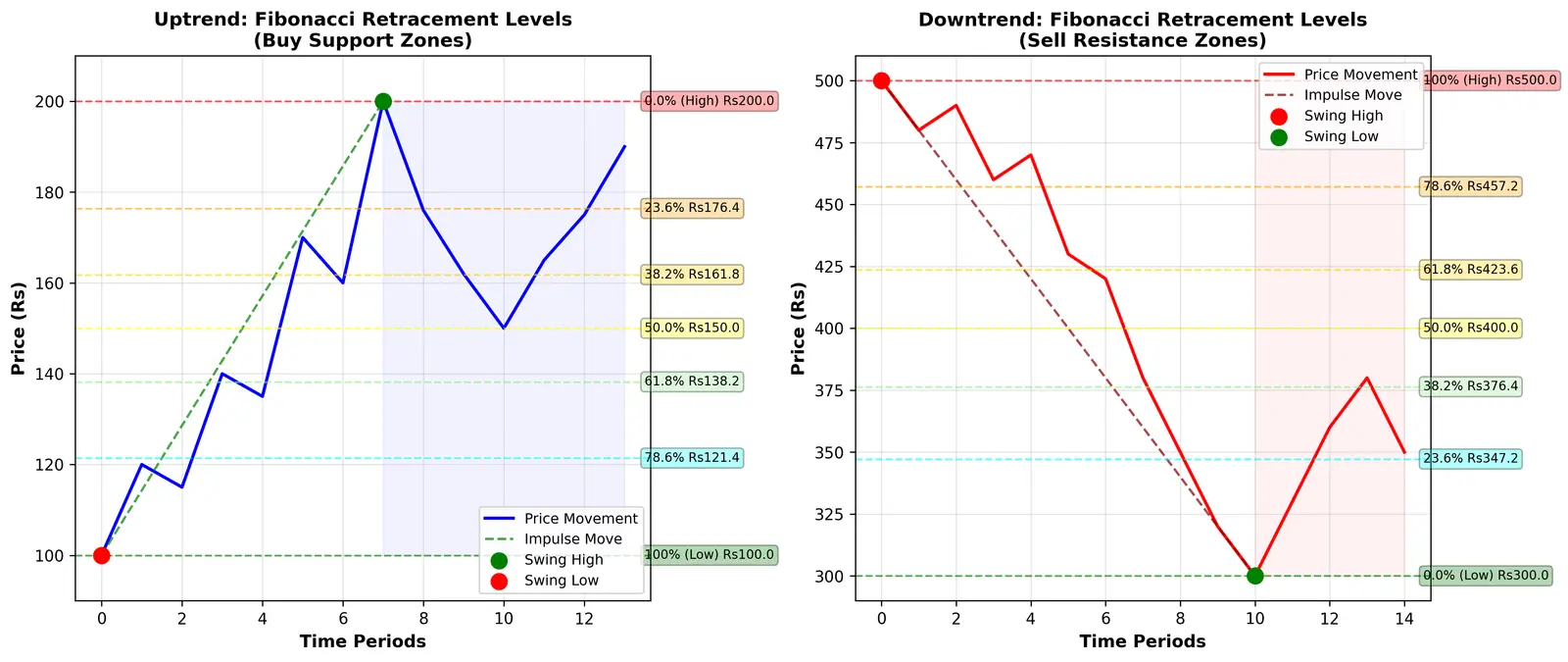

Scenario: Stock rallies from ₹100 (swing low) to ₹200 (swing high). It starts correcting. Where will it find support?

Step 1: Calculate $\Delta P$ $\Delta P = 200 - 100 = 100$

Step 2: Calculate each retracement level

23.6% level: $200 - (100 \times 0.236) = 200 - 23.6 = ₹176.4$ Why this step? We're measuring 23.6% of the total move down from the high.

38.2% level: $200 - (100 \times 0.382) = 200 - 38.2 = ₹161.8$

50.0% level: $200 - (100 \times 0.50) = 200 - 50 = ₹150$

61.8% level: $200 - (100 \times 0.618) = 200 - 61.8 = ₹138.2$

78.6% level: $200 - (100 \times 0.786) = 200 - 78.6 = ₹121.4$

Interpretation:

• If price bounces at ₹176.4, the uptrend is very strong (shallow retracement).
• Bounce at ₹161.8 or ₹150 = healthy correction in uptrend.
• Bounce at ₹138.2 = deeper correction, but trend still intact.
• Below ₹121.4 = trend may be reversing (too deep).

Why these specific prices? At ₹161.8, early buyers from ₹100 still have 61.8% profit. At ₹138.2, they have 38.2% left. These psychological zones trigger "buy the dip" behavior.

Scenario: Stock crashes from ₹500 (swing high) to ₹300 (swing low). It rallies. Where will sellers push back?

Step 1: $\Delta P = 500 - 300 = 200$

Step 2: Calculate resistance levels (measuring up from the low)

23.6% level: $300 + (200 \times 0.236) = 300 + 47.2 = ₹347.2$

38.2% level: $300 + (200 \times 0.382) = ₹376.4$

50.0% level: $300 + (200 \times 0.50) = ₹400$

61.8% level: $300 + (200 \times 0.618) = ₹423.6$

78.6% level: $300 + (200 \times 0.786) = ₹457.2$

Why this step? In a downtrend, Fibonacci levels act as resistance where short-sellers or trapped longs exit.

Trading decision: If price fails at ₹376.4, the downtrend is strong. If it breaks above ₹423.6, the trend might be reversing.

Real scenario: RELIANCE drops from ₹2800 to ₹2400, then bounces.

• First bounce fails at 38.2% (₹2552) on low volume → weak buyers, likely to fall again.
• Second bounce reaches 61.8% (₹2647) on high volume → strong buyers, potential trend reversal.

WHY volume matters? Fibonacci levels show where price might react. Volume shows how strong that reaction is. High volume at a Fibonacci level = institutional conviction.

Mistake 1: Treating Fibonacci as exact price targets Why it feels right: "Price hit ₹138.2 exactly, Fibonacci works!" The reality: Markets are probabilistic. A "hit" can be ₹136-140. Use Fibonacci as zones, not laser lines. Fix: Draw rectangles around levels (±1-2%) instead of single lines. Wait for confirmation (candlestick patterns, volume).

Mistake 2: Drawing Fibonacci on random highs/lows Why it feels right: More lines = more "predictions." The reality: Fibonacci only works on significant swing points visible on higher timeframes (daily, weekly). Drawing on 5-minute charts creates noise. Fix: Use swing highs/lows where price reversed with strong momentum or volume. Rule: if you zoom out and can't see the swing point, it's not significant.

Mistake 3: Ignoring the trend direction Why it feels right: "I'll just draw Fibonacci and trade the bounces." The reality: In a strong downtrend, 38.2% retracement is a sell zone, not a buy. Fighting the trend kills accounts. Fix: Fibonacci with the trend. Uptrend → buy at retracement supports. Downtrend → sell at retracement resistances.

Mistake 4: Confusing the derivations of 23.6% and 78.6% Why it feels right: "Square the reciprocal for 23.6%, square-root φ for 78.6%." The reality: $(1/\phi)^2 = 0.382$ (the 38.2% level!), and $\sqrt{\phi} = 1.272$ (an extension, above 100%). The correct forms are: 23.6% = (1/φ)³ and 78.6% = √(1/φ) = √0.618. Fix: Remember the chain of reciprocal powers: $1/\phi = 0.618$, $1/\phi^2 = 0.382$, $1/\phi^3 = 0.236$. And 78.6% is √0.618, not √1.618.

Fibonacci levels are like marks on the swing set: "Will I swing back to the middle? Or almost to where I started?" The cool part? Thousands of traders are watching the same marks (23.6%, 38.2%, 61.8%), so when price gets there, many decide to buy/sell at once, making the level "real."

The numbers come from a pattern found in nature—sunflower spirals, seashells—called the golden ratio (1.618). Somehow, human psychology in markets respects these ratios too. So we use them to guess: "This stock fell from ₹200 to ₹100, now it's bouncing. Will it stop at ₹138 (61.8% back)? If lots of people think so, it probably will!"

It's not magic—it's a crowd prediction tool. When everyone watches the same levels, they become self-fulfilling.

Visual: Draw a staircase with 5 steps. Label them 23, 38, 50, 62, 79. The higher you climb back up (in a downtrend retracement), the weaker the downtrend.

For the derivations, remember: "Reciprocal powers going down: 0.618, 0.382, 0.236" (that's $1/\phi$, $1/\phi^2$, $1/\phi^3$).

Practical Application

How to draw Fibonacci retracement (step-by-step):

1. Identify the trend: Is the recent dominant move up or down?
2. Find swing points:
   • Uptrend: Most recent significant low → most recent high
   • Downtrend: Most recent significant high → most recent low
3. Draw the tool: Connect the two points. Your platform auto-generates the levels.
4. Wait for price to retrace into a Fibonacci zone.
5. Look for confirmation:
   • Candlestick patterns (hammer, engulfing)
   • Volume surge
   • Confluence with other support/resistance
6. Enter trade with stop-loss below the next Fibonacci level.

Position sizing tip: Risk 1-2% of capital per trade. If entry is ₹150 (50% level) and stop is ₹135 (below 61.8% level), risk per share = ₹15. If account = ₹1,00,000, risk ₹1,500 → buy 100 shares.

Connections

• 3.6.01-Understanding-volume-basics – Volume confirms Fibonacci bounces
• 3.6.05-Fibonacci-extensions-for-targets – Where price goes after bouncing from retracement
• 3.5.03-Support-and-resistance-levels – Fibonacci levels are dynamic support/resistance
• 3.7.02-Elliott-Wave-structure – Waves 2 and 4 often retrace to Fibonacci levels
• 4.2.01-RSI-divergence – RSI divergence at 61.8% level = high-probability reversal
• 2.3.04-Risk-reward-ratio – Place targets at next Fibonacci extension, stops below retracement

Summary

Fibonacci retracement levels (23.6%, 38.2%, 50%, 61.8%, 78.6%) predict where a correcting price will pause, derived from the golden ratio φ ≈ 1.618. They form a chain of reciprocal powers: $1/\phi = 61.8\%$, $1/\phi^2 = 38.2\%$, $1/\phi^3 = 23.6\%$, and $78.6\% = \sqrt{0.618}$. They work because millions of traders watch them, creating self-fulfilling support/resistance. Calculate by measuring the swing move ($\Delta P$) and subtracting the Fibonacci percentage from the high (uptrend) or adding to the low (downtrend). Always combine with volume, trend context, and other indicators. Mistakes: treating as exact lines, using on noise, ignoring trend direction, confusing the 23.6%/78.6% derivations.

#flashcards/stock-market

What are the five main Fibonacci retracement levels and what does each signal? :: 23.6% (shallow, strong trend), 38.2% (moderate), 50% (psychological midpoint), 61.8% (golden ratio, deepest common), 78.6% (very deep, trend weakening)
