Learn rising and falling wedges

WHY they matter: Wedges signal exhaustion. When price keeps making higher highs but the rallies get weaker (rising wedge), bulls are running out of gas. When price keeps making lower lows but the drops get smaller (falling wedge), bears are losing conviction.

WHAT makes them different from triangles: Wedges have both trend lines sloping the same direction (both up or both down), giving a clear tilt. Symmetrical triangles have two lines sloping toward each other (one up, one down); ascending/descending triangles have one horizontal line. Wedges most often break against their slope (reversal), though in practice they can occasionally act as continuation patterns—so always wait for the breakout + volume to confirm direction.

Rising Wedge

Structure:

• Upper resistance: connects rising highs (price struggles to push higher)
• Lower support: connects rising lows (dips get shallower)
• Convergence: lines meet at an apex (the squeeze point)

WHY it's bearish: Each rally is weaker than the last. Buyers are exhausted—they're pushing price up, but with less force each time. When support breaks, there's no one left to catch the fall.

Derivation:

1. Measure the maximum vertical distance between the trend lines (usually at the widest part, the left side where the pattern begins)
2. This represents the initial "energy" or volatility trapped in the pattern
3. When price breaks down, it tends to release this energy over the same vertical distance
4. WHY: Market memory—the same participants who created the range tend to exit positions over similar price distances

Example calculation:

• Wedge starts with support at $45, resistance at \50→ height = \5 (measured at the widest point)
• Price breaks down at $52 (support line)
• Target = $52 - \lambda5 = **\47**

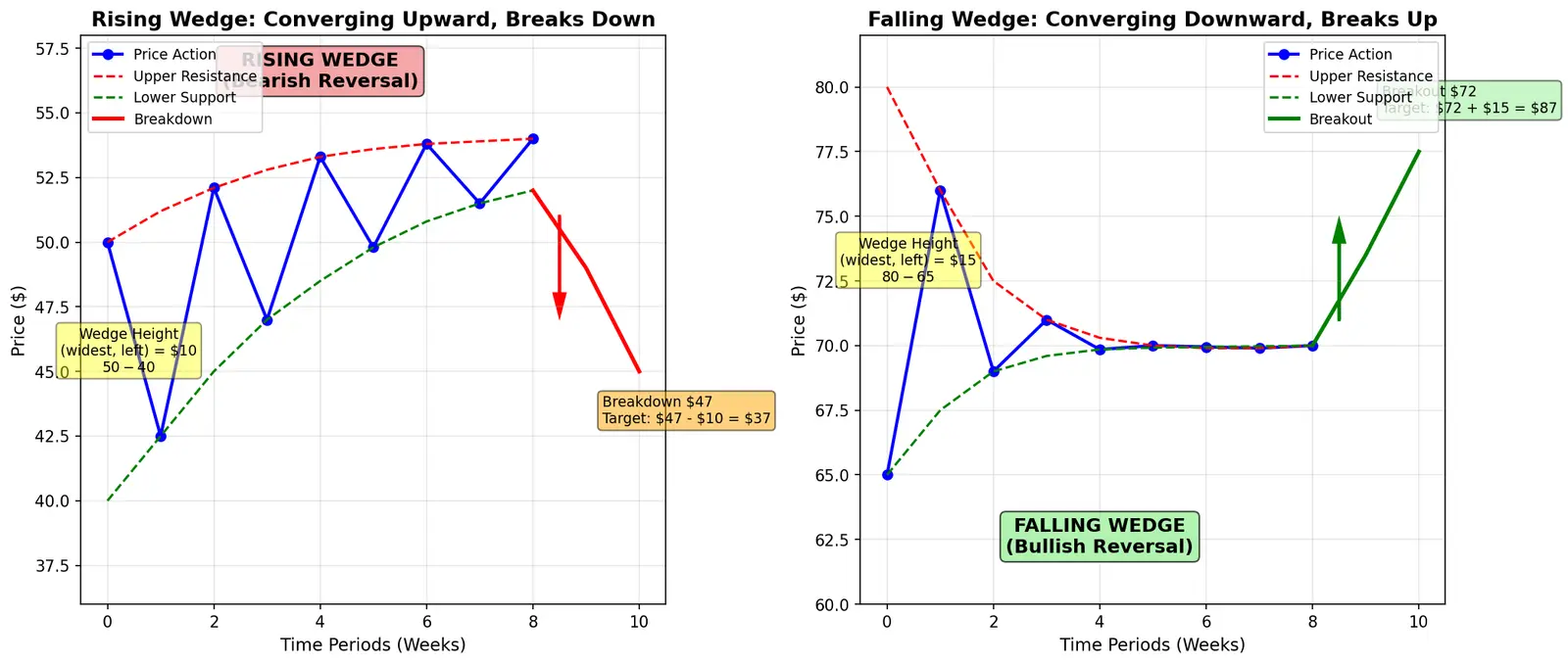

What's happening: Price keeps going up, but momentum is dying. The highs are barely higher each time. Connect the lows (40→42→45→47 upsloping) and highs (50→52→53→53.50 upsloping but flatter). They converge.

Volume check: Week 1 volume = 2M shares, Week 4 volume = 800K shares. Declining volume confirms weakening interest.

Breakout: Price drops below $47 support on high volume (1.5M shares).

• Wedge height = maximum vertical distance = Week 1's $50 - \backslash40 = **\10** (the widest part, NOT the total price range)
• Target = $47 - \text{(incomplete expression)}10 = **\37**

WHY this step? The height is the widest gap between the two trend lines, which occurs at the left side (Week 1). We do not use the highest high minus the lowest low across the whole pattern—that would overstate the trapped volatility. Breaking support with a volume surge means trapped buyers are panic-selling, and the measured move assumes they unwind the range that was built at the pattern's widest point.

Falling Wedge

Structure:

• Upper resistance: connects falling highs
• Lower support: connects falling lows (steeper decline than resistance so the lines converge)
• Convergence: sellers running out of ammunition

WHY it's bullish: Each drop is smaller than the last. Sellers are exhausted—they're pushing price down, but with diminishing force. When resistance breaks, shorts cover and buyers rush in.

Derivation: Same logic as rising wedge, but in reverse. The trapped volatility unwinds upward after the spring releases. Height = maximum vertical distance between the lines at the widest (left) part.

Pattern recognition: Connect the highs (80→75→72 downsloping) and lows (65→68→70 downsloping but less steep). Wedge tightens.

Breakout: Price breaks above $72 resistance on 3× average volume.

• Wedge height = widest vertical gap = Week 1's $80 - \text{(incomplete expression)}65 = \15
• Target = $72 + \text{ }15 = **\87**

WHY this works: The selling pressure that created the $15 range has evaporated. When price escapes, short-sellers cover and fresh buyers enter, propelling price the same distance upward.

Volume confirmation: Volume was declining as wedge formed (2M→1.5M→900K), then spiked to 2.7M on breakout. High volume confirms genuine reversal, not a fake-out.

Key Differences and Nuances

CRITICAL WHY: Wedges usually break against their slope because they represent exhaustion of the current move. Rising wedge = tired bulls → breakdown. Falling wedge = tired bears → breakup. This is the high-probability tendency, not a guarantee—wedges can occasionally continue the prior trend, so volume-confirmed breakouts are essential.

Weekly wedge:

• Forms over 2-3 months
• Height = $25
• Targets major $20-$25 swings for position trading

WHY this matters: The principle scales—wedges work on all timeframes because psychology of exhaustion is fractal.

Steel-man: Pennants and symmetrical triangles do look similar—two converging lines. It's easy to mix them up visually.

The FIX:

• Pennants are small, form quickly (1-3 weeks), and are continuation patterns (trend resumes after consolidation)
• Symmetrical triangles have two lines sloping toward each other (one up, one down)
• Ascending/descending triangles have one horizontal line and one sloped line
• Wedges have both lines sloping the same direction (both up or both down), and usually break against that slope

How to check: Draw both trend lines. Same direction + tilt = wedge. Lines converging from opposite slopes = symmetrical triangle. One flat line = ascending/descending triangle.

Steel-man: It feels intuitive—price is going up, momentum is up, break above resistance should continue higher. You're following the visible trend.

The FIX: Rising wedges break downward the majority of the time. The upward slope is the exhaustion move. You're waiting for the reversal, not continuation.

How to avoid:

1. Identify the wedge type first (rising = bearish bias, falling = bullish bias)
2. Set your alert/order on the counter-slope line (support for rising, resistance for falling)
3. Wait for volume confirmation—breakout needs 1.5-2× average volume

Steel-man: The price action fits the textbook definition—converging lines, right slope, clean pattern. Why wait?

The FIX: Without volume surge, many breakouts fail. Wedges compress both price and volume. The spring release must show participants rushing in.

Volume rules:

• Declining volume as wedge forms = good (consolidation)
• Breakout volume ≥ 1.5× average = confirmation
• Low breakout volume = likely false break (price sucks back into wedge)

Example: Rising wedge breaks support on 400K volume when average is 1M → wait. If price re-tests support with 2M volume, then enter short.

Rising wedge: You're pushing the spring up while squeezing it tighter. Your arms get tired (buyers exhausted). When you let go, the spring shoots down.

Falling wedge: You're pushing the spring down while squeezing. Your arms get tired (sellers exhausted). When you release, the spring shoots up.

The wedge is a trap—price is stuck in a smaller and smaller space. When it escapes, it usually moves fast in the opposite direction from the squeeze. It's like holding your breath underwater—the longer you hold, the bigger the gasp when you surface.

Or: "Wedges Reverse the Trend's Vibe"—the slope shows the dying trend, breakout usually starts the new one.

Connections

• Understand support and resistance — Wedge trend lines are dynamic support/resistance
• Identify ascending and descending triangles — Triangles have one horizontal line, wedges have two same-sloped lines
• Master volume analysis — Volume decline into apex, surge on breakout is the confirmation
• Calculate risk-reward ratios — Wedge height gives measured move for target calculation
• Recognize exhaustion patterns — Wedges, double tops, head-and-shoulders all signal exhaustion
• Time entries and exits — Enter on breakout + volume, exit at measured move or trailing stop
• Combine with momentum indicators — RSI divergence often appears during wedge formation (price higher highs, RSI lower highs in rising wedge)

#flashcards/stock-market

What are the two defining features of a wedge pattern? :: Two converging trend lines that both slope in the same direction (both up or both down), indicating price compression and exhaustion of the current trend.
