Learn ascending, descending, symmetrical triangles

What Are Triangle Patterns?

Why do they form?
After a strong move, the market needs to "digest" gains/losses. Bulls and bears battle within narrowing bounds as uncertainty decreases and conviction builds toward one side.

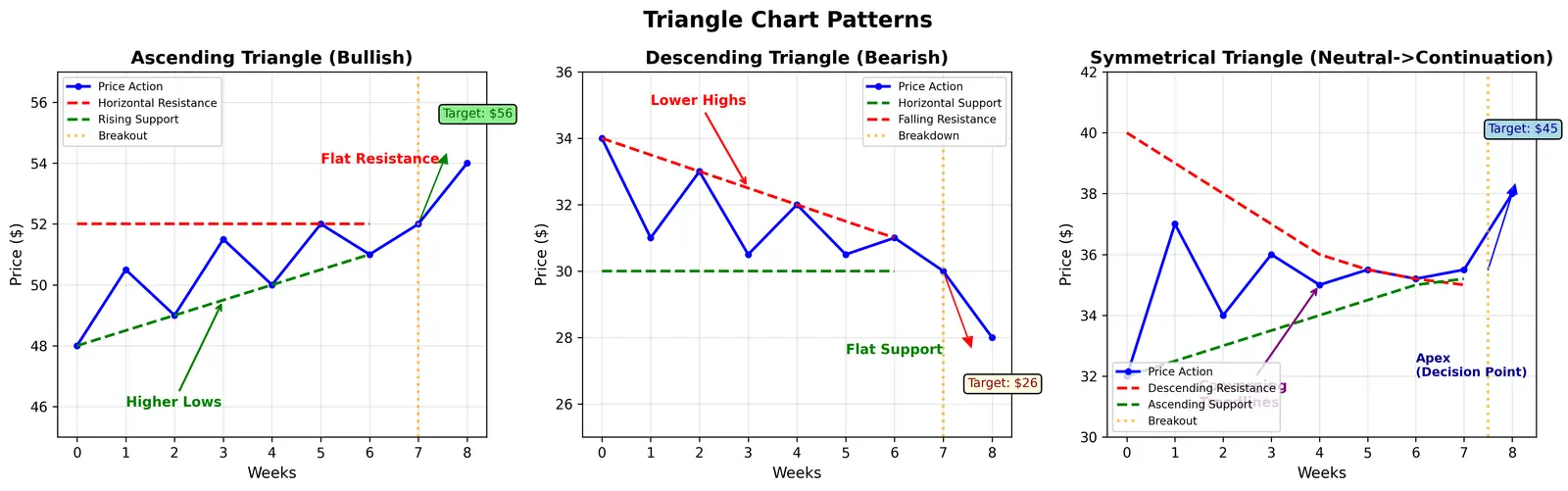

Figure — Learn ascending, descending, symmetrical triangles

How to Identify Each Triangle Type

###1. Ascending Triangle (Bullish Bias)

Step-by-step identification:

Find 2+ touches of horizontal resistance at same price
Connect 2+ rising lows with upward trendline
Confirm volume decline during formation
Measure height at widest part (pattern start)

Measurement for price target: $\text{Target} = \text{Breakout Price} + \text{Pattern Height}$

WHY this formula? The height represents accumulated energy (volatility compression). When released, price typically travels at least that distance. This is NOT guaranteed but a statistical tendency from historical patterns.

Worked example Worked Example: Ascending Triangle Breakout

Setup: Stock consolidates between $48-$ 52 for 6 weeks

Resistance: Flat line at $52 (touched3 times)
Support: Rising from $48 →$ 49 → $50 (higher lows)
Pattern height: $52 -$ 48 = $4 **Breakout:** Price closes above$ 52 on high volume (2x average) Target calculation: $\text{Target} = 52 + 4 = \$56$

Why each step?

Higher lows: Shows buyers stepping in more agressively each dip
Flat resistance: Sellers not lowering their ask, but running out of shares
Volume surge: Confirms genuine breakout, not a fake-out
** $4 projection:** Energy compressed in$ 4 range now propels upward

2. Descending Triangle (Bearish Bias)

Measurement for price target: $\text{Target} = \text{Breakout Price} - \text{Pattern Height}$

(Subtract because we're going down)

3. Symmetrical Triangle (Neutral)

Breakout timing: Usually occurs in the outer 2/3 of the triangle. If price reaches the apex without breaking, the pattern fails (uncertainty remains).

Measurement: $\text{Target} = \text{Breakout Price} \pm \text{Pattern Height at Base}$

(Add the Pattern Height if the breakout is upward, subtract the Pattern Height if the breakout is downward.)

Common Mistakes & How to Avoid Them

Trading Triangle Patterns: Practical Rules

Entry timing:

Conservative: Wait for close beyond trendline + retest of breakout level
Aggressive: Enter on breakout bar itself (higher risk, better R:R)

Stop-loss placement: $\text{Stop} = \text{Opposite trendline} - \text{small buffer}$

For ascending triangle breaking up: stop below last higher low
For descending breaking down: stop above last lower high

WHY? If price retreats back into the pattern, the breakout failed. No reason to hold.

Position sizing: $\text{Position Size} = \frac{\text{Risk Capital}}{\text{Stop Distance}}$

If risking $500 and stop is$ 2away from entry, buy250 shares max.

Volume confirmation checklist:

Volume declining during pattern (boredom/consolidation)
Breakout volume > 1.5x average daily volume
Follow-through volume sustained for2-3 days

Key Principles: Why Triangles Work

Volatility Compression: As the triangle narows, implied volatility decreases. Options get cheaper. When breakout occurs, volatility expansion creates momentum.
Psychological Buildup: Trapped traders (those who bought resistance or sold support) add fuel. Their stop-losses cascade when the level breaks.
Time Element: The longer the pattern (within the 3-7 week range), the stronger the breakout. Too short = not enough pressure built up. Too long = interest dies.
Continuation Bias: Most triangles continue the prior trend because the pattern represents a "pause" in a story, not a reversal. Market tends to resume its narrative.

Recall Explain to a 12-Year-Old (Feynman Technique)

Imagine a bouncing ball in a hallway that's getting narrower. The ball bounces between the walls, but each bounce has less room. Eventually, the ball MUST shoot out one end because there's no more space to bounce.

That's a triangle pattern! The price is the ball, the walls are support/resistance. When the walls get too close (the triangle gets skiny), price explodes out one direction—usually the direction it was going before it got squezed.

Ascending triangle: The bottom wall is tilting up (someone's lifting it), but the top wall stays flat. The ball will probably shoot UP because the bottom is rising to meet it.

Descending triangle: The top wall is tilting down, bottom flat. Ball will probably shoot DOWN.

Symmetrical triangle: Both walls tilting in equally. Ball could go either way—we watch which end breaks first!

Connections & Further Study

Continuation vs Reversal Patterns – Why triangles usually continue trends
Volume Analysis – Interpreting volume changes during formation
Breakout Trading Strategy – How to enter and manage triangle trades
Support and Resistance Levels – Foundation for drawing trendlines
Risk Management – Position sizing based on stop distance
False Breakouts – Why some triangles fail and how to detect early
Pennants and Flags – Similar consolidation patterns (shorter duration)
Technical Analysis Time Frames – How pattern duration affects reliability

#flashcards/stock-market

What are the three main types of triangle patterns? :: Ascending (flat resistance + rising support), Descending (flat support + falling resistance), Symmetrical (both trendlines converging equally)

What is the typical bias of an ascending triangle?

Bullish bias because buyers are making progressively higher lows while sellers hold a horizontal resistance line

How do you calculate the price target for a triangle breakout?

Add the pattern height (widest point) to the breakout price for bullish patterns, subtract for bearish patterns

Why must volume decline during triangle formation?

Declining volume shows consolidation and indecision—traders are waiting for a resolution. This builds pressure for the eventual breakout

What percentage of symmetrical triangles continue the prior trend?

Approximately 70% of symmetrical triangles are continuation patterns

Where should you place a stop-loss on an ascending triangle long position?

Below the last higher low (or below the rising support trendline) with a small buffer

What is the minimum number of trendline touches required for a valid triangle?

At least 4-5 total touches—minimum 2 touches per trendline

What is the ideal time duration for triangle pattern formation?

3-7 weeks; shorter patterns lack buildup, longer patterns lose participant interest

What volume characteristic confirms a valid breakout?

Volume should surge to at least 1.5-2x the average daily volume on the breakout candle

Why do descending triangles sometimes break upward despite bearish bias?

Context matters—in strong uptrends, descending triangles can fail and break upward 25-30% of the time as bulls defend support agressively

What happens if price reaches the triangle apex without breaking?

The pattern typically fails—the compressed range releases energy sideways (continued indecision) rather than in a directional move

In a symmetrical triangle, when does the breakout usually occur?

In the outer two-thirds of the triangle pattern; breakouts near the apex are less reliable

What psychological factor makes triangle breakouts powerful?

Trapped traders (those caught on wrong side) trigger stop-losses that cascade, adding momentum to the breakout direction

How should you adjust position size based on triangle stop distance?

Position Size = Risk Capital ÷ Stop Distance; wider stops require smaller positions to maintain consistent risk

What is the key difference between an ascending triangle and a symmetrical triangle in an uptrend?

Ascending has flat horizontal resistance and rising support (bullish bias); symmetrical has both converging equally (neutral until breakout)

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Triangle patterns stock market mein ek kafi powerful tool hain jab price consolidate kar rahi hoti hai. Socho jaise ek spring ko dabaya ja raha hai—jitna zyada dabao,
