Understand triple top and triple bottom

Core Concept

Key characteristics:

• Three peaks at roughly equal heights (within 3-5% variance)
• Two troughs between peaks forming the neckline
• Declining volume across successive peaks (ideally)
• Completion requires neckline break with volume confirmation
• Time span: weeks to months (not intraday)

Key characteristics:

• Three troughs at roughly equal lows (within 3-5% variance)
• Two peaks between troughs forming the neckline
• Increasing volume on the third trough and breakout (ideally)
• Completion requires neckline break with volume confirmation
• Time span: weeks to months

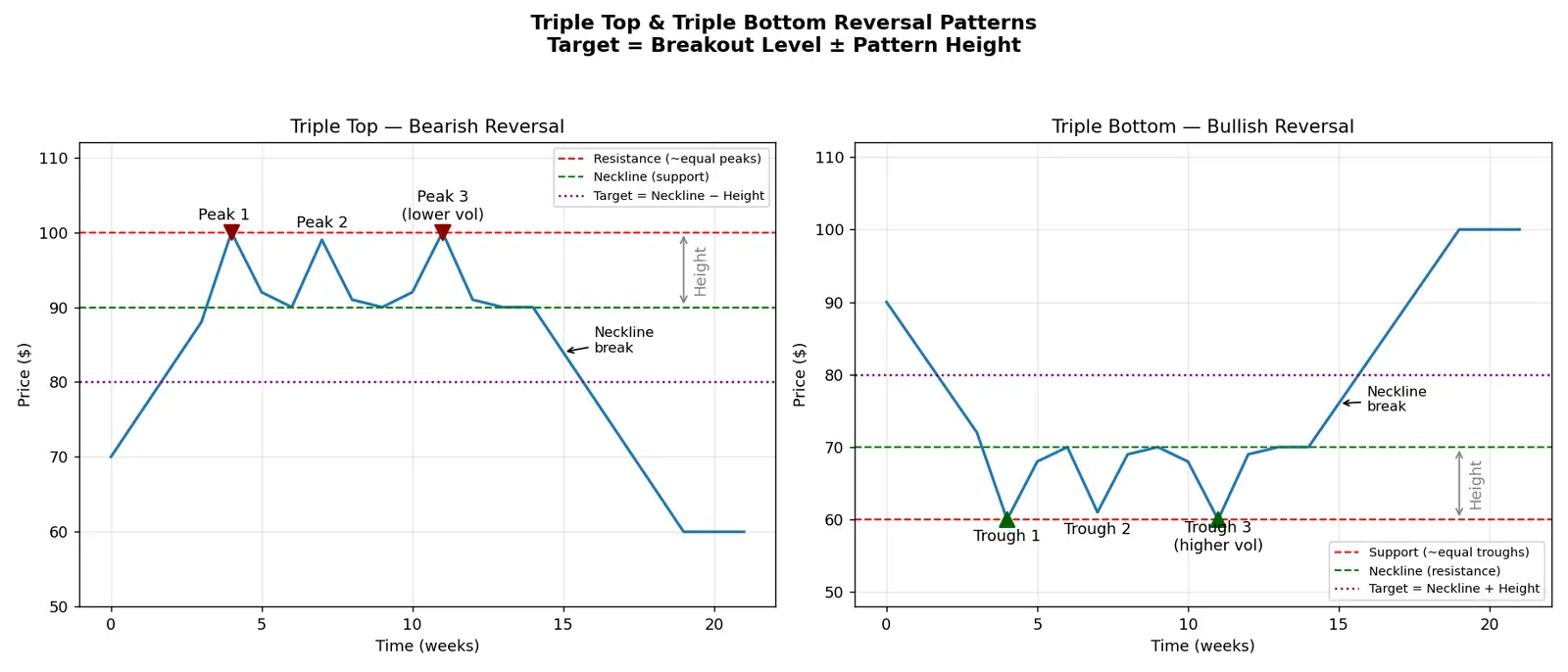

Visual Structure

Why This Pattern Works: Psychology Breakdown

Triple Top Psychology (Bearish Reversal):

1. First Peak: Bulls push price to new high, profit-taking creates first pullback. Sentiment: "Healthy correction, we'll break higher soon."

2. Second Peak: Bulls try again, reach similar resistance. Sellers appear at same level. Sentiment: "Double top forming? But we might break through..."

3. Third Peak: Bulls make final attempt, but volume typically lower (exhaustion). Sellers aggressive at resistance. Key insight: If bulls had real conviction, they'd have broken through by now. Three failures = opportunity cost + frustration.

4. Neckline Break: After third failure, bulls capitulate, stops trigger below neckline, bears gain control. Self-fulfilling as traders recognize the pattern.

Triple Bottom Psychology (Bullish Reversal):

1. First Trough: Bears push to new low, bargain hunters create bounce. Sentiment: "Oversold relief rally."

2. Second Trough: Price retests low, holds at similar support. Sentiment: "Double bottom? Support might hold..."

3. Third Trough: Final test of support, but buyers more aggressive (volume increases). Key insight: If bears had conviction, they'd have broken support. Three failures = bears exhausted.

4. Neckline Break: After third hold, bears capitulate, short-covering + new buyers push price through resistance.

The Mathematics: Target Projection

$\text{Target} = \text{Breakout Level} \pm \text{Pattern Height}$

For Triple Top (Bearish): $\text{Target} = \text{Neckline} -(\text{Peak High} - \text{Neckline})$

For Triple Bottom (Bullish): $\text{Target} = \text{Neckline} + (\text{Neckline} - \text{Trough Low})$

Why this formula? The pattern height represents the equilibrium range between buyers and sellers. When one side decisively wins (breakout), the imbalance often carries price an equivalent distance in the breakout direction. This is an empirical observation, not a law—think of it as the market's typical "unwinding distance" for the built-up pressure.

Derivation from Market Mechanics:

• Pattern height = maximum price swing during accumulation/distribution
• This swing represents the zone of disagrement between bulls/bears
• Once disagrement resolves (breakout), the losing side must exit
• Stop losses and momentum traders amplify the move
• Statistical observation: moves tend to match the consolidation range

Worked Examples

Setup:

• Peak 1: ₹2,850 (high volume, strong buying)
• Trough 1: ₹2,720 (profit-taking)
• Peak 2: ₹2,860 (lower volume, struggling)
• Trough 2: ₹2,715 (neckline forming)
• Peak 3: ₹2,845 (weak volume, sellers aggressive)
• Neckline: ₹2,715 (support from two troughs)

Calculation: Pattern Height = ₹2,855 (avg peak) - ₹2,715 (neckline) = ₹140 Target = ₹2,715 - ₹140 = ₹2,575

Entry: Break below ₹2,715 with volume >1.5x average Stop Loss: ₹2,775 (above the last trough peak) Target: ₹2,575

Why this works step-by-step:

1. Why three peaks matter? Each failure at₹2,850 level proves resistance is strong; bulls can't overcome sellers.
2. Why declining volume is bearish? Shows bulls losing conviction—fewer buyers willing to chase at resistance.
3. Why neckline break confirms? Break below ₹2,715 means support buyers exhausted; stops trigger cascade.
4. Why this target? Pattern unwinding: the₹140 range where bulls/bears fought now resolves downward.

Setup:

• Trough 1: ₹105 (panic selling, high volume)
• Peak 1: ₹112 (relief rally)
• Trough 2: ₹106 (support holds, moderate volume)
• Peak 2: ₹113 (neckline forming)
• Trough 3: ₹105.50 (higher volume, aggressive buying)
• Neckline: ₹113 (resistance from two peaks)

Calculation: Pattern Height = ₹113 (neckline) - ₹105.50 (avg trough) = ₹7.50 Target = ₹113 + ₹7.50 = ₹120.50

Entry: Break above ₹113 with volume >2x average Stop Loss: ₹108 (below the last peak trough) Target: ₹120.50

Why this works step-by-step:

1. Why three troughs matter? Each hold at ₹105 level proves support is strong; sellers can't push lower.
2. Why increasing volume on trough 3 is bullish? Shows buyers agressively defending—stronger conviction.
3. Why neckline break confirms? Break above ₹113 means sellers exhausted; short-covering amplifies rally.
4. Why this target? The ₹7.50 range of indecision now resolves upward with momentum.

Setup:

• Peak 1: ₹450 (volume: 2M shares)
• Peak 2: ₹455 (volume: 2.5M shares—increasing!)
• Peak 3: ₹458 (volume: 3M shares—still strong!)
• Price breaks above ₹460

Why the pattern failed:

• Volume contradiction: Increasing volume on successive peaks shows growing buying interest, not exhaustion
• Higher highs: Each peak slightly higher (₹450→₹455→₹458) shows bulls gaining strength
• Breakout: Above ₹460 invalidates the pattern—resistance broken

Lesson: Triple top requires declining volume and similar peak heights. This was actually a bullish continuation disguised as a triple top. Steel-man the bulls: "We're making higher highs with more volume—that's strength, not weakness!"

Common Mistakes & Steel-Manning

Why it feels right: You see three touches of resistance, pattern recognition kicks in.

Why it's wrong: Triple tops/bottoms are multi-week/month patterns. Intraday touches are noise, not institutional accumulation/distribution. Real patterns require time for psychology to shift.

Steel-man the mistake: "I'm trying to catch patterns early, and repetition matters in technical analysis."

The fix: Require each peak/trough to be separated by at least 1-2 weeks and form distinct swing highs/lows on daily charts. Use higher timeframes (daily/weekly).

Why it feels right: The visual pattern is there, geometry matches.

Why it's wrong: Without volume confirmation (high volume on breakout), it could be a false breakdown. Volume shows conviction—without it, price often whipsaws back.

Steel-man the mistake: "Price action is more important than volume indicators."

The fix: Wait for neckline break with volume at least 1.5x the20-day average. Better to miss the first2% than get trapped in a false break.

Why it feels right: Definitions say "approximately equal" but you want precision.

Why it's wrong: Markets are fractal and noisy. Allow 3-5% variance. ₹500-₹505 on a ₹500 stock is 1% difference—negligible. The psychology matters (resistance zone), not pixel-perfect alignment.

Steel-man the mistake: "Precision matters in trading; loose definitions lead to seeing patterns everywhere."

The fix: Use resistance/support zones (ranges) rather than exact levels. If peaks are within 3-5%, consider them equal. Focus on the failure to break meaningfully higher/lower.

Why it feels right: Early entry means better risk/reward.

Why it's wrong: The pattern isn't confirmed until the neckline breaks. Peak 3 might break through resistance (invalidating triple top), or the neckline might hold (invalidating triple bottom). Early entry = no edge.

Steel-man the mistake: "By waiting for confirmation, I miss half the move."

The fix: Triple tops/bottoms are reversal patterns—the big move comes after confirmation. Entering early without confirmation is speculation, not pattern trading. Wait for the breakout with volume.

Risk Management & Validation

Confirmation Checklist:

1. ✓ Three distinct peaks/troughs at similar levels (within 3-5%)
2. ✓ Pattern develops over weeks to months (not days)
3. ✓ Volume declining on triple top peaks / increasing on triple bottom troughs
4. ✓ Neckline break with volume >1.5x average
5. ✓ Clear separation between peaks/troughs (not overlapping ranges)

Stop Loss Placement:

• Triple Top: Place stop above the highest peak or above the last peak if lower (e.g., if Peak 3< Peak 1, stop above Peak 3)
• Triple Bottom: Place stop below the lowest trough or below the last trough if higher

Position Sizing: Risk1-2% of capital per trade. Calculate: $\text{Position Size} = \frac{\text{Risk Amount}}{\text{Stop Distance}}$

Example: ₹100,000 capital, 2% risk = ₹2,000 risk budget Entry: ₹2,715, Stop: ₹2,775, Distance: ₹60 Position Size = ₹2,000 / ₹60 =33 shares

Pattern Failures & What They Signal

When Triple Top Fails (Breaks Upward):

• Signals strong bullish momentum—resistance broken after three tests shows bulls are dominant
• Often leads to strong continuation as shorts cover and breakout buyers enter
• Treat as bullish breakout, enter long above peak3 high

When Triple Bottom Fails (Breaks Downward):

• Signals strong bearish momentum—support broken after three tests shows bears are dominant
• Often leads to steep decline as longs capitulate and breakdown sellers pile in
• Treat as bearish breakdown, enter short below trough 3 low

Key insight: Failed patterns are often stronger signals in the opposite direction than if the pattern had never formed. Why? Because they trap traders on the wrong side, forcing stop-outs that fuel the move.

Now flip it: imagine you're defending, and the other player tries to get past you three times, but you stop them at the same spot each time. After the third stop, they give up trying to push through and decide to shoot from outside instead (market reverses upward). That's a triple bottom—your defense was too strong, so they change tactics.

In stocks, when bulls try three times to push price higher and fail, they give up and bears take over (triple top). When bears try three times to push price lower and fail, they give up and bulls take over (triple bottom). The three tries prove who's stronger!

Visual mnemonic: Draw three mountain peaks (top) or three valleys (bottom)—if they're at same level and fail to break through, the path reverses. "Three tries and you're out!"

Connections

• Double Top and Double Bottom - Similar patterns but only two tests; triple patterns show stronger resistance/support
• Head and Shoulders Pattern - Another reversal pattern; triple top is symmetric while H&S has central peak
• Volume Analysis - Volume confirmation is critical; patterns without volume are suspect
• Support and Resistance - Triple patterns form at major S/R levels; multiple tests strengthen these zones
• Breakout Trading - Pattern completion requires neckline breakout with volume and follow-through
• Stop Loss Strategies - Stop placement above/below pattern extremes protects against false signals
• Risk-Reward Ratio - Pattern target gives clear R:R calculation; measure before entry
• Market Psychology - Three failures create psychological shift; exhaustion replaces conviction
• Trend Reversal vs Continuation - Triple patterns are reversal signals; distinguish from flags/pennants
• Time Frame Analysis - Pattern validity depends on daily/weekly charts; not for intraday

#flashcards/stock-market

What is a triple top pattern? :: A bearish reversal pattern with three peaks at approximately the same resistance level, separated by two troughs, that confirms when price breaks below the neckline with volume.

Where should you place a stop loss for a triple bottom trade? :: Below the lowest trough, or below the third trough if it's higher than the first two. Typically 2-3% below the pattern low.
