Understand cup and handle

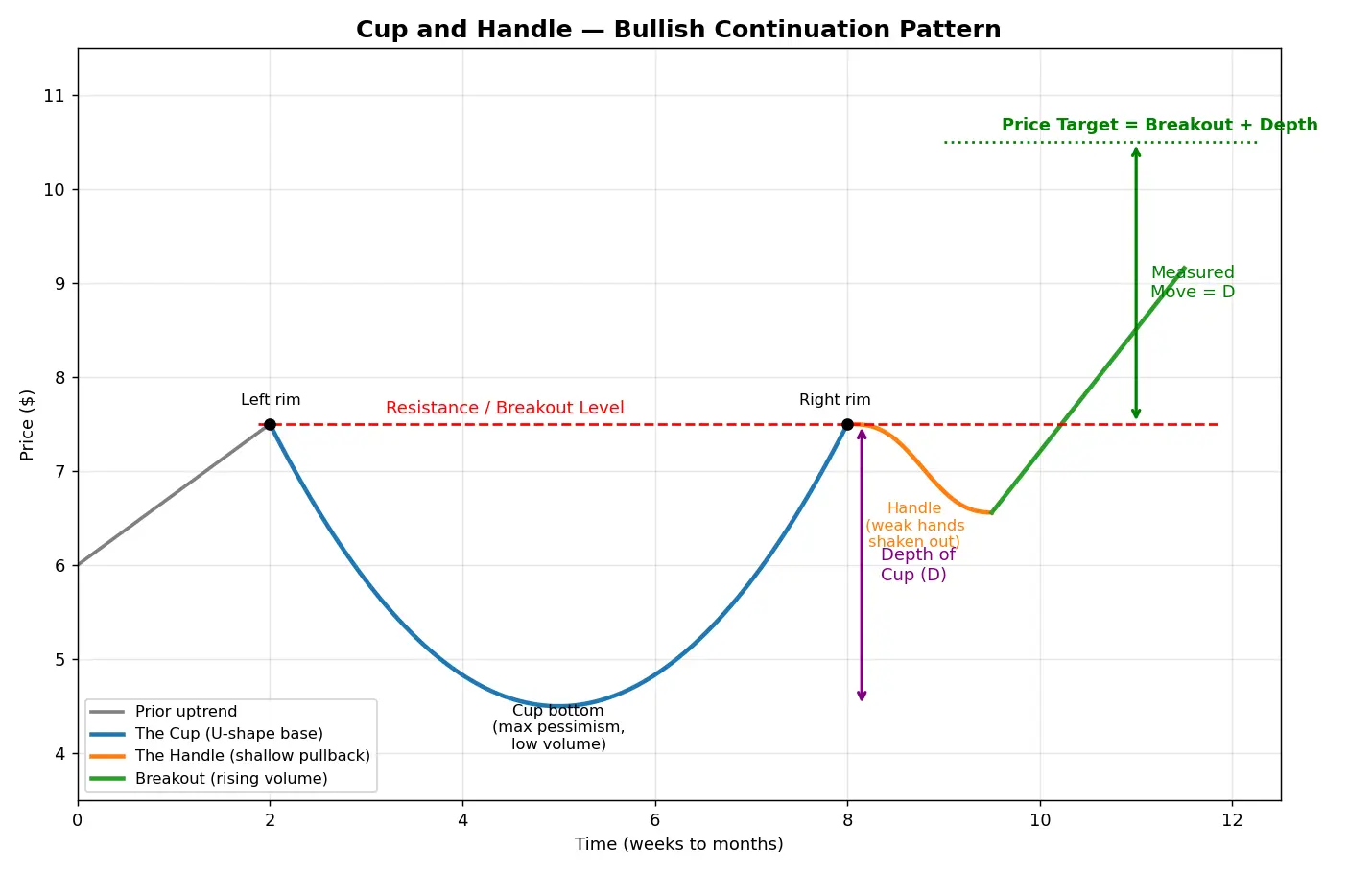

Core Components

Why the Shape Matters

The Cup (U-shape vs V-shape):

A rounded, gradual bottom (U-shape) indicates healthy consolidation—sellers exhausted slowly, buyers accumulated patiently.
A sharp V-shaped bottom suggests panic selling followed by panic buying—too volatile, less reliable. Why? V-bottoms lack the time for proper base-building; strong hands didn't accumulate enough.

The Handle (Drift, Not Plunge):

The handle should be a shallow, controlled pullback (10-20% of cup depth max). Why? This is the final shakeout of weak hands. If it drops too steeply, it signals renewed selling pressure, invalidating the pattern.
Lower volume during the handle = sellers exhausted, buyers waiting.

Derivation: Why This Pattern Predicts Breakouts

Let's build this from supply-demand dynamics:

Prior Uptrend → Price rises as demand > supply.
Cup Formation Begins (Left Side):
- Profit-taking or minor bad news → some sellers enter.
- Price falls as supply temporarily > demand.
- But: The decline is gradual and controlled (not panic). Strong hands (institutions, informed investors) see this as accumulation opportunity.
Bottom of Cup:
- Maximum pessimism. Weak hands exit completely.
- Supply dries up (low volume at bottom). Strong hands accumulate.
- Price stabilizes, then starts rising (demand > supply again).
Cup Formation Ends (Right Side):
- Price climbs back to the original peak (left rim).
- Key observation: It retraces almost all the cup's decline. This means the selling was temporary, not a trend reversal.
Handle Formation:
- A small pullback as last-minute profit-takers exit or cautious traders wait for confirmation.
- Volume drops further (dry powder—buyers waiting).
- Price drifts slightly lower or sideways, forming a downward-sloping or horizontal flag.
Breakout:
- When price breaks above the handle's resistance, it signals:
  - All nearby supply (resistance) absorbed.
  - New demand (breakout buyers + stop-loss triggers from shorts) floods in.
- Volume spikes → confirms strong buying interest.

Formula for Minimum Price Target:

\text{Price Target} = \text{Breakout Level} + \text{Depth of Cup}

Derivation:

The cup's depth measures the pressure released during consolidation.
After breakout, price should move at least the same distance (measured move principle).
Why? The energy accumulated during the long consolidation phase propels the next leg up by at least the magnitude of the prior correction.

Example Calculation:

Cup left rim: $100
Cup bottom: $80 → Depth =$ 20
Handle forms at $95, breaks out at$ 98
Price target = $98 +$ 20 = $118

Formula Key Metrics to Validate the Pattern

Cup Depth: Should be shallow to moderate (10-30% correction from peak).
$\text{Depth \%} = \frac{\text{Left Rim} - \text{Bottom}}{\text{Left Rim}} \times 100$

Too deep (>50%) → pattern less reliable (could be distribution, not accumulation).

Handle Retracement:
$\text{Retracement} = \frac{\text{Right Rim} - \text{Handle Low}}{\text{Right Rim} - \text{Bottom}} \times 100$

Ideal: 33-50% of the cup's gain.
Why? Too shallow (e.g., 10%) = not enough shakeout. Too deep (>50%) = renewed weakness.

Volume Ratio (Breakout vs Handle Average):
$\text{Volume Surge} = \frac{\text{Breakout Day Volume}}{\text{Avg. Handle Volume}}$

Should be ≥ 1.5x (preferably 2x+).
Why? Confirms new money entering, not just shorts covering.

Worked Examples

Worked example Example 1: Tech Stock Breakout

Scenario: A stock rises from $50 to$ 120 over 6 months, then forms a cup.

Phase	Price	Volume	Duration
Left Rim Peak	$120	Average	—
Cup Bottom	$90	Low	8 weeks
Right Rim	$118	Average	6 weeks
Handle Low	$110	Very Low	2 weeks
Breakout	$120	2.5x avg	Day 1
Step-by-step Analysis:

Identify the cup: Falls from $120 →$ 90 (25% drop), then recovers to $118. U-shaped, gradual.

Why valid? Depth = 25% (within 10-30% range). Volume decreased at bottom (accumulation).

Identify the handle: Drifts from $118 →$ 110 ($8 decline).

Retracement = $8 / ($ 118 - $90) = 29% of cup gain.✓ (Within 33-50% is ideal; 29% acceptable.)
Volume very low. ✓ (Weak hands exiting quietly.)

Breakout at $120:

Volume surges 2.5x. ✓ (Strong confirmation.)
Why this step? Old resistance ($120 left rim) becomes new support. Breakout above signals all supply absorbed.

Price Target:

Depth = $120 -$ 90 = $30
Target = $120 +$ 30 = $150
Why? Measured move principle—energy from cup consolidation propels next leg.

Outcome: Stock reaches $148 in 4 weeks (close to target).

Worked example Example 2: Failed Cup (Mistake to Learn From)

Scenario: A stock forms a cup-like pattern but fails to break out.

Phase	Price	Volume	Issue
Left Rim	$80	—
Cup Bottom	$40	High	Red flag: Deep50% drop + high volume = distribution, not accumulation
Right Rim	$75	Average	—
Handle	Forms at $70	Low	—
Fake Breakout	Touches $80, then falls	Low volume	No conviction
What went wrong?

Cup too deep (50% correction) → Suggests serious underlying weakness, not healthy pause.

Why this matters? Large corrections often mean fundamentals deteriorated (earnings miss, sector downturn). Institutions selling, not accumulating.

High volume at bottom → Capitulation, but if volume stays high on the way up, it means distribution (smart money selling into rallies).
Breakout on low volume → No new buyers. Old holders trying to exit at breakeven (resistance, not support).

Lesson: Don't force a pattern. If the cup is too deep or volume doesn't confirm, wait for a better setup.

Common Mistakes (Steel-Man Your Errors)

Common mistake Mistake 2: Buying at the Bottom of the Cup

What you think: "The bottom is the best price—I'll buy there and ride it up!"

Why it feels right: Maximum profit potential if you buy the lowest point.

Why it's wrong:

At the bottom, you don't know if it's a cup or a cliff. Could keep dropping (becomes a double bottom, head & shoulders, or just a downtrend).
The pattern is only confirmed at breakout. Before that, it's speculation. The fix: Wait for breakout confirmation above the handle. Yes, you pay slightly more, but you:

Confirm the pattern is real.
Enter with momentum (volume surge = other buyers agree).
Avoid false patterns (many cups fail before breakout).

Risk/Reward: If you buy at bottom ( $90) but it drops to$ 70, you lose 22%. If you buy at breakout ($120) and it fails, you lose maybe 5-8% (tight stop-loss below handle).

What are the three components of a Cup and Handle pattern? :: 1. The Cup (U-shaped decline and recovery), 2. The Handle (small consolidation/pullback), 3. The Breakout (price breaks above handle resistance on high volume).

Why must the cup be U-shaped and not V-shaped?

A U-shape indicates gradual, healthy consolidation with accumulation by strong hands. A V-shape shows panic buying/selling with no proper base-building, making the pattern less reliable.

What is the ideal retracement depth for the handle?

The handle should retrace 33-50% of the cup's gain (from bottom to right rim). Too shallow means insufficient shakeout; too deep signals renewed weakness.

How do you calculate the minimum price target after a cup and handle breakout?

Price Target = Breakout Level + Depth of Cup. The depth measures the consolidation pressure, which propels the next leg up by at least that magnitude.

What volume pattern confirms a valid cup and handle?

Volume should be low/decreasing during the cup bottom and handle (accumulation + weak hands exiting), then surge1.5-2x average on breakout (confirming new demand).

Why is it risky to buy at the bottom of the cup instead of waiting for breakout?

At the bottom, you can't confirm if it's a cup or a further decline (double bottom, breakdown). Waiting for breakout confirmation ensures the pattern is valid, entering with momentum and a tight stop-loss.

What is the maximum acceptable cup depth percentage?

30-50% is acceptable; beyond 50% suggests serious underlying weakness (distribution, not accumulation), making the pattern unreliable.

What does high volume at the cup bottom indicate (red flag)?

High volume at the bottom suggests capitulation or distribution (panic selling, institutions exiting), not healthy accumulation. This weakens the pattern's reliability.

Why does the handle formation occur?

The handle is the final shakeout—last-minute profit-takers and impatient traders exit, weak hands sell, while strong hands hold. It tests support before the breakout.

What happens if a breakout occurs on low volume?

A low-volume breakout is a false breakout—no new buyers, likely just noise or shorts covering. The pattern fails, and price often falls back below the handle.

Connections

3.5.01-Introduction-to-chart-patterns — Cup and Handle is a continuation pattern, part of the broader charting toolkit.
3.5.05-Flags-and-pennants — The handle resembles a small flag/pennant (consolidation before breakout).
3.4.03-Volume-analysis — Volume confirmation is critical to validate the breakout.
3.6.02-Support-and-resistance — The handle's top is resistance; breakout turns it into support.
4.2.01-Risk-reward-ratio — Use the cup depth to set price targets and stop-losses below the handle.
3.5.08-Head-and-shoulders — Opposite pattern (reversal); compare how volume differs.

Recall Explain to a 12-Year-Old

Imagine you're watching a video game character's health bar. It drops down (takes damage), stays low for a bit while they heal, then climbs back up to full health. That's the cup—like a U-shape. Then, just before they go into the boss fight, the health bar dips just a tiny bit (that's the handle—maybe they're nervous or adjusting their gear). Finally, they charge forward, health bar shoots up past100% (power-up!), and they dominate. That's the breakout.

In stocks, the cup is the price dropping then recovering. The handle is a small dip where scared people sell ("I'm out!"). The breakout is when confident buyers rush in, and the price zoms up. You want to buy right when they charge into the boss fight (breakout), not when they're still healing (bottom of cup)—because you don't know if they'll give up and quit the game!

Volume is like chering: If tons of people start chering (high volume) when the character charges forward, you know it's for real. If only one person claps (low volume), maybe it's a fake-out.

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Cup and Handle pattern ek bahut popular bullish continuation pattern hai jo stock charts mein dikhta hai. Socho ek chai ka cup hai—pehle upar se neeche jata hai (left side of cup), phir bottom pe stable hota hai, aur fir wapas upar ata hai (right side). Abuss cup ke side mein ek chhota handle (hatha) laga do—yeh ek chhoti pullback hai jahan thoda sa price neeche jaata hai ya sideways move karta hai. Jab price iss handle ke upar breakout karta hai, toh yeh signal hai ki stock aur upar jayega, aur tradersisko buy signal mante hain.

Yeh pattern kaam kyun karta hai? Cup ke andar jo long consolidation hoti hai, usme weak sellers bahar nikal jate hain aur strong buyers (institutions, smart money) slowly accumulate karte hain. Handle mein last round ka shakeout hota hai—jo log dar ke bech dete hain, wo bhi nikal jaate hain. Jab breakout hota hai, toh sab supply khatam ho chuki hoti hai aur demand ka wave ata hai. Isliye price sharply upar jata hai.

Volume ka role bahut important hai—cup ke bottom aur handle mein volume low hona chahiye (quiet accumulation),ur breakout pe volume spike hona chahiye (strong confirmation). Agar volume low hai breakout pe, toh yeh fake ho sakta hai. Price target calculate karne ke liye: Breakout level + Cup ki depth (top se bottom tak kitna gira tha). For example, agar cup $100 se$ 80 gira tha (depth = $20), aur breakout$ 98 pe hui, toh target hoga $98 +$ 20 = $118.

Common mistake yeh hai ki log cup ke bottom pe kharid lete hain sochke ki "yahan sabse sasta hai," lekin yeh risky hai kyunki pattern abhi confirm nahi hua. Hamesha breakout ke baad entry lo, high volume ke sath. Yeh pattern patience mangta hai—sabr rakho, confirmation ka wait karo, fir enter karo.
