Overview

Rectangles and ranges are horizontal consolidation patterns where price oscillates between two parallel levels of support and resistance, showing a temporary equilibrium between buyers and sellers. They represent accumulation or distribution phases before continuation or reversal.

Core Intuition

Intuition Why Do Rectangles Form?

Think of a rectangle as a tug-of-war where neither bulls nor bears can win decisively:

Buyers step in at the lower boundary (support) → price bounces up
Sellers dominate at the upper boundary (resistance) → price drops down
This creates a horizontal channel of oscillation

Real-world analogy: Like a basketball bouncing between the floor and a low ceiling—it can't break through either surface until enough force accumulates.

Why it matters:

Ranges frustrate directional traders because there is no sustained trend to ride inside the box—many get chopped up buying near the top and selling near the bottom
The breakout direction often leads to explosive moves related to the rectangle's height
Professional traders accumulate positions during ranges, then profit from breakouts

Detailed Mechanics

Pattern Structure

Mathematical definition:

Let $H$ = highest high in range, $L$ = lowest low
Rectangle height: $R = H - L$
Price oscillates within $[L, H]$ . The minimum valid structure needs 2 touches at each boundary (i.e. at least one full down-and-up traverse). Additional touches strengthen validity but are not required.

Why Ranges Matter: The Psychology

What's happening beneath the surface:

During a rectangle, three forces battle:

Weak hands exit: Retail traders get frustrated by lack of direction, sell at support
Smart money accumulates: Institutions slowly build positions at support without moving price
Sentiment neutralizes: Fear and greed balance out temporarily

How to read it:

Narrowing swings inside the box → energy coiling, breakout imminent
Volume declining → participation dropping, breakout will surprise most traders
Failed breakout (returns to range) → false signal, opposite direction likely

Pattern Variations

Worked example Types of Rectangles

1. Continuation Rectangle

Price enters range during an uptrend/downtrend, consolidates, then breaks in the same direction as the prior trend. In practice, rectangles resolve in both directions with meaningful frequency—do not assume continuation is guaranteed. Trade the actual breakout direction, not a predicted one.

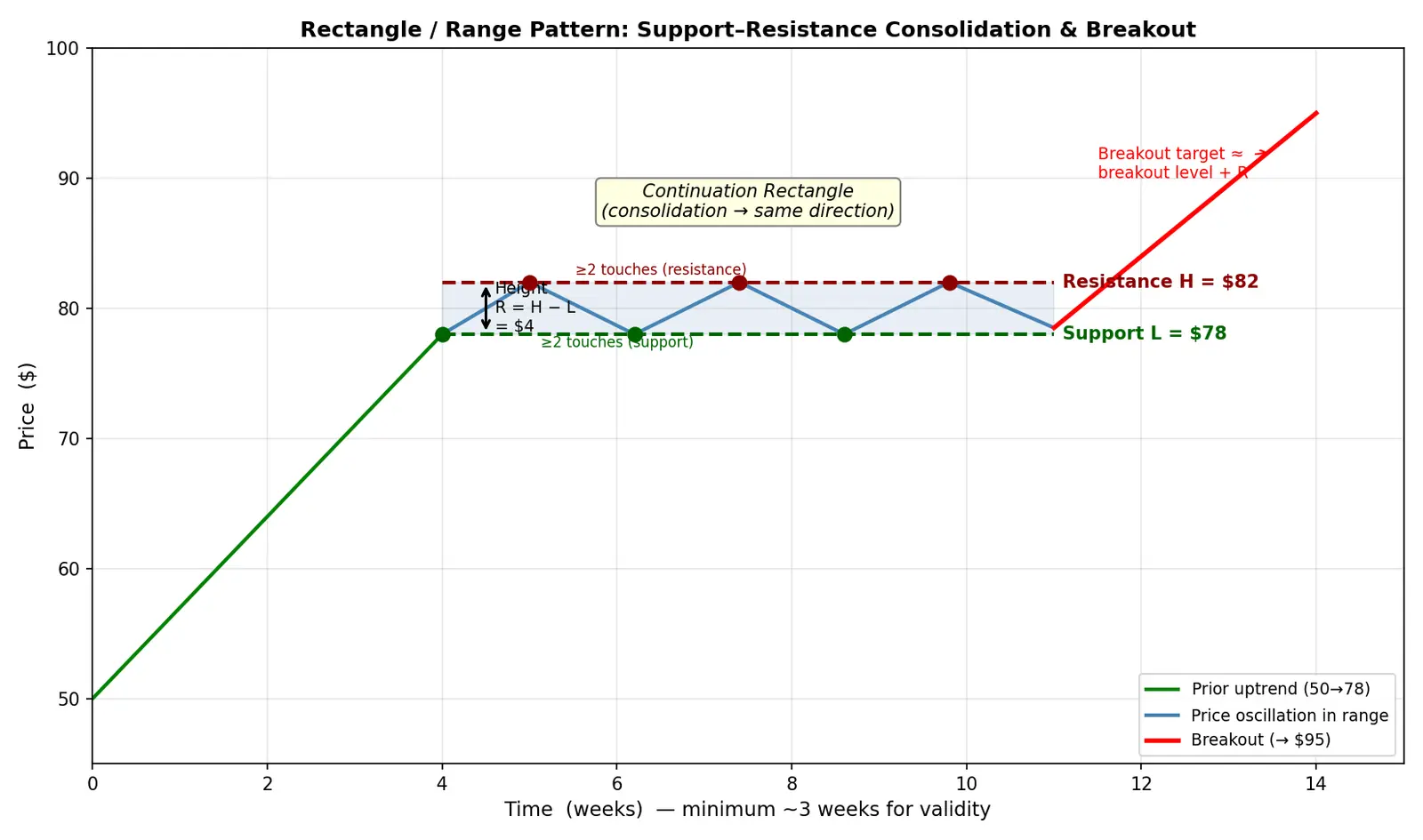

Example: Stock rises from $50→$ 80, enters range $78-$ 82 $for 6 weeks, breaks out to$ 95

2. Reversal Rectangle

Price enters from a trend but breaks out in the opposite direction (accumulation/distribution).

Example: Stock falls from $100→$ 70, ranges $68-$ 72 $for 2 months, breaks UP to$ 88

3. Nested Rectangles

Smaller rectangles form inside larger ones—focus on the outermost boundaries for trading.

(Note: Reliable continuation-vs-reversal split figures vary by dataset and market. Rather than memorizing a fixed percentage, always confirm direction with the actual breakout and volume.)

Step-by-Step: Trading the Rectangle

Phase 1: Identification

How to spot it:

Look for at least 4 pivot points (2 highs, 2 lows) at similar levels
Draw horizontal lines connecting swing highs and lows
Verify lines are parallel (use ruler on charts!)
Measure height: $R = \text{Resistance} - \text{Support}$

Why this matters: False rectangles (wedges/triangles) have converging lines—these behave differently.

Phase 2: Internal Trading (Optional, Advanced)

Range-bound strategy:

Buy at support when price touches $L + 0.05R$ (slightly above for confirmation)
Sell at resistance when price touches $H - 0.05R$
Stop loss: Just outside the range ( $L - 0.03R$ for longs, $H + 0.03R$ for shorts)

Why the 0.05R buffer? Prevents getting faked out by wicks that briefly pierce the boundary.

Formula Expected Value of Range Trading (illustrative model)

Profit per cycle: $P = R \times (1 - 2 \times 0.05) = 0.9R$
(You capture 90% of the range, losing 5% on each side to buffers)

Expected value per trade — this is a worked model to show the mechanics, using assumed inputs (win rate $W$ , average win, average loss). These are illustrative numbers, not empirical guarantees.

Derivation from first principles: Starting with base probability theory: $E[X] = \sum p_i \cdot x_i$ For binary outcome (win/loss):

Win probability = $W$ , loss probability = $1-W$
Win size = $0.9R$ (capture most of range)
Loss size = $0.3R$ (stop just outside range, ~30% of height) $EV = W \cdot (\text{profit}) + (1-W) \cdot (-\text{loss})$ Plugging in an assumed $W = 0.65$ : $= 0.65 \times 0.9R - 0.35 \times 0.3R = 0.585R - 0.105R = 0.48R$

Why this step? The result $EV = 0.48R$ is in price units (a fraction of the range height $R$ ).

Important dimensional note: Commissions are a percentage of capital deployed, NOT a fraction of $R$ . To compare them you must convert:

Let $C$ = round-trip commission in currency (e.g. $0.02 per share × 2 sides)
Net EV per share = $0.48R - C$
You are profitable when $0.48R > C$ , i.e. the price-unit edge exceeds the currency cost per share.

Do not say "you need 48% of the range to beat a 2% commission"—that wrongly equates a price-unit EV with a percentage-of-capital cost. Always express both in the same units (currency per share) before comparing.

Phase 3: Breakout Trading (Primary Strategy)

The setup:

Wait for price to close outside the range (not just a wick)
Measure target: Breakout level ± $R$ (the rectangle height)
Enter on the first pullback to the broken boundary (old resistance → new support, or vice versa)

Why wait for pullback? Reduces risk and improves R:R from 1:1 to 1:3+.

Formula Breakout Target Calculation

For upside breakout: $\text{Target}_{\text{up}} = H + (H - L) = H + R$

For downside breakout: $\text{Target}_{\text{down}} = L - (H - L) = L - R$

Derivation from measured move principle: The breakout "releases" the energy coiled during consolidation. The assumption is that the move after breakout will be proportional to the volatility during consolidation—so we project the range height $R$ from the breakout point.

On measured-move magnitude: Empirically, realized moves are often close to $R$ but not exactly $R$ ; bullish (upside) breakouts tend to run slightly farther on average than bearish (downside) ones. Rather than quote a precise multiplier (which varies by source and dataset), use $1.0R$ as a conservative, symmetric planning target and let a trailing stop capture any extended move.

Why project the full height? Market participants who were "trapped" in the range need to exit/enter positions, creating momentum. The volume stored during consolidation gets released in directional flow of a magnitude related to the prior oscillation amplitude.

Worked Examples

Worked example Example 1: Clean Continuation Rectangle

Setup:

Stock: AAPL in uptrend
Enters range after rising from $150 to$ 180
Support forms at $177, resistance at$ 185
Rectangle height $R = 185 - 177 = 8$ points
Pattern lasts 5 weeks, volume declining

Trade execution:

Day 1: Price closes at $186 (above resistance) on high volume → breakout confirmed
Day 3: Pullback to $184.50 (retest of old resistance) → **Entry at$ 184.50**
Stop loss: Just below retest at $182 (2.5 points risk)
Target: $185 + 8 =$ 193$ (8.5 points profit)
R:R: $8.5 / 2.5 = 3.4:1$

Why each step?

Close above resistance: Body close matters more than wick → commitment
High volume: Confirms real buying pressure, not a fake-out
Pullback entry: Reduces risk vs chasing the breakout
Stop below retest: If old resistance doesn't hold as new support, breakout failed
Target = R: Conservative measured move

Common Mistakes & Fixes

Common mistake Mistake 1: Trading Too Early (Premature Entry)

The wrong idea: "Price touched support at $50, I'll buy here immediately!"

Why it feels right: You want to get the "best price" at the very bottom of the range.

Steel-man the mistake: This approach does maximize profit if the support holds perfectly. You're trying to capture the full $R$ from bottom to top.

Why it's actually wrong:

Support is a zone, not a line—price can pierce $50 to$ 49.80, stop you out, then rally
Confirmation matters: You don't know if support will hold until price bounces
Win rate drops: You'll catch falling knives more often

The fix: Wait for confirmation signals:

Price bounces $0.05R$ above support ($50.50 in this case)
Bullish candlestick pattern (hammer, engulfing)
Volume surge on the bounce

Common mistake Mistake 2: Ignoring Volume (Blindness to Conviction)

The wrong idea: "Price broke above resistance at $80, time to buy!"

Why it feels right: The pattern textbook says breakouts above resistance are bullish.

Steel-man the mistake: You should respect breakouts—clean ones work more often than not. The logic of "price went higher, momentum is bullish" is sound.

Why it's actually wrong: Volume context changes the odds:

Breakout on low volume = weaker signal (institutions not participating)
Breakout on high, above-average volume = stronger, more reliable move

A practical filter: $\text{Conviction Factor} = \frac{\text{Breakout Volume}}{\text{Avg Volume}_{20}}$ A commonly used rule of thumb is to want $CF > 1.5$ (breakout volume at least 1.5× the 20-day average). This is a heuristic threshold, not a precise empirical guarantee—treat it as a filter to raise your odds, not a certainty.

The fix: Always check volume on the breakout candle. If volume is below average, wait for a second confirmation day or skip the trade.

Common mistake Mistake 3: Measuring Target Wrong (Overprojection Greed)

The wrong idea: "This $10 range will probably break out to$ 20+ because it's been coiling for 3 months!"

Why it feels right: Longer consolidation = more energy stored = bigger move. You want to maximize profit.

Steel-man the mistake: There's truth here: longer patterns can produce larger moves. If you always take profit at exactly $R$ , you'll miss those extended runners.

Why it's actually wrong:

Most breakouts approximate a $1.0R$ move; far fewer extend to $1.5R$ or beyond
Greed kills: Holding for a rare large move means giving back gains when the more common move stalls near $1.0R$
Opportunity cost: Capital tied up waiting for rare extended moves

The fix: Tiered exit strategy:

Take 50% profit at $1.0R$
Trail a stop on the remaining 50% to capture any extended move
Move stop to breakeven once $0.5R$ is achieved

This banks a reliable partial gain while keeping upside optionality—generally superior to gambling the whole position on a rare large move.

Volume Analysis Deep Dive

Why volume matters in rectangles:

Formula Volume Pattern During Rectangle Formation

Ideal volume behavior (a modeling idealization): $V_t = V_0 \cdot e^{-\lambda t}$

Where:

$V_t$ = volume at time $t$ in the range
$V_0$ = volume when range started
$\lambda$ = decay rate (a fitted constant > 0)
$t$ = time in weeks

What this means: Volume should tend to decline as the range matures. This represents:

Losing interest from impatient traders
Accumulation by smart money (they don't need high volume)
Coiling spring effect (energy storage)

Breakout volume heuristic: $V_{\text{breakout}} > 1.5 \times \text{MA}_{20}(\text{volume})$

Why a threshold at all? A breakout that lacks a volume surge is more likely to be a fake-out because it shows little new participation. The $1.5\times$ figure is a practical rule of thumb widely used by traders—not a precise probability guarantee. Use it as a filter, and combine with price confirmation (a clean close outside the range).

How to use this:

Calculate 20-day average volume: $\text{MA}_{20} = \frac{1}{20}\sum_{i=1}^{20} V_i$
On breakout day, check if $V_{\text{today}} > 1.5 \times \text{MA}_{20}$
If yes → higher-conviction trade
If no → wait for confirmation or skip

Strategy Decision Tree

Price in Rectangle?
├─ YES → Are you near support/resistance?
│   ├─ Near Support (within 0.1R)
│   │   └─ Wait for bounce confirmation → Enter long
│   ├─ Near Resistance (within 0.1R)
│   │   └─ Wait for rejection → Enter short OR wait for breakout
│   └─ Middle of Range
│       └─ Stay out (worst R:R zone)
│
└─ NO → Did price break out?
    ├─ YES → Check volume
    │   ├─ Volume > 1.5× average
    │   │   └─ Wait for pullback to broken level → Enter in breakout direction
    │   └─ Volume < 1.5× average
    │       └─ Likely weaker signal → Fade cautiously or wait
    │
    └─ NO → Not in pattern, no trade

Integration with Other Concepts

Connections:

Support and Resistance Levels: Rectangles are extended S/R zones
Volume Analysis: Volume confirms breakout validity
Measured Moves: Target calculation uses measured move principle
Trend Continuation Patterns: Rectangles are pause patterns in trends
Breakout Trading Strategies: Primary way to profit from rectangles
Risk Management Position Sizing: Use R as the basis for stop placement
Candlestick Patterns: Confirm bounces at boundaries with engulfings/hammers
Market Psychology and Sentiment: Rectangles show equilibrium between fear/greed

Active Recall Tests

Recall Feynman Explanation (Explain to a 12-year-old)

Imagine you're bouncing a tennis ball in a hallway. The ball keeps hitting the floor and the ceiling, bouncing up and down in the same space. That's like a rectangle pattern in the stock market!

The floor is called "support"—that's where buyers think "hey, this is a good price!" and start buying, pushing the price up. The ceiling is called "resistance"—that's where sellers think "this is too expensive!" and start selling, pushing the price down.

The ball (stock price) keeps bouncing between these two levels for a while, maybe weeks or months. Everyone watching gets bored because nothing exciting is happening!

But here's the cool part: the ball is storing up energy with every bounce. Eventually, someone comes along with a REALLY big hit—maybe lots of people decide to buy at once. The ball smashes through the ceiling and flies way higher! Or maybe lots of people sell, and it crashes through the floor.

The secret: When the ball finally breaks free, it usually travels roughly as far as the hallway was tall. So if the hallway was 10 feet tall (the distance between floor and ceiling), the ball tends to fly about another 10 feet beyond the ceiling!

Smart traders wait for the ball to break through, then bet it'll keep going roughly that far. That's how they make money from rectangle patterns!

Memory Aid

Flash Cards

#flashcards/stock-market

What are the minimum requirements for a valid rectangle pattern?

(1) At least 2 touches on upper resistance, (2) At least 2 touches on lower support, (3) Horizontal parallel boundaries, (4) Minimum 3 weeks duration, (5) Typically declining volume

Is a rectangle required to complete 3 full low→high→low cycles?

No. The minimum is 2 touches at EACH boundary (one full traverse), which is less than a complete cycle. More touches add validity but are not required

How do you calculate the price target after a rectangle breakout?

Target = Breakout level ± R, where R = (Resistance - Support). Upside: Target = H + (H-L). Downside: Target = L - (H-L). Use 1.0R as a conservative planning target

What volume behavior serves as a breakout filter?

A rule-of-thumb heuristic: breakout volume > 1.5× the 20-day average volume signals stronger participation. It is a filter to improve odds, not a guarantee

Why do you enter on the pullback rather than on the initial breakout?

Pullback entry reduces risk, improves R:R (often toward 1:3+), and confirms that the broken level now acts as support/resistance (role reversal)

In the range-trading EV model, what units is EV = 0.48R expressed in?

Price units (a fraction of range height R). To compare with commissions you must convert to the SAME units — commissions are a % of capital / currency per share, not a fraction of R

What does a failed breakout typically signal?

A failed breakout (price returns inside the range) often precedes a strong move in the OPPOSITE direction because stops trigger, trapped traders exit, and smart money faded the false move

What's the difference between continuation and reversal rectangles?

Continuation: price breaks out in the SAME direction as the prior trend. Reversal: breaks OPPOSITE (accumulation/distribution). Trade the ACTUAL breakout direction, not a predicted one

Where should you place stops when trading a rectangle breakout?

Just beyond the broken boundary after the pullback. Upside breakout: below the pullback low (old resistance). Downside: above the pullback high (old support)

Why does volume typically decline during rectangle formation?

It shows impatient traders exiting, smart money accumulating sl

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho beta, rectangle pattern ko samajhne ka sabse simple tarika hai ek tug-of-war ki tarah sochna. Yahan buyers aur sellers ke beech ek fight chal rahi hoti hai jahan koi bhi decisively jeet nahi pata. Jab price niche wale level (support) par aati hai to buyers aa jaate hain aur price ko upar push kar dete hain, aur jab price upar wale level (resistance) tak pahunchti hai to sellers dominate karke price ko niche gira dete hain. Isse ek horizontal channel ban jaata hai jismein price bar-bar oscillate karti rehti hai—bilkul jaise ek basketball floor aur ceiling ke beech bounce hota rehta hai jab tak koi strong force use tod na de.

Ab yeh important kyun hai? Kyunki ranges directional traders ko bahut frustrate karti hain—log top par buy karke aur bottom par sell karke "chop up" ho jaate hain, matlab bar-bar chhote losses lete rehte hain kyunki koi clear trend hi nahi hota. Lekin asli khel breakout mein hai. Jab price finally box se bahar niklti hai, to often ek explosive move aata hai jo rectangle ki height (H minus L) se related hota hai. Smart money yani institutions is range ke dauraan chupke se positions accumulate karte hain, aur phir breakout se profit banate hain. Ek key baat yaad rakho—ek valid rectangle ke liye sirf 2 touches per boundary chahiye, ismein confuse mat hona "complete cycles" ke saath; 2 touch ka rule kaafi hai.

Practically iska matlab yeh hai ki jab tum range dekho to teen cheezein observe karo: agar swings narrow ho rahe hain to samajh lo energy coil ho rahi hai aur breakout aane wala hai; agar volume declining hai to participation kam ho rahi hai aur breakout most traders ko surprise karega; aur agar breakout fail hokar wapas range mein aa jaaye to woh false signal tha aur opposite direction likely hai. Sabse important lesson—kabhi bhi yeh mat maano ki continuation guaranteed hai. Rectangles dono directions mein resolve hote hain, isliye hamesha actual breakout direction ko trade karo, koi prediction ke bharose mat baitho.

Test yourself — Chart Patterns

Connections
