Understand pivot points and calculation — Stock-Market notes

WHY do pivot points exist?

WHAT it gives you: a single central price (P) plus symmetric resistance levels (R1, R2, R3) above and support levels (S1, S2, S3) below.

HOW it's built: take an average of yesterday's action for the center, then measure the day's range and reflect it outward.

Deriving the Pivot from scratch

Step 1 — The center (Pivot P)

We want one number that "summarises" where price spent its energy. The simplest fair summary is the average of the three key prices:

$P = \frac{H + L + C}{3}$

Why this step? The High and Low mark the day's extremes; the Close marks where the fight ended. Averaging all three gives a balanced midpoint that isn't fooled by a single wild spike.

Step 2 — The first resistance R1

Resistance sits above P. How far above? A natural distance is the pivot's lead over the low, mirrored upward. Start from the observation that a balanced day would swing as far up from P as P sits from L. So reflect $L$ through $P$ :

$R1 = 2P - L$

Why this step? If $P$ is the center and $L$ is the lowest point, then the mirror image of $L$ on the other side of $P$ is $P + (P - L) = 2P - L$ . That mirrored point is the natural first ceiling.

Step 3 — The first support S1

By identical logic, reflect the High through $P$ :

$S1 = 2P - H$

Why this step? Support is the floor. The mirror image of the High below the pivot is $P - (H - P) = 2P - H$ .

Step 4 — Second levels R2, S2 (use the full range)

The width of yesterday's battle is the range $R = H - L$ . Add/subtract the full range from the pivot:

$R2 = P + (H - L) \qquad S2 = P - (H - L)$

Why this step? R1 used a half-reflection; R2 asks "what if today extends the whole previous range from the center?" — a wider, less-often-hit level.

Step 5 — Third levels R3, S3 (extreme extension)

$R3 = H + 2\,(P - L) \qquad S3 = L - 2\,(H - P)$

Why this step? These push a full range beyond R1/S1, marking blow-off / capitulation extremes.

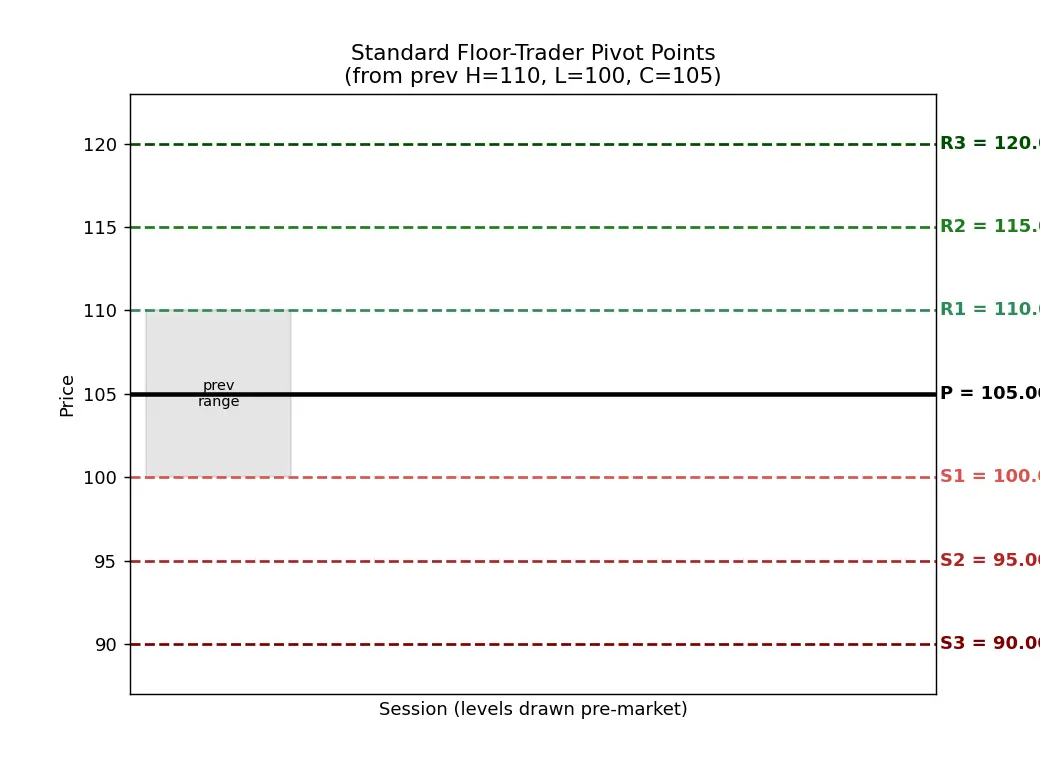

Figure — Understand pivot points and calculation

Worked Example 1 — A calm day

Previous session: $H=110$ , $L=100$ , $C=105$ .

Step	Compute	Why this step?
P	$(110+100+105)/3 = 105$	Balanced center; here it equals the close because the close was already mid-range.
R1	$2(105)-100 = 110$	Mirror the low; first ceiling lands right at yesterday's high — makes sense, that high was resistance.
S1	$2(105)-110 = 100$	Mirror the high; first floor lands at yesterday's low.
R2	$105+(110-100)=115$	Extend full range upward.
S2	$105-10 = 95$	Extend full range downward.
R3	$110+2(105-100)=120$	Extreme upside.
S3	$100-2(110-105)=90$	Extreme downside.

Read it: Open at 107 → above P (105) → bullish bias, watch R1=110.

Worked Example 2 — A day that closed near its high

Previous session: $H=250$ , $L=230$ , $C=248$ .

$P=(250+230+248)/3 = 728/3 = 242.67$ Why: the strong close pulls P up toward the high, signalling residual bullish pressure.
$R1 = 2(242.67)-230 = 255.33$ Why: mirroring the low through a high pivot pushes R1 well past yesterday's high — the model expects follow-through.
$S1 = 2(242.67)-250 = 235.33$ Why: first support sits above yesterday's low, because the market spent the day higher up.
$R2 = 242.67 + 20 = 262.67$ , $S2 = 242.67 - 20 = 222.67$ .

Read it: Because $P > \frac{H+L}{2}=240$ , the pivot itself already leans bullish before the open.

Forecast-then-Verify drill

Common mistakes (Steel-manned)

Recall Feynman: explain it to a 12-year-old

Imagine yesterday you and your friends played tug-of-war on a field. The middle line of where you all ended up is the pivot — today's game probably starts near there. If your team pulls the rope past the middle, you're winning (price above pivot = bulls). The lines a bit further out (R1, S1) are like the "you're doing really well / really badly" markers — the rope usually pauses there before someone yanks it further. We drew all these marks using yesterday's game because today hasn't happened yet!

Recall checkpoint

Flashcards

What three inputs are used to compute the standard pivot P?

Previous session's High, Low, and Close.

The pivot point formula P equals?

P=(H+L+C)/3

Why include the Close in P instead of just High and Low?

The close shows where the day's fight ended, adding directional bias to the center.

Formula for R1 (first resistance)?

R1 = 2P - L

(mirror the low through P).

Formula for S1 (first support)?

S1 = 2P - H

(mirror the high through P).

Formula for R2 and S2?

R2 = P + (H-L)

S2 = P - (H-L)

Formula for R3 and S3?

R3 = H + 2(P-L)

S3 = L - 2(H-P)

If price opens above the pivot, what's the intraday bias?

Bullish — bulls control the session.

Must you use today's or yesterday's data for today's pivots?

Yesterday's completed session (pre-market map).

When are R1 and S1 exactly equidistant from P?

Only when the day was symmetric, i.e.

H-P = P-L

A close near the day's LOW does what to P vs the H/L midpoint?

Drags P below the midpoint → bearish tilt.

Are pivot levels precise lines or zones?

Zones — round to the tick and use a small band.

Connections

Support and Resistance — pivots are a pre-calculated form of S/R.
Price Action — how candles behave at a pivot confirms/denies it.
Fibonacci Pivot Points — variant using Fib ratios of the range.
Camarilla Pivots — tighter intraday-scalping variant.
Central Pivot Range (CPR) — P plus a TC/BC band around it.
Trend and Bias Determination — price vs P as a bias filter.

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, pivot point ka funda simple hai: ye din ka center of gravity hai. Aap kal ke High, Low aur Close se ek central price nikaalte ho — $P=(H+L+C)/3$ . Agar aaj price is P ke upar trade kar raha hai, to samjho bulls strong hain; agar neeche hai, to bears ka control hai. Isliye ye ek pre-market map ki tarah kaam karta hai jo aap market khulne se pehle hi bana lete ho, sirf pichle din ke fixed data se.

R1, S1 wagairah bas P ke around mirror images hain. R1 nikaalne ke liye Low ko P ke paar reflect karo → $R1 = 2P - L$ . S1 ke liye High ko reflect karo → $S1 = 2P - H$ . Yaad rakho: R upar hota hai isliye wo neeche wale Low se bounce karta hai, aur S neeche hota hai isliye upar wale High se. R2/S2 poore range ( $H-L$ ) ko add/subtract karke banta hai — thoda door ke levels.

Kyun important hai? Kyunki hazaaron traders yahi same levels dekhte hain, isliye ye self-fulfilling support/resistance ban jaate hain — price aksar inhi levels par ruk ta ya palat ta hai. Ek bada mistake yaad rakhna: kabhi bhi aaj ka High/Low use mat karna aaj ke pivots ke liye — hamesha kal ka completed data. Aur Close ko kabhi mat bhoolna — wahi din ka "verdict" batata hai ki bias upar hai ya neeche.

Bas practice ke liye: pehle guess karo ki P mid-range ke upar aayega ya neeche (close ke basis par), phir calculate karke verify karo. Isi tarah intuition strong hoti hai. Pivots ko exact laser line nahi, ek chhoti si zone ki tarah treat karna — market itna precise nahi hota.
