Thermal control — multi-layer insulation (MLI), heaters, heat pipes, radiators: Visual walkthrough

The parent note handed you one line and moved on:

$ε_{MLI} \approx \frac{ε}{N - 1}$

That formula looks like magic. Where does the $N - 1$ come from? Why do reflective layers do anything if there is no air to block? This page builds that result from absolute zero — no symbol used before it is drawn on a picture. By the end you will see why 20 shiny sheets beat a foot of foam in the vacuum of space.

Prerequisites we lean on: Stefan-Boltzmann Law, Heat Transfer in Vacuum, Materials Science — Kapton & Mylar, and the parent Thermal Control topic.

Step 1 — What "radiating heat" even means

WHAT. Every warm object throws out energy as invisible infrared light. A hot surface throws out a lot; a cold surface throws out a little. The amount depends brutally on temperature.

WHY this tool. In air, heat mostly rides on moving molecules (convection) or hops through touching solids (conduction). A spacecraft blanket floats in vacuum with almost no touching — so the only channel left is radiation. That is why we reach for the Stefan-Boltzmann Law and nothing else.

PICTURE. Look at the figure: a single hot plate glowing arrows outward. The power leaving one square metre is written on the arrow.

Figure — Thermal control — multi-layer insulation (MLI), heaters, heat pipes, radiators

The $T^{4}$ is why space is so violent: double the temperature and the glow jumps ×16.

Step 2 — Two plates facing each other: the raw leak

WHAT. Put a hot plate (temperature $T_{1}$ ) facing a cold plate ( $T_{2}$ ). Heat flows across the gap as the net difference of their two glows.

WHY. The hot plate glows toward the cold plate and the cold plate glows back. What actually leaks is the difference — hot minus cold. This is just Step 1 applied twice and subtracted.

PICTURE. Two vertical plates, red arrows going right (hot→cold, big) and a smaller blue arrow going left (cold→hot). The net is the leftover.

Step 3 — Where $ε_{eff}$ comes from (the bounce-back)

WHAT. A ray leaving the hot plate hits the cold plate; only a fraction $ε_{2}$ is absorbed, the rest bounces back to be partly re-absorbed by the hot plate, and so on forever. Summing that endless bounce gives a single pair-emissivity.

WHY this tool. We use an infinite geometric sum because the light genuinely bounces infinitely many times, each bounce weaker. That sum collapses to one clean fraction.

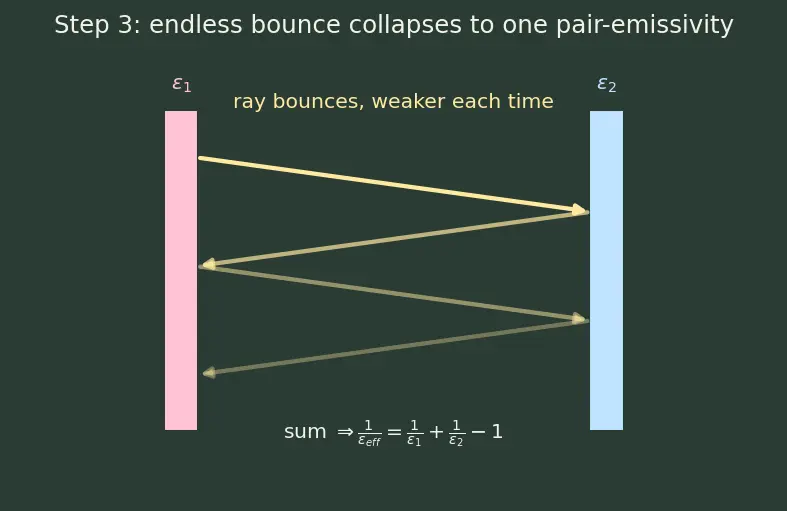

PICTURE. A zig-zag ray bouncing between the two plates, each bounce drawn fainter, with the absorbed slivers marked.

Summing the bounces gives the pair rule the parent quoted:

For aluminized Mylar ( $ε = 0.03$ ): $ε_{eff} \approx 0.015$ . Already a fifteen-fold cut versus black paint.

Step 4 — Drop a floating shield in the middle

WHAT. Slide one extra thin shiny sheet between the two plates, touching nothing, powered by nothing. In steady state it settles at a middle temperature $T_{s}$ where the heat it receives equals the heat it passes on.

WHY. Because the shield is passive, "heat in = heat out". That single balance forces it to sit at a temperature that halves each gap's driving difference.

PICTURE. Three vertical lines now: hot, floating shield, cold. Two equal heat arrows, one into the shield, one out. The shield's temperature label sits between the other two.

The algebra under the microscope. Both gaps use the same $ε_{eff}$ . "In = out" means:

$heat into shield ε_{eff} σ A (T_{1}^{4} - T_{s}^{4}) = heat out of shield ε_{eff} σ A (T_{s}^{4} - T_{2}^{4})$

Every symbol $ε_{eff} σ A$ appears on both sides, so divide both sides by it — it cancels:

$T_{1}^{4} - T_{s}^{4} = T_{s}^{4} - T_{2}^{4}$

Now gather the $T_{s}^{4}$ terms on one side and the rest on the other:

$T_{1}^{4} + T_{2}^{4} = 2 T_{s}^{4} ⟹ T_{s}^{4} = \frac{1}{2} (T_{1}^{4} + T_{2}^{4})$

The shield sits at the average of the fourth powers — right in the radiative middle.
Put $T_{s}^{4}$ back into one gap: the heat through is $ε_{eff} σ A (T_{1}^{4} - T_{s}^{4}) = ε_{eff} σ A \cdot \frac{1}{2} (T_{1}^{4} - T_{2}^{4})$ , i.e. exactly half the no-shield leak: $Q_{1 shield} = \frac{1}{2} Q_{no shield}$

One free-floating shield → half the leak. This is the seed of the whole formula.

Step 5 — Stack $N_{s}$ shields: the temperature staircase

WHAT. Now insert $N_{s}$ identical floating shields in a row (the subscript $s$ = "shields", to keep it separate from the layer count coming in Step 6). The same heat $Q$ must pass through every gap, so the shields arrange themselves into an even staircase in $T^{4}$ .

WHY. With $N_{s}$ shields there are $N_{s} + 1$ gaps in series, each carrying the same $Q$ . Series channels add their resistances, so each gap only gets a $\frac{1}{N _{s} + 1}$ slice of the total drive — exactly like identical resistors sharing one voltage.

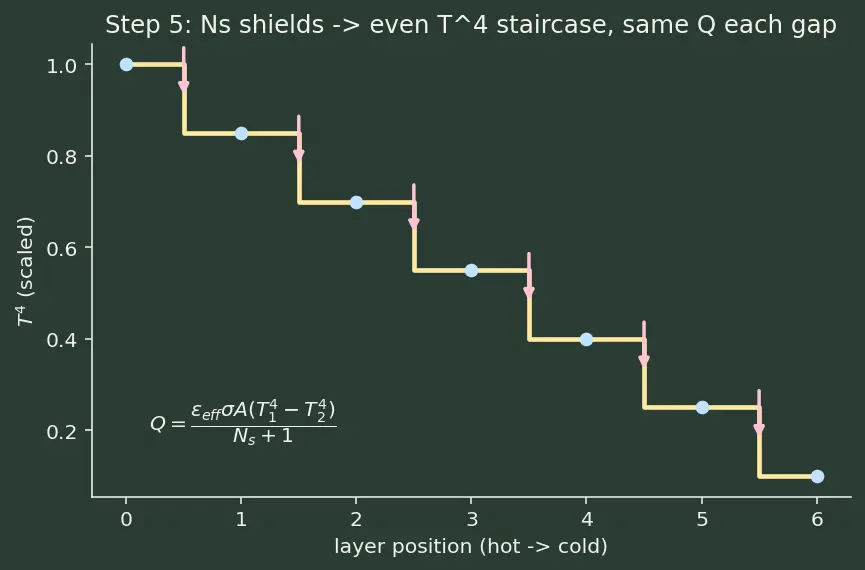

PICTURE. A staircase: hot plate at top-left, cold plate at bottom-right, evenly spaced steps of $T^{4}$ between them, the same $Q$ arrow crossing every tread.

The algebra under the microscope. Each of the $N_{s} + 1$ gaps carries the same $Q$ and drops an equal share $Δ$ of the total $T^{4}$ imbalance. Adding the $N_{s} + 1$ equal steps back up to the whole:

$(N_{s} + 1) Δ = T_{1}^{4} - T_{2}^{4} ⟹ Δ = \frac{T _{1}^{4} - T _{2}^{4}}{N _{s} + 1}$

One gap then carries $Q = ε_{eff} σ A Δ$ , giving:

Step 6 — From shields to countable layers, and defining $ε_{MLI}$

WHAT. Two book-keeping conversions turn Step 5 into the parent's headline. (a) Rename the count from shields to physical layers. (b) Fold the messy front $\frac{ε _{eff}}{N _{s} + 1}$ into a single stack emissivity $ε_{MLI}$ .

WHY — the two justifications, spelled out.

Justification (a): the count. An engineer counts the physical film layers they hold in their hand, calling that number $N$ . The two boundary walls plus the floating shields are those layers. If there are $N$ physical layers there are exactly $N - 1$ gaps between them. So we substitute: $N_{s} + 1 = N - 1 (gaps = layers - 1) .$ This is the whole "off-by-two" story: $N_{s}$ counts only inner shields, $N$ counts every film — they differ, but the gap count is the honest quantity, and it equals $N - 1$ .

Justification (b): the emissivity. From Step 3, identical shiny films give $ε_{eff} \approx ε /2$ . Substitute both facts into Step 5: $Q = \frac{ε _{eff}}{N - 1} σ A (T_{1}^{4} - T_{2}^{4}) \approx \frac{ε /2}{N - 1} σ A (T_{1}^{4} - T_{2}^{4}) .$

PICTURE. A stack of $N$ labelled sheets; brackets underneath count $N - 1$ gaps.

Now define the stack emissivity as the one number that makes the blanket look like a single pair (Step 2 form, $Q = ε_{MLI} σ A (T_{1}^{4} - T_{2}^{4})$ ):

Worked check (parent's numbers). $A = 2 m^{2}$ , $T_{1} = 293$ K, $T_{2} = 100$ K, $N = 30$ , $ε = 0.03$ : $ε_{MLI} = \frac{0.03}{29} = 1.03 \times 1 0^{- 3}, Q \approx 5.67 \times 1 0^{- 8} \cdot 2 \cdot (29 3^{4} - 10 0^{4}) \cdot 1.03 \times 1 0^{- 3} \approx 0.85 W .$ Bare black wall ( $ε = 0.9$ ) would leak ≈ 744 W. The staircase bought a factor of ~880.

Step 7 — The edge cases (where the picture breaks)

WHAT & WHY. A formula you can't push to its limits is a trap. Four corners to check:

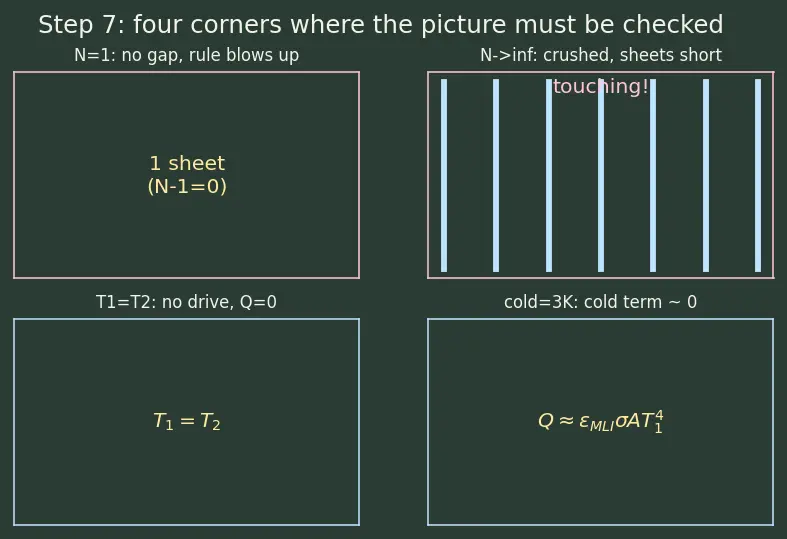

PICTURE. Four mini-panels: $N = 1$ (single sheet), $N \to \infty$ (crushed stack shorting), equal temperatures (no drive), and cold sink already at 3 K.

$N = 1$ (a single sheet). Then $N - 1 = 0$ and $ε / (N - 1) \to \infty$ — nonsense. One sheet has no internal gap; the model needs at least the boundary pair of Step 3. Use the pair rule, not the stack rule, for one film.
$N \to \infty$ . Algebra says $ε_{MLI} \to 0$ , perfect insulation. Reality (parent's mistake box): beyond ~30 layers, launch load compresses the stack, sheets touch, and solid conduction shorts the staircase. Diminishing returns — the curve flattens, then worsens.
$T_{1} = T_{2}$ . Then $T_{1}^{4} - T_{2}^{4} = 0$ , so $Q = 0$ . No temperature difference → no net radiation, no matter how few layers. The drive, not the insulation, sets the direction.
Cold side at real space, $T_{2} = 3$ K. Then $T_{2}^{4} = 81 K^{4}$ is utterly swamped by any warm $T_{1}^{4}$ (at $293$ K, $T_{1}^{4} \approx 7.4 \times 1 0^{9}$ , so $T_{2}^{4} / T_{1}^{4} \approx 1 0^{- 8}$ ), so $Q \approx ε_{MLI} σ A T_{1}^{4}$ . This is why designers often drop the cold term entirely — see Orbital Thermal Environment.

The one-picture summary

Every stage on one board: single glow → net pair → bounce sum → one floating shield halving the leak → $N_{s}$ shields making a staircase → the $ε / (N - 1)$ headline.

Recall Feynman retelling — say it back in plain words

In space, heat can only glow its way out, and the glow grows like temperature to the fourth power. Put a hot wall facing a cold wall and heat leaks across as the difference of their glows — but only partly, because shiny surfaces reflect most of it back and forth, so we bundle "how well the pair emits" into one number, $ε_{eff}$ . Now slip a thin shiny sheet in the middle: it floats to a temperature exactly between the two, splitting the drop in half and halving the leak. Add many sheets and they line up into an even staircase — each gap carries the same heat, so with $N_{s}$ shields you get $N_{s} + 1$ gaps, and when you re-count everything as $N$ physical layers that becomes $N - 1$ gaps, each one feeling only a small slice of the total gap. That is why the leak, wrapped into the whole-blanket number $ε_{MLI}$ , scales as $ε / (N - 1)$ : more layers, more steps, gentler climb, less heat. It only breaks when there's one lone sheet (no gap), when the stack gets crushed and the sheets touch (conduction cheats past the staircase), or when there's no temperature difference at all (nothing to drive).

Related dives: heat that must eventually leave still radiates (Stefan-Boltzmann Law); the film chemistry sets $ε$ (Materials Science — Kapton & Mylar); the cold sink temperature comes from Heat Transfer in Vacuum and Orbital Thermal Environment.
