This is the toolbox page for Structural design process — load cases, FOS (factor of safety). We assume you have seen nothing. We start from a push.


1. Force — a push or a pull, with a size and a direction

The picture: draw an arrow. The length of the arrow is the size ; the way it points is the direction. The whole arrow together is .

Why the topic needs it: every load on a spacecraft — the rocket shoving it upward, vibration rattling a bracket, a tank pushing outward — is ultimately a collection of forces. If we cannot draw the arrow, we cannot design against it.


2. Mass, gravity, and the number ""

The size of the weight force from gravity is . This is force number one that the object always feels.

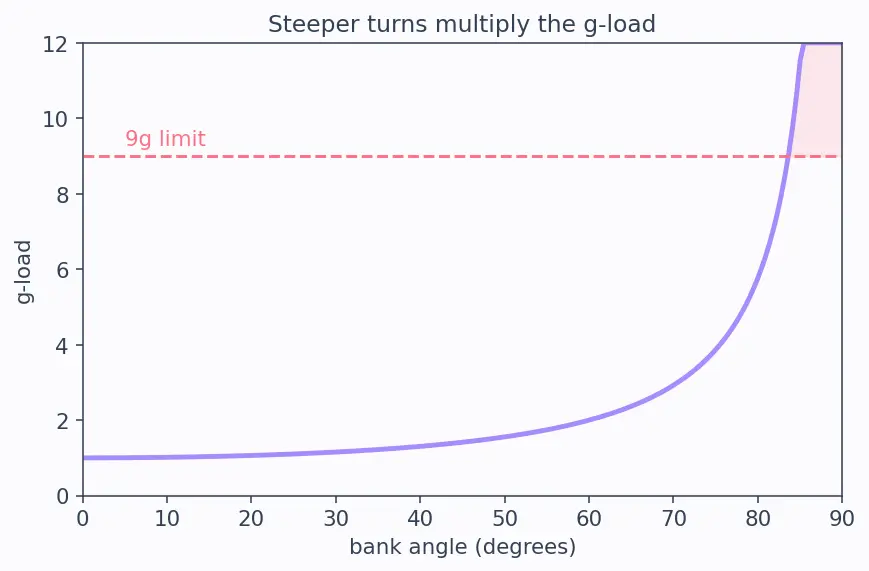

Figure — Structural design process — load cases, FOS (factor of safety)
Figure s01 — Alt text: a green mass block with two downward arrows. A short lavender arrow labelled "1g = m·9.81" shows normal gravity; a long coral arrow labelled "9g = m·9.81·9" shows the launch acceleration as nine times longer. The picture defines a "g-load" as a multiple of gravity's pull.


3. Adding forces — general vectors, and the perpendicular shortcut

Sometimes two forces act on the same part at the same time in different directions. Forces are arrows (), so they add the way arrows add: tip-to-tail, not by simply adding their sizes.

Where does the size formula come from? (a picture, not magic.) Put flat along the ground and stand on its tip at angle . Drop the tip of straight down to the ground line: this splits into a flat part of length (along ) and an upright part of length (at right angles to ). Now the resultant is the long slanted arrow of a right triangle whose horizontal leg is and whose vertical leg is . Apply plain Pythagoras to that right triangle:

Multiply out and use the identity : the and collapse into a single , leaving

So the "law of cosines" is nothing but Pythagoras applied after splitting the tilted arrow into flat and upright parts — see the figure.

Figure — Structural design process — load cases, FOS (factor of safety)
Figure s02 — Alt text: tip-to-tail construction. A lavender arrow lies flat; a mint arrow stands on its tip at angle and is split by a dashed line into a flat leg and an upright leg . The coral resultant is the hypotenuse of the right triangle with legs and — the geometric source of the law of cosines.

Now read off the three special cases:

  • Same line, same way (, so ): — you just add.
  • Opposite ways (, ): — you subtract.
  • Right angles (, ): the middle term vanishes and we get the clean RSS rule below.

Why the topic needs it: the axial () and lateral () launch loads happen simultaneously and at right angles, so RSS is exact for them. Adding them as plain numbers would fake a bigger load than reality, forcing a heavier part — and mass is the enemy in space. See Quasi-static Loads and Launch Environment.

Figure — Structural design process — load cases, FOS (factor of safety)
Figure s03 — Alt text: a right triangle of forces. The lavender horizontal leg is the axial force N, the mint vertical leg is the lateral force N, and the coral hypotenuse is the resultant N. Shows why perpendicular loads combine by Pythagoras, giving less than the scalar sum.


4. Stress — spreading a force over an area (and its sign)

A force alone does not tell you whether a part breaks. A 20 kN pull snaps a thin wire but barely stretches a thick bar. What matters is how concentrated the force is.

The picture: imagine the same pull carried by a fat rope versus a thin thread. Same force , but the thread has a small , so is huge — it snaps. Stress is force concentrated.

Figure — Structural design process — load cases, FOS (factor of safety)
Figure s04 — Alt text: two bars side by side. Left, a lavender bar pulled by two outward coral arrows labelled "σ > 0 (tension)". Right, a butter-yellow bar squeezed by two inward slate arrows labelled "σ < 0 (compression)". Defines the sign convention of stress by picture: pulling is positive, squashing is negative.


5. Strength — yield and ultimate, the two limits of a material

The material fights back only up to a point. There are two important points, not one.

The picture: stretch a metal bar and watch a stress-vs-stretch graph. It rises as a straight line (springy), then bends over at yield, keeps climbing, and finally reaches a peak — ultimate — where it snaps. Two different heights, two different failures. Full detail lives in Stress and Strain — Yield vs Ultimate Strength.

Figure — Structural design process — load cases, FOS (factor of safety)
Figure s05 — Alt text: a stress-vs-strain curve in lavender. It rises straight, bends over at a coral dot marked "yield σ_y = 300 MPa (bends permanently)", climbs further, and peaks at a mint dot marked "ultimate σ_ult (ruptures)". Shows the two distinct failure heights of a metal.


6. Force vs stress — the one letter "S", and how to convert

The parent note uses the symbol for the design quantities — , , . Here is the crucial rule that keeps you out of trouble.


7. Limit load — the worst push we expect

The picture: back to the Lego-bridge story — it is your honest guess of how heavy the toy car is. Real, but a guess.

Why the topic needs it: it is the number we will multiply by the safety factor. Everything downstream is built on this one "worst expected" value.


8. A ratio bigger than 1 — the factor of safety, and why we multiply demand

Why a ratio and not an added amount? A fixed added margin (say "+50 N") means nothing without knowing the scale — 50 N is huge for a wire, trivial for a beam. A ratio scales with the load automatically, so one number () works everywhere.


9. Margin of safety — the "how much spare?" number

We now have supply () and inflated demand (), both on the same basis and units. The final question: is supply enough, and how much is left over?


How the foundations feed the topic

Force F (arrow)

Stress sigma = F over A

Mass m and g

Quasi-static g-loads

Limit load S_limit

Vector add tip to tail and RSS

Allowable S_allow

Yield and Ultimate strength

Buckling of slender columns

Same basis force or stress

Factor of safety times S_limit

Design load S_design

Margin of safety MS

Pass if MS greater or equal 0


Equipment checklist

What does bold mean versus plain ?
Bold is the whole force arrow (size and direction); plain is only its size, a positive number.
How do you turn "" acting on a mass into a real force?
, with .
General rule for adding two forces at any angle?
Add tip-to-tail; the resultant size is , which is just Pythagoras after splitting the tilted arrow into flat and upright parts.
Two forces at right angles — how do you combine them?
RSS: (the term is zero), where is axial size and is lateral size.
What is stress and its unit?
Force per area, ; measured in pascals, usually MPa .
What does the sign of mean?
Positive = tension (being pulled apart); negative = compression (being squashed).
Besides crushing, how else can a compressed part fail?
By buckling — a slender column bows sideways and collapses at a stress well below the material's compressive strength; it is a shape failure, not a material one.
Difference between yield and ultimate strength?
Yield = stress where it permanently bends; ultimate = higher stress where it ruptures.
Can you compare a force to a stress directly?
No — both sides must be the same basis and unit; convert with (or ) first.
What is the limit load?
The worst load (best estimate of demand) expected in the real mission, as a force or the stress it produces.
What does FOS multiply, and why?
The applied/limit load (demand), because we are uncertain about loads — we inflate the push, not the metal.
Write the margin of safety and its pass condition.
; passes when .
Why "" in the margin formula?
So that supply exactly equal to inflated demand gives — the zero-spare pass/fail line.
