Foundations — Barrowman equations — centre of pressure calculation for finned rockets

Before you can read a single Barrowman equation, you need to own about a dozen symbols and pictures. This page builds every one of them from nothing, in the order that each depends on the last. Nothing here assumes you've seen the parent note — read the parent topic only after this.

1. The rocket axis and a position $x$

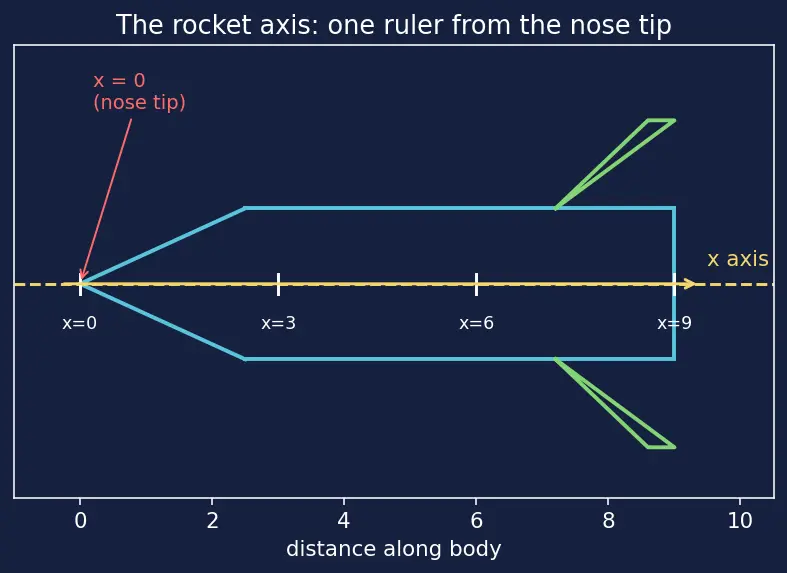

Everything in this topic is measured along the length of the rocket. Picture the rocket lying flat, nose to the left. We draw one straight line down its centre — the axis — and measure distance from the nose tip.

The symbol $\bar{X}$ (X with a bar) always means "an $x$-position that is some kind of average or balance point", not a single physical edge. We'll meet several: ${\bar{X}}_{\text{nose}}$, ${\bar{X}}_{\text{fins}}$, ${\bar{X}}_{cp}$.

2. Angle of attack $\alpha$

A rocket does not always fly perfectly nose-first. A gust nudges it, and now its nose points a little away from the direction it is actually travelling. That little tilt is the angle of attack.

The symbol $\alpha$ is measured in radians here — see §7 for why that matters.

3. The normal force $N$

The sideways push the tilted air produces has a name.

4. Making numbers portable: the coefficient $C_N$

The raw force $N$ depends on air density, speed, and rocket size — change any of these and the number changes, even for the same rocket shape. Engineers hate that, so they divide it out.

5. The slope $C_{N\alpha }$ — the real star

Here is the subtlest symbol in the whole topic, so we build it slowly.

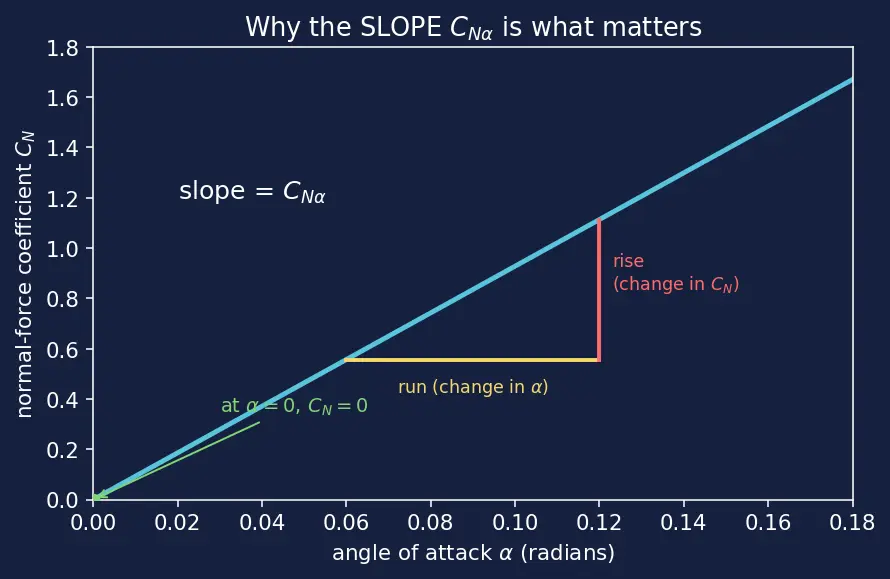

We just saw $C_N$ grows as the tilt $\alpha$ grows. For small tilts this growth is a straight line: double the tilt, double the sideways coefficient. The steepness of that line is what we actually use.

6. Cross-section area $S$ and its rate of change $\frac{dS}{dx}$

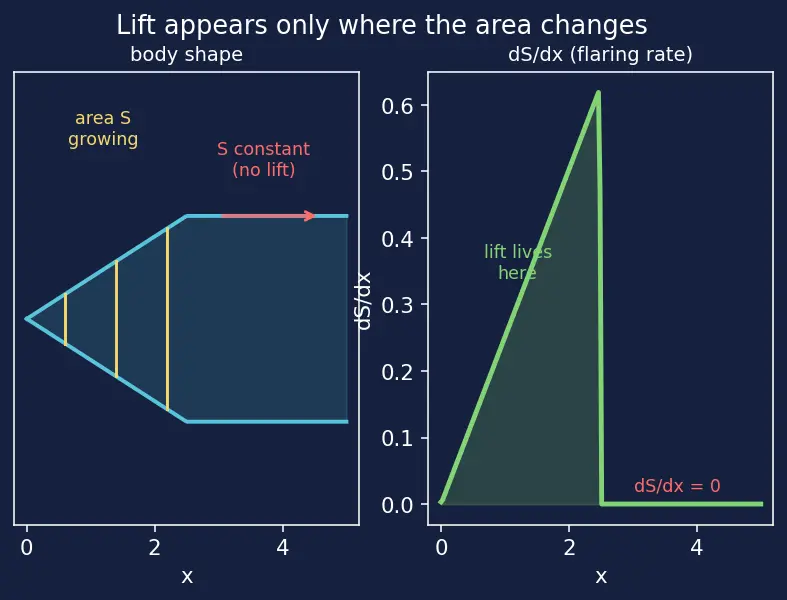

Slender-body theory (the physics behind the equations, see Slender-body aerodynamic theory) says lift appears only where the rocket's fatness is changing.

This is the origin of the mysterious "2" for a nose and the whole transition formula: they are just adding up $\frac{dS}{dx}$ along the body.

7. Radians vs degrees

8. The weighted mean — how pieces combine into one CP

Finally, the idea that fuses nose, transitions, and fins into a single point.

How these foundations feed the topic

The weighted-mean box is where all threads meet: it takes each component's slope ($C_{N\alpha }$) and each component's balance point ($\bar{X}$) and produces the one number, ${\bar{X}}_{cp}$, that decides stability. That single number then feeds Static stability and static margin and Centre of gravity determination.

Equipment checklist

Cover the answers and test yourself. You are ready for the Barrowman equations when every line reveals something you already knew.
