Visual walkthrough — Cryogenic propellants — handling, insulation, boil-off

This page rebuilds the parent result — the boil-off rate — from the ground up, in pictures. We start with a single warm room and a single cold tank, and we do not use one symbol until it has a picture attached to it. By the last figure you will be able to redraw the whole chain of reasoning from memory.

Our destination is one small equation:

${\dot{m}}_{\text{boil-off}}=\frac{\dot{Q}}{L_v}$

But that equation is useless until you feel where every piece comes from. So we build it in nine drawn steps.

---

Step 1 — The picture that starts everything: a cold thing in a warm world

WHAT. Draw a tank of liquid hydrogen at $20\text{K}$ sitting in a room at $300\text{K}$. ($\text{K}$ means kelvin — a temperature scale where $0$ is the coldest anything can be; room temperature is about $300\text{K}$, and $20\text{K}$ is bitterly cold, near the bottom of the scale.)

WHY. Heat is just energy that flows from hot places to cold places — never the other way on its own. The instant you have a warm room and a cold tank, energy wants to move inward. Nothing you build can stop this completely; you can only slow it.

PICTURE. Look at the red arrows in the figure: they all point into the cold tank. The size of the arrows depends on how big the temperature gap $\Delta T$ is — the difference between the warm outside and the cold inside.

---

Step 2 — Naming the flood: heat rate $\dot{Q}$

WHAT. We do not care how much energy has leaked in total. We care how fast it leaks — joules every second. That rate is a power, and we give it the symbol $\dot{Q}$ (read "Q-dot"). The dot on top is shorthand for "per second".

WHY. A tank that leaks slowly can sit for months; one that leaks fast boils dry in hours. Rate is the thing engineers must control. Power is measured in watts ($\text{W}$), and $1\text{W}=1$ joule per second.

PICTURE. Imagine water filling a bucket. $\dot{Q}$ is the thickness of the stream, not the amount already in the bucket. Three separate hoses feed the bucket — we meet them next.

Each stream needs its own picture. Steps 3–5 build one hose each.

---

Step 3 — Hose one: conduction crawling through a strut

WHAT. The tank cannot float; metal struts hold it inside the outer shell. Those struts are solid bridges, and heat walks across solid bridges by conduction — atoms jiggling and bumping their neighbours, passing energy down the line.

WHY. We use Fourier's law here (and not radiation or convection) because this is heat moving through a solid, atom to atom, with a clear hot end and cold end. That is exactly the question Fourier's law answers: given a solid rod with a temperature difference across it, how fast does heat cross?

PICTURE. Follow the orange strut in the figure from the warm shell (right) to the cold tank (left). The colour fades from warm to cold along its length $L$. A short, fat, conductive strut is a wide easy road; a long, thin, poorly-conducting strut is a narrow rough path.

Why is $L$ downstairs (dividing) while $A$ is upstairs (multiplying)? Because widening the road helps heat but lengthening it fights heat. The ratio $\Delta T/L$ is the steepness of the temperature slope — how many kelvin you drop per metre. Steep slope, fast flow.

---

Step 4 — Hose two: radiation arriving as light

WHAT. Even across a perfect vacuum with no struts at all, the warm shell glows. Not visibly — it glows in infrared. That glow is energy, and when it lands on the cold tank it warms it. This is radiation.

WHY. We use the Stefan–Boltzmann law here because there is a gap between surfaces — no atoms to conduct across, no air to convect. Only light crosses a vacuum. The Stefan–Boltzmann law answers precisely: how much power does a surface at temperature $T$ radiate?

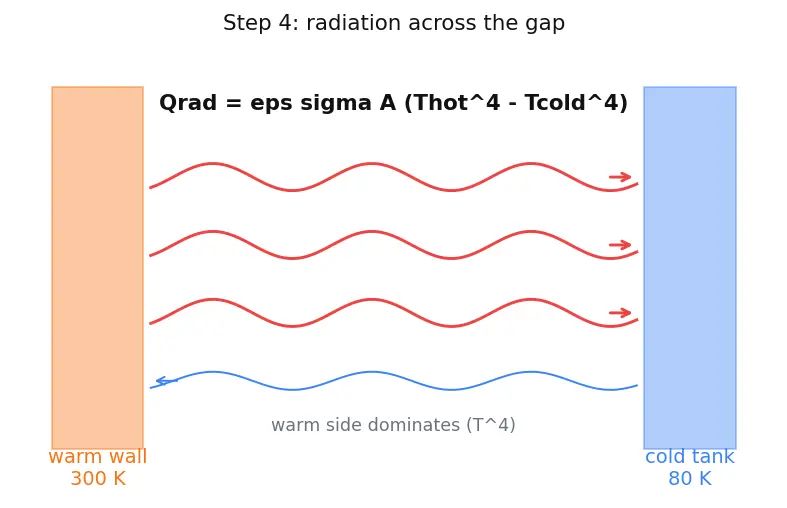

PICTURE. In the figure, wavy arrows leave the warm wall and strike the cold tank. The warm wall throws many fat arrows; the cold tank throws back only a few thin ones. The net flow (warm arrows minus cold arrows) points inward.

---

Step 5 — Hose three: convection, and when it switches off

WHAT. If air touches the cold tank, that air chills, sinks, and fresh warm air rolls in to take its place — a conveyor belt of heat. That is convection.

WHY. We use Newton's law of cooling here because a moving fluid is doing the carrying, and its behaviour is too messy to derive from atoms — so we bundle all the mess into one measured number $h$.

PICTURE. Left panel: air present — curling arrows sweep heat onto the surface. Right panel: the space is pumped to vacuum — no air, the arrows vanish, this hose is switched off. This is the degenerate case, and it is the one real tanks aim for.

---

Step 6 — The bucket has a drain: heat becomes boiling

WHAT. All that heat arrives at a liquid sitting right at its boiling point. The heat does not raise its temperature — it rips liquid into gas instead. This is a phase change (see Latent Heat and Phase Changes).

WHY. A cryogen is already at its boiling temperature. Adding heat to a boiling liquid cannot make it hotter; the energy is spent breaking molecules free into vapour. Each kilogram freed costs a fixed amount of energy called the latent heat $L_v$.

PICTURE. The incoming $\dot{Q}$ arrow feeds a boiling surface; bubbles of gas leave the top. The thicker the heat arrow, the faster bubbles form.

---

Step 7 — The energy balance: turning watts into kilograms

WHAT. Now we connect the flood ($\dot{Q}$, in watts = J/s) to the mass leaving as gas (${\dot{m}}_{\text{boil-off}}$, in kg/s). We simply demand that energy is conserved.

WHY. Every joule that enters must be accounted for. Since none of it warms the liquid (Step 6), all of it goes into vaporizing mass. So:

$\underset{\text{J/s in}}{\underbrace{\dot{Q}}}=\underset{\text{kg/s out}}{\underbrace{{\dot{m}}_{\text{boil-off}}}}\times \underset{\text{J/kg}}{\underbrace{L_v}}$

Check the units like a picture: $\frac{\text{J}}{\text{s}}=\frac{\text{kg}}{\text{s}}\times \frac{\text{J}}{\text{kg}}$ — the kilograms cancel, leaving J/s on both sides. It balances.

PICTURE. A balance scale: on the left, watts of heat; on the right, kilograms per second times $L_v$. They must sit level.

This is the parent's central result, and we earned every symbol in it.

---

Step 8 — Turning kg/s into a number engineers quote: the boil-off percent

WHAT. Nobody says "$1.17\times 10^{-5}$ kg/s". They say "$1\%$ per day". We convert by asking: over a time $t$, what fraction of the starting mass $m_{\text{total}}$ did we lose?

WHY. A percentage is dimensionless and instantly comparable between a small tank and a giant one. It answers the practical question directly: how long can we wait before launch?

PICTURE. A shrinking tank: the full bar is $m_{\text{total}}$; a thin sliver at the top, $\dot{m}\cdot t$, is what boiled away in time $t$.

---

Step 9 — Edge and degenerate cases (never leave a gap)

WHAT. Let us push every knob to its extreme and check the pictures still make sense.

WHY. A reader must never hit a scenario we did not show. Four limits:

1. Perfect vacuum, no struts → ${\dot{Q}}_{\text{conv}}=0$ and ${\dot{Q}}_{\text{cond}}=0$. Only radiation remains. Boil-off is at its floor, set by ${\dot{Q}}_{\text{rad}}$ alone.
2. $\Delta T=0$ (tank same temperature as surroundings) → every $\dot{Q}$ term is zero, $\dot{m}=0$. No gap, no flood, no boiling. This is the "cryogen has warmed to ambient" — but then it is no longer liquid.
3. $L_v\to$ small (like LOX vs LH₂) → for the same heat leak, boil-off is larger, because the denominator shrank. Cheap-to-boil liquids vanish faster.
4. Add MLI (Rocket Engine Cooling and multilayer insulation) → $\epsilon$ drops from $0.8$ to $0.008$, cutting ${\dot{Q}}_{\text{rad}}$ by $\sim 100\times$, as the parent's Example 2 shows.

PICTURE. Four mini-panels, one per limit, each showing the heat arrows growing, shrinking, or vanishing.

---

The one-picture summary

Everything above collapses into a single flow: temperature gap → three heat hoses → total $\dot{Q}$ → divide by $L_v$ → mass boiling away → percent per day. The figure traces that entire pipeline left to right.

Recall Feynman retelling — say it out loud in plain words

Imagine a really cold thing in a warm room. Heat always sneaks from warm to cold, and it sneaks in by three doors: crawling through the metal legs (conduction), glowing across the empty gap as invisible light (radiation), and riding on air that touches the surface (convection). We call the total speed of this sneaking $\dot{Q}$, in watts. Now the cold liquid is already boiling, so the sneaked-in heat can't make it hotter — it just tears liquid into gas, and each kilogram costs a fixed price called latent heat $L_v$. So the kilograms lost each second is simply the heat divided by that price: $\dot{Q}/L_v$. Multiply by how long you wait and divide by how much you started with, and you get the number everyone quotes — the boil-off percent per day. Want less loss? Shut the doors: use bad-conductor legs, shiny low-emissivity surfaces plus MLI, and pump out the air. Kill $\dot{Q}$ and boil-off dies with it.

Recall Quick checks

Why is strut length $L$ in the denominator of conduction? ::: A longer path spreads the temperature drop over more distance, making the slope $\Delta T/L$ gentler, so heat crawls slower. Why can we usually ignore $T_{\text{cold}}^4$ in the radiation term for cryogens? ::: Because $T^4$ grows so fast that a cold surface radiates almost nothing compared to the warm one; e.g. $80^4$ is under $1\%$ of $300^4$. What single equation converts total heat leak into mass lost per second? ::: ${\dot{m}}_{\text{boil-off}}=\dot{Q}/L_v$, from energy conservation — all incoming heat goes into phase change. Why does LH₂ resist boil-off better per kilogram than LOX? ::: Its latent heat $L_v\approx 445$ kJ/kg is larger than LOX's $\approx 213$ kJ/kg, so each kilogram costs more energy to boil.
