Before you can read a single formula in the parent note, you need to own every letter it throws at you. This page builds each one from nothing — plain words first, then a picture, then the reason the topic can't live without it. Read top to bottom; each idea rests on the one above it.

1. Temperature and the letter $T$

Two things about the picture:

• We measure it in kelvin (K), not Celsius (°C). Kelvin starts at absolute zero — the coldest possible, where jiggling stops. To convert: $T_{\text{K}}=T_{\text{°C}}+273$.
• So $-253\text{°C}$ (liquid hydrogen) becomes $20\text{K}$, and room temperature $+20\text{°C}$ becomes about $293\text{K}$.

Why the topic needs kelvin, not Celsius: later a law uses $T^4$ (temperature multiplied by itself four times). If you plugged in a negative Celsius number, $(-253{)}^4$ would give a huge positive nonsense. Kelvin is always positive and starts at true zero, so the physics comes out right. See the mistake box below.

Look at the thermometer strip above: the same physical cold sits at $-253$ on the Celsius scale but at a tidy $20$ on the kelvin scale. Kelvin simply slides the zero mark down to where jiggling truly stops.

2. The temperature difference $\Delta T$

Picture: two shelves at different heights. $\Delta T$ is the vertical drop between them. A bigger drop means things "fall" harder — and heat, like a ball, flows faster down a bigger drop.

Why the topic needs it: every heat-leak formula is driven by $\Delta T$. No gap, no heat flow. A liquid-hydrogen tank has a giant gap ($293-20=273\text{K}$), which is exactly why it's so hard to keep cold.

3. Heat, energy, and the letter $Q$

Picture: water flowing from a high tank to a low tank. $Q$ is the total amount of water that has flowed.

Picture: not the total water in the tank, but the flow rate through the pipe right now — litres per second. Same dot appears on $\dot{m}$ (mass per second) later.

Why the topic needs both: the parent note asks "how much fuel do we lose per day?" That is a rate question, so almost every quantity carries a dot. Get comfortable: no dot = a total amount; dot = an amount per second.

4. Area $A$, length $L$, and the geometry of a leak

For a round strut of radius $r$, the doorway is a circle: $A=\pi r^2$

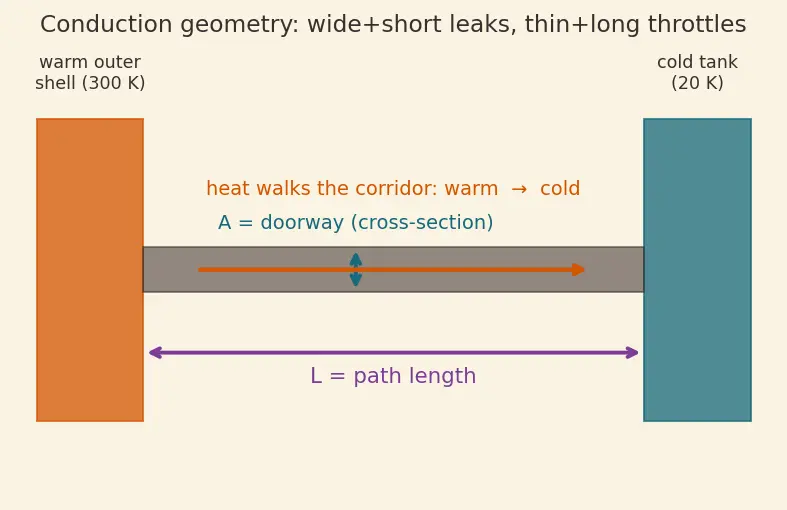

Picture (above): a strut connecting the warm outer shell to the cold inner tank. $A$ is the width of the corridor heat walks down; $L$ is how far it has to walk. A wide, short corridor lets heat pour through; a thin, long corridor throttles it — which is exactly why engineers use thin, long struts.

Why the topic needs them: conduction depends on the doorway size $A$ and the walk length $L$. These are pure geometry — no physics yet — but they set the stage for Fourier's law.

5. Material properties: $k$, $\epsilon$, $h$

These three letters each describe what a material is like, not how big it is.

Picture: a crowded corridor where people (heat) either sprint through (high $k$, like a copper pipe) or shuffle slowly (low $k$, like a foam block). See Fourier's Law of Heat Conduction.

Picture: a black matte mug radiates its warmth away; a shiny thermos flask hardly glows at all. That mirror trick is the whole idea behind multilayer insulation.

Picture: blowing on hot soup cools it faster — moving air scoops heat away. If there is no air (a vacuum), $h$ and convection vanish entirely; see Vacuum Technology.

Why the topic needs all three: heat sneaks in by three different roads — conduction ($k$), radiation ($\epsilon$), convection ($h$) — and each road has its own material "eagerness" number.

6. The Stefan-Boltzmann constant $\sigma$ and why $T^4$

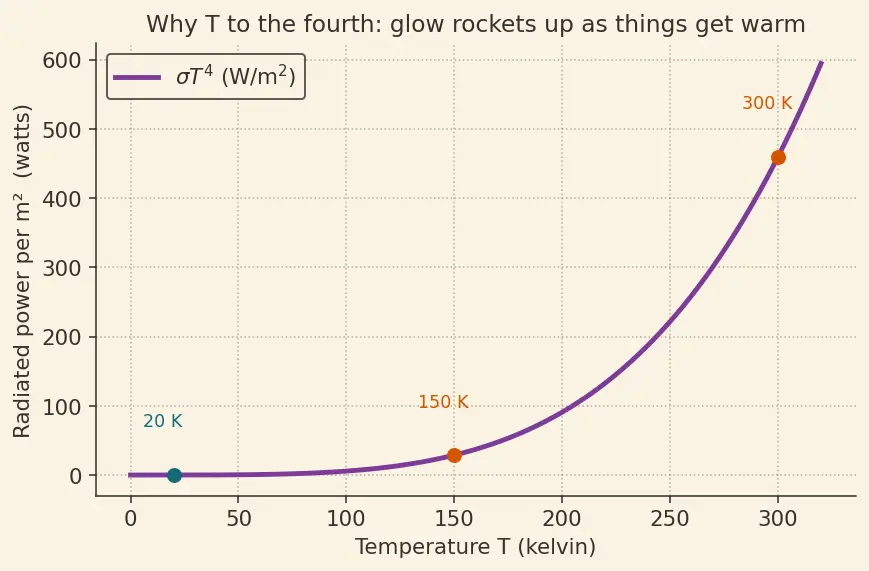

Picture (above): the $T^4$ curve rockets upward. This steepness is why a $300\text{K}$ shell floods a $20\text{K}$ tank with radiation, and why cutting the hot temperature even a little helps enormously.

7. Mass $m$, its rate $\dot{m}$, and latent heat $L_v$

Picture: a pot of water already at boiling point. Keep the flame on and the temperature stays at boiling, yet water keeps disappearing into steam. The flame's energy is being spent entirely on the phase change, not on getting hotter. That toll is $L_v$. See Latent Heat and Phase Changes.

8. Putting the letters together — the parent's formulas re-read

Now every symbol in the parent note is defined. Re-read them with new eyes:

Notice $T_{\infty }$ ("T-infinity") — the little infinity symbol just means ==the temperature far away, out in the open air, undisturbed by the cold tank==.

Prerequisite map

Every arrow means "you must understand the left box before the right box makes sense." The whole diagram funnels into one number: how fast fuel is lost.

Equipment checklist

Cover the answer and test yourself. You are ready for the parent note when every line is easy.

Next: with these symbols owned, head back to Cryogenic Propellants — Handling, Insulation, Boil-off and the numbers will read like sentences. For where this heat-budget feeds mission design, see Propellant Mass Fraction and Structural Design - Pressure Vessels.
