Foundations — Rocket staging — series staging, parallel staging

Before you can read a single line of the staging derivation, you need to understand the alphabet it is written in. This page builds every symbol from nothing — plain words first, then a picture, then why the topic cannot do without it. Read top to bottom; each idea rests on the one above it.

1. Mass — the "amount of stuff", symbol $m$

Picture a bathroom scale. The number it shows is $m$. That's the whole idea — nothing fancy yet.

Why the topic needs it: a rocket's job is to change its own speed, and the harder something is to push, the more $m$ it has. Every other symbol on the page is some particular pile of mass — fuel, tanks, or cargo. So we start here.

The picture above splits one rocket into the three piles we will keep re-using. Learn these three now and the rest is easy:

The little subscript letters ($p$, $s$, $\text{payload}$) are just name tags. They do not multiply anything — they only say which pile.

2. Adding piles to get total mass — $m_0$ and $m_f$

A rocket burns for a while, so its mass changes with time. We only care about two snapshots.

$m_0=m_s+m_p+m_{\text{payload}}{m}_f=m_s+m_{\text{payload}}$

Look at the difference: $m_0-m_f=m_p$. The only thing that left the rocket is the burned propellant. The empty tank $m_s$ and the cargo $m_{\text{payload}}$ are still there at the end — that empty tank is exactly the "dead weight" staging will later throw away.

Why the topic needs it: the whole engine of the theory (next section) compares these two numbers.

3. The ratio of two piles — the mass ratio $\frac{m_0}{m_f}$

Example: $m_0=9000$, $m_f=2040$ gives $\frac{9000}{2040}\approx 4.41$. The rocket ended up about 4.4 times lighter than it started.

4. The logarithm $\ln$ — why this tool?

The parent equation writes $\ln \left(\frac{m_0}{m_f}\right)$. Where does that curly $\ln$ come from and what does it do?

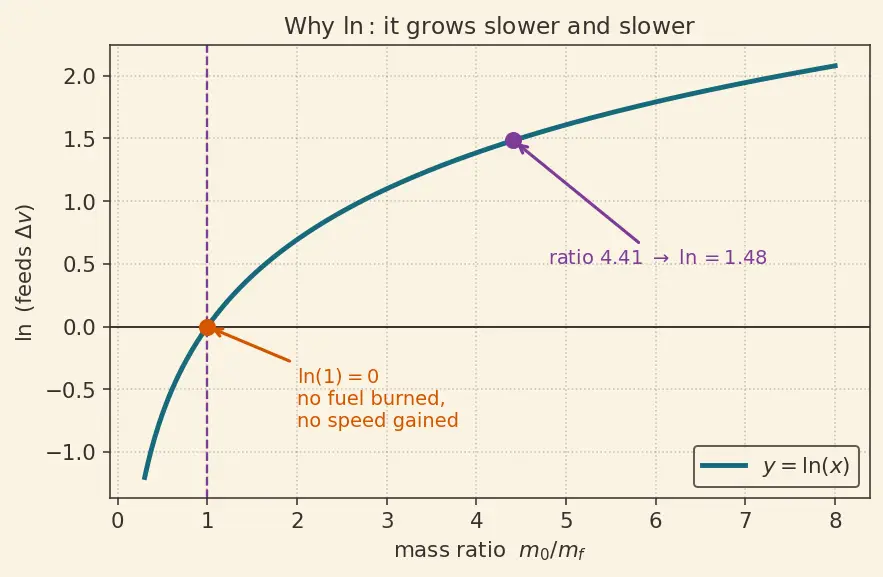

Two features you must internalise from the curve:

• $\ln (1)=0$: if you burn no fuel, $m_0=m_f$, ratio $=1$, and you gain zero speed. Good — that matches reality.
• $\ln$ grows slower and slower: doubling the mass ratio does not double the speed. This is the cruel reason single-stage rockets struggle and staging is needed.

5. Exhaust velocity $v_e$ and the speed gain $\Delta v$

Now every symbol in the master equation has a meaning:

6. Fractions of a stage — $\lambda$ and $ϵ$

The example splits a stage's hardware into "what fraction is fuel" and "what fraction is dead structure." These need name tags too. See Structural fraction and propellant fraction.

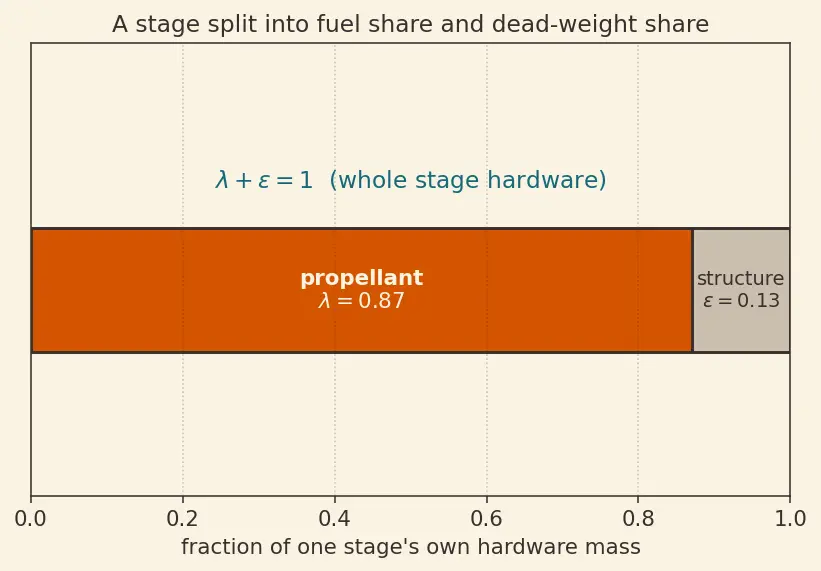

Picture a full fuel tank: colour the fuel part orange, the metal shell part grey. $\lambda$ is the orange share, $ϵ$ is the grey share. Good rockets want $\lambda$ near 0.9 (almost all fuel, tissue-thin tanks).

Why the topic needs it: real engineers do not know $m_p$ and $m_s$ in kilograms up front — they know the quality of their tank technology, which is $ϵ$. Fixing $ϵ$ lets you compute masses for any tank size.

7. Force, thrust $F$, and mass flow $\dot{m}$ (parallel staging only)

Series staging needs nothing more. Parallel staging (boosters firing together) adds three symbols.

8. The summation sign $\sum$

The total-$\Delta v$ formula stacks stages with $\sum _{i=1}^n$.

Why the topic needs it: staging adds the speed gains of each stage, and $\sum$ is the compact way to say "add them all, however many there are."

The prerequisite map

Read it downward: raw mass feeds the three piles, which feed the start/end masses, which feed the mass ratio, which — together with $\ln$ and $v_e$ — powers Tsiolkovsky. From there the two staging styles branch off, parallel staging needing the extra thrust machinery.

Equipment checklist

Cover the right side and see if you can answer each before revealing.
