This page assumes you know nothing. We will earn every symbol — $c$, $p^{\prime }$, $q^{\prime }$, $\omega$, $k$, $f_n$, $\varphi$, the ${\nabla }^2$, the $\oint \int$ — one at a time, each anchored to a picture, before it is ever used in a formula. When you finish, re-read the parent parent topic and nothing will be a mystery.

0. The pressure of a gas — our starting point

Before anything oscillates, we need the thing that oscillates: pressure.

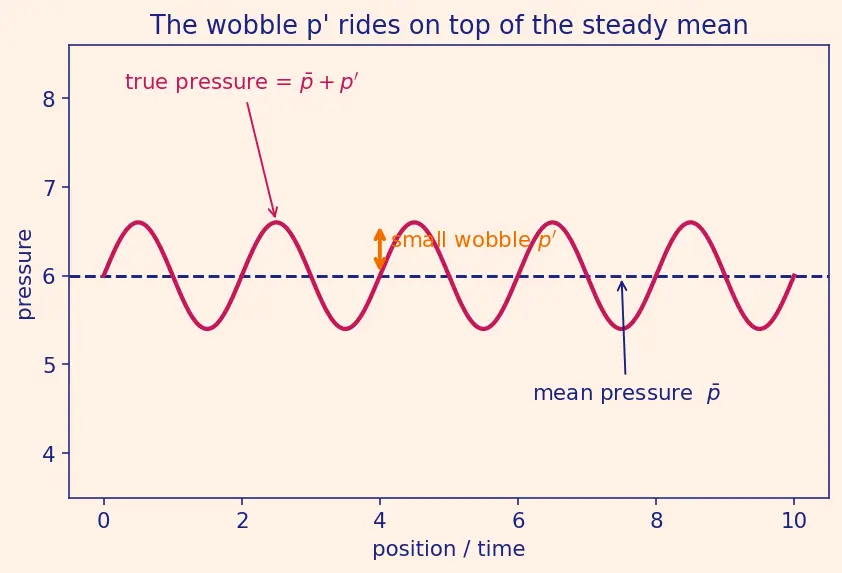

In a working engine the pressure is huge and roughly steady. Call that steady background the mean pressure $\bar{p}$ (the bar means "average"). The interesting physics is not $\bar{p}$ itself but the tiny wobbles riding on top of it.

Why we need $p^{\prime }$ and not $p$: the equations for the wobble are simpler and linear when we peel off the giant constant $\bar{p}$. A ripple on a still pond behaves the same whether the pond is 1 m or 100 m deep — only the ripple matters.

1. Speed of sound $c$ — how fast a squeeze travels

The parent gives its value: $c=\sqrt{\frac{\gamma RT}{M}}$

Let us earn every letter under that root:

Why a square root? Speed comes from a balance of a "springiness" (pushing back, upstairs) against an "inertia" (mass resisting, downstairs). Whenever speed $=\sqrt{\text{stiffness}/\text{inertia}}$ in physics, a square root appears — the same reason a tight (stiff) guitar string sounds higher.

The one thing to burn in: hot chamber gas has a large $c$ (≈ 900–1300 m/s), not the 340 m/s of cold air. Deep dive: see Speed of sound in gases.

2. Frequency $f$, angular frequency $\omega$, and period $T_{\text{cyc}}$

The wobble $p^{\prime }$ repeats in time. We need words for "how often."

Physicists often prefer a cousin of $f$ called angular frequency:

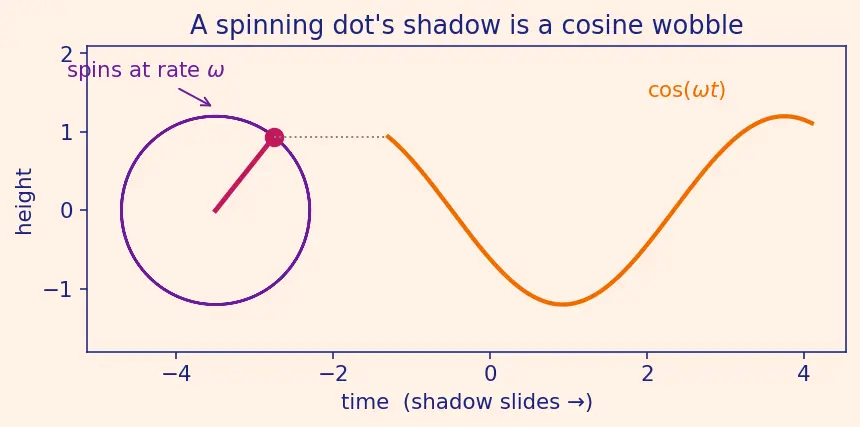

Why bother with $\omega$? Because the wobble is written with cosine, and $\cos$ eats radians, not cycles. Writing $\cos (\omega t)$ means "the cosine advances $\omega$ radians every second."

3. Standing waves: nodes, antinodes, and the shape $P(x)$

A wobble that just travels away is boring. In a closed tube the wobble bounces off both ends and overlaps itself, freezing into a standing wave — a pattern that stays put and only breathes up and down.

For pressure inside the chamber the parent writes the standing wave as $p^{\prime }(x,t)=P(x)\cos (\omega t).$

Read this as a product of two separate stories:

• $\cos (\omega t)$ is the time story — everywhere ticks up and down together at rate $\omega$.
• $P(x)$ is the space story — the fixed shape, telling you how big the swing is at each position $x$ along the tube. $P(x)$ is large at pressure antinodes and zero at pressure nodes.

Foundations of why only certain shapes survive live in Standing waves and resonance.

4. Wavenumber $k$ — "how many waves per metre"

$\omega$ counted wobbles in time; we need its twin that counts wobbles in space.

The parent links space and time through $k=\frac{\omega }{c}.$ Why divide by $c$? Because the wave slides one wavelength forward in one period. Fast messenger (big $c$) spreads each wobble over more metres, so fewer waves per metre — hence $k$ shrinks when $c$ grows. That single relation is what turns a time frequency into a spatial fitting condition.

5. The boundary condition — why a wall is a pressure antinode

This is the most misread idea on the parent page, so we picture it carefully.

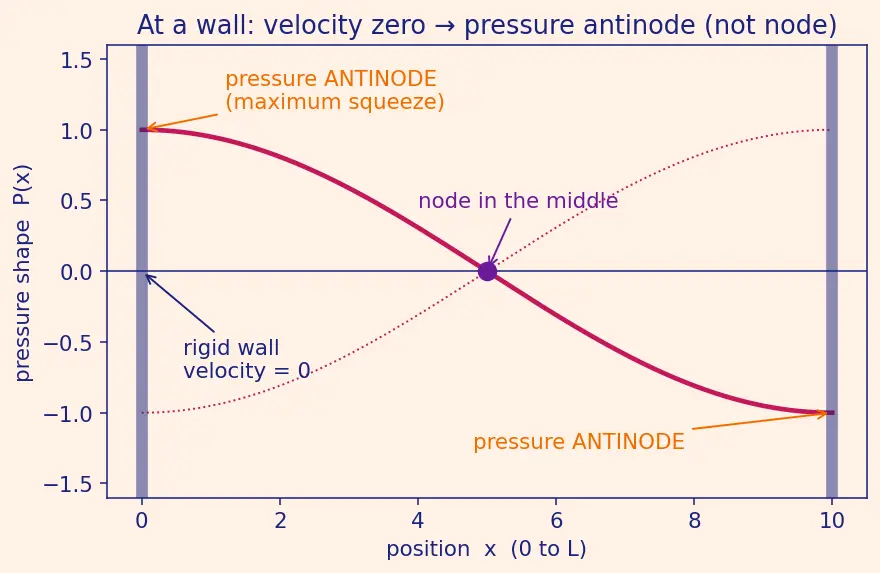

Why this matters for the topic: the injector face and the throat both act as (partly) reflecting walls. Demanding a pressure antinode at each end is exactly what forces the tube to accept only the "fits-neatly" wavelengths — and that produces the frequency formula. Damping at these ends is discussed in Nozzle flow and acoustic damping.

6. The fitting condition and the mode number $n$

When you demand an antinode at both ends of a length-$L$ tube, only wavelengths that divide the tube into a whole number of half-waves fit. That whole number is the mode number $n$.

Cylindrical chambers add sideways patterns (tangential, radial) that need special functions, but the idea is identical: only shapes that fit survive. See Injector design and baffles for how engineers detune these.

7. Heat release $q^{\prime }$ — the flame's wobble

So far the tube just rings and would slowly die out. Instability needs an energy source: the flame.

Picture the flame brightening and dimming in rhythm with the pressure wave sloshing over it.

8. Phase $\varphi$ — the timing between two wobbles

Two wobbles can have the same rhythm yet not peak at the same instant. The offset between them is the phase.

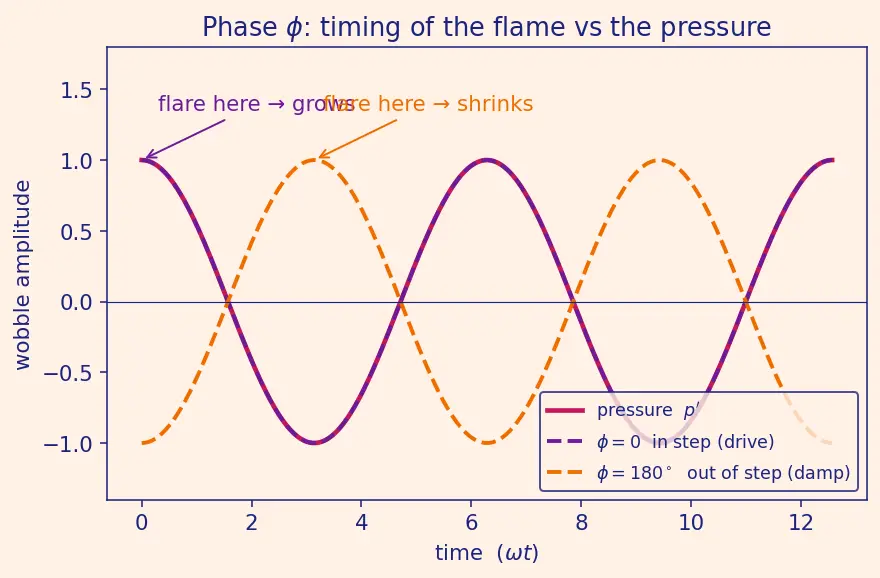

Why $\varphi$ is the star of the show: the growth of the mode depends on $\cos \varphi$ — the timing — not on how big the flame's wobble is. This is the swing analogy: pushing when the swing is at the top (right phase) grows it; pushing at the wrong moment kills it.

9. The two calculus symbols to recognise

The parent uses two pieces of calculus notation. You don't need to do the calculus — just read them.

Why an integral and not a single number? Because the flame helps in some places and hurts in others, and at some instants and not others. Only the sum over all space and one whole cycle tells you the net verdict.

The prerequisite map

Read it top to bottom: temperature and pressure give the speed of sound; speed plus frequency give the wavenumber; wall rules plus wavenumber pick the mode number, which fixes the mode frequencies; the flame's heat wobble and its phase feed the Rayleigh integral, and together they explain the whole topic. Back to the Rocket Propulsion — combustion chamber overview whenever you want the wider context.
