Nozzle thermodynamics — isentropic expansion from chamber to exit: Question bank

This is a reasoning gym for the parent topic. No heavy arithmetic — every item below hunts one specific misconception about how gas turns thermal chaos into a directed jet. Read the prompt, commit to an answer out loud, then reveal.

Before we begin, one shared vocabulary reminder so nothing below is a mystery:

Flow speed $V$ : how fast a parcel of gas travels along the nozzle axis (metres per second). It is the ordinary bulk velocity of the moving stream — the thing that eventually becomes exhaust thrust.
Density $ρ$ (Greek "rho"): the mass of gas packed into each cubic metre, $kg/m^{3}$ . Hot chamber gas is dense; as it expands and speeds up down the nozzle, $ρ$ falls.
Cross-sectional area $A$ : the area of the nozzle's circular slice at a given point along the axis, $m^{2}$ — small in the chamber's neck, smallest at the throat, growing again toward the exit. It is the "geometry knob" the designer controls.
Stagnation quantity (subscript $0$ , e.g. $T_{0}$ , $P_{0}$ ): the value the gas would have if you smoothly brought it to rest ( $V = 0$ ). Think "the full tank of energy before any of it becomes motion."
Static quantity (no subscript, e.g. $T$ , $P$ ): what a thermometer/gauge riding along with the moving gas would read.
Throat (star, e.g. $A^{*}$ ): the narrowest cross-section of the nozzle.
$γ$ (gamma): the heat capacity ratio $c_{p} / c_{v}$ , roughly $1.2$ for hot rocket exhaust.
$R$ : the specific gas constant of the exhaust — the universal gas constant divided by the mean molar mass of the combustion products, in $J/(kg\cdotK)$ (about $320$ for typical rocket gas). It is what makes $P = ρR T$ work per kilogram, and it appears in both $c_{p} = γ R / (γ - 1)$ and the sound speed $a = γ R T$ . See Ideal Gas Law.
$M$ : the Mach number, flow speed divided by the local speed of sound, $M = V / a$ — see Mach Number and Sound Speed.

The single geometric picture that every item below leans on:

Figure — Nozzle thermodynamics — isentropic expansion from chamber to exit

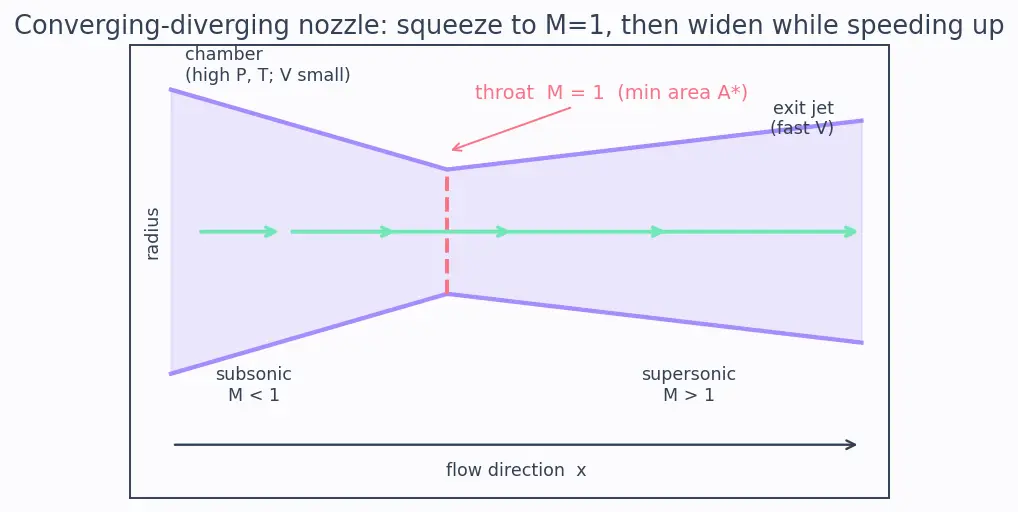

What to extract from Figure s01: trace the wall shape left to right — the passage narrows to the dashed coral throat line, then widens toward the exit. Note the three labelled zones: the green flow arrows grow longer as you move right, telling you $V$ keeps rising the whole way, even in the widening part. Confirm for yourself that the throat (min area) is exactly where the label says $M = 1$ — this is the pivot the entire chapter turns on.

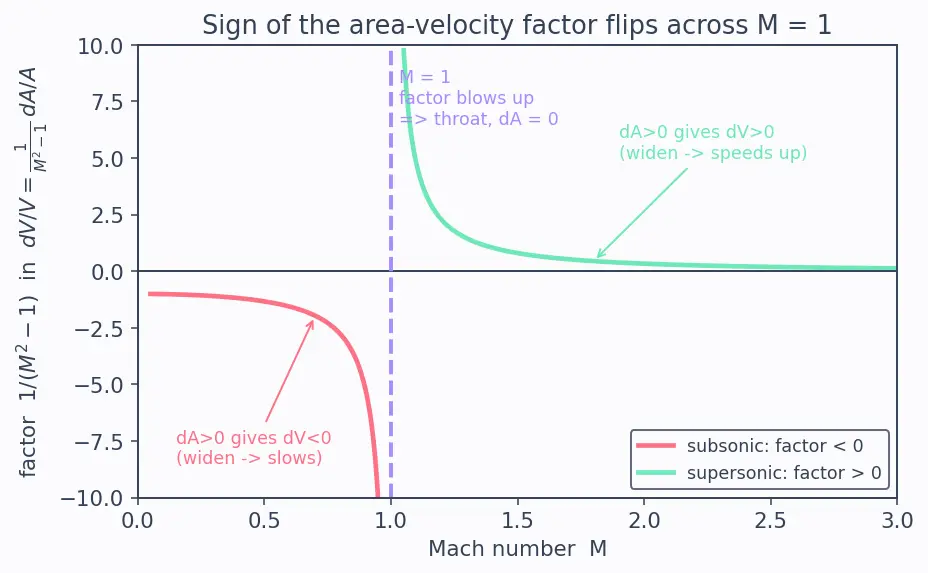

What to extract from Figure s02: this plots the factor $\frac{1}{M ^{2} - 1}$ that decides whether widening speeds gas up or slows it down. Look at where the coral (subsonic) curve sits — below the zero line, so the factor is negative; then the mint (supersonic) curve sits above it, positive. See how both curves shoot to infinity as they approach the lavender dashed $M = 1$ line: a finite acceleration there is only possible if $d A = 0$ , which is why the throat must sit exactly at $M = 1$ .

Formula The differential area–velocity relation (the engine behind many items)

Combining continuity ( $ρ V A = const$ ), the isentropic momentum balance, and $a^{2} = γ R T$ gives $\frac{d V}{V} = \frac{1}{M ^{2} - 1} \frac{d A}{A}$ WHY this sign? Start from $\frac{d A}{A} + \frac{d V}{V} + \frac{d ρ}{ρ} = 0$ (log-differentiated continuity — mass in = mass out). Next we need to link pressure changes to velocity changes: that is the Euler momentum equation for steady frictionless flow, $d P = - ρ V d V$ (this is just Newton's second law for a gas parcel — a net pressure push $- d P$ accelerates the mass, and integrating it gives Bernoulli's equation). Combined with the sound-speed fact $d P = a^{2} d ρ$ , these let you replace $d ρ / ρ$ by $- M^{2} d V / V$ . Substituting gives $\frac{d A}{A} = (M^{2} - 1) \frac{d V}{V}$ , i.e. the boxed form. WHAT it looks like: Figure s02 above plots the factor $\frac{1}{M ^{2} - 1}$ — negative for $M < 1$ , positive for $M > 1$ , exploding at $M = 1$ .

Subsonic ( $M < 1$ ): $M^{2} - 1 < 0$ , so $d A > 0$ gives $d V < 0$ — widen and it slows (garden-hose intuition).
Supersonic ( $M > 1$ ): $M^{2} - 1 > 0$ , so $d A > 0$ gives $d V > 0$ — widen and it speeds up.
At $M = 1$ : the factor blows up, forcing $d A = 0$ — the throat.

True or false — justify

True or false: In an isentropic nozzle the gas gets colder as it speeds up.

True. Total enthalpy

c_{p} T + V^{2} /2

(with

V

the flow speed) is fixed, so raising

V

must lower

T

— the thermal energy is literally being spent to buy kinetic energy.

True or false: "Isentropic" means "no heat is exchanged with the walls."

False (incomplete). Isentropic = adiabatic and reversible. No-heat-exchange is only the adiabatic half; a nozzle with friction is adiabatic but not isentropic because friction generates entropy.

True or false: Stagnation temperature

T_{0}

stays constant all the way down the nozzle, even though static

T

falls.

True. For adiabatic flow with no shaft work, total enthalpy — hence

T_{0}

— is conserved even as the static temperature is traded for velocity.

True or false: Stagnation pressure

P_{0}

also stays constant in a real nozzle.

False. In the ideal isentropic case

P_{0}

is conserved, but real friction and shocks drop

P_{0}

— that lost stagnation pressure is exactly the performance loss.

True or false: In the diverging (widening) part of the nozzle the flow keeps accelerating.

True — but only because it is already supersonic. For

M > 1

d V / V = + \frac{1}{M ^{2} - 1} d A / A

with

M^{2} - 1 > 0

, so increasing area raises speed. Widen a subsonic stream and it slows down instead.

True or false: The throat is where the gas moves fastest.

False. The throat is where

M = 1

; the fastest velocity is at the exit, deep in the supersonic diverging section. Highest Mach ≠ same point as narrowest area for velocity's maximum.

True or false: If you double the chamber pressure

P_{0}

, the exit Mach number roughly doubles.

False. Exit Mach is set by the area ratio

A_{e} / A^{*}

(geometry), not by chamber pressure. Doubling

P_{0}

scales all pressures up but leaves

M_{e}

essentially unchanged.

True or false: A converging-only nozzle can produce supersonic exhaust if you push hard enough.

False. A converging duct can accelerate flow only up to

M = 1

at its exit. To exceed Mach 1 you physically need the throat-then-diverge geometry — see Nozzle Flow Regimes.

True or false: At

M = 1

the local static pressure equals the ambient pressure outside the rocket.

False. The throat pressure

P^{*} = P_{0} (2/ (γ + 1))^{γ / (γ - 1)}

is fixed by the chamber, not by the sky. Ambient pressure matters at the exit plane, not the throat.

Spot the error

A student writes "

T / T_{0} = (1 + \frac{γ - 1}{2} M^{2})

". Find the error.

The relation is the reciprocal:

T / T_{0} = 1/ (1 + \frac{γ - 1}{2} M^{2})

. As written it claims the gas gets hotter with speed, contradicting energy conservation.

A student says "since the exhaust is supersonic, sound (and pressure info) from outside can travel back upstream to change the chamber." Where's the flaw?

Backwards. Because the exit is supersonic, downstream pressure signals cannot travel upstream past the throat — that's precisely why the chamber and throat conditions are insensitive to ambient pressure.

A derivation states "

c_{p} = \frac{γ R}{γ + 1}

." Correct it.

It should be

c_{p} = \frac{γ R}{γ - 1}

(with

R

the specific gas constant). The denominator is

γ - 1

; using

γ + 1

would wreck every temperature relation downstream.

A student computes exit conditions using

a = γ R T_{0}

(stagnation temperature) for the exit sound speed. Why is that wrong?

Sound speed depends on the local static temperature:

a = γ R T

with

T = T_{e}

, not

T_{0}

. Using

T_{0}

overestimates

a

and therefore mis-computes

V_{e} = M_{e} a

Someone claims "

P_{e} = P_{a}

always holds at the exit because pressures must match." Spot the error.

Only a perfectly expanded nozzle has

P_{e} = P_{a}

. Real nozzles are often over- or under-expanded, so

P_{e} \neq = P_{a}

; the mismatch is exactly the pressure-thrust term in the Thrust Equation Derivation.

A student writes the critical ratio as

T^{*} / T_{0} = 2/ (γ - 1)

. Fix it.

It is

T^{*} / T_{0} = 2/ (γ + 1)

. With

γ = 1.2

the correct value is

\approx 0.91

; the wrong formula gives

10

, an impossible ratio above 1.

A derivation writes the area–velocity relation as

\frac{d V}{V} = - \frac{1}{M ^{2} - 1} \frac{d A}{A}

. Spot the sign error.

The correct relation is

\frac{d V}{V} = + \frac{1}{M ^{2} - 1} \frac{d A}{A}

. With the extra minus sign, supersonic flow (

M > 1

) in a widening duct (

d A > 0

) would appear to decelerate — contradicting how a diverging nozzle actually works.

Why questions

Why does increasing area accelerate supersonic flow, when everyday intuition (garden hose) says wider means slower?

For

M > 1

, density drops faster than velocity rises, so to keep mass flow

ρ V A

constant the area must grow while

V

still climbs — captured by

d V / V = + \frac{1}{M ^{2} - 1} d A / A

having a positive factor once

M > 1

Why must the sonic point (

M = 1

) sit exactly at the minimum area, not before or after?

d V / V = \frac{1}{M ^{2} - 1} d A / A

the factor

\frac{1}{M ^{2} - 1}

blows up at

M = 1

; a finite acceleration is only possible there if

d A = 0

. So

M = 1

is pinned to the throat.

Why do we model the nozzle as isentropic when real ones have friction?

The isentropic case is the theoretical ceiling: it gives the maximum possible exhaust velocity, so real performance (95–98%) is quoted as a fraction of it. See Entropy and Reversibility.

Why is the pressure exponent

γ / (γ - 1)

so large (about 6) for rocket exhaust?

Because

γ \approx 1.2

makes

γ / (γ - 1) = 6

; small

γ

(many internal molecular modes soaking up energy) means pressure plummets steeply with Mach number, giving huge expansion ratios.

Why does the area–Mach relation give the same area ratio for two different Mach numbers?

Because

A / A^{*}

is not one-to-one: one subsonic and one supersonic solution share each area ratio (except at the throat). Geometry alone doesn't decide which branch — the pressure/flow regime does. See Nozzle Flow Regimes.

Why can we treat the exhaust as an ideal gas despite being a hot reacting mixture?

At high temperature and moderate density the combustion products behave near-ideally, letting us use

P = ρR T

with an effective specific gas constant

R

and

γ

— a very good engineering approximation for the expansion.

Edge cases

What happens to

T / T_{0}

P / P_{0}

ρ / ρ_{0}

in the limit

M \to 0

All three ratios

\to 1

: with no motion the gas is at stagnation, so static and stagnation values coincide — a sanity check on the formulas.

Edge case:

M \to \infty

(infinite expansion). What do the ratios approach?

T / T_{0}

P / P_{0}

ρ / ρ_{0}

all

\to 0

— the gas theoretically converts all thermal energy to motion. Real nozzles stop far short because area ratio and pressure become impractical.

Edge case: the nozzle is choked and you drop ambient pressure even lower. What changes upstream of the throat?

Nothing. Once choked (

M^{*} = 1

), mass flow and all throat/chamber conditions are locked; lowering ambient only alters the downstream expansion/shock pattern outside.

Edge case: the exit-plane static pressure equals ambient exactly. What special condition is this?

Perfect (ideal) expansion —

P_{e} = P_{a}

. Here the pressure-thrust term vanishes and, for a given chamber, thrust and specific impulse are maximized.

Edge case: exit pressure well below ambient (over-expanded to the extreme). What physical event limits this?

The flow can separate from the wall and/or form shocks inside the diverging section, so the ideal isentropic relations no longer hold past the shock — a real-loss regime.

Degenerate case:

γ \to 1

(a gas with enormous internal energy storage). What breaks?

Exponents like

γ / (γ - 1)

blow up to infinity, so pressure would drop infinitely fast — signalling that a truly

γ = 1

gas can't be treated by these relations; it's a limiting idealization, not a real propellant.

Boundary check: at the throat, is the flow speed equal to the chamber sound speed or the local throat sound speed?

The local throat sound speed

a^{*} = γ R T^{*}

, evaluated at the cooler throat temperature

T^{*}

, not the hotter chamber value.

V^{*} = a^{*}

because

M^{*} = 1

there.

Recall Self-test: name three assumptions that would each break the isentropic model

Friction (viscous losses), shock waves, and significant wall heat transfer — any one adds entropy and violates $Δ S = 0$ .

Which quantity is conserved through a shock, and which is NOT?

Stagnation enthalpy (

T_{0}

) is conserved across a shock, but stagnation pressure (

P_{0}

) drops — the shock is the entropy-generating culprit.
