Foundations — Nozzle thermodynamics — isentropic expansion from chamber to exit

This page assumes you have seen none of the notation on the parent topic. We build every letter from a picture before it is ever allowed to appear in an equation. Read top to bottom; each symbol leans on the one before it.

1. The picture everything lives in

Before symbols, fix the scene in your mind.

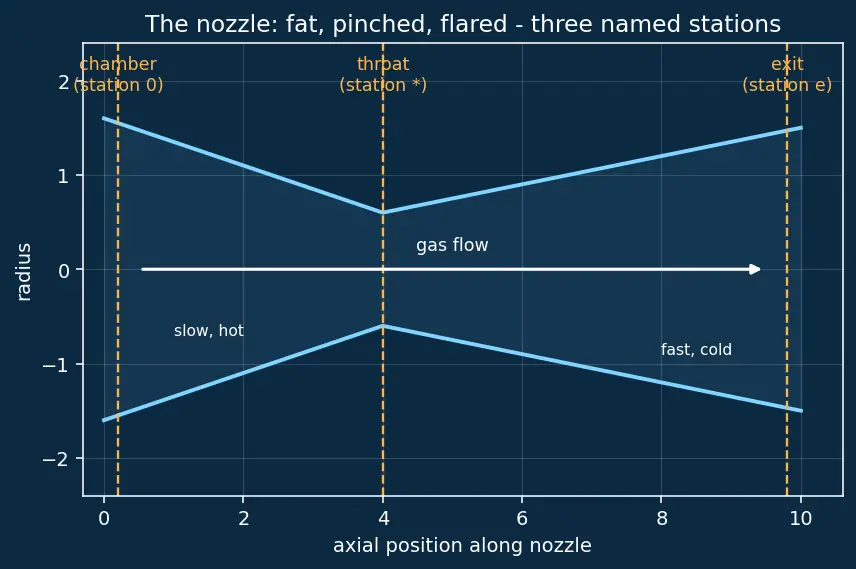

We have a tube that is fat, then pinched, then flared. Gas flows left to right. Three stations matter and we will name them again and again:

• the chamber (far left, gas nearly still),
• the throat (the pinch, narrowest point),
• the exit (far right, gas moving fastest).

Keep this drawing open in your head. Every symbol below is a measurement taken at one of these stations.

2. Building the symbols, one at a time

2a. Position words become subscripts

Why we need them: every equation on the parent page is a comparison between two stations — "how much colder is the exit than the chamber?" You cannot ask that without a way to say which station. The subscript is that way.

2b. Pressure $P$ — how hard the gas pushes

Why the topic needs it: the whole nozzle runs on a pressure drop. High $P$ in the chamber, low $P$ at the exit — that difference is what shoves the gas out the back. So $P_0$ (chamber) and $P_e$ (exit) are the two ends of the story.

2c. Temperature $T$ — how fast molecules jiggle

Why the topic needs it: heat is the fuel of this trade. The nozzle converts random jiggling (high $T$) into one-directional streaming (high velocity). As you will see, $T$ falls as the gas speeds up.

2d. Density $\rho$ — how crowded the gas is

Why the topic needs it: as the gas expands down the nozzle it spreads out, so $\rho$ drops. Density is the bridge between the push ($P$), the jiggle ($T$), and the amount of stuff flowing — that bridge is the ideal gas law below.

2e. Velocity $V$ — the streaming speed

Why the topic needs it: $V$ at the exit is the payoff. Faster exhaust = more thrust. Random jiggle ($T$) is what we spend; directed $V$ is what we buy.

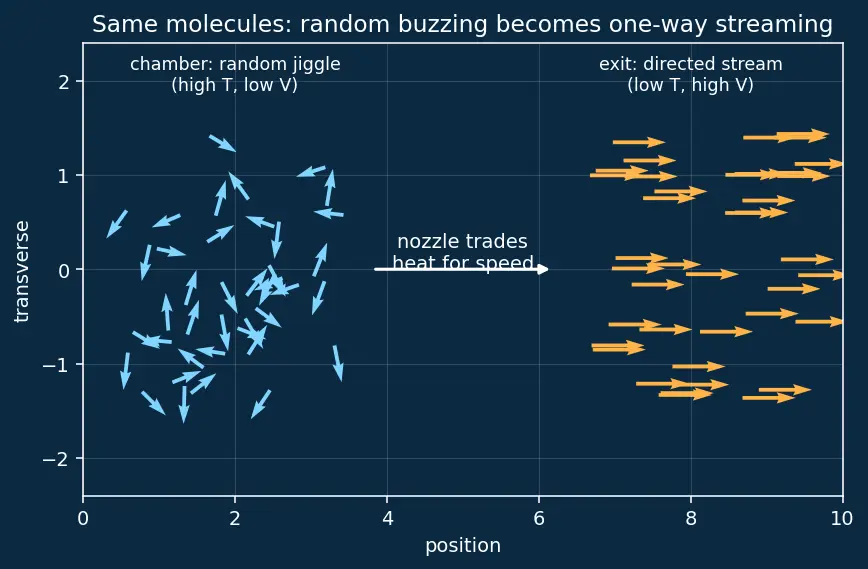

Look at the two swarms above: same molecules, but the trade turns random buzzing into one-way streaming. That single picture is the entire chapter.

3. The tools that relate these symbols

Now that $P,T,\rho ,V$ exist, we introduce the machinery that ties them together.

3a. The ideal gas law: $P=\rho RT$

What it says in words: push equals crowdedness times jiggle (times a constant). Squeeze the gas ($\rho$ up) or heat it ($T$ up), and the push $P$ rises.

The new symbol $R$ — the specific gas constant:

Why this tool and not another? We have three gas properties $(P,\rho ,T)$ but they are not independent — fix any two and the third is forced. The ideal gas law is the single equation that enforces that link. Without it we would have three unknowns and no way to close the maths. Full treatment: Ideal Gas Law.

3b. Enthalpy $h$ and specific heat $c_p$ — the energy account

Why the topic needs them: the parent's master equation is $h+\frac{1}{2}{V}^2=h_0,$ which reads: (heat energy) + (motion energy) stays constant. This is just conservation of energy for flowing gas. When motion energy $\frac{1}{2}{V}^2$ goes up, heat energy $h=c_{p}T$ must go down — that is why the gas cools as it speeds up. See Combustion Chamber Thermodynamics for where $h_0$ is set.

3c. The heat-capacity ratio $\gamma$

Why this tool? Every isentropic exponent on the parent page — the $(\gamma -1)/\gamma$, the $-\gamma /(\gamma -1)$ — is built from $\gamma$. It is the one material property that decides how steeply temperature, pressure, and density fall as the gas expands. Deeper: Compressible Flow Fundamentals.

3d. Sound speed $a$ and Mach number $M$

Why measure speed in Machs instead of m/s? Because the behaviour of the nozzle flips at $M=1$, not at any fixed m/s. A converging tube speeds up subsonic gas but a diverging tube speeds up supersonic gas — the switch is governed by whether $M$ is above or below one. So $M$ is the natural ruler here, not raw velocity. More: Mach Number and Sound Speed.

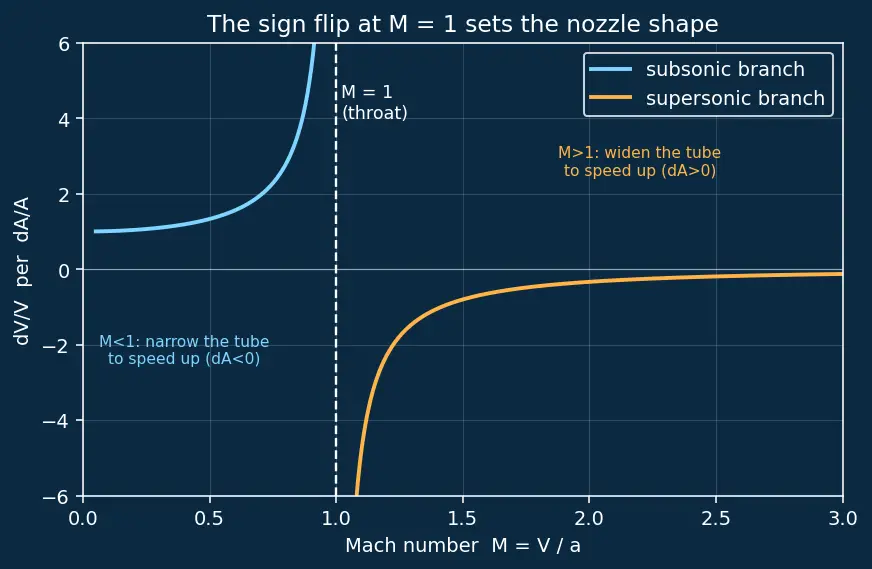

The figure shows the crucial sign flip: below $M=1$, narrowing the pipe accelerates the flow; above $M=1$, widening it accelerates the flow. The throat is exactly the crossover, $M=1$.

3e. Entropy $s$ and the word "isentropic"

Why the topic needs it: assuming $s$ constant is what unlocks all the neat power-law ratios like $\frac{T_2}{T_1}={\left(\frac{P_2}{P_1}\right)}^{(\gamma -1)/\gamma }.$ It is the idealisation that makes the maths clean and gives the theoretical best-case performance. Real losses come back in Entropy and Reversibility and Real Nozzle Losses.

3f. Mass flow $\dot{m}$ and area $A$

Why the topic needs it: $\dot{m}=\rho VA$ is constant along the nozzle (mass can't appear or vanish). That constancy is what forces the area to change as $\rho$ and $V$ change, and it produces the area–Mach relation used to design the bell. It also feeds the Thrust Equation Derivation.

4. How the foundations feed the topic

Read it as a supply chain: the raw measurements ($P,\rho ,T,V$) feed two tools (ideal gas law + energy equation), $\gamma$ and $s=\text{const}$ turn those into isentropic power laws, sound speed converts velocity into Mach number, and finally the ratios and area–Mach relation are the parent topic.

5. Sanity numbers (so symbols feel real)

Equipment checklist

Cover the right side and answer out loud — if you can, you are ready for the parent derivations.

Continue to the parent: Nozzle Thermodynamics.
