Foundations — Atmospheric drag — exponential atmosphere model, orbit decay

This page assumes you know nothing. Before you can read the parent note on atmospheric drag, every letter and squiggle it uses must first mean something to you and connect to a picture. Let's earn each one.

1. A vector — the arrow that carries direction

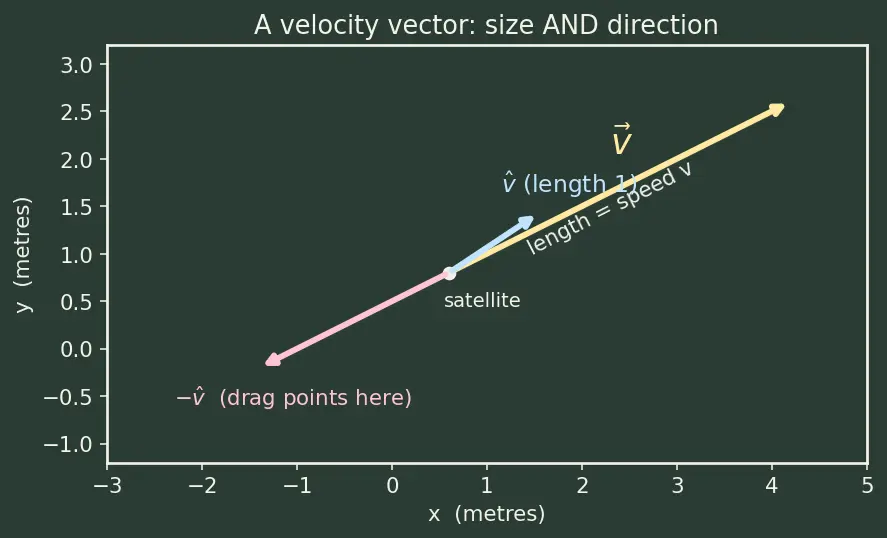

The satellite's velocity $\vec{v}$ is such an arrow: it points along the direction of travel, and its length is how fast the craft moves.

Why the topic needs this: drag is a force that points exactly opposite to travel. To say "opposite" precisely, we need direction, and that is what $-\hat{v}$ (the hat, flipped) gives us. The parent note writes drag as $-\frac{1}{2}B\rho v\vec{v}$ — one factor of $v$ is the size growing, and $\vec{v}$ carries the direction. Now you know why it isn't just "$v^2$".

2. Speed, distance in a small time, and the letter $dt$

In one sliver of time, an object moving at speed $v$ covers a tiny distance $vdt$ (speed × time). That single fact is the seed of the drag force, as we'll see.

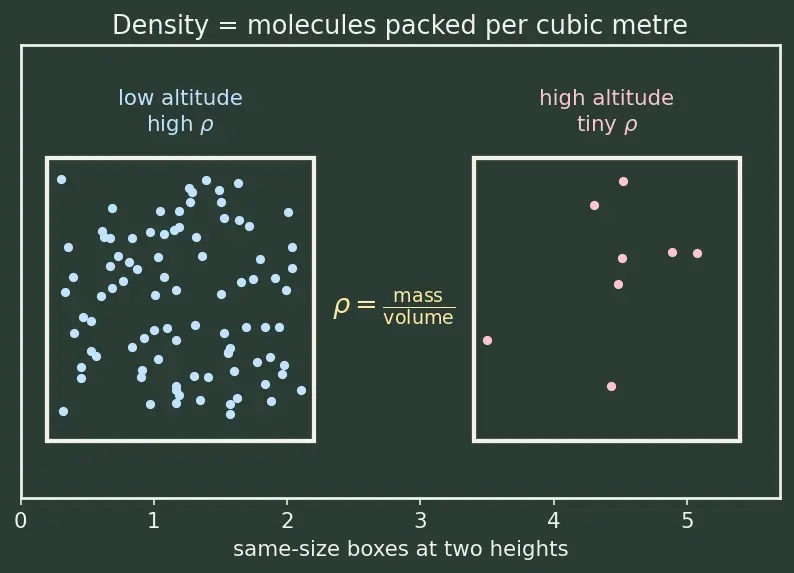

3. Density $\rho$ — how much stuff per box

Why the topic needs it: the satellite hits molecules, and $\rho$ counts how many are there to hit. More $\rho$ → more collisions → more drag. Because $\rho$ changes with height, it is the star of the "exponential atmosphere" idea in Section 7.

4. Cross-section $A$, mass $m$, drag coefficient $C_D$

Why bundle them? Every drag formula would otherwise carry $C_D$, $A$, and $m$ separately. Nature only ever uses their combination, so we name it once and move on. This is the ballistic coefficient that decides who survives reentry.

5. Force $F$ and acceleration $a$ — what pushes and what results

Why the topic needs it: the parent's central boxed result is a drag acceleration ${\vec{a}}_{drag}=-\frac{1}{2}B\rho v\vec{v}$. Reading it now: minus sign = backward, $\frac{1}{2}B\rho v$ = how strong, $\vec{v}$ = along the path (so the whole thing points backward with strength growing as $v^2$).

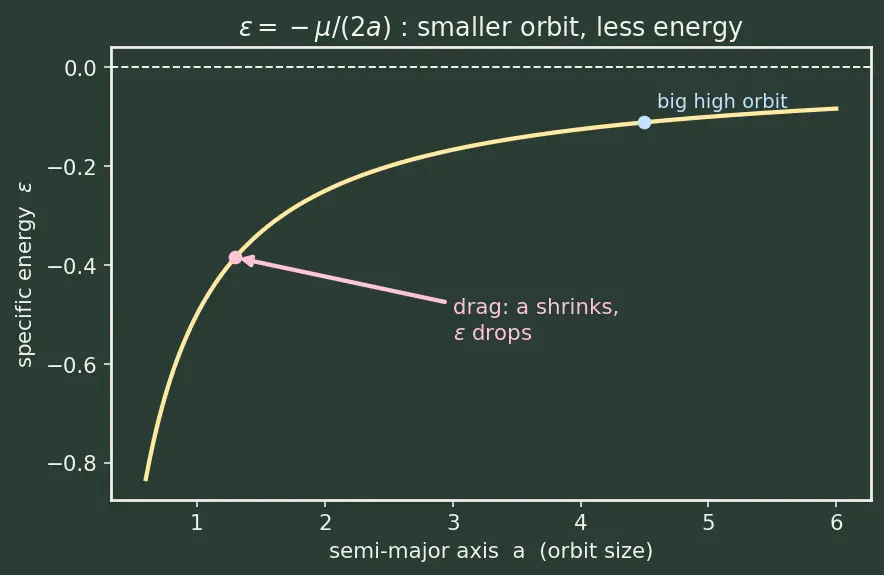

6. Energy $\epsilon$ and the shape of an orbit: $a$, $\mu$

These two facts — from the Two-Body Problem and the Vis-Viva Equation — are the bridge the whole decay story stands on: $\epsilon =-\frac{\mu }{2a},v=\sqrt{\frac{\mu }{a}}(\text{circular orbit}).$

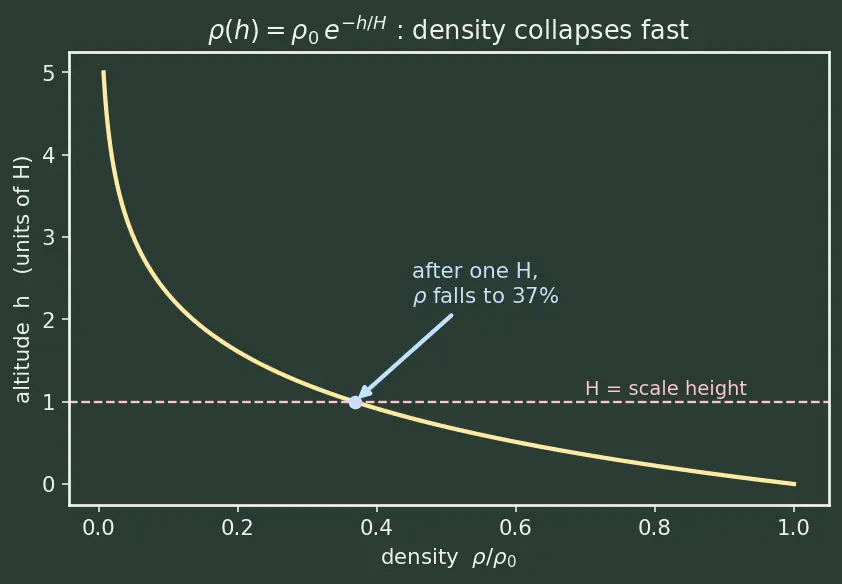

7. The exponential $e^{-x}$ — the shape of a thinning atmosphere

Why the topic needs it: density doesn't fade linearly — it collapses exponentially. That's why drag is fierce at low perigee and negligible a little higher, and why decay is so violently nonlinear. The exponential comes straight out of balancing pressure against gravity, which is why $H=k_{B}T/(m_{mol}g)$ — hot, light air puffs up (big $H$); heavy air under strong gravity squashes down (small $H$).

How the foundations feed the topic

Read it top to bottom: geometry and density build the drag acceleration; drag times velocity is power lost; energy loss plus the energy-size relation gives the decay rate — the parent's finale $\frac{da}{dt}=-B\rho \sqrt{\mu a}$.

Equipment checklist

Test yourself — cover the right side and see if each rings true before opening the parent note.
