This child page assumes you know nothing. We will name every letter, draw every picture, and only then let the parent page's equations mean something. Read top to bottom — each idea is built from the one above it.

0. What is a "vector"? (the arrow you can add)

Before any physics, the single most important object here is the velocity vector.

We write vectors with a little arrow on top: $\vec{v}$. The plain letter without the arrow, $v$, means just the length of that arrow (its size), which we call the magnitude. So $\vec{v}$ is the arrow and $v=|\vec{v}|$ is how long it is.

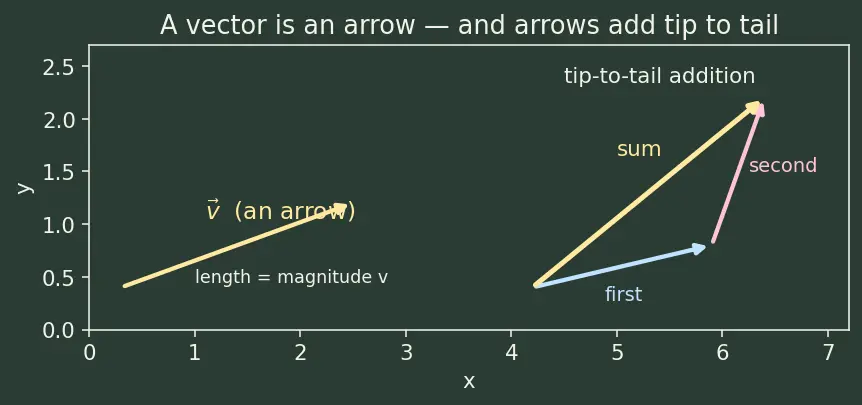

Figure 1 (above): on the left, one yellow arrow labelled $\vec{v}$ — notice the label of its length is the magnitude $v$. On the right, watch the blue "first" arrow and pink "second" arrow laid tip-to-tail; the thick yellow "sum" arrow runs from the very start to the very end. That yellow arrow is the whole idea of adding velocities.

Why the topic needs this: the whole slingshot is one arrow-addition, ${\vec{v}}_{sc/Sun}={\vec{V}}_p+{\vec{v}}_{\infty }$. If you cannot add two arrows tip-to-tail, no other equation will make sense. See the Reference frames & Galilean velocity addition note for the deeper rules.

1. Reference frame — "who is watching?"

Two frames run through the entire topic:

• Planet-centered frame — you ride with the planet. Here the planet sits still and the spacecraft swings past it.
• Sun-centered (heliocentric) frame — you float above the Solar System. Here the planet is racing along its orbit and the spacecraft's path is a big curve around the Sun.

Figure 2 (above): the left panel is the planet frame — the blue planet sits still and the craft traces a clean yellow hyperbola past it. The right panel is the Sun frame — now the yellow Sun sits still, and the same encounter happens on a planet (blue dot) that is itself moving along its dashed orbit (blue arrow). Look how the picture of "who is still" flips between panels; that flip is the entire reason a slingshot works.

Why the topic needs this: the "free speed boost" only appears because we switch frames. In the planet frame nothing gets faster; in the Sun frame it does. Confusing the two frames is the #1 way to think a gravity assist violates energy conservation.

2. The subscript notation ${\vec{v}}_{A/B}$ — "velocity of A relative to B"

So:

• ${\vec{v}}_{sc/Sun}$ = velocity of the spacecraft as seen from the Sun.
• ${\vec{v}}_{sc/planet}$ = velocity of the spacecraft as seen from the planet (this is the important one — it becomes ${\vec{v}}_{\infty }$).
• ${\vec{V}}_p$ = velocity of the planet as seen from the Sun (a capital $V$ just flags "this is the big fast planet").

These connect by simple arrow-adding: ${\vec{v}}_{sc/Sun}={\vec{v}}_{sc/planet}+{\vec{V}}_p$

Read it aloud: "spacecraft-from-Sun = spacecraft-from-planet + planet-from-Sun." The middle term (planet) cancels in your head like linking chains. This is Galilean velocity addition.

3. ${\vec{v}}_{\infty }$ — the "velocity at infinity"

The magnitude $v_{\infty }$ (no arrow) is a plain number — kilometres per second. The parent's central claim is: $v_{\infty }$ never changes; only the direction of ${\vec{v}}_{\infty }$ turns.

Why the topic needs this: ${\vec{v}}_{\infty }$ is the one arrow that gets rotated. Rotating it is the slingshot.

4. $r$, $r_p$, $G$, $M_p$, ${\mu }_p$ — distance and the planet's gravity strength

Why the topic needs this: $r_p$ and ${\mu }_p$ set how hard the path bends — closer approach and stronger gravity mean a sharper turn. They are the only two "knobs" (besides $v_{\infty }$) in the turn-angle formula.

5. Specific energy $\epsilon$ — energy per kilogram

The two pieces:

• $\frac{v^2}{2}$ is kinetic energy per kilogram (the standard $\frac{1}{2}m{v}^2$ with the $m$ divided out), using the planet-frame speed $v$.
• $-\frac{{\mu }_p}{r}$ is the gravitational potential energy per kilogram. It is negative and gets less negative (closer to zero) as $r$ grows, because far from the planet you have climbed out of its well.

The key move: far away $r\to \infty$, so ${\mu }_p/r\to 0$, leaving $\epsilon =v_{\infty }^2/2$. Because $\epsilon$ is conserved (gravity does no net work in the planet frame), $v_{\infty }$ is locked. That is the parent's whole proof that $v_{\infty }$ is constant. See Two-body problem & vis-viva equation.

6. Angular momentum $h$ — "how much sideways swing"

At the closest point (periapsis) the velocity is purely sideways, so $\varphi =90°$ and $\sin \varphi =1$, giving the simple special case $h=r_p{v}_p,$ where $v_p$ is the speed exactly at periapsis. We use this clean version because periapsis is the one place the formula loses its angle.

Why the topic needs this: $h$ together with $\epsilon$ fixes the shape of the path (how curved, how sharp the turn). It is the second ingredient in the eccentricity formula below. See Specific orbital energy & angular momentum.

7. Eccentricity $e$ and why the path is a hyperbola

Figure 3 (above): the same planet (white dot) with three possible paths — the blue circle ($e=0$), the pink ellipse ($0<e<1$, a closed loop), and the thick yellow hyperbola ($e>1$, an open curve that leaves forever). A slingshot is always the yellow one. Notice how the curves get progressively "more open" as $e$ grows.

Where $e=1+\frac{r_p{v}_{\infty }^2}{{\mu }_p}$ actually comes from

We are not going to memorise this formula — we are going to build it from the two conserved quantities we just met, $\epsilon$ and $h$.

Step 1 — WHAT the general shape formula is. Solving the two-body problem (done fully in Two-body problem & vis-viva equation) gives eccentricity in terms of the two conserved specific quantities: $e=\sqrt{1+\frac{2\epsilon h^2}{{\mu }_p^2}}.$ Why this shape? $\epsilon$ carries "how much energy" and $h$ carries "how much sideways swing" — together they pin down exactly one conic shape. More energy or more swing → more open curve → bigger $e$.

Step 2 — WHY plug in our two special values. We already found $\epsilon =\frac{v_{\infty }^2}{2}$ (far-away energy) and, at periapsis, $h=r_p{v}_p$. Substituting: $e=\sqrt{1+\frac{2\left(\frac{v_{\infty }^2}{2}\right)(r_p{v}_p{)}^2}{{\mu }_p^2}}=\sqrt{1+\frac{v_{\infty }^2{r}_p^2{v}_p^2}{{\mu }_p^2}}.$

Step 3 — WHY evaluate the speed at periapsis. At periapsis, energy conservation ties $v_p$ to $v_{\infty }$: $\frac{v_p^2}{2}-\frac{{\mu }_p}{r_p}=\frac{v_{\infty }^2}{2}\Rightarrow v_p^2=v_{\infty }^2+\frac{2{\mu }_p}{r_p}.$ This is just "kinetic + potential is the same far out and at periapsis." Putting $v_p^2$ back in and simplifying the algebra collapses the square root exactly into the tidy result: $\boxed{e=1+\frac{r_p{v}_{\infty }^2}{{\mu }_p}}$

WHAT it says in words: a bigger leftover speed $v_{\infty }$, or a farther/faster pass (bigger $r_p{v}_{\infty }^2$), gives a more open (larger $e$) hyperbola that barely bends. A slow, close pass keeps $e$ near 1 — the sharpest turn.

8. Asymptotes and the turn angle $\delta$

Figure 4 (above): the yellow hyperbola sweeps past the blue planet. The pink arrow is ${\vec{v}}_{\infty }$ coming in along the lower asymptote; the blue arrow is ${\vec{v}}_{\infty }$ going out along the upper asymptote. The white arc between them is the turn angle $\delta$ — the rotation the encounter delivered. The dashed line marks the closest approach $r_p$. Everything in the slingshot is "how big is that white arc?"

Where $\sin \left(\frac{\delta }{2}\right)=\frac{1}{e}$ comes from

This is the payoff, so let us earn it geometrically.

Step 1 — WHAT an asymptote angle is. A hyperbola has two straight asymptotes. Each one makes a fixed angle ${\theta }_{\infty }$ with the axis of the hyperbola (the symmetry line through the planet and periapsis). Standard conic geometry (see Hyperbolic orbits & orbital eccentricity) gives the direction of that asymptote by $\cos {\theta }_{\infty }=-\frac{1}{e}.$ Why $-1/e$? On a hyperbola the spacecraft can only reach angles up to ${\theta }_{\infty }$ before it is infinitely far away; setting the orbit's radius to infinity in the conic equation forces exactly this cosine.

Step 2 — WHY the turn angle is the supplement. The incoming and outgoing ${\vec{v}}_{\infty }$ lie along the two asymptotes. Because the two asymptotes are mirror images about the axis, the angle the velocity actually rotates through, $\delta$, is related to ${\theta }_{\infty }$ by $\delta =\pi -2\left(\pi -{\theta }_{\infty }\right)=2{\theta }_{\infty }-\pi .$ In words: the velocity started aimed inward along one asymptote and ends aimed outward along the other; the leftover rotation is $\delta$.

Step 3 — WHY it collapses to a clean sine. Take the boxed relation from Step 1, $\cos {\theta }_{\infty }=-1/e$, and rewrite the half-turn. From $\delta =2{\theta }_{\infty }-\pi$ we get ${\theta }_{\infty }=\frac{\delta +\pi }{2}$, so $\cos {\theta }_{\infty }=\cos \left(\frac{\delta }{2}+\frac{\pi }{2}\right)=-\sin \left(\frac{\delta }{2}\right).$ Setting the two expressions for $\cos {\theta }_{\infty }$ equal, $-\sin (\delta /2)=-1/e$, the minus signs cancel and we land on $\boxed{\sin \left(\frac{\delta }{2}\right)=\frac{1}{e}}$

WHAT it says in words: a hyperbola close to $e=1$ (a slow, close pass) has $\sin (\delta /2)$ near 1, so $\delta$ near $180°$ — a huge turn. A very open hyperbola (large $e$) has $\sin (\delta /2)$ near 0, so $\delta$ near $0°$ — barely deflected. This is exactly the parent's "closer and slower = bigger turn."

9. The infinity symbol, the Greek letters, and the "delta" of change

A quick glossary so no squiggle trips you up:

• $\infty$ — "infinity", meaning "arbitrarily far away."
• $\mu$ — Greek "mu", used for the gravity parameter.
• $\epsilon$ — Greek "epsilon", used for specific energy.
• $\delta$ — Greek "delta", the turn angle.
• $\Delta$ (capital delta) — "the change in." So $\Delta \vec{v}={\vec{v}}_{out}-{\vec{v}}_{in}$ is "final arrow minus initial arrow," the net kick.

How it all feeds the topic

Equipment checklist

Test yourself — cover the right side and answer aloud.
