Step 1 — A wing is a thing that pushes air down

WHAT. Before any formula, the raw fact: a wing flying level stays up because it throws air downward. Newton's third law then throws the wing up — that upward push is what we call lift, and we give it the letter $L$ (measured in newtons, the same unit as your weight on a scale).

WHY. Every later idea — vortices, downwash, drag — is just a consequence of this one exchange of momentum. If we don't nail "wing pushes air down," nothing downstream makes sense.

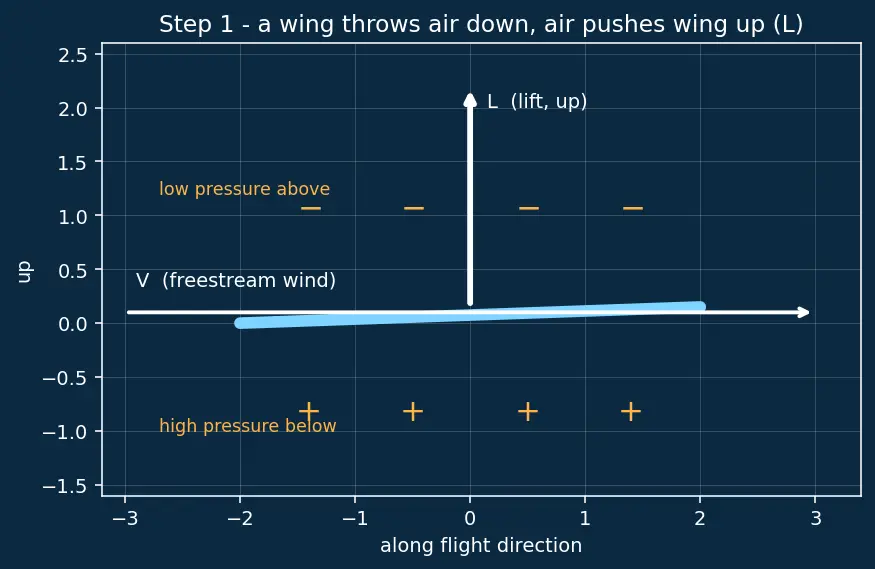

PICTURE. Look at figure s01. The wing (cyan) sits in a horizontal wind. Below it the pressure is high (amber $+$ ), above it the pressure is low (amber $-$ ). The white arrow labelled $L$ points straight up: that is the force the air gives back to the wing. Notice $L$ is perpendicular to the oncoming wind — hold onto that, because Step 4 is going to bend it.

Figure — Aspect ratio — effect on induced drag

Step 2 — The tips leak, and leaking air curls into a vortex

WHAT. A real wing has ends (called tips). At a tip, the high-pressure air underneath has an escape route: it curls around the tip up into the low-pressure region on top. That curling motion, trailing off behind each tip, is a trailing vortex — a tube of spinning air.

WHY. This is the entire reason induced drag exists. An imaginary wing with no tips (infinitely long) has nowhere for the air to leak, so it makes no vortices and, as we'll see, no induced drag. The leakage is a strictly 3-D, finite-wing effect.

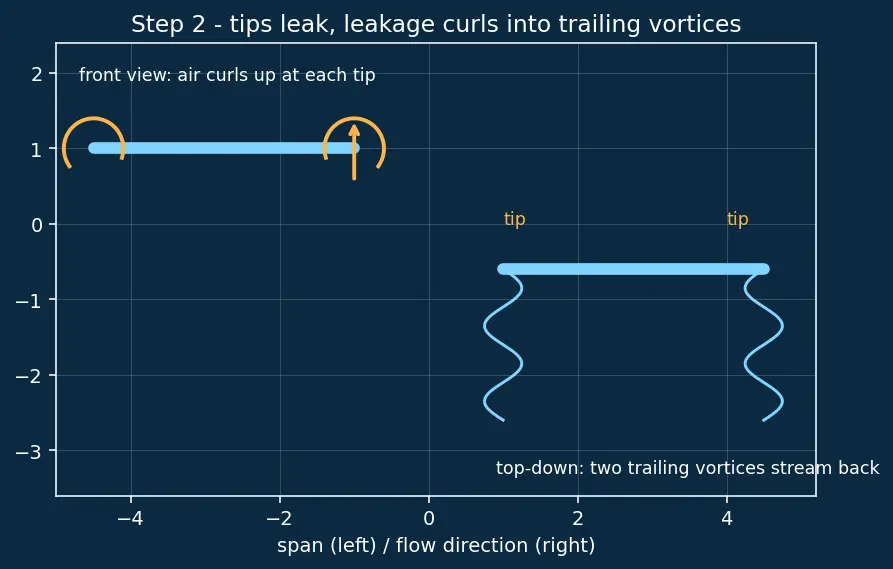

PICTURE. In figure s02 the front view shows the amber curl-around at each tip; the top-down view shows the two vortices (cyan spirals) streaming backward off the tips like two horizontal tornadoes. See Trailing vortices & downwash for the full life story of these tubes.

Step 3 — The two vortices blow the air between them straight down

WHAT. Two counter-rotating vortices, side by side, don't cancel — between them their spins add and push air downward. That downward velocity, felt by the wing itself, is the downwash, written $w$ (metres per second, like $V$ ).

WHY. We need one number to describe "how tilted is the flow the wing actually feels." Downwash $w$ is that number. It is what turns a clean horizontal wind into a slightly-downward-slanting wind at the wing.

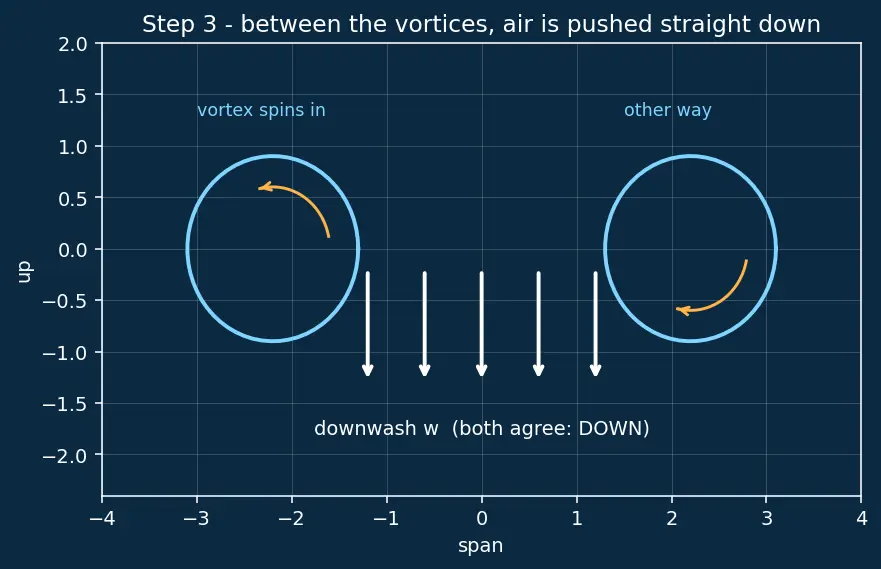

PICTURE. Figure s03: two spinning circles (the vortices seen end-on), and between them a family of white arrows all pointing down, labelled $w$ . Left vortex spins one way, right vortex the other — check the little rotation arrows — and in the middle both agree "push down."

Step 4 — Down-tilted wind tilts the lift backward: induced drag is born

WHAT. The wing no longer sees pure horizontal wind $V$ . It sees the sum of the forward wind $V$ and the downwash $w$ : a wind slanted downward by a small angle we call the induced angle $α_{i}$ . Because lift is always perpendicular to the wind the wing actually feels, the lift vector tips backward by that same angle $α_{i}$ .

WHY. A tiny backward lean of a large lift force has a small backward component — and any force pointing backward along the flight direction is, by definition, drag. This particular drag exists only because lift got tilted, so we name it induced drag $D_{i}$ .

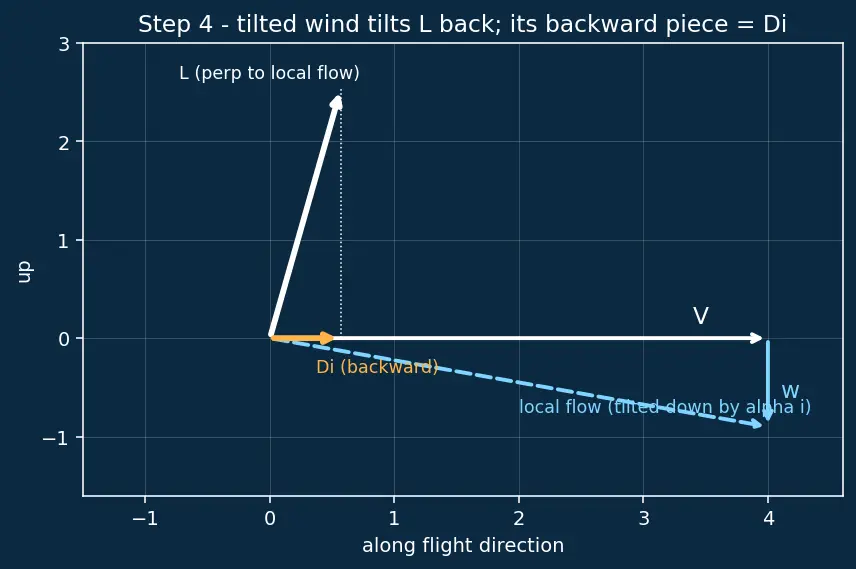

PICTURE. Figure s04 is the heart of the page. The horizontal arrow is $V$ ; a small downward arrow is $w$ ; their sum (cyan, dashed) is the tilted local flow, below horizontal by $α_{i}$ . The lift $L$ (white) is drawn perpendicular to that tilted flow, so it leans back. Drop $L$ onto the horizontal: the amber piece pointing backward is $D_{i}$ .

Step 5 — Turn forces into coefficients

WHAT. From the geometry in figure s04, the backward component of the lift is $D_{i} = L sin α_{i} \approx L α_{i} .$

Each symbol: $D_{i}$ is the induced-drag force; $L$ is the full lift; $sin α_{i}$ picks out the fraction of $L$ that points backward; $\approx L α_{i}$ uses the small-angle fact $sin α_{i} \approx α_{i}$ .

WHY coefficients? Forces depend on air density, speed and wing size, which clutter the physics. Dividing a force by $q S$ strips all that out and leaves a clean shape number. Here $q = \frac{1}{2} ρ V^{2} (dynamic pressure), S = wing area .$ $ρ$ (rho) is air density; $q$ is "how much push the moving air carries per unit area"; $S$ is the flat area of the wing seen from above.

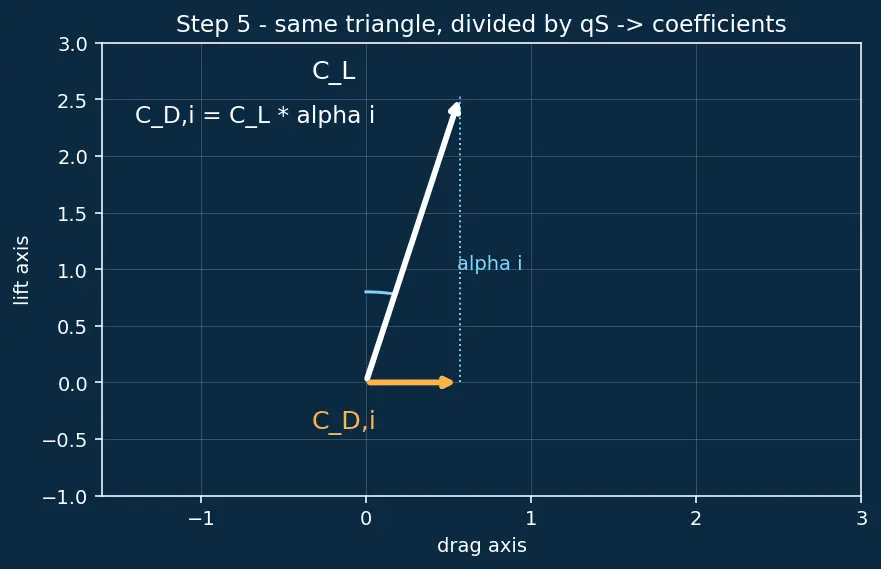

PICTURE. Figure s05 shows the same tilted-lift triangle, but every side is relabelled as its coefficient — the shape of the triangle is unchanged, we've merely re-scaled it. Divide $D_{i} = L α_{i}$ by $q S$ : $C_{D, i} \frac{D _{i}}{q S} = C_{L} \frac{L}{q S} α_{i} ⟹ C_{D, i} = C_{L} α_{i} .$

Step 6 — The magic distribution that makes downwash constant

WHAT. How big is $α_{i}$ ? It depends on the strength of the vortices, which depends on how the lift is spread out along the span. Write $Γ (y)$ (the Greek capital gamma) for the local vortex strength ("circulation") at spanwise position $y$ , where $y$ runs from $- b /2$ at one tip to $+ b /2$ at the other. If the lift is spread in an elliptical shape, $Γ (y) = Γ_{0} 1 - (\frac{2 y}{b})^{2},$ then — and only then — the downwash $w$ comes out the same everywhere along the span.

WHY this shape? Uniform downwash is the minimum-drag arrangement (it's the one that wastes the least kinetic energy in the wake — proved with calculus of variations). So the elliptical case is the natural, best-case benchmark. See Elliptical lift distribution and Lifting-line theory (Prandtl).

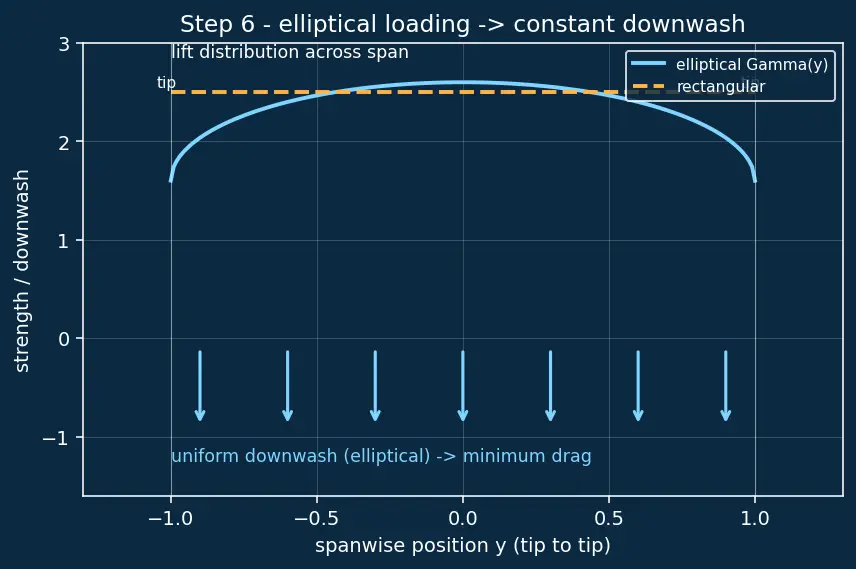

PICTURE. Figure s06: top curve is the elliptical lift shape $Γ (y)$ (a half-ellipse, fat in the middle, tapering to zero at the tips); below it a row of equal-length downwash arrows across the whole span — flat, uniform. Contrast the amber uneven arrows of a rectangular wing beside it, which bunch up near the tips.

Step 7 — Put the pieces together: the headline formula

WHAT. Combine Step 5 and Step 6: $C_{D, i} = C_{L} α_{i} = C_{L} \cdot \frac{C _{L}}{π A R} .$

WHY it's the headline. Reading the finished formula: $C_{D, i} = \frac{C _{L}^{2}}{π A R}$

$C_{L}^{2}$ on top — induced drag grows with the square of lift. Triple the lift → nine times the drag. This is the troublemaker sitting upstairs.
$π A R$ on the bottom — a big, long-thin wing (large $A R$ ) divides the trouble down. Double $A R$ → half the induced drag.

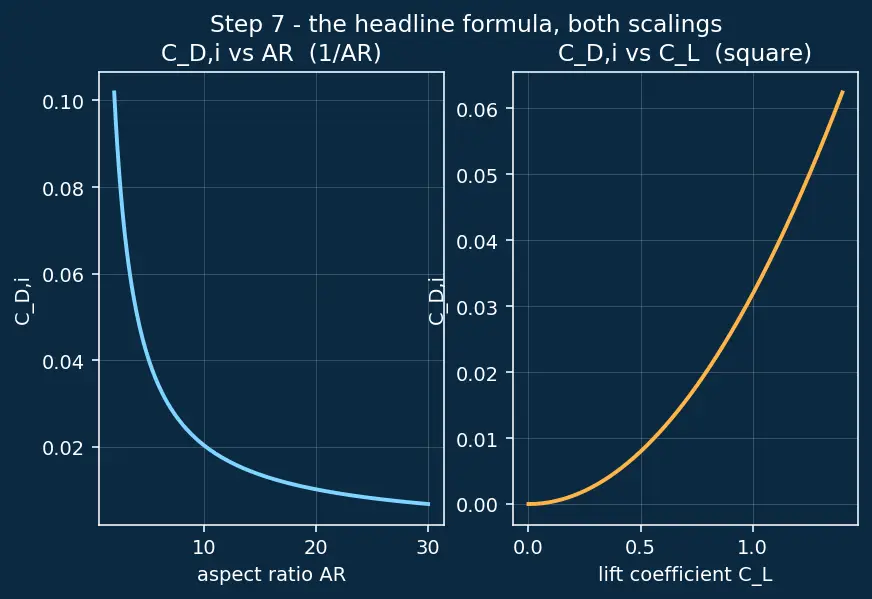

PICTURE. Figure s07 plots $C_{D, i}$ versus $A R$ (a $1/ A R$ curve, plunging then flattening) and, in a second panel, $C_{D, i}$ versus $C_{L}$ (an upward parabola). One glance shows both scalings.

Step 8 — The edge cases (never let the reader fall off the map)

WHAT & WHY. A formula you trust must survive its extremes. Walk each corner:

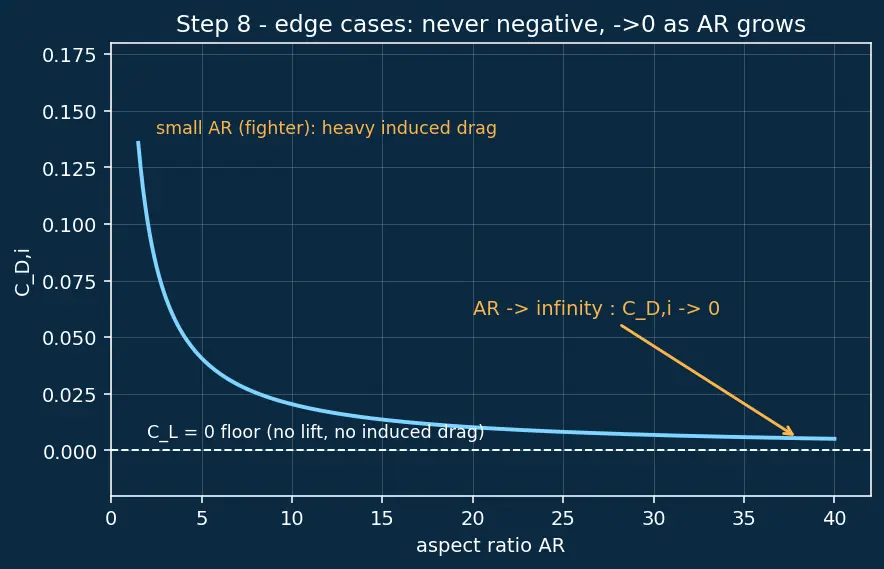

PICTURE. Figure s08 overlays the limiting behaviours on the $C_{D, i}$ -vs- $A R$ curve: an amber arrow to $0$ as $A R \to \infty$ , and a dashed floor at $C_{D, i} = 0$ marking the $C_{L} = 0$ case.

The one-picture summary

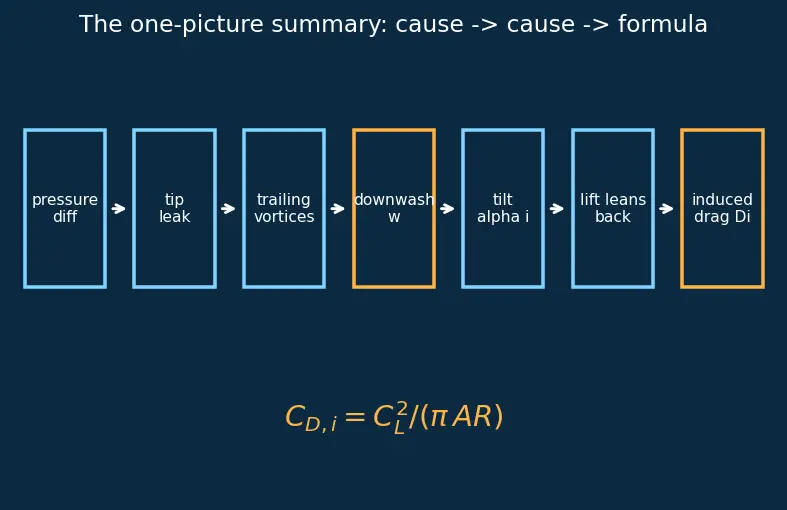

Figure s09 chains the whole story left to right: pressure difference → tip leak → vortices → downwash $w$ → tilt $α_{i}$ → lift leans back → $D_{i}$ , with the boxed formula $C_{D, i} = C_{L}^{2} / (π A R)$ underneath the causal arrow.

Recall Feynman: the whole walk in plain words

A wing holds itself up by throwing air downward. But a wing has ends, and at each end the pushed-up high-pressure air sneaks around into the low-pressure top, curling into two trailing whirlpools. Sitting between its own whirlpools, the wing feels a gentle downward draft — the downwash. That draft tilts the wind the wing rides on slightly downhill. Since the wing's lift always stands square to the wind it actually feels, a tilted wind means a tilted lift — leaning ever so slightly backward. A force leaning backward is drag. That leftover backward pull is induced drag. Make the wing long and skinny and only its two little ends waste air on whirlpools, so the draft is faint, the tilt is small, and the drag is tiny — which is exactly the message of $C_{D, i} = C_{L}^{2} / (π A R)$ : square the lift on top, a big long-thin pie on the bottom squashes it down.

Recall Check yourself

Why does an infinite wing have zero induced drag? ::: No tips → no trailing vortices → no downwash → lift never tilts back → no backward component. Which step first bends the lift vector backward? ::: Step 4 — the tilted local flow (freestream plus downwash) tips lift by $α_{i}$ . Why does $α_{i}$ use $tan^{- 1}$ and not sine? ::: $w$ and $V$ are the opposite and adjacent legs of the tilt triangle, so their ratio is a tangent; $tan^{- 1}$ recovers the angle from that slope. What makes the elliptical distribution special? ::: It gives uniform downwash across the span, which is the minimum-drag arrangement — the benchmark $e = 1$ .
