State which circulation distribution Γ(y) along the span gives the least induced drag for a given lift and span, and write the induced-drag coefficient it produces.
Recall Solution

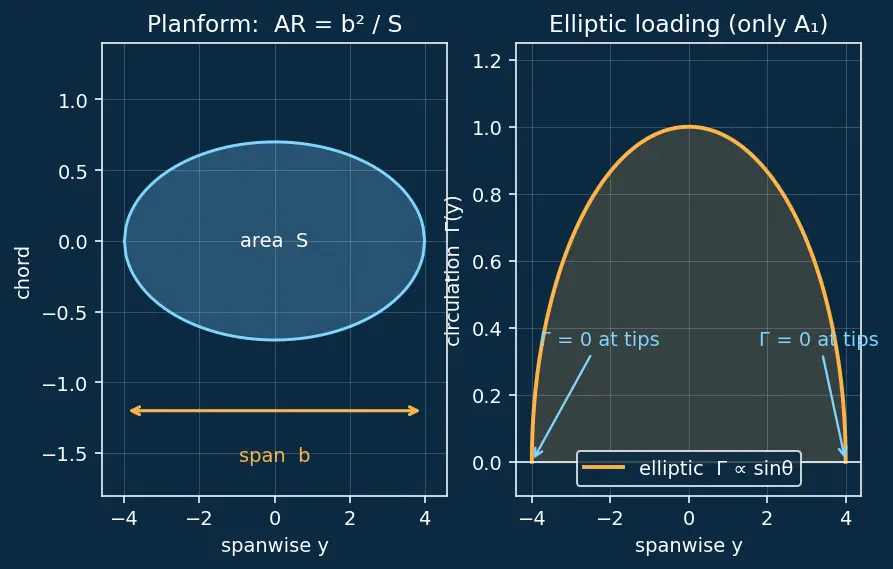

The winner is the elliptical distribution — the oval-shaped Γ curve in the right panel of the figure above, i.e. Γ∝sinθ where θ is the spanwise relabelling y=−2bcosθ (only the first Fourier coefficient A1 nonzero). All higher harmonics A2,A3,… add drag but no lift, so switching them off is optimal. The result is
CD,i=πARCL2.
For an elliptic wing the span efficiency factor is e=? and the general (non-elliptic) formula reads CD,i=πeARCL2. State e for the elliptic case and what e<1 means physically.
Recall Solution
For elliptic loading e=1 — it is the best possible, so e can never exceed it. A value e<1 means the lift is shaped worse than an oval, so the wing pays extra induced drag: the same lift costs 1/e times the elliptic minimum.
A glider has span b=15m and planform area S=9m2. Find its aspect ratio, then its induced drag coefficient at CL=1.0 (assume elliptic loading).
Recall Solution
First the aspect ratio (definition AR=b2/S):
AR=9152=9225=25.
Then, elliptic so e=1:
CD,i=π⋅251.02=78.541=0.01273.CD,i≈0.0127 — tiny, which is exactly why gliders use these long thin wings.
Elliptic wing, AR=10. Find the 3D lift slope a (per radian), given the 2D slope a0=2π.
Recall Solution
Use a=1+a0/(πAR)a0. Here a0/(πAR)=2π/(10π)=0.2.
a=1+0.22π=1.26.2832=5.236/rad.
Compared to the 2D value 6.283/rad the finite wing is "softer": some geometric angle is eaten by downwash.
A wing has Fourier coefficients with A2/A1=0.08 and A3/A1=0.06, all higher terms zero. Compute the drag-penalty factor δ, the span efficiency e, and the percentage of induced drag above the elliptic minimum.
Recall Solution
Recall the An are the numbers weighting each harmonic in Γ(θ)=2bV∞∑nAnsinnθ. The penalty sums the weighted higher harmonics: δ=∑n≥2n(An/A1)2.
δ=2(0.08)2+3(0.06)2=2(0.0064)+3(0.0036)=0.0128+0.0108=0.0236.
Efficiency e=1+δ1=1.02361=0.9769.
The drag is (1+δ)=1.0236 times the elliptic minimum, i.e. ≈2.36% above it.
Two wings carry the same lift at the same speed and altitude and have the same spanb, but wing X has area SX=10m2 and wing Y has area SY=15m2. Both are elliptic. Which has the larger induced drag coefficient, and which has the larger induced drag force? Explain using CD,i=CL2S/(πb2).
Recall Solution
Rewrite induced drag coefficient with AR=b2/S:
CD,i=πARCL2=πb2CL2S.
Here q≡21ρ∞V∞2 is the dynamic pressure (defined above): the same for both wings since they fly at the same speed and altitude. Lift L=qSCL is fixed, so SCL is fixed ⇒ CL∝1/S. Then
CD,i∝CL2S∝S21⋅S=S1.
So the smaller-area wing X has the larger CD,i.
The induced-drag force is Di=qSCD,i∝S⋅(1/S)=const — actually equal! Let's confirm the cleaner route: Di=qπb2L2, which depends only on lift, speed and span — not area at all. So both wings have the same induced drag force. Area affects the coefficient, span (through b2) fixes the force.
Takeaway: span, not area, governs the induced drag force.
A rectangular (untwisted, constant-chord) wing is not elliptically loaded; it typically has e≈0.9. If it operates at AR=7,CL=0.6, how much induced drag does it have compared to an elliptic wing of identical AR and CL?
Recall Solution
Elliptic reference: CD,iell=π⋅70.62=21.990.36=0.016368.
Real rectangular wing: divide by e:
CD,i=eCD,iell=0.90.016368=0.018187.
So the rectangular wing's induced drag is 1/0.9=1.111 times, i.e. ≈11.1% higher than the elliptic ideal at the same lift and aspect ratio.
An aircraft cruises with wing loading such that at cruise it needs CL=0.5. Its elliptic wing has AR=9. The profile (zero-lift) drag coefficient is CD,0=0.008, constant. Find the total drag coefficient CD=CD,0+CD,i and the ratio of induced to profile drag.
Recall Solution
Induced part (elliptic):
CD,i=π⋅90.52=28.2740.25=0.008842.
Total:
CD=0.008+0.008842=0.016842.
Ratio CD,i/CD,0=0.008842/0.008=1.105. At this cruise condition induced drag slightly exceeds profile drag — a reminder that at moderate-to-high CL, drag-due-to-lift dominates the budget.
For the same aircraft as L4.1 (elliptic, AR=9, CD,0=0.008), find the lift coefficient CL⋆ that maximises the lift-to-drag ratioCL/CD, and the maximum L/D itself. Use CD=CD,0+πARCL2.
Recall Solution
Maximum L/D occurs when induced drag equals profile drag (a standard result for parabolic drag polars). Let k=πAR1=28.2741=0.035368.
Set CD,0=kCL⋆2:
CL⋆=kCD,0=CD,0πAR=0.008⋅28.274=0.226195=0.47560.
At this point CD=2CD,0=0.016, so
(DL)max=2CD,0CL⋆=0.0160.47560=29.725.Interpretation: best glide happens exactly where "lift-tax" and "friction-tax" are balanced — push CL higher and induced drag explodes; lower and you fly too fast with profile drag dominating.
Derive the lift result CL=πARA1 starting from L=ρ∞V∞∫−b/2b/2Γdy with the substitutions y=−2bcosθ and Γ(θ)=2bV∞∑nAnsinnθ. Show explicitly why only A1 survives.
Recall Solution
Step 1 — change variable. From y=−2bcosθ we get dy=2bsinθdθ; as y runs −b/2→b/2, θ runs 0→π. Why this substitution? It maps the finite span onto [0,π] where sine series are natural and the tips (θ=0,π) automatically give Γ=0.
Step 2 — insert the series.L=ρ∞V∞∫0π(2bV∞∑nAnsinnθ)2bsinθdθ=ρ∞V∞2b2∑nAn∫0πsinnθsinθdθ.
Step 3 — orthogonality. The integral ∫0πsinnθsinθdθ equals 2π if n=1 and 0 otherwise. This is the key fact: different sine harmonics are "perpendicular", so every term except n=1 integrates to nothing.
L=ρ∞V∞2b2A1⋅2π.
Step 4 — form the coefficient. By definition CL=21ρ∞V∞2SL=qSL (with q the dynamic pressure):
CL=21ρ∞V∞2Sρ∞V∞2b2A12π=Sπb2A1=πA1Sb2=πARA1.
Only A1 appears — the higher harmonics are "lift-invisible". ■
Given CD,i=πAR∑n≥1nAn2 and CL=πARA1, deriveCD,i=πARCL2(1+δ) with δ=∑n≥2n(An/A1)2, and prove δ≥0 with equality iff loading is elliptic.
Recall Solution
Step 1 — factor out the first term.CD,i=πAR(A12+∑n≥2nAn2)=πARA12(1+∑n≥2nA12An2)=πARA12(1+δ).
Step 2 — replace A1 using lift. From CL=πARA1 we have A1=πARCL, so A12=π2AR2CL2. Substitute:
CD,i=πAR⋅π2AR2CL2(1+δ)=πARCL2(1+δ).
Step 3 — sign of δ. Each term n(An/A1)2 has n≥2>0 and a squared factor ≥0, so every term is ≥0 and thus δ≥0. Equality δ=0 demands every term vanish, i.e. A2=A3=⋯=0: only A1 survives, which is precisely Γ(θ)=2bV∞A1sinθ — the elliptic distribution. Hence elliptic loading is the unique minimiser. ■
Show that the finite-wing lift slope a=1+a0/(πAR)a0 follows from the elliptic-wing fact that the induced angle αi is uniform across the span and equals αi=πARCL. (Use a0=2π, and CL=a(α−αL=0) with the effective-angle idea αeff=α−αi.)
Recall Solution
Step 1 — the two definitions of lift slope.
The section (2D) airfoil obeys CL=a0(αeff−αL=0): lift responds to the local, tilted flow measured against the section's zero-lift angle αL=0. The wing (3D) obeys CL=a(α−αL=0): lift measured against the geometric angle we set with the stick.
Step 2 — link the two angles. Effective = geometric − induced: αeff=α−αi. Substitute into the section law:
CL=a0(α−αi−αL=0).
Step 3 — insert the elliptic downwash. For elliptic loading αi=πARCL (constant across span — the beautiful special feature). Then
CL=a0(α−αL=0−πARCL)=a0(α−αL=0)−πARa0CL.
Step 4 — solve for CL. Collect the CL terms:
CL(1+πARa0)=a0(α−αL=0)⇒CL=1+a0/(πAR)a0(α−αL=0).
Comparing with CL=a(α−αL=0) reads off
a=1+a0/(πAR)a0.
With a0=2π this is a=1+2/AR2π. As AR→∞, a→a0: the infinite wing recovers the 2D slope. ■
Numeric check (same AR=10 as L2.3):a=1+2/102π=1.22π=5.236/rad — matching the value we computed in L2.3, so the two routes agree.
