Before you can read the parent note without tripping, you need to own every letter it uses. This page builds each one from absolute zero, in the order that lets each idea lean on the one before it.

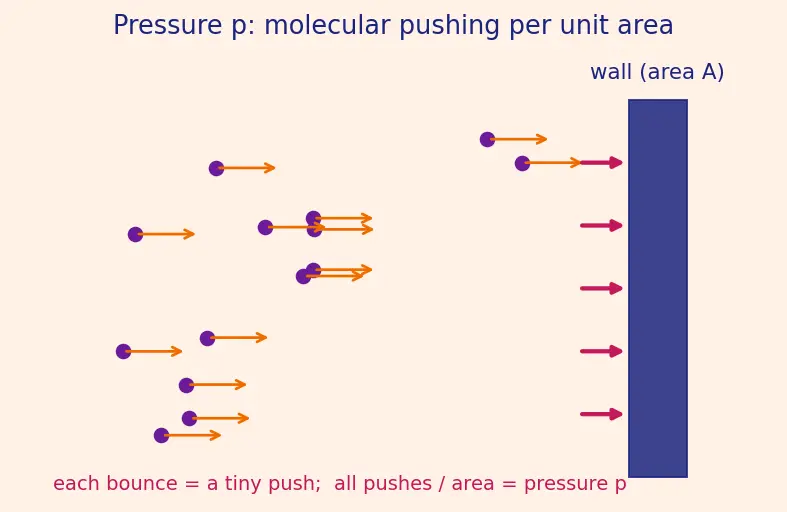

Picture a swarm of tiny gas molecules bouncing off a wall. Each bounce is a tiny shove. Add up all the shoves on one square metre and you get the pressure.
Why does the topic need this? The ENTIRE subject is a comparison of two pressures — the pressure of the gas coming out of the nozzle versus the pressure of the air around it. If you don't feel pressure as "molecular pushing," the phrases "too high" and "too low" mean nothing.

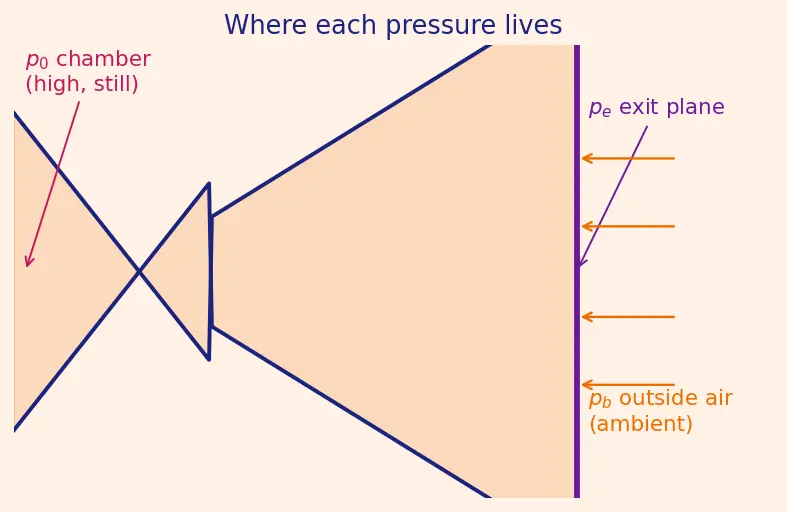

The parent note uses four pressure symbols. Here they are, each pinned to where it lives.
Why introduce pedesign separately? Because "over-" and "under-expanded" are named relative to the design point, not to the current pb. When the parent says a nozzle "designed for sea level" becomes under-expanded at altitude, pe itself never changes — it always equals pedesign. What changes is pb. So we need a fixed name for "the pressure this hardware always produces" separate from the moving target pb; that fixed name is pedesign, and for a fully-supersonic nozzle pe≡pedesign.
Why the topic needs these: the whole classification is one comparison — is pe above, below, or equal to pb? Everything else is machinery to compute pe.
Read line
pe=pb is "perfectly expanded", pe<pb is "over-expanded", pe>pb is "under-expanded".

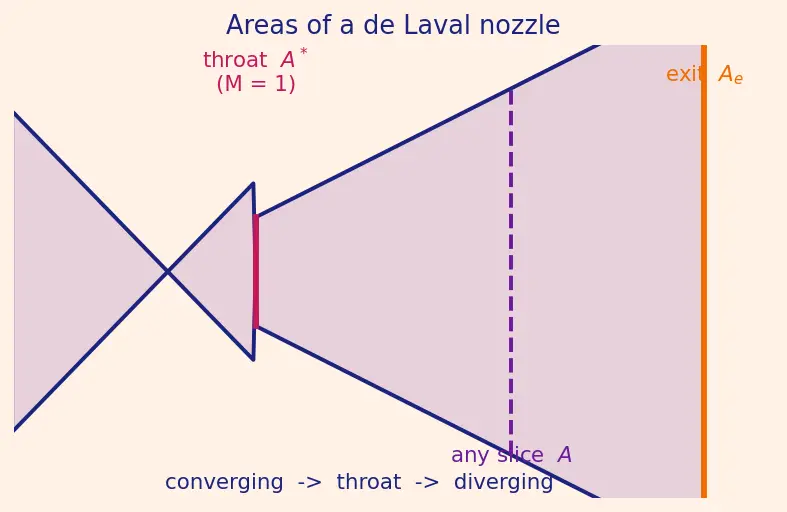

A converging–diverging (de Laval) nozzle is a tube that first narrows, then widens. The narrowest slice is the throat.
Why the star on A∗? The star is a convention that means "the value at the sonic point" — the place where the flow is moving at exactly the speed of sound. In this nozzle the throat is that place (we'll see why in §6). So A∗ and "throat area" are the same thing here.
Why the topic needs areas: the parent's punchline is that pe is fixed by the area ratioAe/A∗ alone. Geometry, not the outside air, sets the exit pressure. You cannot understand that sentence without knowing what those two areas are.

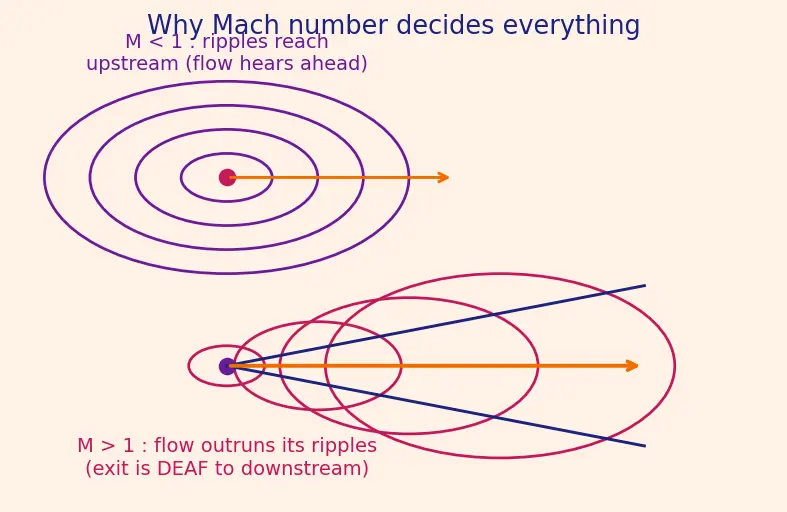

Why M and not V: two flows at the same speed behave completely differently if one is above and one below the sound speed. Only the ratioM tells you which side of the sonic line you are on — that's the ratio the physics actually cares about.
To turn pictures into formulas we need a gas model.
Why the topic needs γ and isentropic: the parent derives pe assuming the flow inside the nozzle is isentropic. That assumption is exactly what lets us write pressure as a clean function of Mach number. Shocks (in the over-expanded case) are the one place the flow is not isentropic — which is why they're treated as special events.
Why must "isentropic" fail at a shock?
A shock is a sudden, thin jump — it is not smooth, so entropy rises and p/ργ is no longer constant across it.
Combine mass conservation (ρAV is constant along the tube) with the smooth isentropic rules, and something remarkable falls out: to speed up a gas that is already supersonic you must widen the tube, while to speed up a subsonic gas you must narrow it. The crossover — M=1 — can only happen where the area stops shrinking and starts growing: the throat.
That is why A∗ (the sonic area) equals the throat area, and why we say the nozzle is choked: once M=1 sits at the throat, the mass flow is maxed out and pegged.
The parent's thrust equation F=m˙Ve+(pe−pb)Ae needs all of these: a momentum term (m˙Ve) plus a pressure term (pe−pb)Ae. Notice the pressure term is exactly our two-pressure comparison again, now multiplied by exit area — see Rocket Nozzle Design & Thrust Optimization.
Two words appear from the very first sentence, so pin them down now with pictures.
Why both are needed: a fan can only lower pressure, a shock can only raise it. Whichever direction the mismatch runs picks the tool. That single choice — raise or lower — is the entire branching logic of the topic.
