Foundations — Converging-diverging (de Laval) nozzle — subsonic, supersonic flow

Before you can read the parent note de Laval nozzle, you must own every letter it throws at you. This page builds each one from nothing — plain words, then a picture, then the reason the topic needs it.

1. Flow, and what "steady 1-D" means

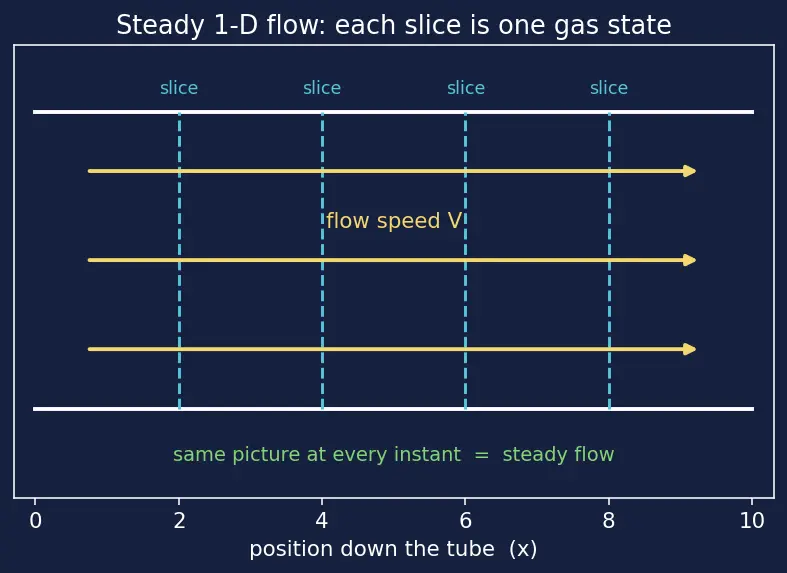

Why the topic needs this: it lets us describe the whole flow with quantities that depend only on position along the tube, so a single number like "area here" or "speed here" is meaningful. Look at the s01 figure — each vertical slice is one "state" of the gas.

2. Area $A$ — the size of a slice

• Converging = $A$ shrinking as you move downstream (tube pinches in).
• Throat = the spot where $A$ is smallest.
• Diverging = $A$ growing again (tube flares out).

Why needed: the entire topic is about shaping $A$ along the tube. The master equation is literally a statement about how a change in $A$ forces a change in speed.

3. Speed $V$ — how fast the gas moves

Why needed: the whole point of a nozzle is to make $V$ large. "Accelerate" just means $V$ increases as we go downstream.

4. Density $\rho$ — how tightly packed the gas is

Why needed: gases are compressible — squeeze them and $\rho$ rises; let them expand and $\rho$ falls. Liquids barely change $\rho$, which is exactly why nozzle physics differs from water pipes. The counter-intuitive supersonic behaviour comes entirely from $\rho$ dropping faster than $A$ grows.

5. Mass flow rate $\dot{m}$ and continuity

Combine the three quantities above: in one second the gas at a slice sweeps forward a distance $V$, filling a tube-chunk of volume $A\times V$; multiply by density to get mass: $\dot{m}=\rho AV$

Why needed: this single conserved product ties $A$, $V$, $\rho$ together — it is Step 1 of the parent's derivation.

6. Pressure $p$ and the Euler momentum idea

Here the letter $d$ in front of a quantity means "a tiny change in it" — $dp$ is a small pressure change over a small step down the tube. We use tiny changes because area, speed and pressure all vary smoothly and continuously along the nozzle; small steps let us relate their slopes.

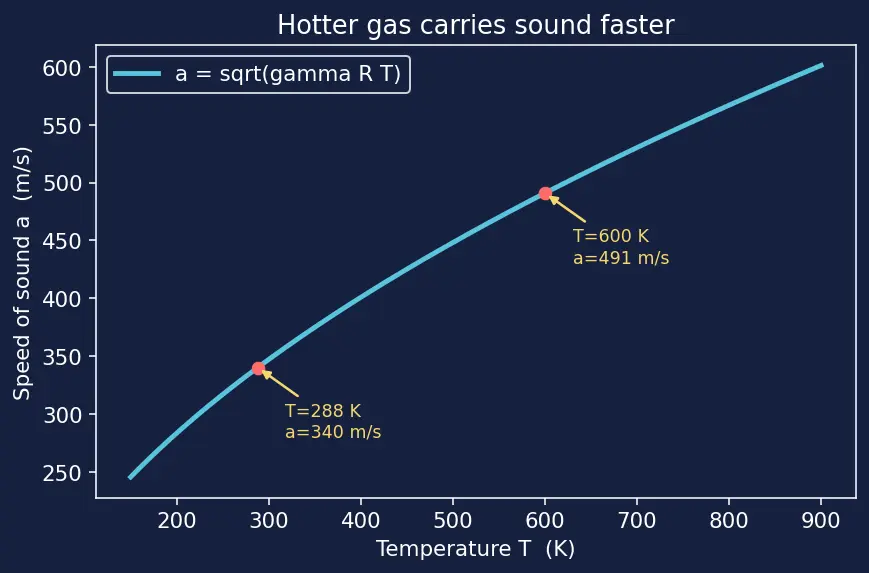

7. Temperature $T$ and the speed of sound $a$

Why needed: $a$ is the referee. It sets the magic speed at which the nozzle's rule flips. It also connects pressure and density changes: for a gentle isentropic disturbance, $a^2=dp/d\rho$ (Step 3 of the parent).

8. The constants $\gamma$, $R$, and specific heats $c_p,c_v$

Why needed: $\gamma$ and $R$ turn temperature into a speed of sound, and $\gamma$ sets the exponents in every isentropic ratio.

9. Mach number $M$ — speed measured in "sounds"

• $M<1$ subsonic — slower than sound; pressure news can travel upstream.
• $M=1$ sonic — exactly the sound barrier.
• $M>1$ supersonic — faster than sound; the gas outruns its own pressure news.

Why needed: $M$ is the single knob that decides the sign of $(M^2-1)$, and therefore whether narrowing or widening accelerates the gas. It is the star of the master equation.

10. Isentropic flow — the "clean" assumption

Why needed: this assumption is what lets pressure, density and temperature all lock together in tidy formulas (the $T_0/T$, $p_0/p$, $A/A^{\ast }$ ratios). Drop it and the algebra explodes.

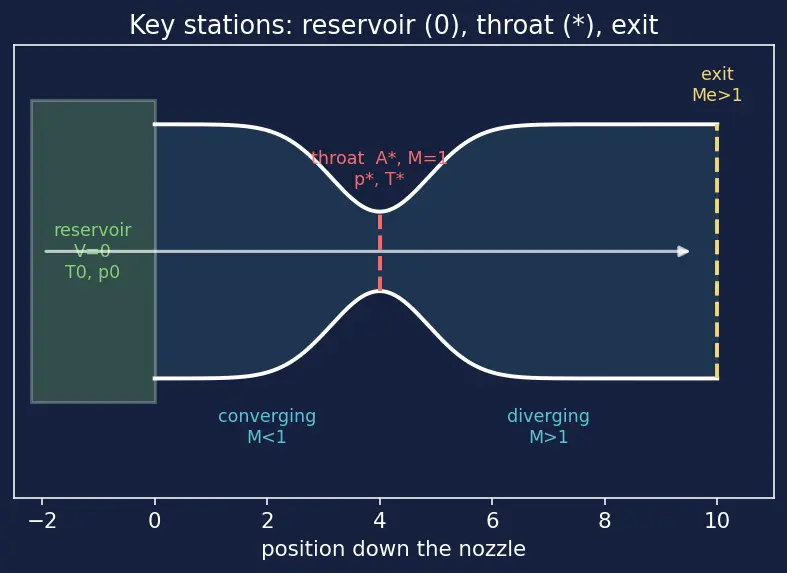

11. Stagnation state (subscript $0$) and starred sonic state (${}^{\ast }$)

Why needed: every isentropic ratio compares a local quantity to a stagnation or starred one. Choking, and the whole Choked Flow & Mass Flow Limit story, are stated in these symbols.

12. Reading the master equation's symbols

The parent's boxed result is $\frac{dA}{A}=(M^2-1)\frac{dV}{V}$

• $\frac{dA}{A}$ = the fractional change in area (a 2% widening, say). Dividing the tiny change $dA$ by $A$ itself makes it a percentage, so tubes of any size compare fairly.
• $\frac{dV}{V}$ = the fractional change in speed.
• $(M^2-1)$ = the sign-flipping gatekeeper: negative when $M<1$, zero at $M=1$, positive when $M>1$.

Why needed: once you read every symbol, the equation says in words — "to speed the gas up, change the area in the direction the gatekeeper allows; at exactly Mach 1 the gatekeeper is zero, so speed can only be sonic where area stops changing (the throat)."

Two more devices the parent mentions in passing:

• Normal shock — a paper-thin jump where supersonic flow snaps back to subsonic, raising $p$ and $T$ abruptly (Normal Shock Waves).
• These foundations later power Rocket Propulsion & Thrust and Steam Turbine Nozzles.

Prerequisite map

Equipment checklist

Can you answer each before moving to the parent note?
