Foundations — Choked flow — condition M = 1 at throat, maximum mass flow

This page is the toolbox. Before you can read the parent note Choked flow — condition M = 1 at throat, maximum mass flow, you need to own every letter it writes. We build them one at a time, each earning its place before the next appears. No symbol is used before it is drawn.

1. Flow, and what "steady 1-D" means

Picture gas flowing left-to-right down a smooth pipe whose width changes. We make two simplifying promises:

• Steady: at any fixed spot the gas looks the same every instant — the picture never changes with time, only with position along the pipe.

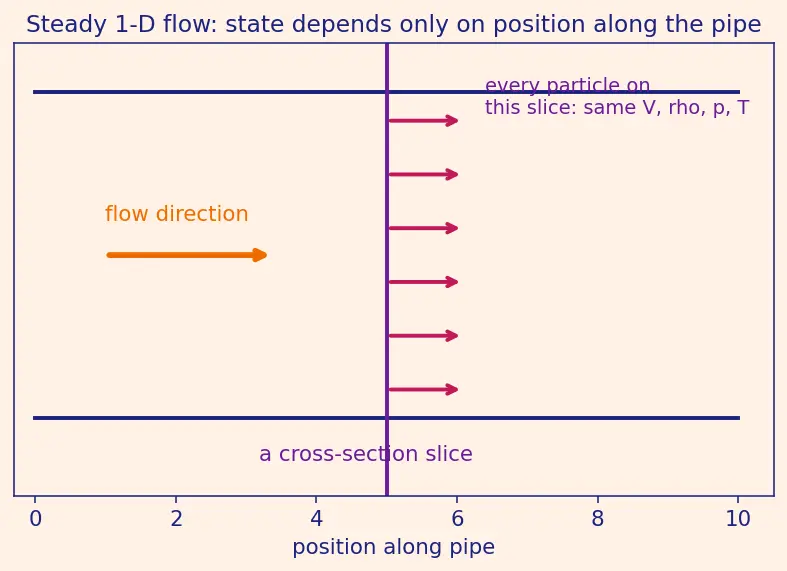

• 1-D (one-dimensional): at each cross-section every particle has the same speed, pressure and density. We ignore the thin slow layer at the walls. So the whole state of the flow is a set of numbers that depend only on how far along the pipe you are.

Why we need all four: speed alone doesn't tell you how much gas moves — you also need how densely packed it is and through how wide an opening. That combination is the mass flow, our whole target.

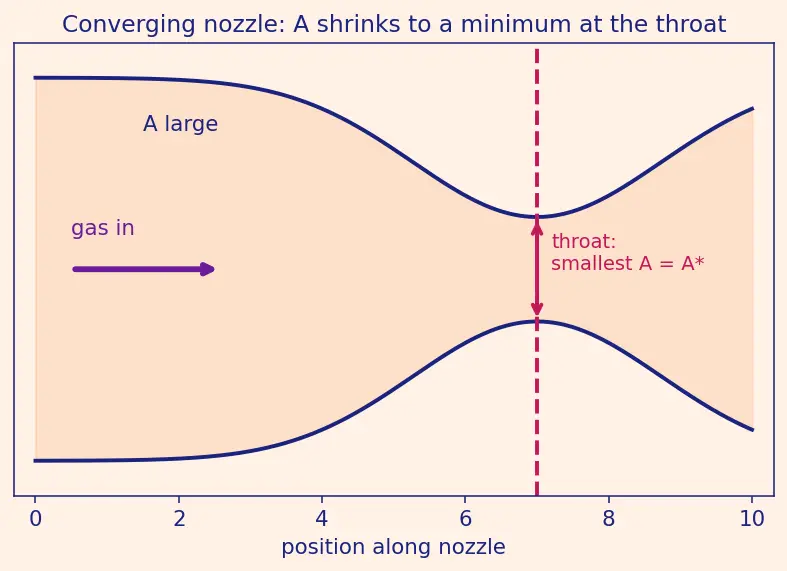

2. Area $A$ and the throat

The star superscript is reserved for the throat when it is sonic: $A^{\ast }$ is the throat area at choke, $p^{\ast }$ the pressure there, and so on. We will earn the star in §6.

Why the throat is special: it's the tightest squeeze, so it's where the gas is forced fastest — the first place that can reach the speed of sound.

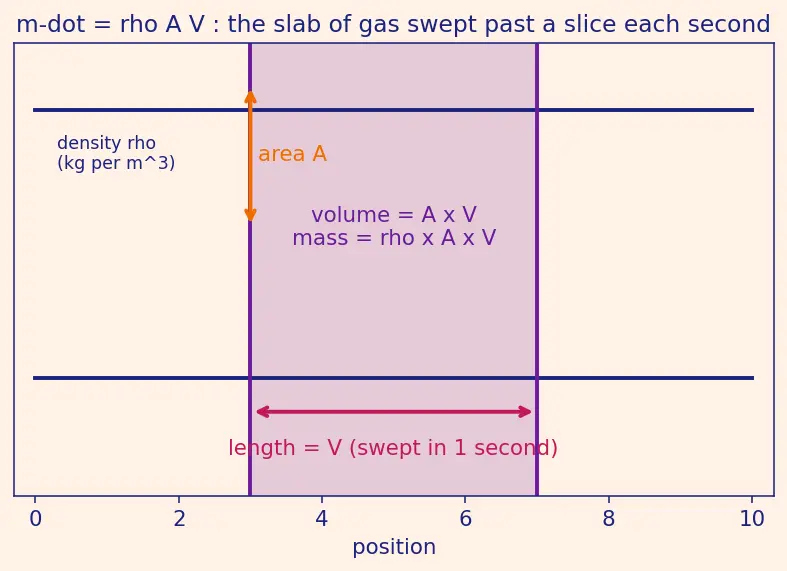

3. Mass flow $\dot{m}$ — the quantity we care about

Why this formula and not another: it is literally "packing density × how much volume swept per second". Every term is one of the pictures we already drew. The parent note's entire derivation is just rewriting these three factors $\rho$, $A$, $V$ using the one master variable we meet next.

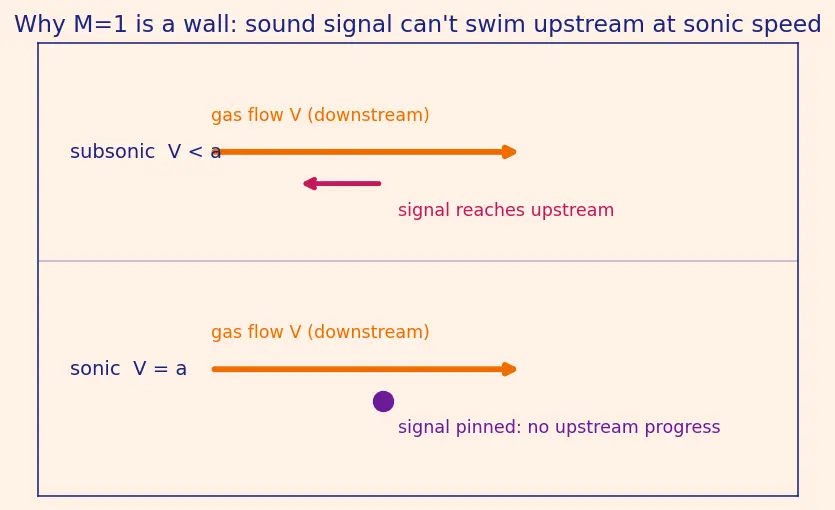

4. Speed of sound $a$ and Mach number $M$

Pressure changes travel through gas as tiny compressions — sound. Its speed depends on the gas and its temperature.

See Speed of Sound & Mach Number for the full build. Here is the key mental image:

Why $M$ and not just $V$: whether flow chokes depends only on how the speed compares to sound, not its raw value. $M$ is exactly that comparison — a single dimensionless dial. Writing everything in $M$ turns the problem into "find the $M$ that maximises $\dot{m}$".

5. The gas constants $\gamma$ and $R$, and $c_p$

Why we need them: $\gamma$ and $R$ fix the sound speed $a=\sqrt{\gamma RT}$ and the exact shape of every isentropic relation. Without them the Mach algebra has no numbers.

6. Stagnation ("total") conditions and the star

See Stagnation (Total) Properties. The picture: a huge calm reservoir at $p_0,T_0$ emptying through a small nozzle. Because the reservoir is essentially still, its static and stagnation values coincide.

7. The three notations that scare beginners

8. How the foundations feed the topic

Read it top-down: the plain flow picture and geometry give $\dot{m}=\rho AV$; the gas constants give sound speed and Mach number; stagnation values plus the isentropic relations let us rewrite $\dot{m}$ using only $M$; maximising that single function lands you on $M=1$ — the whole parent topic.

Equipment checklist

Cover the right side and answer aloud; reveal to check.
