Visual walkthrough — Isentropic flow tables — P - P₀, T - T₀, ρ - ρ₀ as functions of M

---

Step 0 — The two words we must earn first: "stagnation" and "Mach"

WHAT. Before any algebra, two ideas need a picture, because every later step leans on them.

• A gas has local properties where it is actually flowing: temperature $T$ (how hot), pressure $P$ (how hard it pushes on walls), density $\rho$ (how tightly packed the molecules are), and speed $V$ (how fast the whole parcel moves).
• If we could gently stop that parcel — slow it to $V=0$ without any friction or heat leaking in — its properties change to new values we call the stagnation (or "total") values $T_0,P_0,{\rho }_0$. The little "0" means "brought to rest."

WHY. Stopping the flow converts its motion into squeeze-and-heat. So $T_0,P_0,{\rho }_0$ are always bigger than the flowing $T,P,\rho$. The whole chapter asks: by how much?

PICTURE. On the left the parcel streaks past at speed $V$; on the right it has piled up against a wall and come to rest, hotter and denser.

---

Step 1 — Energy is conserved: the enthalpy + kinetic-energy budget

WHAT. For steady flow with no heat added and no work done, one quantity per kilogram of gas stays constant along a streamline:

$\underset{\text{enthalpy: stored heat energy}}{\underbrace{h}}+\underset{\text{kinetic energy of motion}}{\underbrace{\frac{1}{2}{V}^2}}=\underset{\text{the constant total}}{\underbrace{h_0}}$

WHY this equation and not another? This is energy bookkeeping (from Stagnation Properties and Energy Equation). "No heat, no work" means the total energy per kilogram cannot change — it can only trade between the "stored heat" pot $h$ and the "motion" pot $\frac{1}{2}{V}^2$. Speed up ⇒ $\frac{1}{2}{V}^2$ grows ⇒ $h$ must shrink. Stop the flow ($V=0$) ⇒ all of it sits in $h$, and that value is named $h_0$.

Each symbol, right where it lives:

• $h$ — enthalpy, the gas's internal heat content per kilogram. Bigger $h$ ⇒ hotter gas.
• $\frac{1}{2}{V}^2$ — kinetic energy per kilogram. The $\frac{1}{2}$ and the $V^2$ are the same ones as in $\frac{1}{2}m{v}^2$, just per unit mass.
• $h_0$ — the frozen total. Because it equals $h$ when $V=0$, it is the stagnation enthalpy.

PICTURE. A see-saw: heat pot on one side, motion pot on the other. The plank total never changes; only the balance tips.

---

Step 2 — Turn enthalpy into temperature

WHAT. For a perfect gas, enthalpy is just temperature times a constant: $h=c_{p}T$. Substitute:

$\underset{h}{\underbrace{c_{p}T}}+\frac{1}{2}{V}^2=\underset{h_0}{\underbrace{c_p{T}_0}}$

WHY. We can measure $T$ but not $h$ directly, so we swap $h$ for something on a thermometer. $c_p$ is the specific heat at constant pressure — how many joules it takes to warm one kilogram by one degree. For a perfect gas it is a fixed number, so $h$ and $T$ are perfectly proportional.

Rearrange to isolate the ratio we ultimately want. Divide every term by $c_{p}T$:

$\frac{T_0}{T}=1+\frac{V^2}{2c_{p}T}$

Reading it: the left side is how many times hotter the stopped gas is. On the right, the $1$ is the "already there" part, and the fraction is the extra heat produced by stopping the motion. If $V=0$ the fraction vanishes and $T_0/T=1$ — stopping nothing changes nothing.

PICTURE. The see-saw redrawn with a thermometer scale: the motion pot, when emptied into the heat pot, raises the mercury from $T$ up to $T_0$.

---

Step 3 — Replace velocity with Mach number

WHAT. The messy term $\frac{V^2}{2c_{p}T}$ still hides $V$, $c_p$, $R$. We now convert it into the single clean group $\frac{\gamma -1}{2}{M}^2$ using two known facts.

WHY these two tools? We want everything in terms of $M$ because $M$ is the only dial an engineer sets. So we need a bridge from $V$ to $M$, and a way to erase $c_p$:

1. Speed of sound $a^2=\gamma RT$ (from Speed of Sound and Mach Number). Then $V^2=(Ma{)}^2=M^2{a}^2=M^2\gamma RT.$ Here $M=V/a$ so $V=Ma$; $\gamma$ (gamma) is the heat-capacity ratio $c_p/c_v$, and $R$ is the gas constant.

2. $c_p$ in terms of $\gamma$ and $R$: from $c_p-c_v=R$ and $\gamma =c_p/c_v$ you get $c_p=\frac{\gamma R}{\gamma -1}.$

Substitute both into the fraction and watch $\gamma$, $R$, $T$ all cancel:

$\frac{V^2}{2c_{p}T}=\frac{M^2\gamma RT}{2\cdot \frac{\gamma R}{\gamma -1}T}=\frac{\gamma -1}{2}{M}^2$

• Numerator $M^2\gamma RT$ came from $V^2$.
• Denominator's $\gamma RT$ cancels the numerator's $\gamma RT$; the $2$ and the $\frac{1}{\gamma -1}$ survive, flipping up as $\frac{\gamma -1}{2}$.

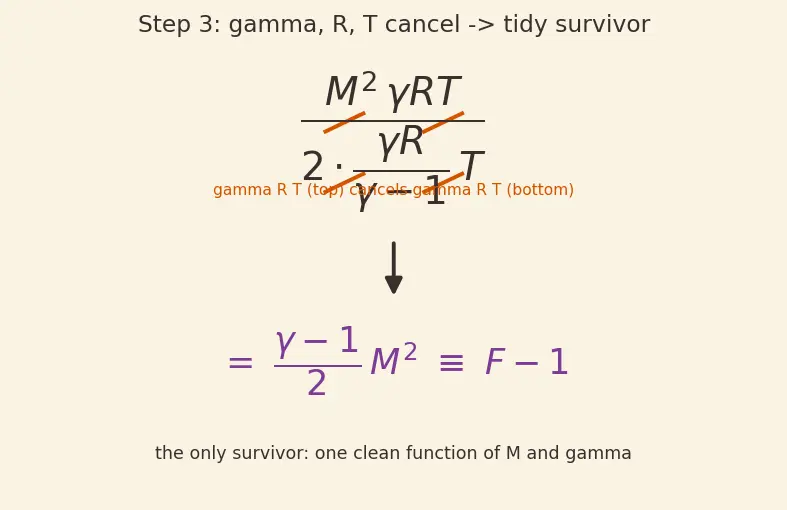

PICTURE. A cancellation ladder: $\gamma$, $R$, $T$ each get struck out top-and-bottom, leaving the tidy survivor $\frac{\gamma -1}{2}{M}^2$.

---

Step 4 — From temperature to pressure and density (the isentropic bridge)

WHAT — first define the missing character, $v$. Before we can bridge, we need one more symbol. The specific volume $v$ is simply "how much room one kilogram of the gas takes up." It is the exact opposite of density:

$v=\frac{1}{\rho }\text{(cubic metres per kilogram)}.$

So "big $v$" means the gas is spread thin (low $\rho$); "small $v$" means it is packed tight (high $\rho$). We now have two facts that both involve $v$:

• Ideal-gas law $Pv=RT$ — pressure times room-per-kilogram equals $R$ times temperature.
• Isentropic (constant-entropy) law $P{v}^{\gamma }=\text{const}$ — for a perfect gas stopped with no friction and no heat, this combination never changes (from Isentropic Process Relations for Perfect Gas).

WHY these two, and how $v$ gets eliminated. We want relations between $P$, $\rho$ and $T$ only — $v$ is scaffolding we must remove. Here is the elimination, shown term by term:

1. From the ideal-gas law solve for room-per-kilogram: $v=\frac{RT}{P}$.
2. Put that into the isentropic law: $P{\left(\frac{RT}{P}\right)}^{\gamma }=\text{const}$.
3. Collect the powers of $P$: $P^{1-\gamma }(RT{)}^{\gamma }=\text{const}$, i.e. $P^{1-\gamma }{T}^{\gamma }=\text{const}$ (the constant $R^{\gamma }$ is absorbed).
4. Isolate $P$ by raising to the power $\frac{1}{1-\gamma }$: this gives $P\propto T^{\frac{\gamma }{\gamma -1}}$. The exponent is born.
5. For density, use $\rho =1/v$ and $v=RT/P$, so $\rho =P/(RT)$. Substituting $P\propto T^{\gamma /(\gamma -1)}$ gives $\rho \propto T^{\gamma /(\gamma -1)-1}=T^{\frac{1}{\gamma -1}}$.

So both power laws are derived, not asserted:

$P\propto T^{\frac{\gamma }{\gamma -1}}⟹\frac{P_0}{P}={\left(\frac{T_0}{T}\right)}^{\frac{\gamma }{\gamma -1}},$ $\rho \propto T^{\frac{1}{\gamma -1}}⟹\frac{{\rho }_0}{\rho }={\left(\frac{T_0}{T}\right)}^{\frac{1}{\gamma -1}}.$

Because the stagnation and local states sit on the same constant-entropy line, the "const" is identical at both, so dividing gives exactly these ratios.

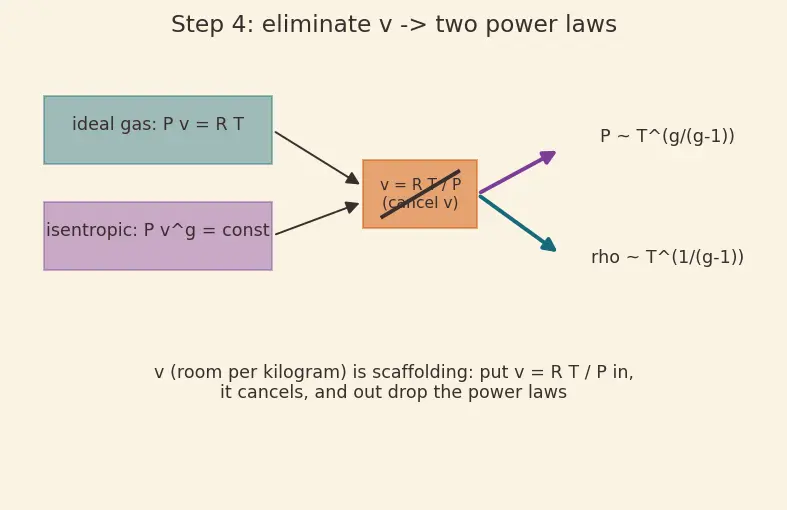

PICTURE. The elimination visualized: $v$ enters from both laws, cancels in the middle, and out drop the two clean power laws.

Substitute $T_0/T=F$:

Term-by-term. All three ratios share the identical base $F$; they differ only in the exponent:

ratio	exponent	for air $\gamma =1.4$
$T_0/T$	$1$	$1$
${\rho }_0/\rho$	$\frac{1}{\gamma -1}$	$2.5$
$P_0/P$	$\frac{\gamma }{\gamma -1}$	$3.5$

PICTURE. One base factor $F$ enters a "power fork" and splits into three exponents; the bigger the exponent, the taller the resulting stack.

---

Step 5 — Why pressure falls fastest (the ordering, visualized)

WHAT. Because $F>1$ for any $M>0$, a bigger exponent means a bigger ratio $X_0/X$, hence a smaller local value $X/X_0$. Since $3.5>2.5>1$:

$\frac{P}{P_0}<\frac{\rho }{{\rho }_0}<\frac{T}{T_0}(\text{for all }M>0)$

WHY it must be so, not just "the numbers say so." Raising a number bigger than 1 to a higher power inflates it more — $1.8^{3.5}\approx 7.82$ but $1.8^1=1.8$. Pressure carries the tallest exponent, so its reciprocal collapses fastest.

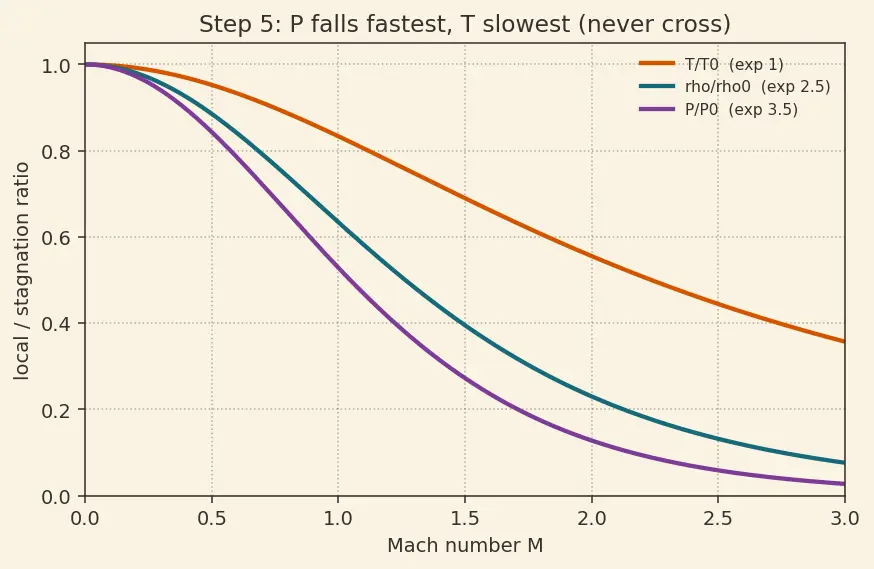

PICTURE. Three curves of $X/X_0$ versus $M$: pressure (plum) dives lowest, density (teal) middle, temperature (orange) stays highest — the vertical ordering never crosses.

---

Step 6 — The degenerate & edge cases (never leave a gap)

WHAT & WHY. A formula is only trustworthy if it behaves at the extremes. Plug the corners into $F=1+\frac{\gamma -1}{2}{M}^2$.

• $M=0$ (no flow). $F=1$, so $T/T_0=P/P_0=\rho /{\rho }_0=1^{-\text{anything}}=1$. Meaning: a gas at rest already is its own stagnation state — nothing to stop, nothing changes. Sanity ✓.
• $M=1$ (sonic / choking). For air $F=1+0.2=1.2$, giving the critical ratios $T^{\ast }/T_0=0.8333$, ${\rho }^{\ast }/{\rho }_0=0.6339$, $P^{\ast }/P_0=1.2^{-3.5}=0.5283$. These are the numbers that decide choking in Converging-Diverging Nozzle & Choking: back-pressure must drop to $\approx 0.528P_0$ before the throat reaches $M=1$.
• $M\to \infty$ (hypersonic limit). $F\to \infty$, so every ratio $X/X_0\to 0$. Meaning: nearly all the "bank account" is kinetic; local $T,P,\rho$ approach nothing. Physically the gas would ionize first, but the trend is right.
• Across a shock — the formula's forbidden zone. These pillars assume isentropic (constant-entropy) stopping. A normal shock (Normal Shock Relations) jumps entropy, so $P_0$ actually drops across it. You may still use these on each side separately, but never with a single $P_0$ straddling the shock.

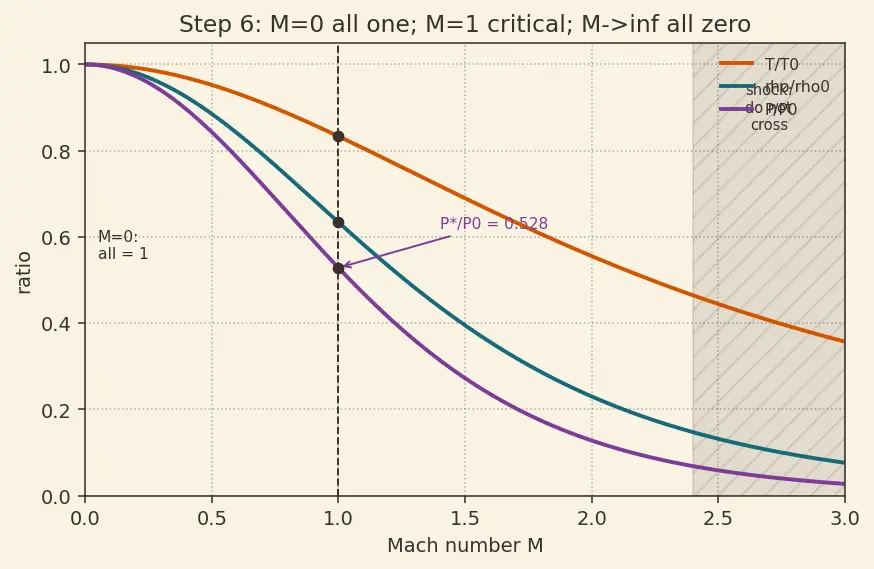

PICTURE. The three curves extended to their limits, with the sonic point marked and a hatched "shock — do not cross" band.

---

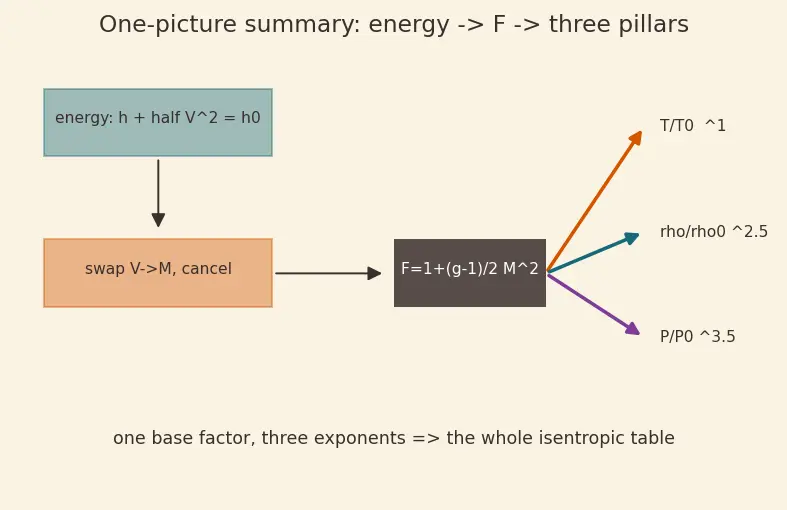

The one-picture summary

Every arrow of the derivation on a single map: energy conservation births $F$; the sound-speed and $c_p$ substitutions clean it; the isentropic bridge (with $v$ eliminated) forks it into three pillars with exponents $1,2.5,3.5$.

Recall Feynman retelling — the whole walkthrough in plain words

Imagine a parcel of air zooming along and then you gently bring it to a dead stop. Its motion energy doesn't vanish — it turns into heat and squeeze, so the stopped air is hotter, denser, and pushes harder. That's the stagnation state $T_0,P_0,{\rho }_0$. Step 1 wrote the energy see-saw: heat plus motion is a fixed total. Step 2 swapped heat for temperature. Step 3 traded the awkward speed $V$ for the Mach number $M$ (speed compared to sound), and everything ugly cancelled, leaving one neat lump $F=1+\frac{\gamma -1}{2}{M}^2$ — the "how much did stopping change things" factor. Step 4 introduced specific volume $v$ (room per kilogram), used the ideal-gas and constant-entropy laws to cancel $v$ away, and out fell the power laws: pressure and density follow temperature by fixed powers — $1$ for temperature, $2.5$ for density, $3.5$ for pressure. Step 5 explained the pecking order: the biggest power (pressure) drops fastest. Step 6 checked the corners — resting gas is its own stagnation, sonic flow gives the famous $0.528$ pressure ratio for choking, and you must never drag these across a shock, where the smoothness assumption breaks. One factor, three exponents, and the whole isentropic table falls out.

---

Active-recall

---

Connections

• Isentropic flow tables — P - P₀, T - T₀, ρ - ρ₀ as functions of M (index 3.1.7) — the parent this walkthrough builds.
• Stagnation Properties and Energy Equation — Step 1's energy budget.
• Speed of Sound and Mach Number — Step 3's $a=\sqrt{\gamma RT}$ and definition of $M$.
• Isentropic Process Relations for Perfect Gas — Step 4's power-law bridge.
• Converging-Diverging Nozzle & Choking — uses Step 6's critical ratios.
• Normal Shock Relations — the forbidden zone of Step 6.
• Area-Mach Relation A/A* — same stagnation framework, extended.
