Isentropic flow tables — P - P₀, T - T₀, ρ - ρ₀ as functions of M: Question bank

Before we start, three reminders so every "because" can point back somewhere concrete.

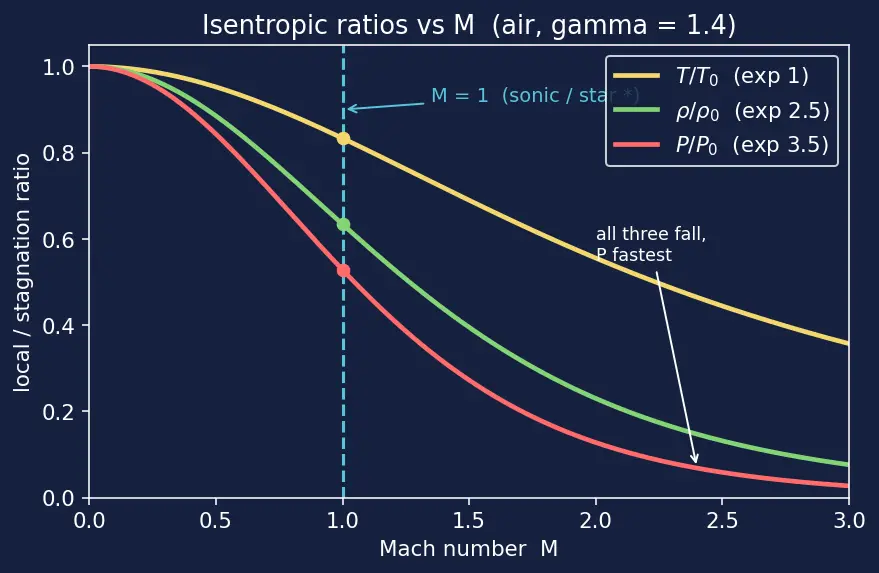

The figure below is the whole page in one glance: watch how the three curves fan apart as $M$ grows, and note the vertical line at $M = 1$ where the starred critical values live.

Figure — Isentropic flow tables — P - P₀, T - T₀, ρ - ρ₀ as functions of M

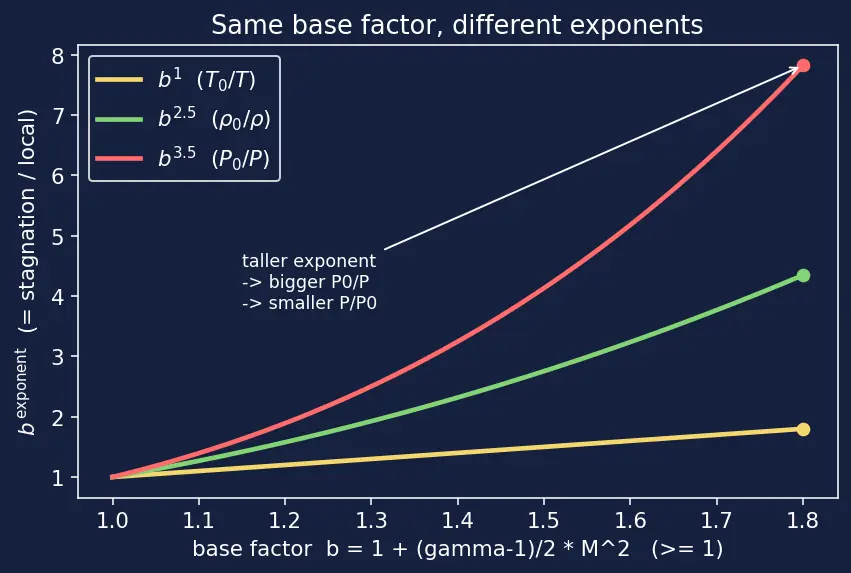

The reason pressure "falls fastest" is not just a bigger exponent on paper — it is energetic. The figure shows the same base factor $b = 1 + \frac{γ - 1}{2} M^{2}$ being raised to powers $1$ , $2.5$ , $3.5$ : the taller the exponent tower, the harder the ratio is pulled toward zero.

True or false — justify

Higher Mach number always means larger stagnation-to-local ratios.

True for

M > 0

: every ratio is a monotonically increasing function of the factor

1 + \frac{γ - 1}{2} M^{2}

, which grows with

M

. Faster flow "piles up" more when stopped.

T / T_{0}

can exceed 1 in a supersonic flow.

False. Since

T_{0} / T = 1 + \frac{γ - 1}{2} M^{2} \geq 1

, the local

T

is always

\leq T_{0}

; the moving gas is cooler than its stagnation value because kinetic energy has been "spent."

M = 0

all three ratios equal exactly 1.

True. With

M = 0

the base factor is

1 + 0 = 1

, and

1

to any power is

1

— a still fluid is its own stagnation state.

For the same

M

, pressure drops more than density, which drops more than temperature.

True, and the reason is energetic, not just algebraic: raising the same base factor to a taller exponent (

3.5

for

P

2.5

for

ρ

1

for

T

) compounds the same "piling up" more times, so

P / P_{0} < ρ / ρ_{0} < T / T_{0}

— exactly the fanning-out of curves in figure s01.

The tables can be applied across a normal shock.

False. A shock raises entropy, so

P_{0}

drops discontinuously; the isentropic ratios assume constant entropy and hold only between shock-free points. See Normal Shock Relations.

Stagnation temperature

T_{0}

stays constant even through a shock.

True.

T_{0}

depends only on stagnation enthalpy, which the (adiabatic) energy equation conserves across a shock — only

P_{0}

and

ρ_{0}

fall. See Stagnation Properties and Energy Equation.

For a fixed

M

, changing

γ

leaves the ratios unchanged.

False. Both the factor

1 + \frac{γ - 1}{2} M^{2}

and the exponents depend on

γ

; a monatomic gas (

γ = 5/3

) gives different table values than air (

γ = 1.4

The consistency identity

\frac{P _{0} / P}{ρ _{0} / ρ} = \frac{T _{0}}{T}

is a coincidence of

γ = 1.4

False. It is exactly the ideal-gas law

P / ρ \propto T

and holds for any

γ

, since

\frac{γ}{γ - 1} - \frac{1}{γ - 1} = 1

M = 1

the pressure has fallen to about half of

P_{0}

True enough —

P^{*} / P_{0} = 1. 2^{- 3.5} \approx 0.528

, so pressure must drop to ~53% of stagnation to reach sonic conditions. This is the choking threshold, see Converging-Diverging Nozzle & Choking.

The ratios are valid only for accelerating (nozzle) flow, not decelerating (diffuser) flow.

False. They depend only on local

M

and

γ

, not on whether the flow is speeding up or slowing down, as long as it stays isentropic.

Spot the error

"Since

T_{0} / T = 1 + \frac{γ - 1}{2} M^{2}

, we have

T / T_{0} = 1 + \frac{γ - 1}{2} M^{2}

too."

Error:

T / T_{0}

is the reciprocal,

(1 + \frac{γ - 1}{2} M^{2})^{- 1} \leq 1

. The memorable factor equals

T_{0} / T

, which is

\geq 1

; local

T

must be the smaller one.

"Density ratio uses the same exponent 3.5 as pressure, since both come from the same base factor."

Error: density's exponent is

\frac{1}{γ - 1} = 2.5

, not

3.5

. Only pressure carries the

\frac{γ}{γ - 1}

exponent; mixing exponents is the most common numerical mistake.

"The flow decelerates in a shock, so its stagnation pressure rises."

Error: deceleration through a shock is irreversible. Entropy rises, so

P_{0}

falls; a reversible stop would preserve

P_{0}

, but a shock is not reversible.

"At

M = 2

T / T_{0} = 1/1. 8^{3.5}

Error: temperature's exponent is

1

, so

T / T_{0} = 1/1.8 = 0.556

. The

3.5

exponent belongs to pressure, not temperature.

"Because

P_{0}

is 'total pressure,' it is the sum

P + \frac{1}{2} ρ V^{2}

in all cases."

Error: that Bernoulli-style sum is the low-speed (incompressible) approximation. In compressible flow

P_{0} = P (1 + \frac{γ - 1}{2} M^{2})^{γ / (γ - 1)}

, which reduces to the sum only as

M \to 0

"To get

P_{0}

I use the local

P

but I must remeasure a separate sound speed for the stagnation state."

Error:

P_{0} / P

needs only local

M

and

γ

. The stagnation state is a hypothetical reference; you never independently measure its sound speed here.

"The tables give absolute temperature, so I can plug in

T

in Celsius."

Error: the ratios come from

a^{2} = γ R T

and

h = c_{p} T

, which require absolute (Kelvin) temperature. Celsius breaks the proportionality. See Speed of Sound and Mach Number.

Why questions

Why does every property ratio collapse into a function of

M

alone (plus

γ

Because the energy equation converts velocity into

M

via

a^{2} = γ R T

, and the isentropic relations tie

P, ρ

T

; the flow's speed relative to sound is the only free dial left.

Why is the pressure ratio the fastest to drop as

M

increases?

Picture the base factor

b > 1

raised to the three exponents (figure s02):

b^{3.5}

overshoots

b^{2.5}

and

b

, so its reciprocal

P / P_{0}

is dragged toward zero fastest. Physically, pressure feels both the temperature drop and the density drop compounded, so it sheds the most.

Why must a nozzle's back-pressure fall to about

0.528 P_{0}

before the throat reaches

M = 1

Because

P^{*} / P_{0} = 1. 2^{- 3.5} \approx 0.528

is exactly the local-to-stagnation pressure needed for sonic flow; below that the throat chokes and mass flow maxes out.

Why is

T_{0}

conserved along an adiabatic flow even when friction is present, but

P_{0}

is not?

T_{0}

tracks stagnation enthalpy, which the adiabatic energy balance conserves;

P_{0}

tracks entropy too, and friction raises entropy, so

P_{0}

leaks away.

Why do we bring the flow to rest isentropically to define stagnation properties, rather than any old stop?

An isentropic (adiabatic + reversible) stop gives a unique, path-independent reference state; a real messy stop would depend on the losses and wouldn't tabulate cleanly. See Isentropic Process Relations for Perfect Gas.

Why does the consistency check

\frac{P _{0} / P}{ρ _{0} / ρ} = \frac{T _{0}}{T}

act as a Feynman sanity test?

It reproduces the ideal-gas law

P / ρ \propto T

from the two independent ratios, so if it fails you know an exponent was mis-entered.

Why can the same ratios describe both a converging nozzle and a diffuser?

They encode only the isentropic relationship between local and stopped states; direction of acceleration doesn't enter, only the local

M

Edge cases

What do the ratios give as

M \to 0

All three tend to 1: a vanishingly slow flow is indistinguishable from its own stagnation state, so nothing "piles up."

What happens to

T / T_{0}

ρ / ρ_{0}

, and

P / P_{0}

M \to \infty

(hypersonic limit)?

All three tend to 0 — the base factor blows up, so local static values become negligible fractions of stagnation. They vanish at different rates though:

P / P_{0}

fastest (

b^{- 3.5}

), then

ρ / ρ_{0}

(

b^{- 2.5}

), then

T / T_{0}

(

b^{- 1}

), so the curves in figure s01 stay ordered all the way out.

M = 1

special in the isentropic formulas themselves?

Mathematically no — the formulas are smooth through

M = 1

. It is physically special only because

M = 1

is the choking/sonic condition, giving the starred critical ratios.

What are the critical ratios exactly at

M = 1

for air?

T^{*} / T_{0} = 1/1.2 = 0.833

ρ^{*} / ρ_{0} = 1. 2^{- 2.5} = 0.634

P^{*} / P_{0} = 1. 2^{- 3.5} = 0.528

— the reference values (star = sonic) that mark choking.

If two points in a flow have the same

M

but sit on opposite sides of a shock, are their local

P

equal?

No. Same

M

gives the same ratio

P / P_{0}

, but

P_{0}

differs across the shock, so the absolute

P

differs. Never share one

P_{0}

across a shock.

Can

M

be negative in these formulas, and would it matter?

M

enters only as

M^{2}

, so a sign reversal (flow direction) leaves every ratio unchanged; the tables care about speed magnitude relative to sound, not direction.

At the stagnation point itself (

V = 0

M = 0

), which state do the tables report?

The trivial one — local equals stagnation, all ratios 1 — because there is no kinetic energy left to have been converted.
