Foundations — Mach number M = V - a — subsonic ( - 1), transonic (~1), supersonic ( - 1), hypersonic ( - 5)

Before we can even read the formula $M=V/a$, we have to earn every symbol in it — and every symbol hiding behind it. This page is the toolbox. Nothing here assumes you have seen the parent topic; it builds what the parent Mach Number note leans on.

1. Speed — what "how fast" really means

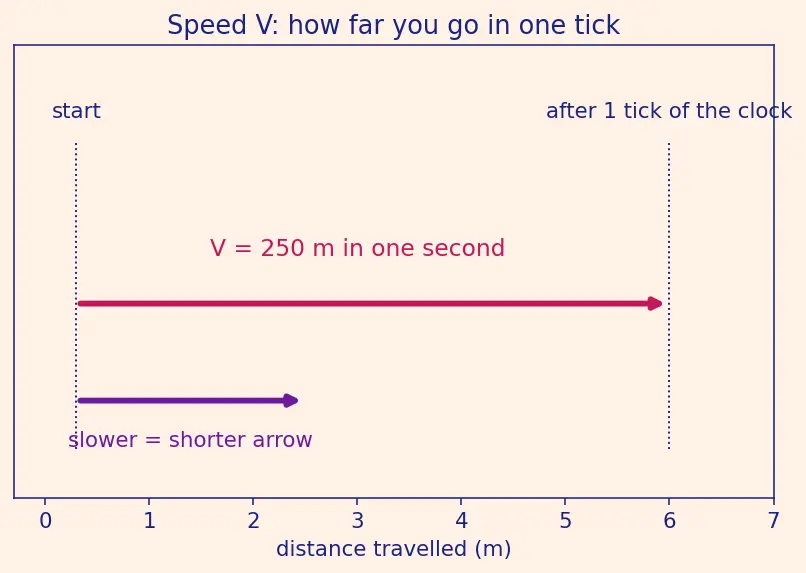

Picture: an arrow whose length is how far you go in one tick of a clock. A longer arrow = faster.

Why the topic needs it: $V$ is the top of the Mach fraction — the thing we compare against the messenger's speed. Without a number for "how fast," there is nothing to compare.

2. The messenger — sound and its speed $a$

Picture: drop a pebble in a pond — the ring spreading outward is the message travelling at speed $a$. In air the "ring" is a sphere of slightly-squeezed gas.

Why the topic needs it: $a$ is the bottom of the Mach fraction. It sets the speed limit of information in the fluid. Everything about shocks is "$V$ beat $a$ to the punch."

3. Temperature $T$ — the number that sets $a$

Picture: a jar of buzzing dots. Hot = dots fly fast and collide often; cold = dots crawl and collide rarely.

Why the topic needs it: faster molecules pass the pressure-squeeze along sooner, so hotter gas carries sound faster. Because $a$ rides on $T$, the same plane speed gives different Mach numbers at different altitudes — the whole point of the parent's Example 2.

4. Square root ​ — undoing a square

Why this tool and not another? The physics of a sound wave (derived in the parent) lands on $a^2=\gamma RT$ — the quantity that comes out naturally is $a$ squared. To get $a$ itself we must undo the squaring, and the exact tool that undoes squaring is the square root. That is why $a=\sqrt{\gamma RT}$ and not something else.

Consequence to keep: because $a\propto \sqrt{T}$, you must quadruple the temperature to double the sound speed. Temperature has a gentle grip on $a$.

5. The gas constants $\gamma$ and $R$

Picture: think of the gas as a mattress of springs. $\gamma$ says how stiff each spring is; $R$ says what the springs are made of. Together with $T$ (how much they're already vibrating) they fix the sound speed.

Why the topic needs them: they turn the state of the gas ($T$) into a concrete sound speed $a=\sqrt{\gamma RT}$. Without them, "hotter = faster sound" would stay a slogan instead of a number.

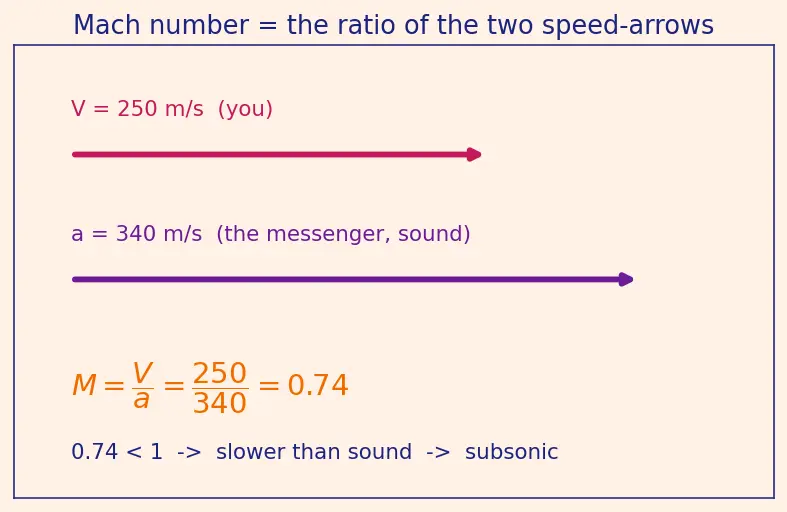

6. The ratio — dividing one speed by another

Why a ratio and not a difference $V-a$? A difference would carry units (m/s) and would mean different things in different gases. A ratio answers the only question that matters physically — "did you beat the messenger or not?" — with one clean number. $M=1$ is a tie, no matter the gas or temperature.

Reading the number:

• $M<1$: slower than sound → the fluid is warned in time (subsonic).
• $M=1$: exact tie (sonic).
• $M>1$: outran the message → shocks form (supersonic).

7. The angle $\mu$ and the trig tools $\sin$, $\arcsin$

When $V>a$ the wavefronts pile into a cone, and its sharpness is measured by an angle.

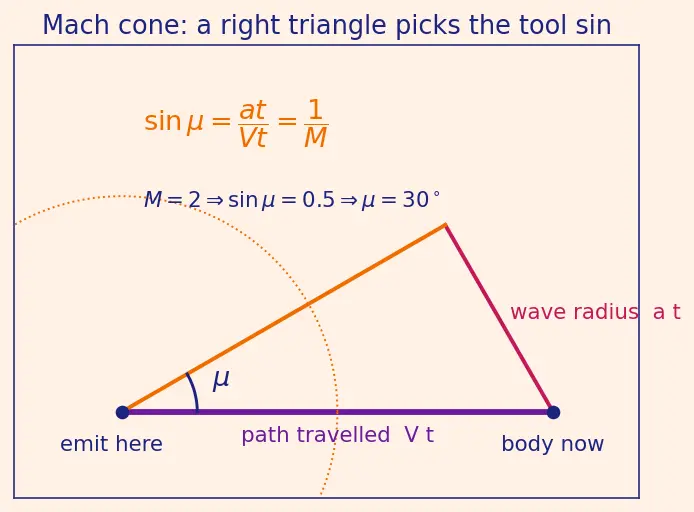

Why $\sin$ here? In time $t$ the body travels $Vt$ (the hypotenuse) while a wave it emitted has grown to radius $at$ (the side opposite the half-angle). The ratio opposite/hypotenuse is exactly $\sin \mu =at/Vt=1/M$. The geometry hands us a right triangle, so the tool that reads angles off right triangles — $\sin$ — is the natural choice.

Limits to keep straight:

• At $M=1$: $\sin \mu =1$, so $\mu =90°$ — a flat wall of sound perpendicular to the path.
• As $M\to \infty$: $1/M\to 0$, so $\mu \to 0°$ — a needle-thin cone hugging the body.

This all deepens in Oblique Shocks & Mach Cone.

8. The differential nudge $d()$

The parent's derivation writes $dp$, $d\rho$, $da$. These are not typos.

Picture: stand on a hillside and take one small step. $dx$ is how far east you stepped; the tiny rise you gained is $dy$. Two small steps multiplied together ($dxdy$) is negligibly tiny — a speck of a speck.

Why the topic needs it: sound is a weak disturbance — only a whisper of extra pressure. Modelling it with tiny changes ($dp$, $d\rho$) is exactly why the messy conservation laws collapse into the clean $a^2=dp/d\rho$. This is the seed of calculus you will use again in Isentropic Flow Relations.

9. Density $\rho$ and pressure $p$ — the squishing pair

Why the topic needs them: the whole "does the gas squish?" story is about $\rho$ changing. Below $M\approx 0.3$ density barely moves and we may pretend it's constant (incompressible); above it, $\rho$ changes enough to matter — see Compressibility & Bernoulli's Limits and Prandtl–Glauert Correction.

Prerequisite map

Equipment checklist

Predict each answer, then reveal.
