Foundations — Diffraction grating — condition for maxima

This page builds every symbol the parent note uses, starting from things a 12-year-old already knows: distances, angles, and waves. Nothing here assumes you have seen the grating equation before.

1. What is a wave, and what is a wavelength $\lambda$?

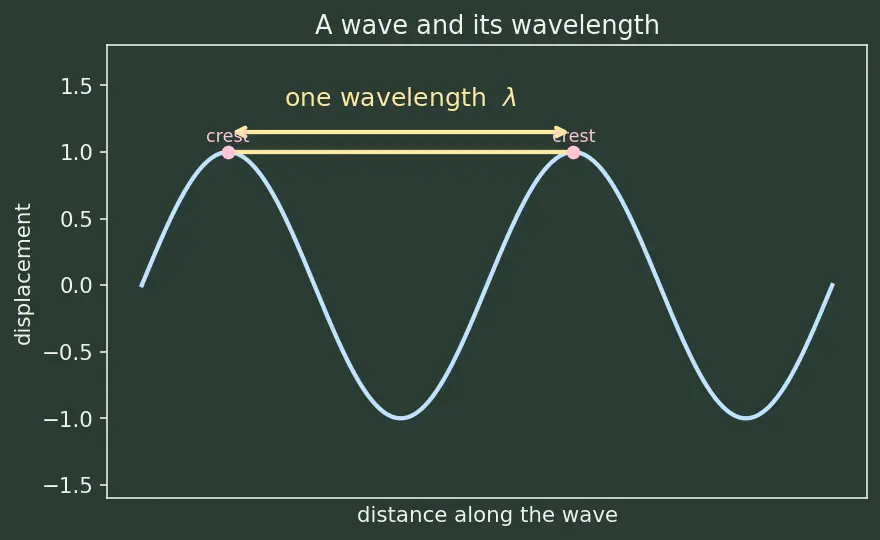

The picture. Look at the drawing below: the wavy blue line is the wave, and $\lambda$ is the gap between two neighbouring peaks.

Why the topic needs it. The whole grating idea is about waves lining up crest-to-crest. To say "the crests line up" we must measure distance in units of $\lambda$. If two waves are shifted by exactly one $\lambda$ (or two, or three…), their crests sit on top of each other again. That is why $\lambda$ is the ruler we measure everything against.

See Wavelength and the visible spectrum for why different colours have different $\lambda$.

2. In phase and out of phase — what "crests line up" means

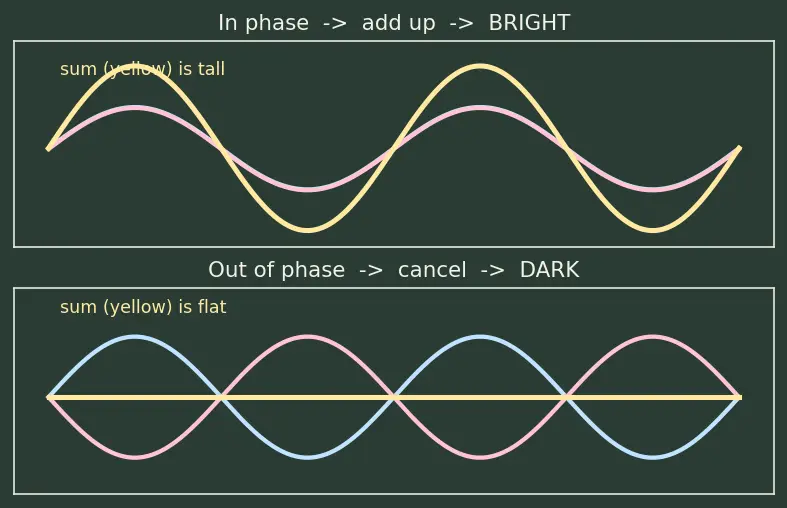

The picture. Top pair: crests aligned → the sum (yellow) is tall and bright. Bottom pair: crest meets trough → the sum is flat and dark.

Why the topic needs it. "Bright maximum" literally means "the waves arrived in phase." "Dark" means "out of phase." The grating equation is nothing more than the precise condition for in phase. This is the same constructive/destructive idea from Interference and path difference and Young's double-slit experiment.

3. Path difference $\Delta$ — the extra distance one wave travels

Why it decides everything. Two waves start together (in phase). Whether they arrive in phase depends only on the extra distance one gained on the way. Measure that extra distance in wavelengths:

• $\Delta =0,\lambda ,2\lambda ,3\lambda ,\dots$ (a whole number of $\lambda$) → arrive in phase → bright.
• $\Delta =\frac{1}{2}\lambda ,\frac{3}{2}\lambda ,\dots$ (a half-odd number) → arrive out of phase → dark.

Why the topic needs it. The parent's headline equation is just "$\Delta =m\lambda$" with $\Delta$ replaced by its geometric value. So we must (a) know what $\Delta$ is and (b) be able to compute it from the geometry. That geometry needs angles and a right triangle — next.

4. Angle $\theta$ and the normal — "which direction is the light leaving?"

The picture (see §5 figure). $\theta =0$ means straight ahead (along the normal). Bigger $\theta$ means the light heads off more and more to the side.

Why the topic needs it. Each bright line comes out at its own special angle. Naming that direction $\theta$ lets us write one equation that predicts where each colour appears. And because $\theta$ is an angle, we need a tool that connects an angle to a length — that tool is the sine.

5. Grating spacing $d$ and the sine — building $\Delta =d\sin \theta$

Now the key geometric step from the parent note. Two neighbouring slits are a distance $d$ apart. Light leaves both at angle $\theta$. To find the extra distance the lower ray travels, drop a perpendicular from the top slit onto the lower ray:

Rearranging $\sin \theta =\frac{\Delta }{d}$ gives:

Why the topic needs it. This single line is the bridge from geometry (slits, angles) to the wave rule (§3). Combine it with "bright when $\Delta$ is a whole number of $\lambda$" and you get the whole grating equation. Note also: since $\sin \theta$ can never exceed $1$, $\Delta$ can never exceed $d$ — that is why only finitely many orders exist.

6. The order number $m$ — counting whole wavelengths

Why $m$ can be negative. The $\pm$ sign is not decoration — it says the pattern is symmetric. Light can swing to the left of the normal ($\theta$ negative) or the right ($\theta$ positive) by the same amount, giving two bright lines for each nonzero $m$. Forgetting the negative side is why people miscount the total number of maxima.

7. The floor $\lfloor \rfloor$ — rounding down to a whole order

Why the topic needs it. Because $\sin \theta \le 1$, the largest allowed order is $d/\lambda$, which is usually not a whole number. Orders must be whole, and you cannot exceed the limit — so you round down. That is exactly $m_{\max }=\lfloor d/\lambda \rfloor$.

8. How the pieces feed the topic

Equipment checklist

Test yourself: cover the right side and answer out loud.

Connections

• Interference and path difference — the bright/dark rule built in §3.
• Young's double-slit experiment — the two-slit case; a grating is the many-slit version.
• Single-slit diffraction — where the light from one slit spreads to reach these angles.
• Wavelength and the visible spectrum — why $\lambda$ differs by colour.
• Resolving power and spectrometers — where sharp maxima become useful.
• Diffraction grating — condition for maxima — the parent topic these foundations feed.
