Huygens' principle — wavefront propagation

WHAT is a wavefront?

WHY define it this way? Phase is what controls interference. If we track surfaces of equal phase, we can predict where bright/dark and bending happen without solving the full wave equation everywhere.

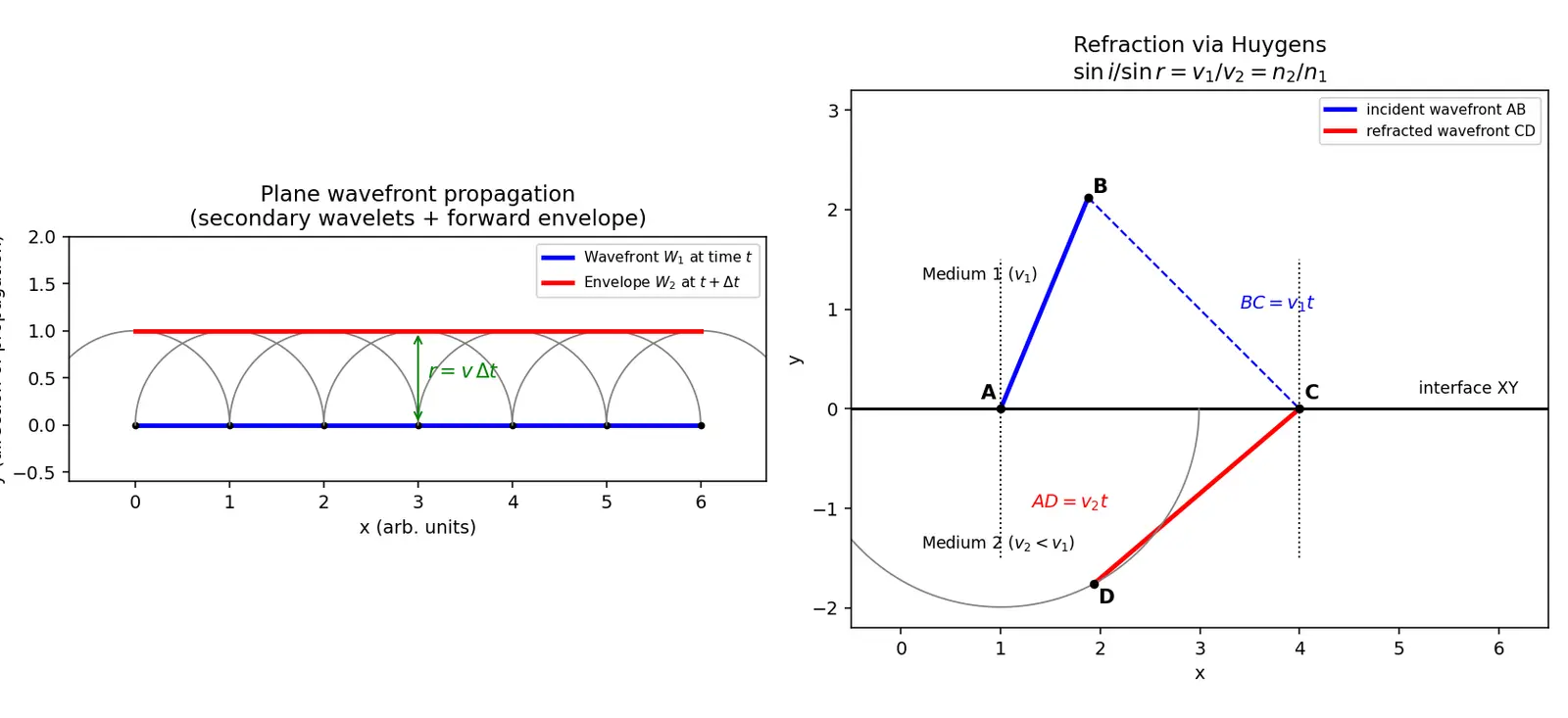

Figure — Huygens' principle — wavefront propagation

Huygens' Principle — the statement

WHY only the forward envelope? A pure Huygens construction has a flaw — wavelets should also go backward. Huygens just ignored the backward part by hand. Later (Fresnel/Kirchhoff) showed the backward wave is killed by an obliquity factor $\propto \tfrac{1}{2}(1+\cos\theta)$ , which is $1$ forward and $0$ backward. So the forward-only rule is physically justified, not a fudge.

HOW to construct the next wavefront (the recipe)

DERIVATION 1 — Plane wave stays plane (and law of straight propagation)

Take a plane wavefront $W_1$ . Choose points $A, B, C$ on it, all in the same phase.

Each emits a wavelet of radius $r = v\Delta t$ — the same radius, because the medium speed $v$ is the same and they all started in phase. Why same radius? Same $v$ , same start time.
The tangent to equal-radius circles whose centres lie on a straight line is itself a straight line parallel to $W_1$ , at distance $v\Delta t$ .

$\text{distance moved} = v\,\Delta t, \qquad W_2 \parallel W_1$

So a plane wave advances as a parallel plane → light travels in straight lines in a uniform medium. ✔

DERIVATION 2 — Law of Reflection from Huygens

A plane wavefront $AB$ hits a mirror $MM'$ . Let end $A$ touch first; the other end $B$ still has to travel to the surface at point $C$ .

Let $BC = v t$ (time for $B$ to reach surface at $C$ ). During that same time, the wavelet from $A$ spreads a hemisphere of radius $AE = v t$ into the medium on the same side.

Why this works: the reflected wavefront $CE$ is the tangent to the reflected wavelets; congruent triangles force the incidence and reflection geometry to match.

DERIVATION 3 — Snell's Law (Refraction) from Huygens

Plane wavefront $AB$ hits surface $XY$ between medium 1 (speed $v_1$ ) and medium 2 (speed $v_2$ ). End $A$ enters first.

Time for $B$ to reach surface at $C$ : $\;BC = v_1 t$ .
In that time the wavelet from $A$ has travelled into medium 2: $\;AD = v_2 t$ .

In right triangles on the common line $AC$ : $\sin i = \frac{BC}{AC} = \frac{v_1 t}{AC}, \qquad \sin r = \frac{AD}{AC} = \frac{v_2 t}{AC}$

Divide: $\frac{\sin i}{\sin r} = \frac{v_1}{v_2} = \text{constant} = {}_1n_2$

Why frequency stays constant but wavelength changes: the wavefronts are continuous across the boundary, so the number of crests per second (frequency) cannot change. But speed changes, so $\lambda = v/f$ changes: $\lambda_2/\lambda_1 = v_2/v_1$ .

Common mistake Steel-manning the common errors

Mistake A: "Wavelets go in all directions, so a flat wave should also spread backward and sideways into a blur." Why it feels right: each point really does emit a full sphere. The fix: the obliquity factor $\tfrac12(1+\cos\theta)$ makes amplitude maximum forward and zero backward, and along the envelope sideways wavelets are out of phase and destructively cancel. Only the forward tangent survives.

Mistake B: "In refraction the frequency changes because the colour/speed changes." Why it feels right: speed and wavelength both change, so something must give. The fix: wavefronts join continuously at the boundary → crests can't pile up or vanish → frequency is conserved. Only $\lambda$ and $v$ change.

Mistake C: "Light slows in glass means its energy decreases." Why it feels right: "slower = weaker" intuition. The fix: speed change is about phase propagation in the medium; intensity is about amplitude. Slowing ≠ losing energy.

Mistake D: confusing ray and wavefront direction. They are perpendicular, not parallel.

Recall Feynman: explain to a 12-year-old

Imagine a row of friends standing in a line, all clapping at the same moment. Now imagine each clap makes a ripple of sound spreading out like a circle. A moment later, all those little circles together form a new line of sound, a step ahead. That new line is the wavefront. Light does the same: every spot on the glowing line becomes a tiny new lamp, and all the tiny lamps together make the next glowing line. When this line of ripples meets a slanted surface, the friends nearest the surface "arrive" first, so the whole line tilts — that tilt is exactly why light bends and reflects.

Flashcards

What is a wavefront?

The locus of all points of a wave that are in the same phase at a given instant.

What is the relation between a ray and a wavefront?

The ray is perpendicular to the wavefront and points in the direction of energy propagation.

State Huygens' principle (2 parts).

(1) Every point on a wavefront is a source of secondary spherical wavelets travelling at speed v; (2) the new wavefront is the forward envelope (common tangent) of these wavelets.

Why is the backward wavefront ignored in Huygens' construction?

The obliquity factor ½(1+cosθ) makes wavelet amplitude zero in the backward direction (θ=180°) and maximum forward.

What shape are wavefronts very far from a point source?

Plane (flat) wavefronts.

In Huygens' reflection derivation, what fact gives ∠i = ∠r?

BC = AE = vt, making triangles ABC and AEC congruent.

Derive the ratio sin i / sin r from Huygens.

BC = v₁t, AD = v₂t, common hypotenuse AC ⇒ sin i/sin r = v₁/v₂ = n₂/n₁.

During refraction, which quantity stays constant: frequency or wavelength?

Frequency (wavefronts are continuous across the boundary); wavelength and speed change.

If light goes from rarer to denser medium, does it bend toward or away from normal? Why?

Toward the normal, because v decreases (n increases), so sin r < sin i.

What is the radius of each secondary wavelet after time t?

r = v·t, where v is the wave speed in the medium.

Connections

Wave Optics — Interference (wavefronts overlapping → constructive/destructive)
Young's Double Slit Experiment (secondary sources at the two slits)
Diffraction (Huygens explains bending around edges)
Snell's Law and Refractive Index
Laws of Reflection
Fresnel–Kirchhoff Diffraction (the rigorous fix with obliquity factor)
Phase and Path Difference

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, Huygens ka principle bilkul simple idea hai. Jo wavefront hai — yaani saare points jo same phase mein oscillate kar rahe hain — uske har ek point ko ek chhota "naya source" maan lo. Har point se ek chhoti spherical wavelet nikalti hai jo medium ki speed $v$ se aage badhti hai. Thodi der $\Delta t$ baad har wavelet ka radius $v\Delta t$ ho jaata hai, aur in saari wavelets ka jo common forward tangent (envelope) banta hai, wahi naya wavefront hai. Bas yahi recipe baar-baar lagao aur wave aage badhta jaata hai.

Ek doubt sabko aata hai: agar har point sphere bhejta hai, to wave peeche kyun nahi jaata? Iska jawab hai obliquity factor $\frac12(1+\cos\theta)$ — yeh forward direction ( $\theta=0$ ) mein $1$ hota hai aur backward ( $\theta=180°$ ) mein $0$ . Isiliye sirf aage wala envelope bachta hai, peeche cancel ho jaata hai. Yeh fudge nahi hai, baad mein Fresnel-Kirchhoff ne prove kiya.

Iska real power yeh hai ki reflection aur refraction dono laws isse derive ho jaate hain. Mirror pe wavefront ka ek end pehle touch karta hai, dusra baad mein — equal radii wali wavelets se congruent triangles bante hain aur $\angle i=\angle r$ aa jaata hai. Refraction mein medium badalne par speed $v$ change hoti hai (frequency same rehti hai kyunki wavefronts boundary pe continuous hain), aur seedha $\frac{\sin i}{\sin r}=\frac{v_1}{v_2}=\frac{n_2}{n_1}$ — yaani Snell's law nikal aata hai. Isiliye yeh chapter Wave Optics, interference aur diffraction ki neev hai.
