Foundations — Equipartition theorem — ½k_BT per quadratic degree of freedom

This page assumes you have seen nothing. We build each symbol from a picture, in an order where each one only uses the ones before it. When you finish, the parent Equipartition derivation will read like plain sentences.

1. The picture behind everything: a coordinate $q$

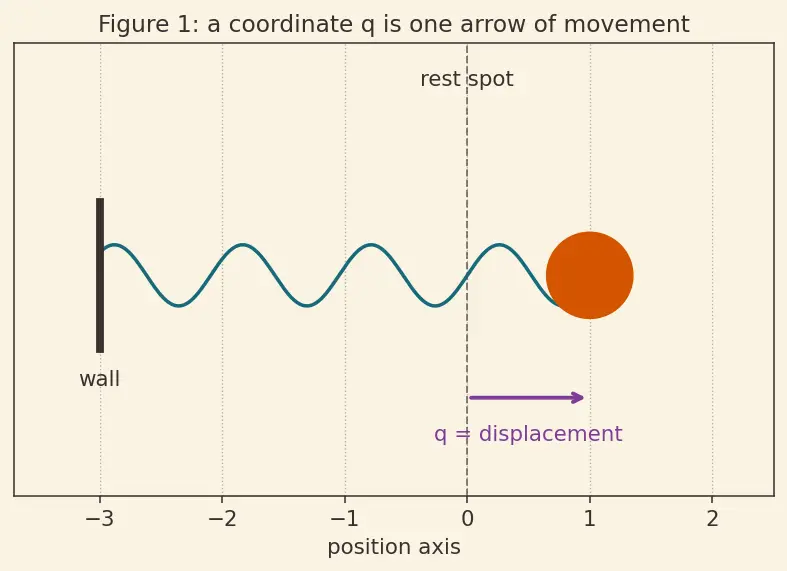

Look at Figure 1. A ball on a spring can be pushed left or right; the arrow labelled $q$ measures how far it is from the resting spot. If we instead tracked how fast it moves, that speed would be another coordinate. One arrow = one coordinate.

Why the topic needs it: equipartition is a statement about "each independent way of storing energy". Each such way is one coordinate $q$. Before we can count them, we must be able to point at one.

2. Energy $E$, and what "quadratic" means

Now the key shape. When you stretch a spring by $q$, the stored energy is not proportional to $q$ — it grows like $q$ squared.

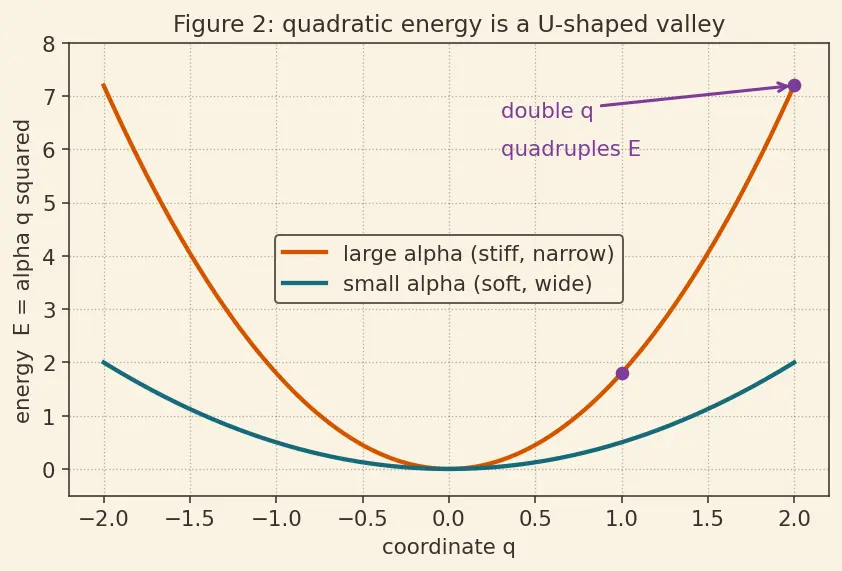

Look at Figure 2. The energy-vs-$q$ curve is a valley (a parabola): flat at the bottom, steep on the sides. Double the stretch $q$ and you quadruple the energy, because $2^2=4$. That U-shape is the visual signature of "quadratic".

Why the topic needs it: the whole $\frac{1}{2}{k}_{B}T$ result only works for the $q^2$ shape. If the energy were $q^4$ or $|q|$, the answer changes. So "quadratic" is the entry ticket.

3. The constant $\alpha$ — stiffness or mass

A big $\alpha$ means a narrow, steep valley (hard to stretch); a small $\alpha$ means a wide, gentle valley (easy to stretch). Figure 2 draws both.

Why the topic needs it: the punchline of equipartition is that $\alpha$ cancels out of the final energy. You cannot appreciate that surprise until you know $\alpha$ is the mass/stiffness you'd expect to matter.

4. Temperature $T$ and Boltzmann's constant $k_B$

Why the topic needs it: $\frac{1}{2}{k}_{B}T$ is the entire answer. $T$ is the input, $k_B$ converts it to energy.

5. Probability, and the Boltzmann weight $e^{-E/k_{B}T}$

Random jiggling doesn't visit all configurations equally — low-energy ones are far more common. How much more? This is the single most important formula feeding equipartition.

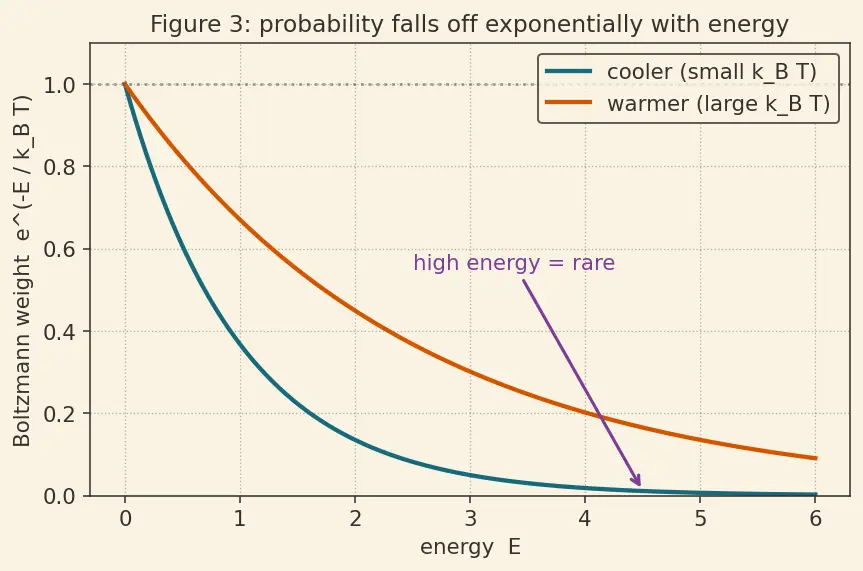

Look at Figure 3. As energy $E$ climbs, this weight falls off a cliff. The width of the cliff is set by $k_{B}T$: a warmer system (bigger $k_{B}T$) tolerates higher-energy configurations, so its curve falls more gently.

Why the topic needs it: every average in the derivation weights each value of $q$ by this factor. It is the "how likely" ingredient.

6. Averaging: $⟨\cdots ⟩$ and the integral $\int$

We keep saying "average energy". Here is what the brackets mean.

Putting the last three sections together, the average energy in one quadratic slot is $⟨\alpha q^2⟩=\frac{{\int }_{-\infty }^{\infty }\alpha q^2{e}^{-\alpha q^2/k_{B}T}dq}{{\int }_{-\infty }^{\infty }{e}^{-\alpha q^2/k_{B}T}dq}.$ Read it in plain words: top = "sum of (energy × its Boltzmann weight)"; bottom = "sum of the weights" (this normalises, so the total probability is 1). The ratio is exactly the weighted average defined above.

Why the topic needs it: this ratio is the theorem's left-hand side. Everything before this section existed to let us write this one line honestly.

7. The Gaussian (bell curve) $e^{-a{q}^2}$

The Boltzmann weight of a quadratic energy, $e^{-\alpha q^2/k_{B}T}$, is a Gaussian with $a=\alpha /k_{B}T$. So the two integrals above are just bell-curve areas — that is why the messy-looking average has a clean answer.

8. $\beta$, the partition function $Z$, and the derivative trick

Two last shorthands the parent uses.

How the foundations feed the theorem

Equipment checklist

Test yourself — reveal only after answering out loud.

When every line above is a reflex, go read the parent Equipartition derivation — it will read like a story.
