Maxwell-Boltzmann speed distribution — derivation (key for propulsion)

1. What are we actually after?

WHAT we want: an explicit formula for $f(v)$ in terms of speed $v$ , temperature $T$ , and molecular mass $m$ .

2. Derivation from first principles

We build $f(v)$ from two independent ideas and multiply them.

Step A — The velocity (vector) distribution

Let $g(v_x)$ be the distribution of one component. By independence: $F(v_x,v_y,v_z) = g(v_x)\,g(v_y)\,g(v_z).$

Why this step? Independence means the joint probability is the product of the marginals.

But isotropy demands $F$ depend only on $v_x^2+v_y^2+v_z^2$ . The only function whose product splits like that and depends only on the sum of squares is an exponential of a quadratic: $g(v_x) = A\,e^{-\beta v_x^2}.$

Why this step? We need $g(v_x)g(v_y)g(v_z)=A^3 e^{-\beta(v_x^2+v_y^2+v_z^2)}$ to be a function of $v^2$ — only the exponential turns sums in the exponent into products outside. The minus sign keeps probability finite at large speed.

Step B — Fix $\beta$ using physics (equipartition)

Why this step? Temperature is defined by mean kinetic energy. This is what injects $T$ into the formula.

Normalizing $\int_{-\infty}^\infty A e^{-\beta v_x^2}dv_x=1$ using $\int_{-\infty}^\infty e^{-\beta x^2}dx=\sqrt{\pi/\beta}$ gives $A=\sqrt{\beta/\pi}=\sqrt{\dfrac{m}{2\pi k_BT}}$ .

Step C — From velocity-space to speed (the $4\pi v^2$ factor)

The density in velocity space is $F=A^3 e^{-\beta v^2}$ . To get speeds, integrate over the spherical shell of thickness $dv$ (volume $4\pi v^2\,dv$ ): $f(v)\,dv = \underbrace{4\pi v^2}_{\text{shell area}}\;\underbrace{\left(\frac{m}{2\pi k_BT}\right)^{3/2} e^{-\frac{mv^2}{2k_BT}}}_{F(v)}\;dv.$

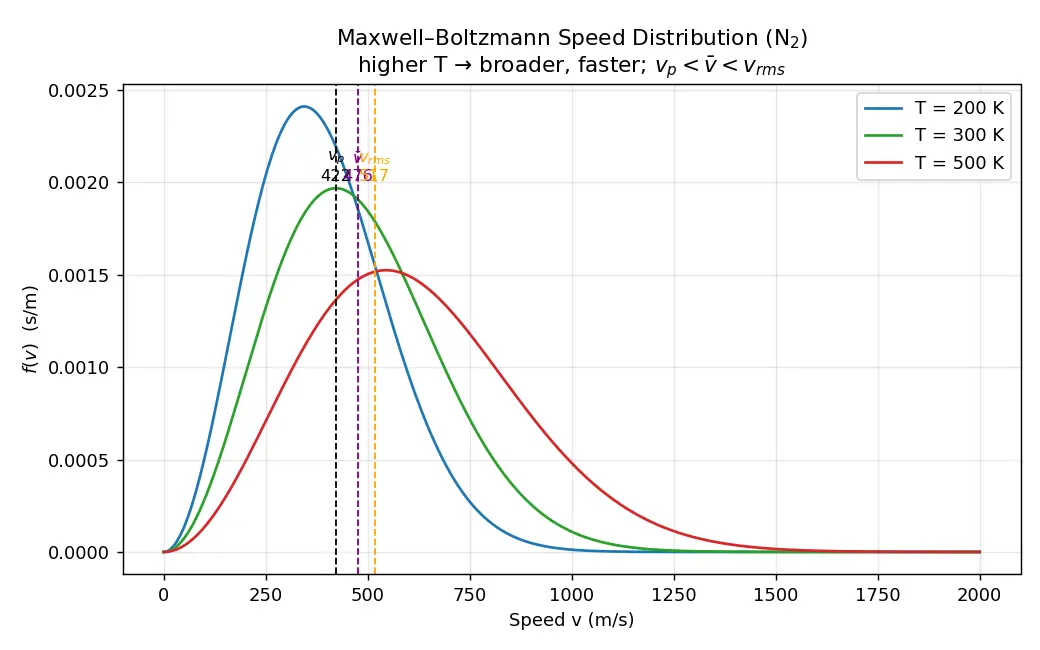

Figure — Maxwell-Boltzmann speed distribution — derivation (key for propulsion)

3. The three characteristic speeds

Derive each by asking a different question.

4. Worked examples

5. Common mistakes (Steel-man → Fix)

6. Forecast-then-Verify

Recall Feynman: explain to a 12-year-old

Imagine a huge crowd of bumper cars bashing into each other forever. They can't all keep the same speed — every crash speeds one up and slows another. After a while you get a pattern: very few cars are crawling, very few are zooming super fast, and most are somewhere in the middle but leaning toward the fast side. That lopsided "most are medium, a few are rockets" pattern is the Maxwell–Boltzmann curve. Heat them up (more temperature) and the whole crowd shifts toward faster — that's how rockets push hot gas out fast to fly.

Connections

Kinetic Theory of Gases — pressure from molecular momentum transfer
Equipartition Theorem — supplies $\tfrac12 k_BT$ per DOF (fixes $\beta$ )
Boltzmann Distribution — energy version $e^{-E/k_BT}$ , parent of MB
Mean Free Path — uses $\bar v$
Rocket Propulsion & Specific Impulse — why low- $m$ exhaust wins
Effusion and Graham's Law — rate $\propto \bar v \propto 1/\sqrt m$

Flashcards

What does

f(v)\,dv

represent?

Fraction of molecules with speed between

v

and

v+dv

Why does

f(v)

contain a

v^2

factor?

It counts the

4\pi v^2

surface area of the speed-shell in velocity space (more directions for larger speed).

Why is each velocity component a Gaussian?

Independence of components + isotropy forces

g\propto e^{-\beta v^2}

How is

\beta

determined?

From equipartition

\langle\tfrac12 m v_x^2\rangle=\tfrac12 k_BT

, giving

\beta=m/2k_BT

Full MB speed distribution formula?

f(v)=4\pi(m/2\pi k_BT)^{3/2}v^2 e^{-mv^2/2k_BT}

Most probable speed

v_p

\sqrt{2k_BT/m}

(set

df/dv=0

Mean speed

\bar v

\sqrt{8k_BT/\pi m}

RMS speed

v_{rms}

\sqrt{3k_BT/m}

Order of the three speeds?

v_p<\bar v<v_{rms}

(ratio

1:1.128:1.225

Why is the curve skewed not symmetric?

The

v^2

rise multiplies the Gaussian fall, producing a long high-speed tail.

Why does

f(0)=0

The

v^2

factor vanishes at

v=0

Propulsion: why prefer light gas (H₂)?

v_{rms}\propto1/\sqrt m

, so lighter molecules give higher exhaust speeds and specific impulse.

What happens to peak height as

T

rises?

It lowers and broadens (normalization keeps total area = 1).

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, gas ke molecules sab same speed se nahi chalte. Har second mein billions collisions hoti hain, aur har takkar mein energy idhar-udhar transfer hoti hai. Isliye ek statistical pattern ban jaata hai — kuch molecules slow, kuch bahut fast, par zyada-tar beech mein. Is pattern ko Maxwell–Boltzmann speed distribution kehte hain: $f(v)$ batata hai ki kitna fraction molecules ki speed $v$ ke aas-paas hai.

Derivation ka core idea simple hai. Pehle, har velocity component ( $v_x,v_y,v_z$ ) independent aur isotropic hai, isliye uska distribution Gaussian banta hai: $e^{-\beta v_x^2}$ . Phir equipartition se ( $\tfrac12 k_BT$ per degree of freedom) hum $\beta = m/2k_BT$ nikaalte hain — yahin se temperature formula mein ghusta hai. Aakhir mein, hume sirf speed chahiye, direction nahi — to velocity-space mein radius $v$ ke shell ka area $4\pi v^2$ multiply karna padta hai. Yeh $v^2$ factor hi curve ko $v=0$ par zero karta hai aur ek skewed peak deta hai.

Teen speeds yaad rakho: $v_p=\sqrt{2k_BT/m}$ (peak), $\bar v=\sqrt{8k_BT/\pi m}$ (average), $v_{rms}=\sqrt{3k_BT/m}$ . Order hamesha $v_p<\bar v<v_{rms}$ — kyunki tail (fast molecules) average ko right mein kheech leta hai.

Propulsion ke liye yeh game-changer hai: $v_{rms}\propto 1/\sqrt{m}$ . Halka gas (jaise hydrogen) zyada fast nikalta hai nozzle se, matlab zyada thrust aur zyada specific impulse. Isiliye rocket engineers light propellant pasand karte hain. Yaad rakho — heat badhao to poori crowd fast ho jaati hai!
