Foundations — Maxwell-Boltzmann speed distribution — derivation (key for propulsion)

This page assumes nothing. If the parent note Maxwell–Boltzmann derivation used a symbol without explaining it, we explain it here — in order, each one leaning on the previous.

0. How to read every formula on this topic

Every symbol below is a little machine: it takes something in and gives something out. We will always ask three questions: what does it mean in plain words, what picture does it draw, and why does the topic need it.

1. Speed $v$ — the star of the show

Picture: a single molecule as a dot with an arrow. The length of the arrow is $v$. Turn the arrow any direction you like — the length (the speed) does not change.

Why the topic needs it: the entire Maxwell–Boltzmann law is a statement about how many molecules have each speed. Speed is the horizontal axis of the whole story.

2. Velocity components $v_x,v_y,v_z$ — splitting an arrow into three

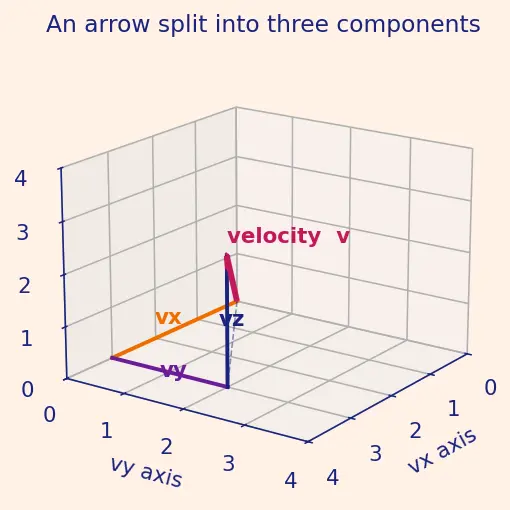

Picture (see figure): the red arrow is the true velocity. Its shadow on the floor gives $v_x$ and $v_y$; its shadow up the wall gives $v_z$. The arrow is the hypotenuse of a 3D box built from the three shadows.

Why the topic needs it: the derivation starts in component land (where each direction is simple and independent) and only later collapses back to speed. You cannot follow Step A of the parent without $v_x,v_y,v_z$.

3. Fraction and the distribution function $f(v)$

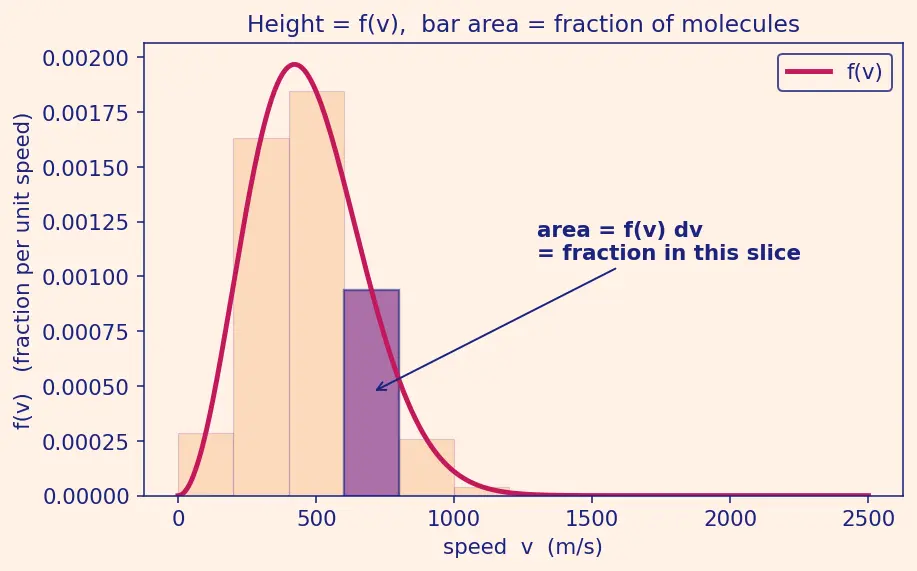

Picture: think of a histogram. Slice the speed axis into thin bars of width $dv$. The height of a bar is $f(v)$; the area of a bar, height $\times$ width $=f(v)dv$, is the fraction of molecules in that slice.

4. The tiny width $dv$ and the integral $\int$

Picture: the total area under the whole $f(v)$ curve equals exactly $1$. If you heat the gas, the curve flattens and spreads — but the area underneath stays pinned at $1$, because you never lose or gain molecules.

Why the topic needs it: normalization is the equation that fixes the leading constant $A$ in the parent's derivation. No integral, no way to know how tall the curve is.

5. Mean / average $⟨\cdot ⟩$ — the angle-bracket machine

Picture: a weighted balance point. Each speed slice pushes on a see-saw; the slice with more molecules ($f$ big) pushes harder. $⟨Q⟩$ is where the see-saw balances.

Two averages the topic uses:

• $⟨v⟩=\bar{v}$ : the plain mean speed ($Q=v$).
• $⟨v^2⟩$ : the mean of the squares, used for energy ($Q=v^2$).

6. Temperature $T$ and Boltzmann's constant $k_B$

Picture: $k_B$ is a currency converter. Temperature is priced in kelvin; energy is priced in joules; $k_{B}T$ is one molecule's "energy budget" per direction of motion.

Why the topic needs it: every characteristic speed has the form $\sqrt{(\text{number})k_{B}T/m}$. The combination $k_{B}T/m$ is a speed-squared — it sets how fast the crowd runs.

7. Molecular mass $m$

Picture: heavier molecules are sluggish bowling balls; lighter molecules are ping-pong balls. Given the same energy budget $k_{B}T$, the light ones must move faster ($v\propto 1/\sqrt{m}$).

Why the topic needs it: $m$ is the propulsion punchline. Since every speed $\propto 1/\sqrt{m}$, light gases (hydrogen) fly out fastest — the reason they win in Rocket Propulsion & Specific Impulse.

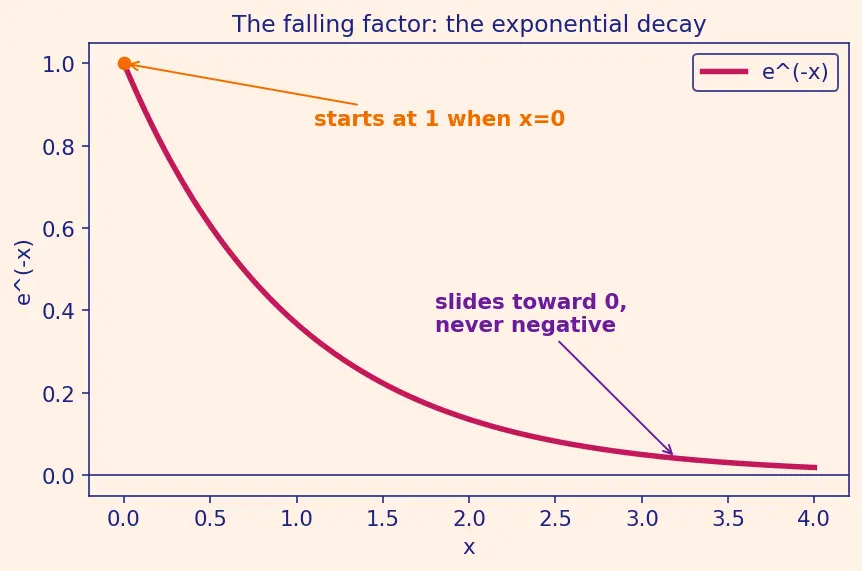

8. The exponential $e^{-\beta v^2}$ — the "falling" factor

Why the topic needs it: $e^{-\beta v^2}$ is the factor that suppresses super-fast molecules. It is one of the two tug-of-war factors that shape the whole curve.

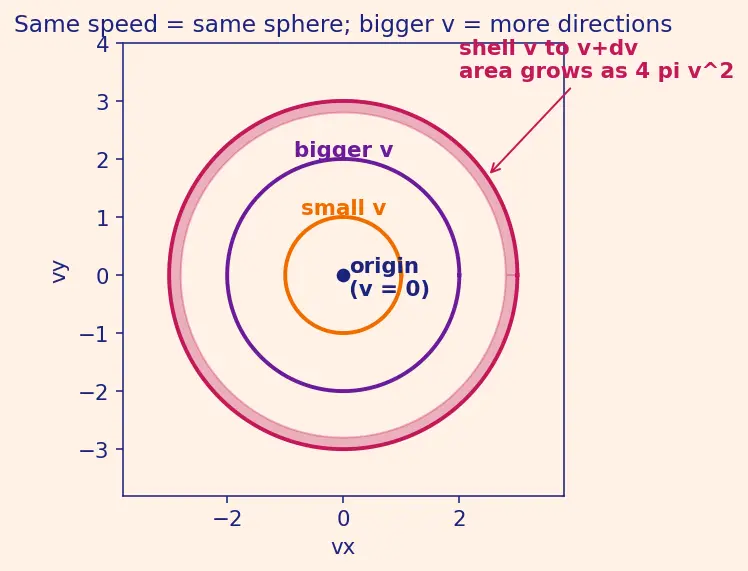

9. The shell factor $4\pi v^2$ — counting directions

Why the topic needs it: without $4\pi v^2$ you would have the velocity-vector density, not the speed density. Forgetting it is the most common derivation error (see the parent's mistakes section).

10. Putting the pieces together

The final law is just two of these bricks multiplied, times bookkeeping constants:

$f(v)=\underset{\text{§9: more directions}}{\underbrace{4\pi v^2}}\times \underset{\text{§6,7: normalization}}{\underbrace{{\left(\frac{m}{2\pi k_{B}T}\right)}^{3/2}}}\times \underset{\text{§8: rare fast ones}}{\underbrace{e^{-\frac{m{v}^2}{2k_{B}T}}}}.$

The rising $v^2$ and the falling $e^{-\beta v^2}$ fight; their product is a lopsided hill — the Maxwell–Boltzmann curve.

11. Prerequisite map

Read it top to bottom: components build speed, speed builds the spheres and the shell factor; the exponential plus the energy scale build the width $\beta$; fractions build the integral and averages — all of them feed the final $f(v)$ and the three speeds.

Equipment checklist

Test yourself — reveal only after you have answered aloud.

Connections

• Kinetic Theory of Gases — the crowd-of-molecules model these symbols describe
• Equipartition Theorem — supplies the $\frac{1}{2}{k}_{B}T$ energy scale (§6)
• Boltzmann Distribution — the energy version $e^{-E/k_{B}T}$ behind our exponential
• Mean Free Path — built on the averages $\bar{v}$ from §5
• Rocket Propulsion & Specific Impulse — why the $1/\sqrt{m}$ mass dependence matters
• Effusion and Graham's Law — another consequence of $\bar{v}\propto 1/\sqrt{m}$
